Reguliuojamos M20 juodos vartų vyrių auselės, suvirinamos, 100x100 mm

Kaina:
€24,38
Sandėlys:
Yra sandėlyje

Trumpai apie prekę

Prekė: Reguliuojamos M20 juodos vartų vyrių auselės, suvirinamos, 100x100 mm. Kategorija: Vyrių.

  • Gamintojas: PSG
  • Modelis: 61_019

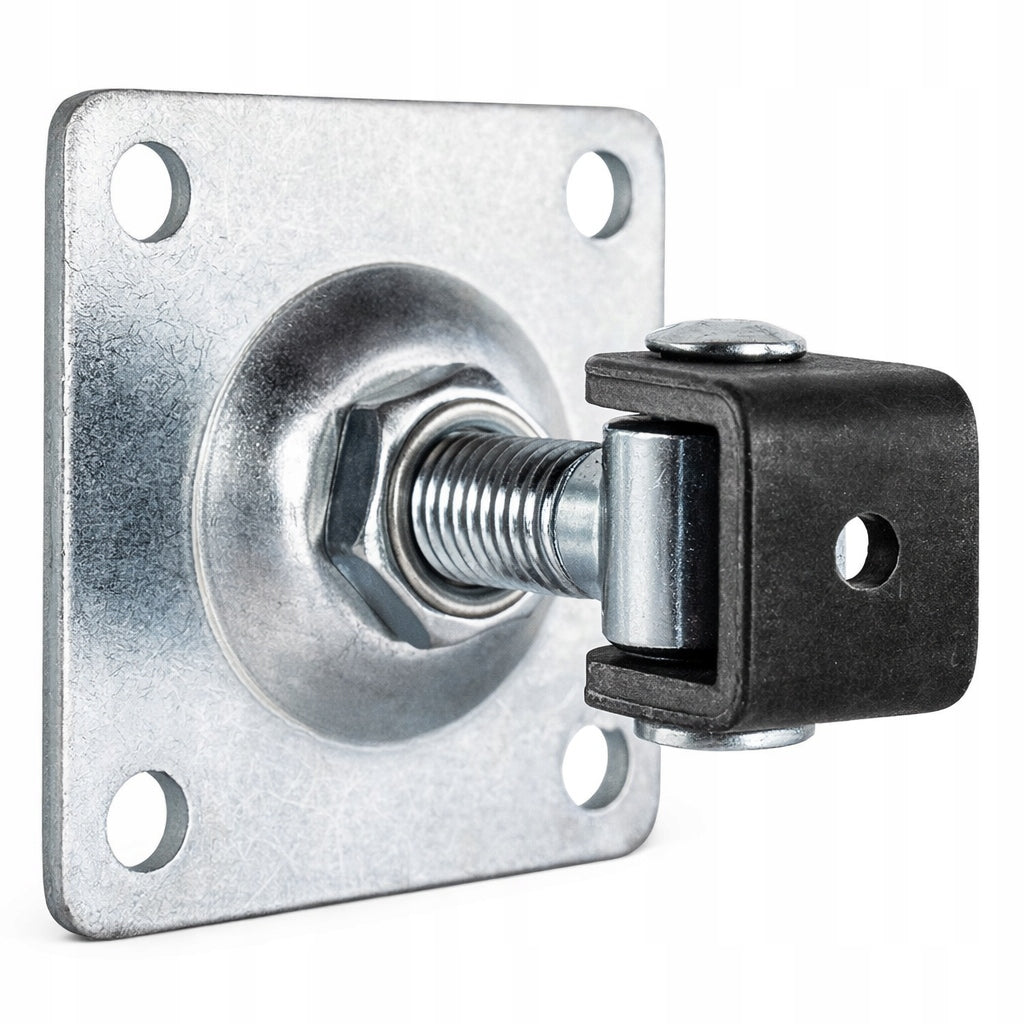

M20 Thread | Signboard: Zinc | Ear: Black Steel (For Welding)

Robust, steel hinge adjustable with M20 thread, designed for mounting heavy swing gates and wickets. The hybrid design makes it easy to install on a variety of surfaces:

  1. Szyld (100x100 mm): It has 4 holes, which allows for stable screwing of the hinge to a masonry post (concrete, clinker) or steel.
  2. Ear (Black): Made of raw steel, dedicated to welding to the gate frame.
  • READY FOR WELDING: The hinge ear is made of "black steel" (ungalvanized). Thanks to this, the welder does not have to grind the zinc coating before welding, which guarantees a durable weld and no toxic zinc fumes.
  • FULL ADJUSTMENT: With the M20 screw, you can smoothly adjust the distance of the wing from the post. This is a rescue in situations where:

    The post "works" in winter (the ground freezes and blows up the posts).

    The gate will fall under its own weight after a few years.

    There are extreme temperatures (thermal expansion of the metal).

  • CORROSION PROTECTION: The signboard, screw and nuts are galvanized, which ensures high rust resistance in outdoor conditions.

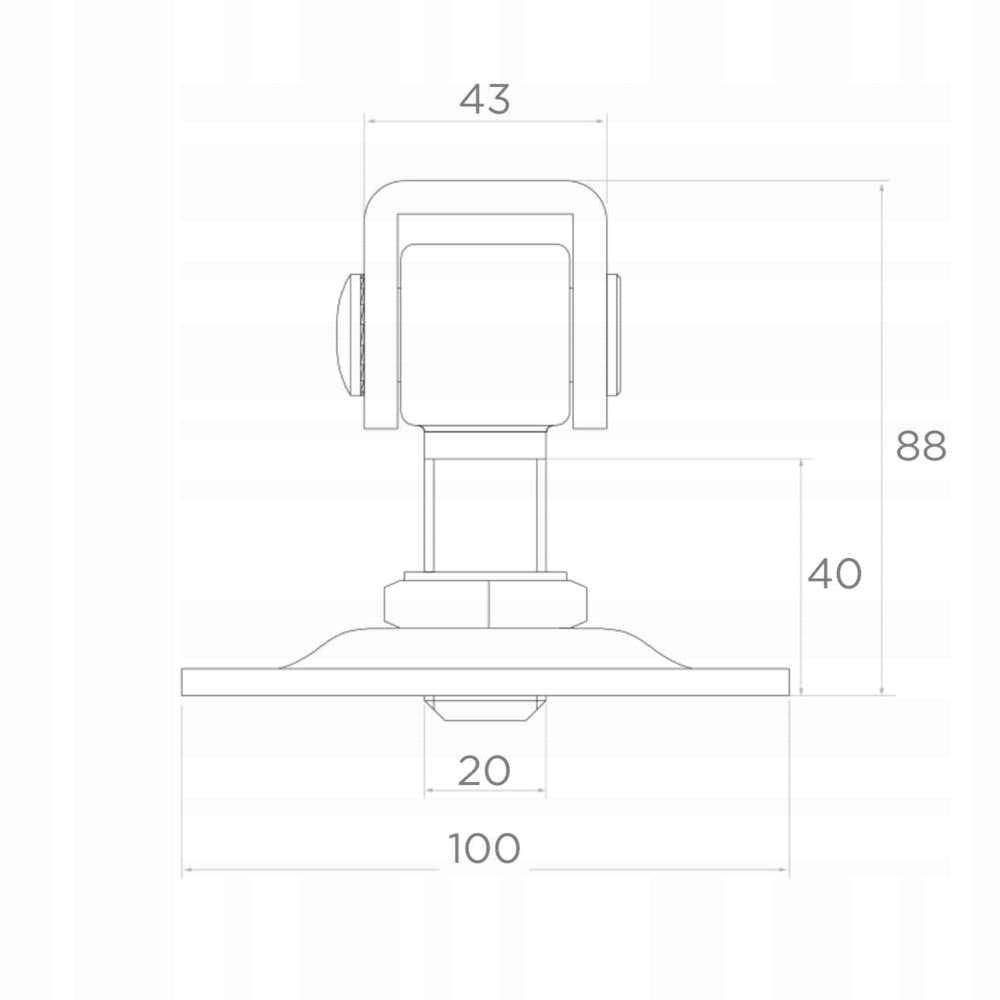

  • Thread: M20 (Very high strength)
  • Sign size: 100 x 100 mm
  • Sign thickness: 4 mm (Solid sheet metal)
  • Hole spacing: 4 mounting holes
  • Ear width: 43 mm
  • Total length: approx. 140 mm (with ear and screw)
  • Bearing capacity: approx. 105 kg (for a pair of hinges, at the wing 2m)

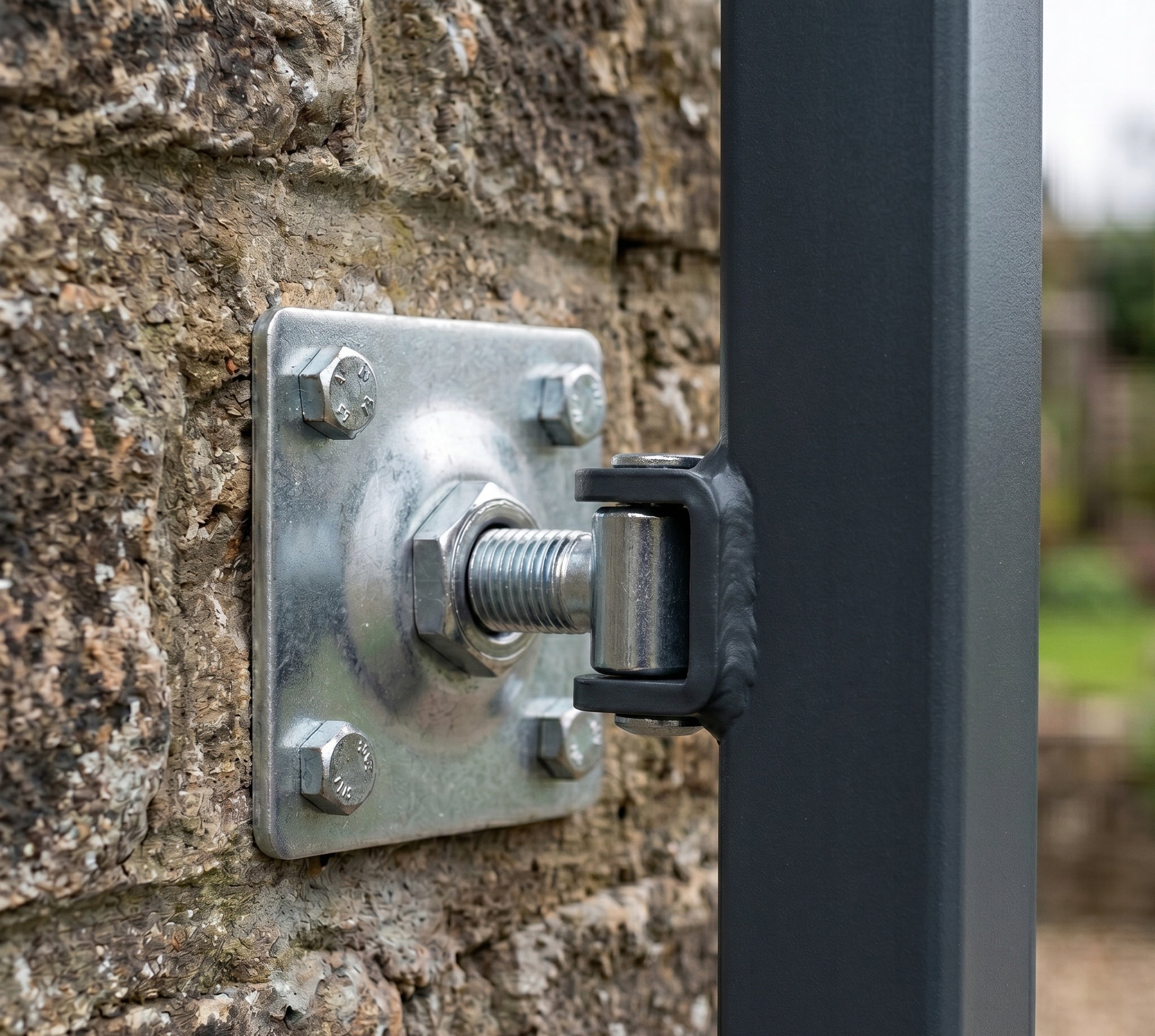

  1. Screw: Screw to the post with chemical anchors (wall) or screws (steel).
  2. Ear: Weld to the frame of the gate leaf.
  3. Adjustment: Once mounted, adjust the wing with a nut to fit the lock/bolt perfectly.
  4. Security: After welding the ear, remember to secure the weld site with anti-corrosion paint.
  1. Mounting sign 100x100 mm (Galvanized).
  2. Adjustment screw M20 (Zinc).
  3. Ear for welding (Black Steel).
  4. Nuts and adjustment pads.

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Brand PSG
Parametry Kind adjustable
Parametry Thread length 40 mm
Parametry Metric threads M 20
Parametry Thread diameter 20 mm
Parametry Plate width 100 mm
Parametry Plate length 100 mm
Parametry Manufacturer code 61_019
Parametry Product weight with unit packaging 0.7 kg
Parametry Packaging status original
