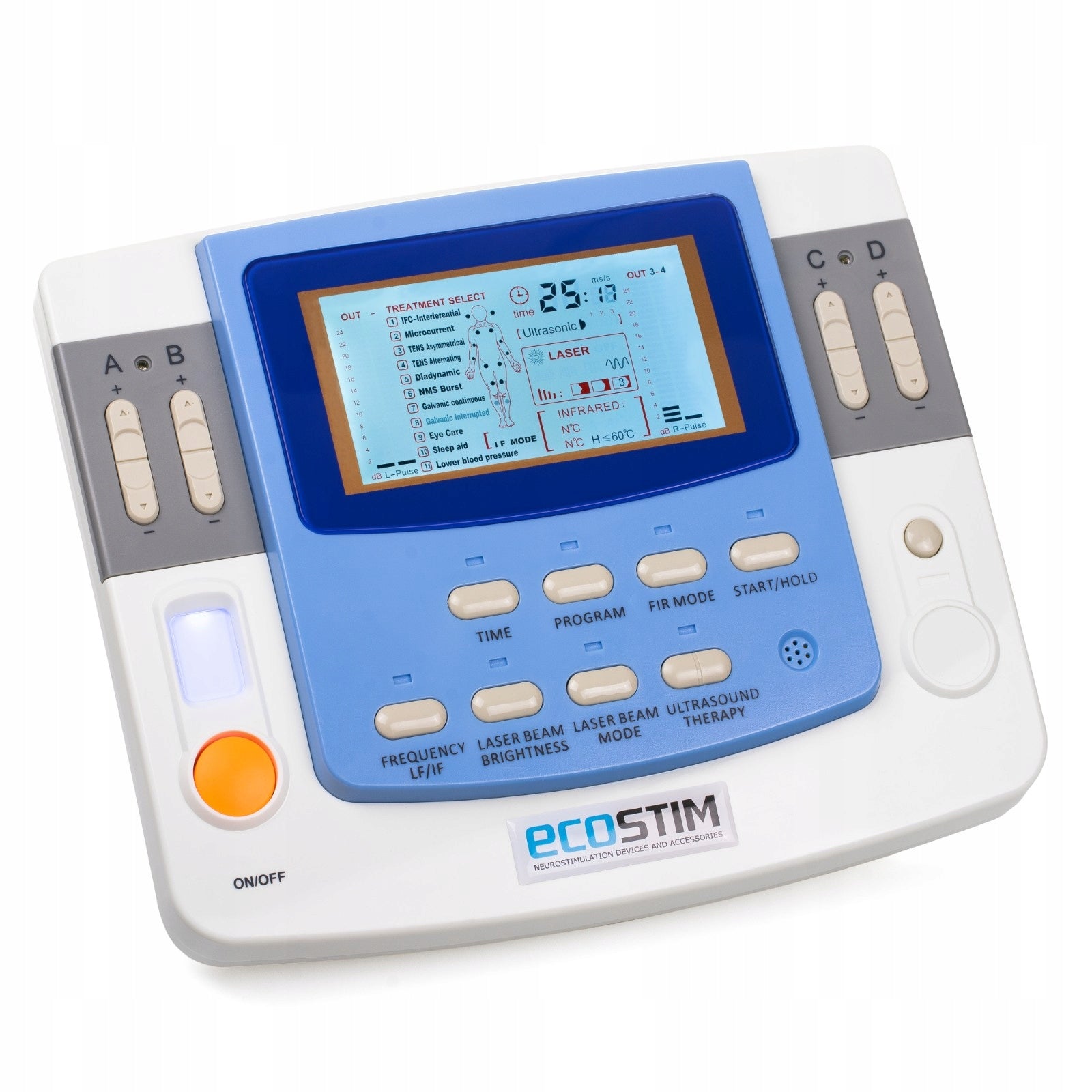

Raumenų elektrostimuliatorius ECO240

Trumpai apie prekę

Prekė: Raumenų elektrostimuliatorius ECO240. Kategorija: Masažuokliai.

• Gamintojas: Ecostim
• Modelis: ECO240
• Spalva: white

TENS EMS ECO240 ECO240 ANALGESIC AND TRAINING ELECTROSTIMULATOR is the most powerful and advanced electrostimulator, which in addition to electrotherapy TENS and EMS also offers other treatments in the field of physical therapy such as: laserotherapy, ultrasound, sonophoresis, thermotherapy. ECO240 allows stimulation at two frequency levels: high (up to 1000Hz) and ultra-high (up to 4000Hz).

The ECO240 is a TENS and EMS electrostimulator, achieving the highest possible power and ultra-high current frequency (up to 4000Hz). The device is powered by mains, but it also has the possibility of battery power, but high current parameters are obtained only when the device is connected to an outlet. The ECO240 electrostimulator combines various methods of physical therapy, thanks to which not only relieves pain, but also works therapeutically. Treatments using laser or ultrasound eliminate swelling, inflammation and facilitate tissue regeneration, making them perfect for treating both fresh and old injuries. The ECO240 electrostimulator uses high (up to 1000Hz) and ultra-high (up to 4000Hz) current frequencies, making electrotherapy treatments very pleasant to feel and very effective. People who often use TENS/EMS treatments may gradually get used to such stimuli and over time the analgesic effect may weaken. A very wide frequency range in the electrostimulator (at least 1000Hz) means that this does not happen, and treatment regardless of frequent use still bring pain relief. A total of 11 programs were programmed into the device.

The ECO240 has 4 channels. The wiring included in the standard equipment allows connection of 16 electrodes at the same time.

All ECOSTIM models are compatible with the most popular and cheapest electrodes with a 2mm PIN/PLUG connector.

ECO240 is made of very durable materials and parts, which in combination with high power, ultra-high current frequency, as well as a large number of additional functions guarantees that it will be perfect for massage and physical therapy rooms. In turn, considering the very easy operation and safety of use, it can be confidently recommended for home use, even for the most demanding customers.

Programmes:

1. IFC-Interferential – interference currents
2. Microcurrent - microcurrents
3. TENS Asymetrical – Asymmetric TENS
4. TENS Alternating – TENS wavy
5. Diadynamic – diadynamic currents
6. NMS Burst – pulse series impacts
7. Galvanic continous – direct galvanic current
8. Galvanic Interrupted - intermittent galvanic current
9. Eye Care – a program to improve visual acuity
10. Sleep aid – deep sleep program
11. Lower blood pressure – lowering blood pressure

In addition to electrotherapy with TENS and EMS currents, the ECO240 offers additional features:

• Classic therapy is heating tissues using thermal sleeves (not included). It raises body temperature by 1-2oC.
• Infrared therapy FIR – FIR radiators and appropriate wiring (sold separately) should be used for this purpose. This type of therapy works on a similar principle as an infrared sauna, i.e. it heats deep tissues such as muscles, ligaments, joints, but does not increase the temperature of the skin very much.
• Introduction of transdermal drugs - for this purpose special silicone electrodes are used (included), in which a moistened cotton wool and a portion of the analgesic preparation should be placed. It is important that the drug is water-based, i.e. in the form of a gel. These electrodes can be used using the selected program. TENS current causes the expansion of blood vessels, thanks to which it accelerates the absorption of active substances.
• Laserotherapy – ECO240 uses a low-energy laser, which has a biostimulating effect, i.e. facilitates tissue reconstruction. Laser treatments accelerate healing and are perfect for both fresh and old injuries. For this purpose, a laser head and safety glasses (included) are used.
• Ultrasonotherapy – a method using ultrasound to relieve inflammation, pain and swelling. Depending on the treatment area, the appropriate ultrasonic head is selected:POINT head – ideal for precise treatments on small structures (e.g. fingers, trigger points),MINI head – designed for the therapy of medium areas (e.g. wrist, ankle joint),PRO head – for the therapy of large parts of the body (e.g. back, thighs). All three heads are included in the set, which allows individual adjustment of the therapy to the patient's needs
• Sonophoresis (phonophoresis) – is a method of using ultrasound to introduce drugs through the skin. For this purpose, an ultrasound head (included) is used.
• Improvement of vision quality – the ECO240 has a special program to improve vision quality. This method is based on the principles of traditional Chinese medicine, which assumes that there are acupoints important for the functioning of vision around the eyes. Their stimulation improves vision and prevents diseases of the organ of vision. For this therapy, a special electrode is used to stimulate the eye area (additional fee option).
• Supporting sleep quality – the ECO240 model has a Deep Sleep program, whose operation is based on traditional Chinese medicine. For this purpose, acupoints placed on the auricles (as many as 79 points on one ear) are stimulated. For this treatment, special electrodes are used in the form of clips for auriculotherapy (included).
• Lowering blood pressure – a program using a laser that allows you to carry out biostimulation of the body, which has a positive effect on the level of blood pressure in people who suffer from hypertension.

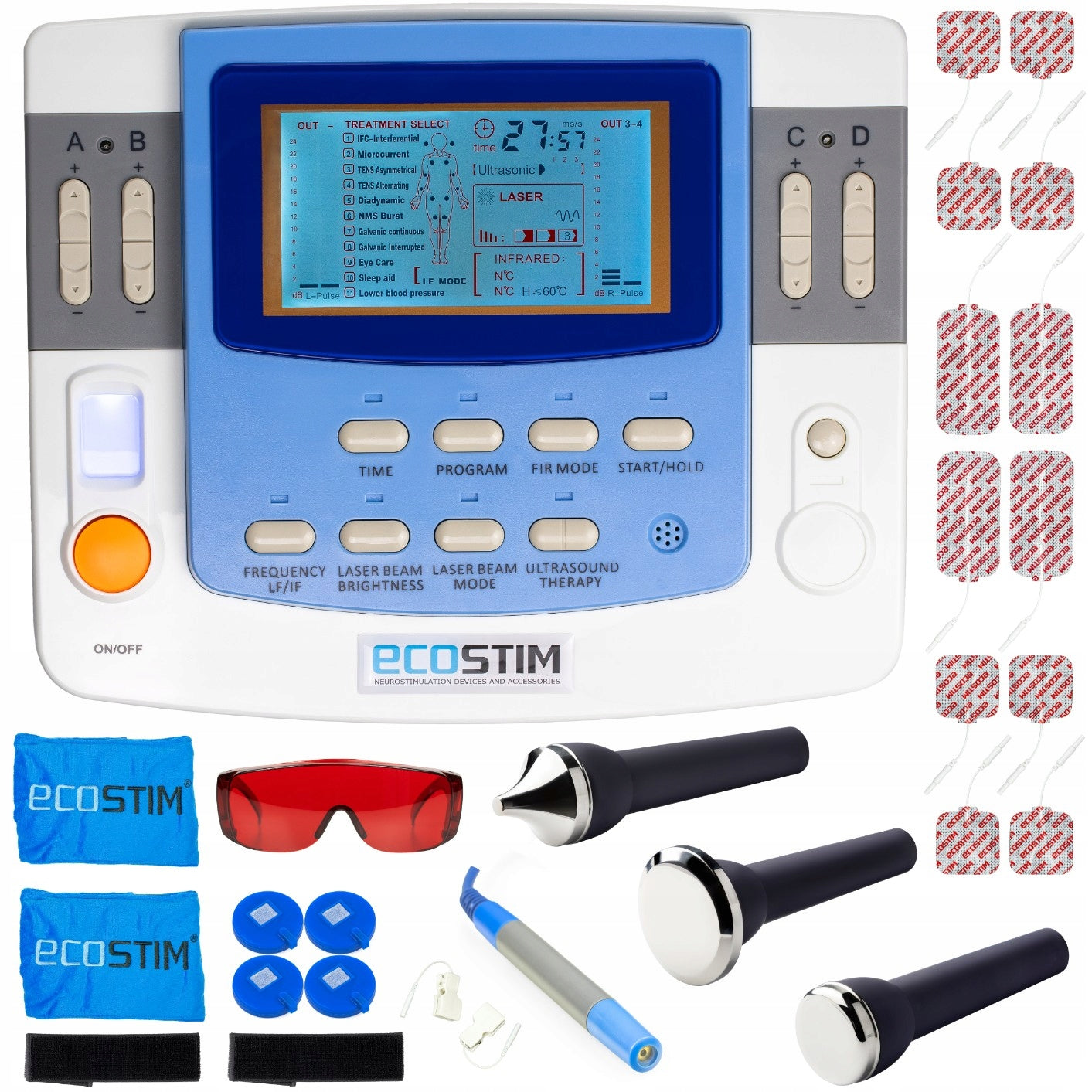

Included:

• 1 ELECTROSTIMULATOR ECO240 (EAN 4251909140977)
• 8 GEL ELECTRODES, SELF-ADHESIVE 5X5CM EL.P.NWCS.50.50. SQ (EAN 5901947042250)
• 4 GEL ELECTRODES, SELF-ADHESIVE 10X5CM EL.P.NWCS.100.50. RC (ENGLISH 5901947044100)
• 1 HEAD FOR ULTRASOUND PRO (EAN 4251909100834)
• 1 HEAD FOR MINI ULTRASOUND (EAN 4251909197414)
• 1 POINT ULTRASOUND HEAD (EAN 4251909197421)
• 1 HEAD FOR PRO USB LASER (EAN 4251909100667 )
• 1 SAFETY GLASSES FOR LASER (EAN 4251909182687)
• 2 ELECTRODES CLIPS; FOR STANDARD AURICULOTHERAPY (EAN 4251909180423)
• 4 ELECTRODES FOR EL.P.SLK.JONOF IONTOPHORESIS (EAN 4251909180485)
• 2 STABILIZING BELTS FOR NON-ADHESIVE ELECTRODES WITH VELCRO 50X6CM BELT.VE.500.60. PREMIUM (EAN 4251909104047)
• 2 SLEEVES FOR PREMIUM THERMAL THERAPY WITH STABILIZING BANDS (EAN 4251909199845)
• 4 CONNECTION CABLES WIRE.USB-B< >P2MM-M4 (EAN 4251909100643)
• 1 CONNECTION CABLE WIRE.USB-B< >P2MM-M2 (EAN 4251909182274)
• 1 MAINS CABLE
• 1 POLISH MANUAL
• 1 GUIDE TO ELECTROSTIMULATION

The electrodes attached to the electrostimulator are delivered in sealed packaging, and after opening them cannot be sent back due to health protection or hygiene (in accordance with the Consumer Rights Act).

We reserve the right to include in the set accessories slightly different in appearance from those shown in the pictures. We ensure that the quality and parameters remain unchanged.

What is worth buying for the set?

• Dual-function radiators for FIR thermal therapy and simultaneous electrostimulation EL.THERMO-SLK.110.75. RC (EAN 5901026000669), KAB.FIR.35-DC (EAN 5901026000782)
• spare gel electrodes, other sizes, other shapes
• alternatively durable, non-wearable textile or silicone electrodes

Type of currents generated: TENS / EMS

Number of programs: 11

Frequency: up to 4000 Hz

Effective power (max): 520 mA

Pulse width: 70-1200 µs

Number of electrostimulation channels: 4

Number of electrodes, standard/maximum: 12/24

Battery power: ✔

Power supply: ✔

Battery power: ❌

The products we offer are made of the highest quality materials. Their sale is preceded by thorough tests in terms of safety and product quality, carried out in certified testing units.

We have been selling our products for many years to rehabilitation rooms and SPAs, hospitals, medical centers and individuals using TENS / EMS / IFS therapies at home.

CONTRAINDICATIONS FOR ELECTROTHERAPY:

• Cancer
• Severe heart arrhythmia and other heart conditions (doctor or physical therapist consultation required)
• Nervous system disorders, such as: epilepsy, Parkinson's disease, multiple sclerosis (doctor or physical therapist consultation required)
• Pacemaker (doctor or physical therapist consultation required)
• Musculoskeletal system disorders (doctor or physical therapist consultation required)
• Electrodes for a single circuit must not be placed so that the current flows through the heart. This means one electrode on the chest and the other on the back.
• Uncontrolled high blood pressure
• Pregnancy (doctor or physical therapist consultation required)
• Circulatory system disorders, such as: venous insufficiency, thrombosis, atherosclerosis (doctor or physical therapist consultation required). Visible spider veins under the skin that are not raised are not a contraindication.
• Do not place electrodes on skin with wounds or other lesions. Electrodes can be used around a wound.
• Metal implants in the treatment area
• Do not use on a wet body. Only the pads under the electrodes may be damp if necessary.
• General infections with fever
• Impaired sensation
• Difficulty communicating with the patient, mental disorders
• Pain of unknown origin (doctor or physical therapist consultation required)
• Recent injuries, post-operative period (doctor or physical therapist consultation required)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Ecostim
Parametry	Manufacturer code	K.ECO240
Parametry	Model	ECO240
Parametry	Kind	electrostimulator
Parametry	Color	white
Parametry	Power supply	mains-battery
Parametry	Product weight with unit packaging	3 kg
Parametry	EAN (GTIN)	4251909188436
Parametry	Certificates of conformity	CE
Parametry	Batteries included	yes
