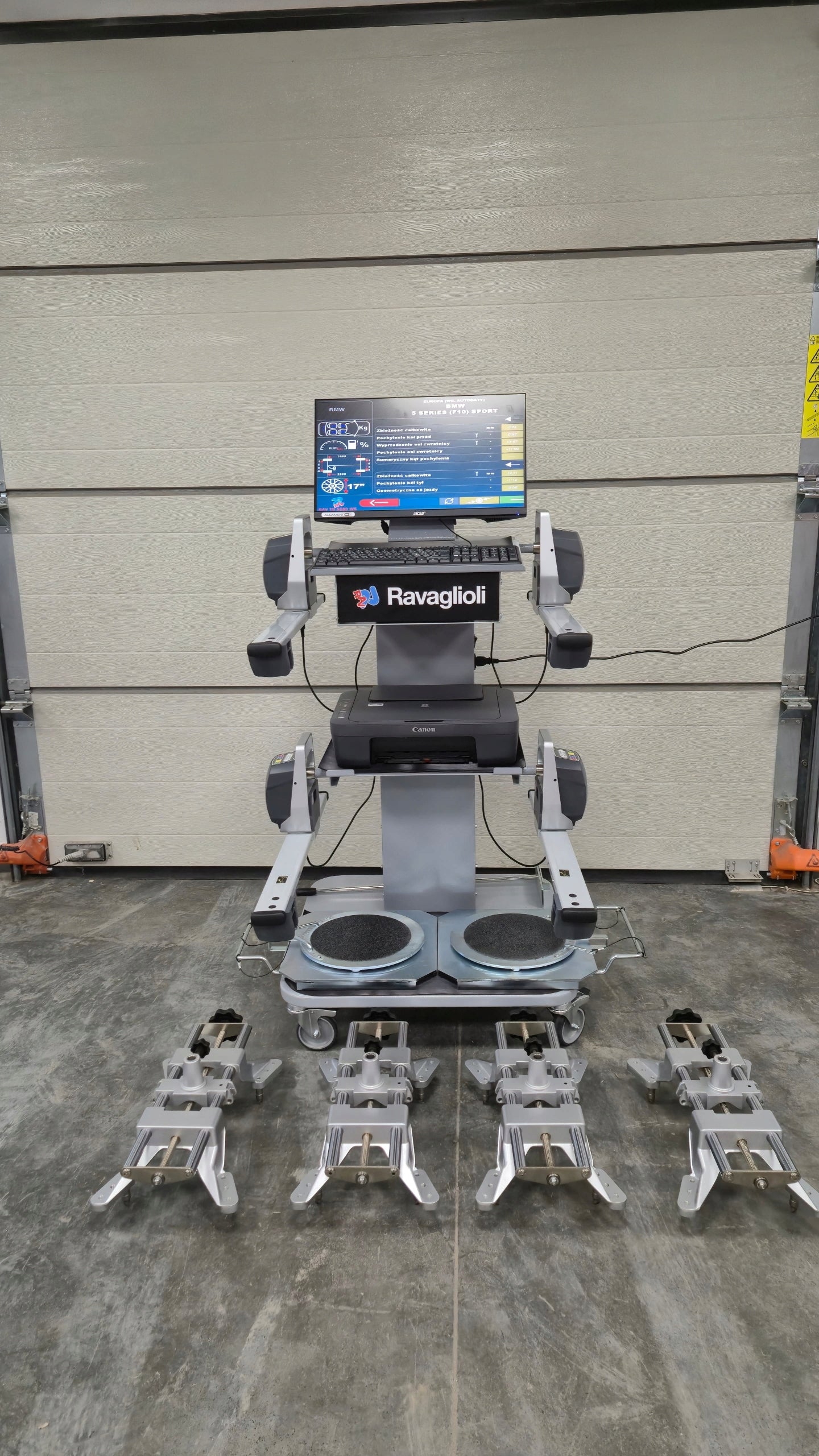

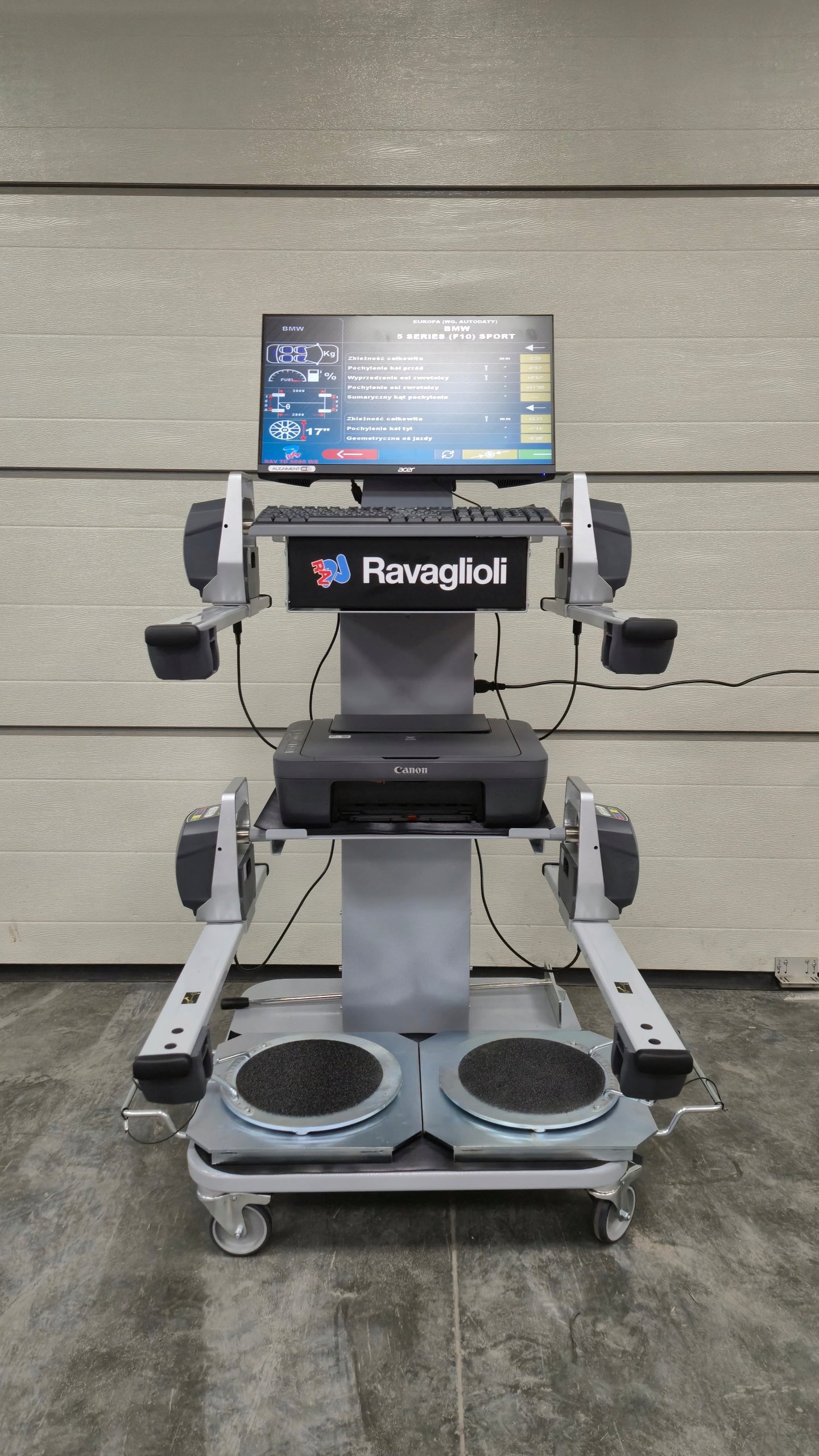

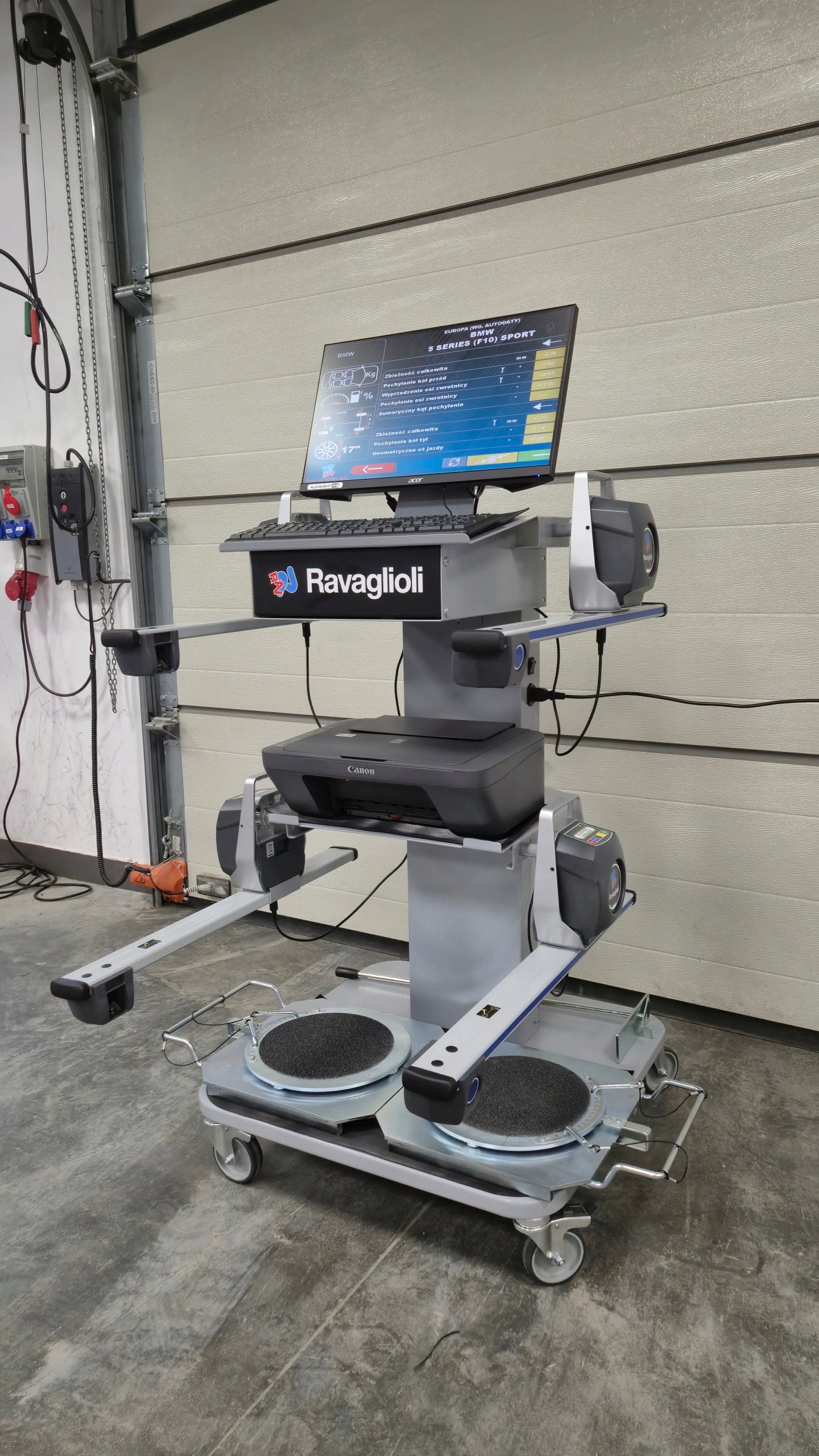

Ratų suvedimo sistema RAVAGLIOLI TD5080WS4 su 8 kameromis, belaidė CCD

Trumpai apie prekę

Prekė: Ratų suvedimo sistema RAVAGLIOLI TD5080WS4 su 8 kameromis, belaidė CCD. Kategorija: Ratų suvedimo testeriai.

• Gamintojas: Ravaglioli
• Modelis: RAV5080WS

The company RAVAGLIOLI SpA was established in 1958 in Italy as a manufacturer of equipment for car workshops, both for passenger cars and commercial vehicles.Since 2015, it has been one of the world’s leading companies in the workshop equipment industry.leading European manufacturer of lifts and one of the main manufacturers of tire testing equipment.The company has a distribution network covering more than 150 countries around the world,including branches in the United States, United Kingdom,Germany , France , Belgium and Spain . The equipment is characterized primarily by high quality and niezawodność.Jej the main products are currently car lifts, wheel balancers, tire fitters and wheel geometry kits.

The geometry device of the wheels of the Italian company RAVAGLIOLI,

type: TD5080WS

8 CCD sensors per head

Bluetooth wireless transmission

Turntables included

Wireless TOTAL DRIVE 5080WS device for measuring and setting wheel geometry.

All characteristic angles of both axles of the vehicle are controlled by four measuring heads with 8 CCD cameras, communication of the rear heads with the front ones via infrared, communication of the front heads with the control unit via Bluetooth.

Heads with 8 sensors allow you to study the full range of wheel geometry including the offset of the front and rear axles, the camera viewing range is 360 degrees (possibility of post-accident measurements)

STANDARD EQUIPMENT

• control unit with: PC, 19" monitor, keyboard, printer and battery charger

• 2 front measuring heads

• 2 rear measuring heads

• 4 4-point wheel holders ranging from 10” to 24”

• pair of mechanical turntables

• 1 brake pedal lock

• 1 handlebar lock

• software in Polish

TECHNICAL DESCRIPTION

• data management and program work in Windows environment

• database with over 90,000 vehicle models, AUTODATA database enriched with Ravaglioli entries (updateable)

• customer database of 20,000 items with the option of searching by client or license plate

• the ability to check the wheel beating by moving the vehicle by only 30 degrees:

Ø 500mm → 150mm

Ø 600mm → 170mm

Ø 700mm → 200mm

Ø 800mm → 230mm

• on each measuring head there is a remote control, which can be operated throughout the procedure of setting the geometry of the wheels without having to approach the control unit.

• special holders on the sides of the control unit allow you to store and charge (after connecting power cables) the batteries of the measuring heads when they are not in use.

TECHNICAL DATA

• Convergence: -/+3o

• Half convergence: -/+1,5o

• Wheel Axle Inequality Angle: -/+2o

• Wheel inclination: -/+2o

• Crossover pin advance: -/+5o

• Crossover pin tilt: -/+5o

• Geometric driving axis: -/+2o

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Ravaglioli
Parametry	EAN (GTIN)	5063084700827
Parametry	Manufacturer code	RAV5080WS
