Ratų momentinis raktas 1/2 28-210Nm su kalibravimo sertifikatu CRV Lock

Trumpai apie prekę

Prekė: Ratų momentinis raktas 1/2 28-210Nm su kalibravimo sertifikatu CRV Lock. Kategorija: Raktai.

• Gamintojas: MAPOWER
• Modelis: MPTW01

⚡with ORIGINAL calibration certificate⚡

📢Buy from the product set - we add something useful for every DIYer! 🆓🎁

✅ Precision tightening wrench MAPOWER

Torque wrench MAPOWER is designed for precision fastening and tightening of threaded connections with a force of exactly the specified moment.

► OPERATING RANGE 28-210 NM

► MICROMETRIC KNOB constituting a lock protecting against accidental exceeding of the set tightening torque

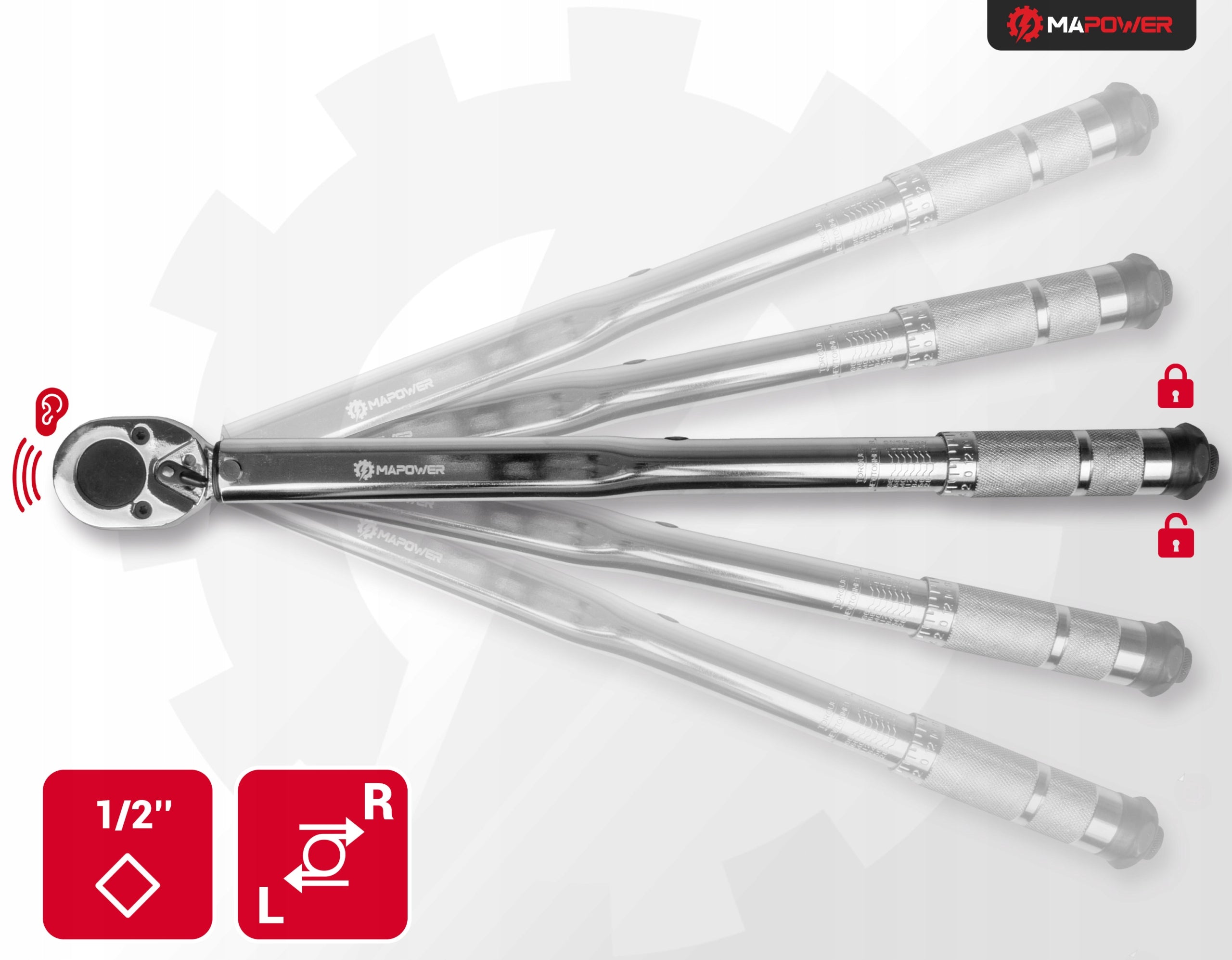

► DIRECTION SWITCH turns to change the direction of work

► READABLE MOMENT SCALE

► HIGH QUALITY performance and steel construction

► 45 TEETH for precise tightening

► CALIBRATION CERTIFICATE for precision work

► PACKAGING for transport and storage

► EASY & PRECISE operation

Technical Specifications:

• Brand: MAPOWER
• Wrench Type: Torque Wrench
• Calibration Certificate: Yes
• Working Range: 28-210 Nm
• Drive: 1/2'', square
• Direction of Operation Change: Yes
• Calibration Certificate: Yes; +/- 1%
• Material: C45 steel
• Rotation Direction Change: Right / Left
• For tightening and loosening bolted connections: Yes

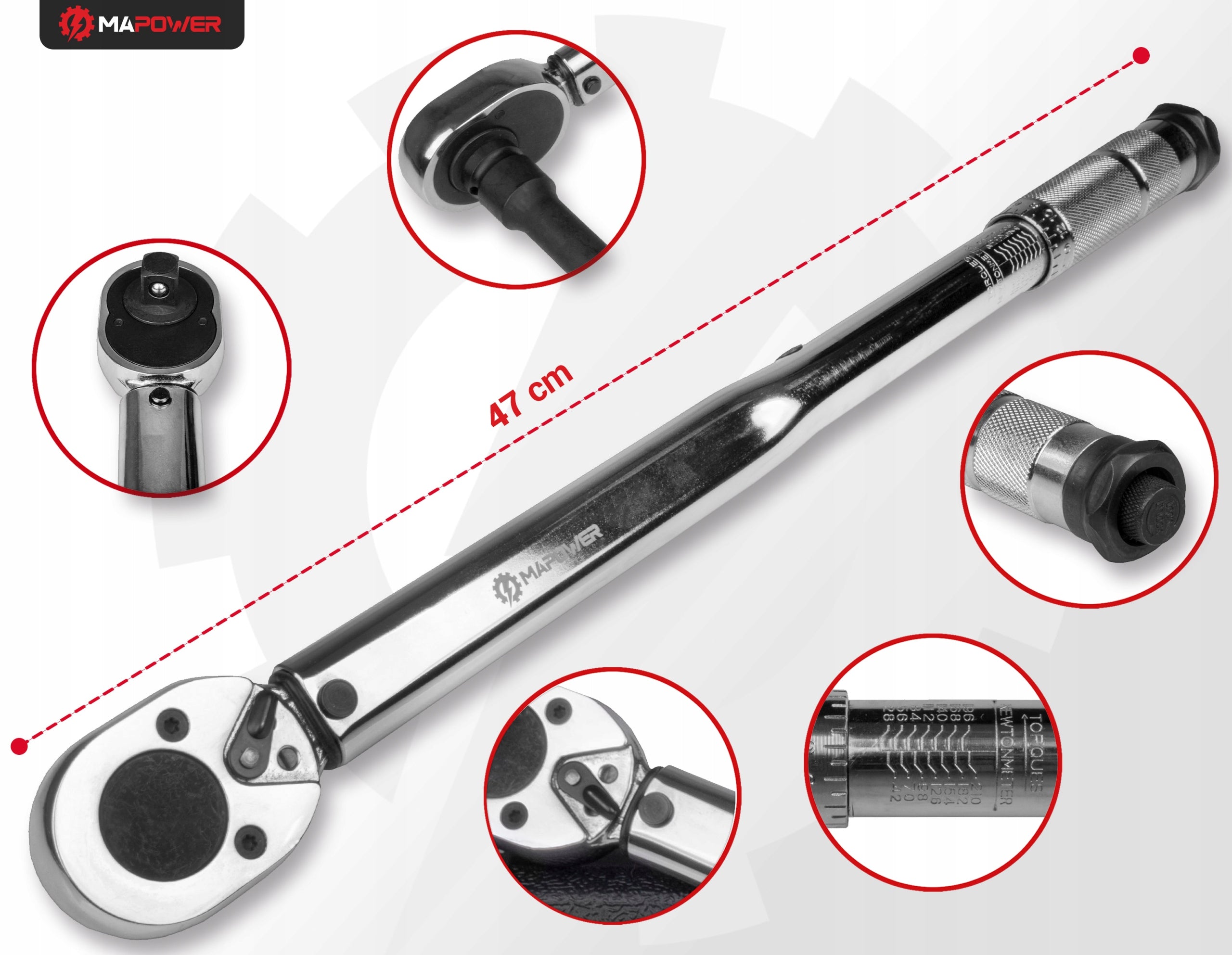

• Wrench Length: 47 cm
• Socket Sizes: 21 mm, 19 mm, 17 mm
• Extension Bar: 1/2'', 13 cm
• Material of Extension Bar and Sockets: Cr-Mo
• Wrench Weight: 1.29 kg
• Weight with packaging and sockets: 2.03 kg
• Included Accessories: 3 sockets, transport and storage case, calibration certificate

✅ MAPOWER key has an ORIGINAL CALIBRATION CERTIFICATE - work only on tested equipment

⚡Please be careful with competitor certificates generated in Word. We include an ORIGINAL paper calibration certificate with each key. ⚡

► Calibration, also known as CALIBRATION of torque wrenches, is a process of checking the correctness of the torque setting on the wrench in relation to a torque transducer of the appropriate measurement class.

► The aim is to determine the torque wrench indication error , which, IN ACCORDANCE WITH THE PN-EN ISO 6789-2:2017 STANDARD, is carried out in several measurement series for 20%, 60% and 100% of the wrench's working range.

► EVERY MAPOWER TORQUE WRENCH has been PRECISIONALLY CALIBRATED, TESTED and EXAMINED.

✅ Torque wrench for special tasks

The wrench is equipped with 45 ratchet teeth inside the ratchet mechanism. This number of teeth provides precise operation and excellent control over the tool.

The working range of 28-210 Nm will allow you to perform tasks such as:

• Tightening wheel bolts in cars.
• Tightening of motorcycle components, e.g. brake caliper bolts, drive system components or engine head.
• Tightening of structural elements in agricultural machinery and heavy equipment, e.g. frameworks or parts of propulsion systems.

✅ A number of practical solutions will make working with the key a pleasure

► 1/2" - socket so you can use the key with different attachments. In addition, the extension included in the set will expand the scope of work and allow tightening screws in hard-to-reach places.

► LOCKING RING - micrometric knob located at the end of the key handle prevents accidental exceeding of the set tightening torque. When the key reaches the set moment, the lock mechanism will automatically block further rotation, which protects the screws from damage.

✅ Clear, engraved torque scale and precise tightening

► Comfortable handle has a engraved TORQUE SCALE, which can be adjusted by turning the tip.

► CLEAR, ENGRAVED MOMENT SCALE on the key allows precise and accurate setting of the tightening torque, which ensures safety during use and accurate tightening.

► Thanks to the MECHANICAL TENSION OF THE TORQUE RATCHET, the key jumps one degree after reaching the set force, while issuing a characteristic "click".

✅ The key head is made of high quality C45 STEEL

► The key head was made of C45 steel - carbon steel, also called non-alloy steel with HIGHER QUALITY.

► The wrench itself is made of chromium vanadium steel, which is resistant to corrosion, oxidation, abrasion and is highly resistant to loads.

► Thanks to this it is characterized by exceptional LOAD RESISTANCE and EXCELLENT CORROSION AND ABRASION RESISTANCE.

✅ CrMo SCM-440 premium steel accessories

► CAPS AND EXTENSION attached to our wrench are made of CrMo SCM-440 steel – a high-strength alloy steel with twice the tensile strength and three times the yield strength than standard carbon steel.

Thanks to this, the equipment is distinguished by EXCEPTIONAL RESISTANCE TO ABRASION, HIGH TEMPERATURES and CORROSION.

► Please approach with great caution keys equipped with accessories made of low-grade carbon steel or materials claiming to be CRV.

For tools that are designed to provide repeatable and accurate tightening torque, it is necessary to USE HIGH-STRENGTH EQUIPMENT.

✅ Key packed in a PRACTICAL SUITCASE - included with three caps and extension

The set was placed in a practical SUITCASE WITH STAMPING. Thanks to this, each element has its own dedicated place.

This allows to keep the workplace tidy and facilitate TRANSPORT AND STORAGE.

✅ Easy and Intuitive Operation

Operating the wrench is so easy that it should not cause problems even for a beginner.

1. Select the appropriate scale.
2. Unlock the micrometer knob.
3. Set the knob so that 0 aligns with the vertical line running along the wrench.
4. Set the micrometer knob to the desired torque, clockwise.
5. Lock the micrometer knob.
6. Set the correct rotation direction for the ratchet.

⚡Done! You can start tightening!:)

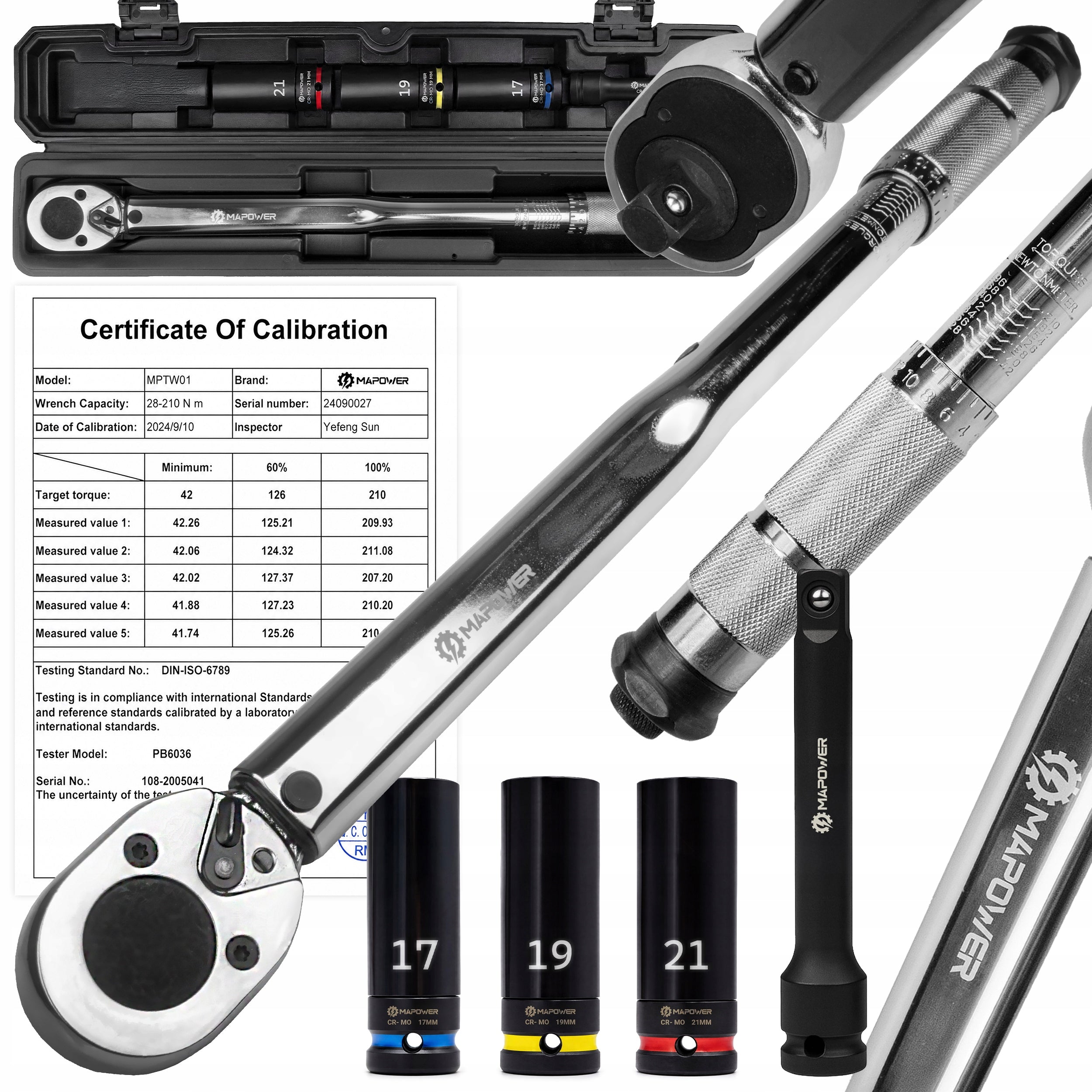

The set includes:

• Torque wrench MAPOWER 28-210 Nm
• 3 impact caps
• Extension
• Calibration certificate
• Transport and storage case
