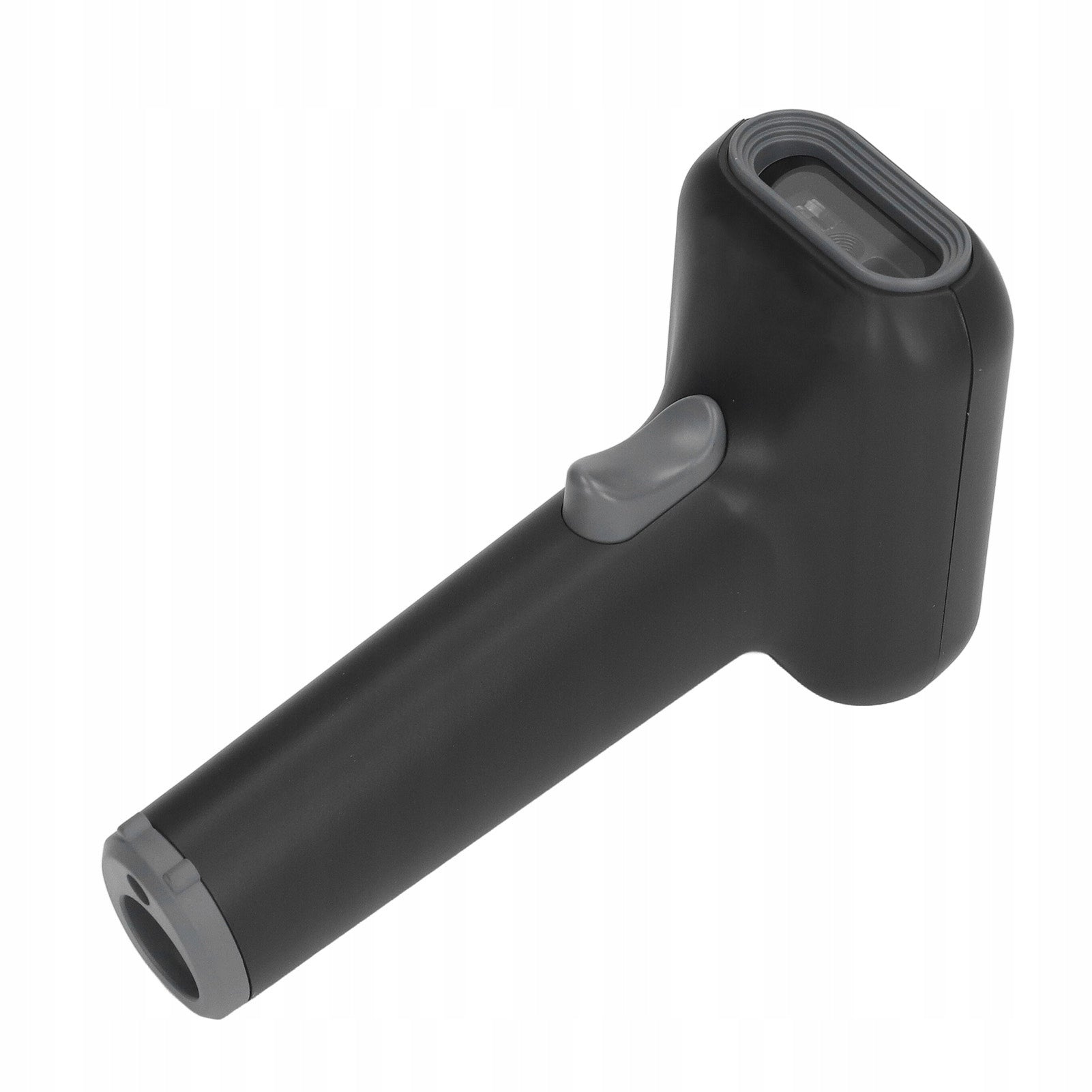

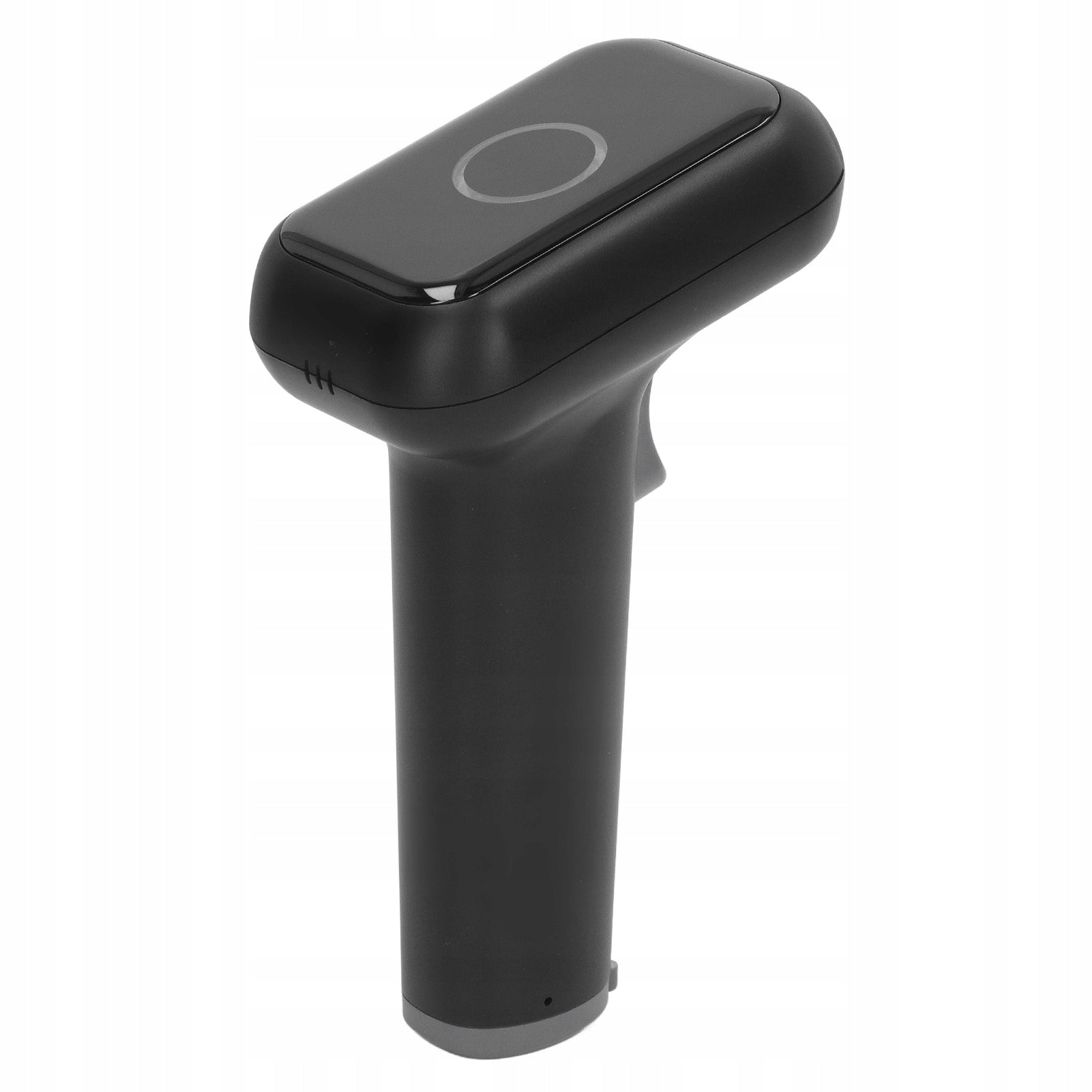

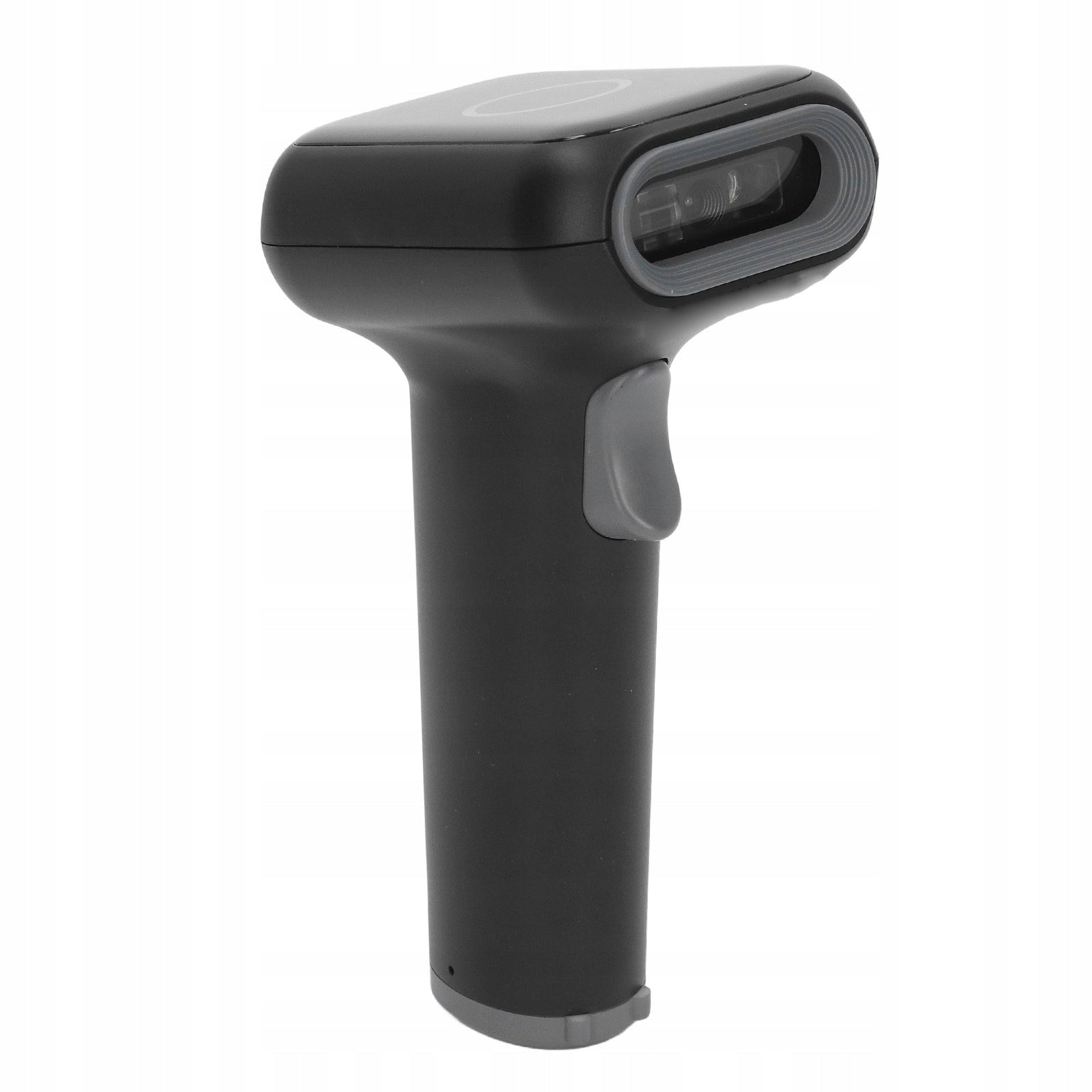

QR kodų skaitytuvas, brūkšninių kodų skaitytuvas, automatinis 1D/2D nuskaitymas

Trumpai apie prekę

Prekė: QR kodų skaitytuvas, brūkšninių kodų skaitytuvas, automatinis 1D/2D nuskaitymas. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: no brand
• Modelis: 6733JMJT

Function:1. Excellent scanning capability: 32-bit super decoding processor, with speeds up to 300/s. Equipped with advanced sensors, 1D 2D codes can be instantly captured from paper and screen, including Code128 code, EAN UPC on 2 or 5, and even deformed, stained, damaged, blurred and reflected codes.

2. USB Wired Connection: Easily connect your laptop, computer, phone, tablet, for iOS, POS. Use for Windows XP7, 8, 10, for OS X, for Windows Mobile, for Android OS, for iOS.

3. Automatic Scanning: You can set the automatic scanning mode according to your needs. Automatically scan the sensor without button pressure.

4. Storage mode: When the scanner exceeds the connection distance, you can choose the memory mode. In storage mode, when you return within connection distance, you can store up to 40 000 barcodes and upload them directly.

5. List of supported codes: UPC A, UPC E, EAN 8, EAN 13, ISBN, ISSN, Code 128, GS1 128 (UCC EAN 128), Code 39, Code 39 Full ASCII, Code 32, Code 93, Code 11, Codabar (NW 7), interspersed 2/5, matrix 2/5, industry 2/5, MSI Plesse. 14), GS1 Data Bar Limited (RSS Limited), GS2 Data Extended Bar (Extended RSS); 2D Code, QR Code, Micro QR Code, Data Matrix, PDF 417, Micro PDF 417, Aztec, Makasode.

Specification: Item Type: Barcode Scanner

Material: abs

Performance Parameters Sensor 640 x 480 cmos

Scanning Range1dean 8, EAN 13, EAN 13 2 Add ON, EAN 13 5 Add ON, ISSN, ISBN, UPC A, UPC E, Code 11, Code 32, Code 39, Code 39fulLascii, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5 of 5, Matrix 2 of 5, isbt 128, gs1, GS1 Databar (RSS14), GS1 DataBar Limited, GS1 Databar Expanded

2DPDF417, Micropdf417.microqr, data matrix, QR, Aztec

Scanning rangetest Barcodeminimum Rangemaximum Range

UPC 13MIL4CM / 1.6IN35CM / 13.8 inch

20 miles Code397cm / 2.8in50cm / 19.7in

20mil QR Code2cm/0.8in50cm/19.7in

System Compatibility for Linux, for Android, for Windows XP, 7, 8, 10, for OS X

Button scan mode scanning, automatic induction scanning

Keyboard support American English, French, Italian, German, Spanish, Finnish, Japanese, Russian, Arabic, Irish, Polish , Dutch, Czech, Portuguese (Portugal, Brazil), Swedish, Turkey F, Turkey Q,

Codec language support Pronounced Chinese characters (under Win)

Support invoice function (for Chinese market only) (within Win system)

Minimum recognition accuracy 39 4MIL

Scannable Barcode TypePaper and Film 1D and 2D Barcodes; 1D and 2D barcode for screens such as mobile phones and tablets

Motion tolerance 2.8 meters/second

Printing contrast 25%

Secondary development that is not supported

Editing Output Barcodes

Identify the angle of range ±360°, elevation ±60°, yaw ±70°

Environmental parameters resistant to 5 drops 2 m free fall

Waterproof and dustproof

Operating temperature range from 20 to 55 ℃

Storage temperature range: 20 to 60℃

Operating humidity range from 5 to 95% non-condensing

Storage humidity range from 5 to 95% non-condensing

Ambient light intensity 0 to 70000lx

Human Machine Interactionlight Indicator Power Indicator, Flashing Decoding

BuzzerStart prompt, decoding successful prompt

Keytriggered scanning

Physical Parameter Port Communication Interface USB (Free Disk), USB Virtual Serial Port (Installation Driver), Serial Port (Free Disk)

Operating voltage 5v

USB Interfacemual Scanningstby ​​Power68ma 0.34WUSB Interfaceautomatic Sensingstandby Power112ma 0.56W

WORKING POWER280MA 1.4W Working Power196MA 0.98W

Maximum Working Power 306MA 1.53W maximum Working Power 214ma 1.07W

Serial Port Interfacesandby Power68MA 0.34WSerial Port Interfaceautomatom Sensingstby ​​Power113ma 0.565W

WORKING POWER288MA 1.44WWORKING POWER190MA 0.95W

Maximum Working Power 304MA 1.52Wmaximum Working Power212MA 1.06W

Package List:1 x Scanner

1 x USB cable

1 x Manual

Specifications
