Pusiau automatinis suvirinimo invertorius MAGNUM MIG 224 LCD Dual Pulse MMA Synergy 4x4, 200A 60%

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo invertorius MAGNUM MIG 224 LCD Dual Pulse MMA Synergy 4x4, 200A 60%. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: 224 S-DP 4x4

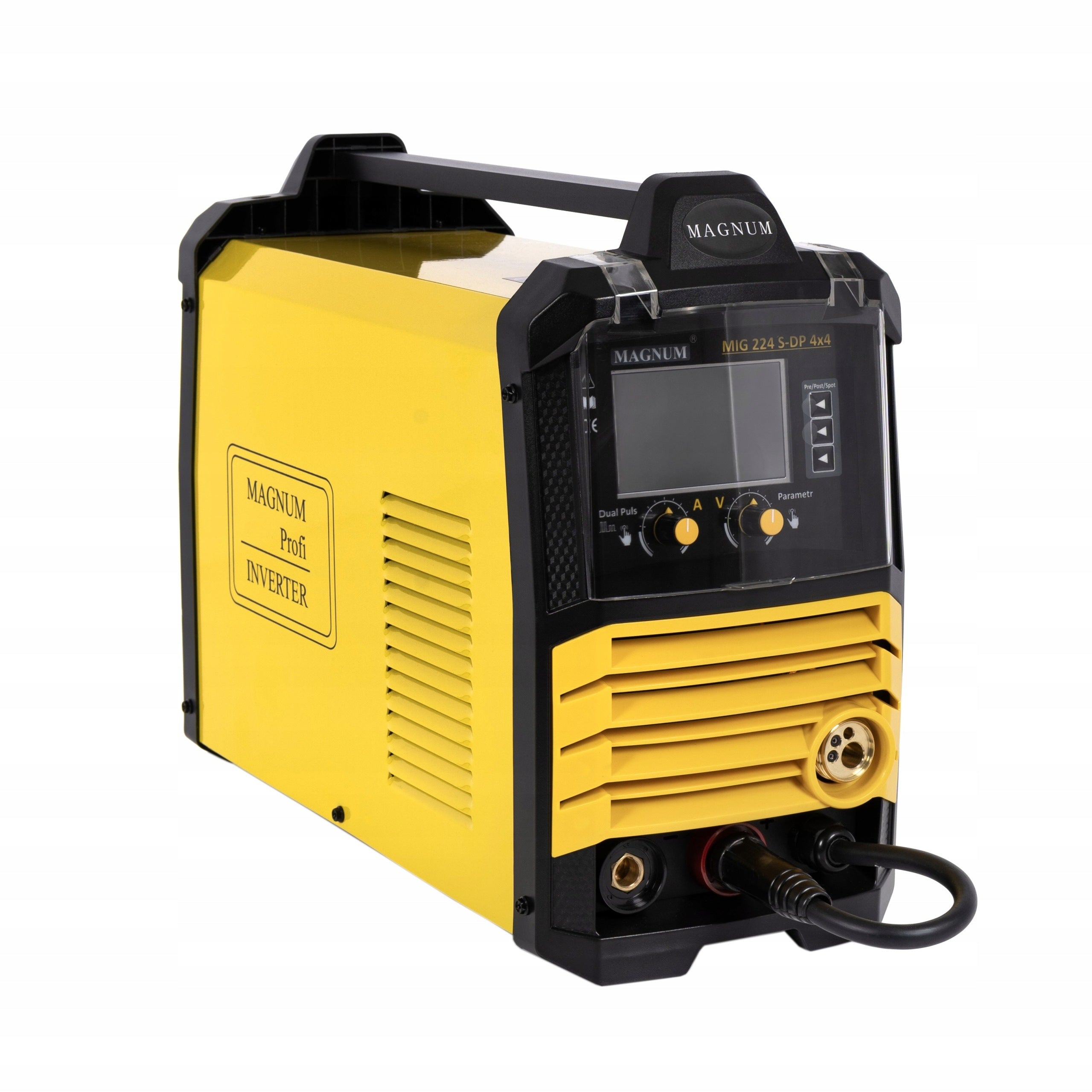

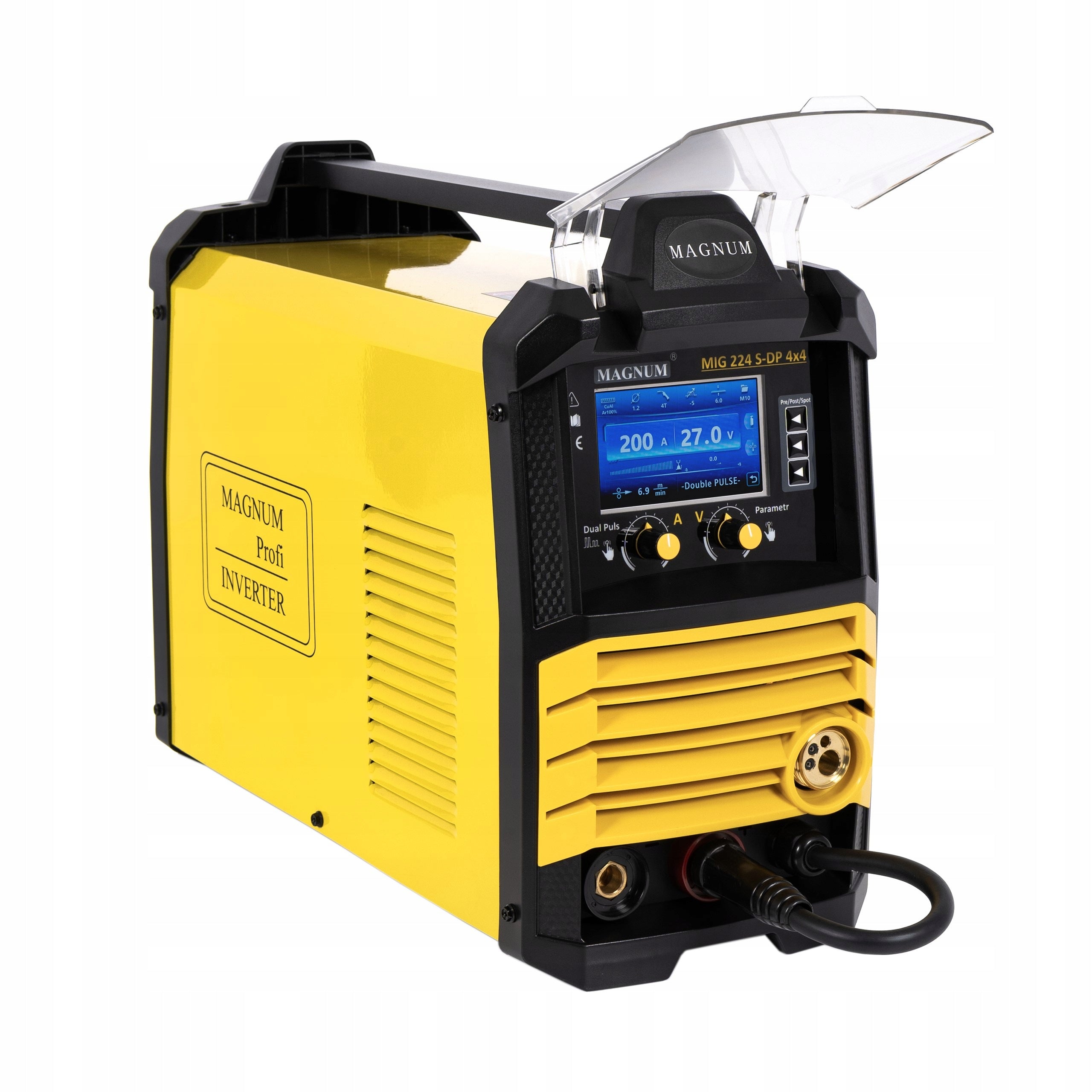

MAGNUM MIG 224 S-DP 4X4 – precision welding of aluminium, stainless steel and structural steel

Are you looking for a device that will provide the highest quality welds, stable wire feeding and full control over the welding process?

MAGNUM MIG 224 S-DP 4X4 is an advanced semi-automatic welding machine of professional class equipped with Single Pulse, Double Pulse and four-roll wire feeder function, which guarantees smooth operation even with soft aluminum wires.

The most important advantages

✅ Feeder 4R (4x4)

The four-roll feeding mechanism ensures extremely stable wire routing with a diameter of 0,6 – 1,2 mm. This is especially important when welding aluminum, where standard feeders often cause wire slippage and deformation.

✅ Double Pulse – TIG weld effect

Double pulsation technology allows for aesthetic, even welds resembling the TIG welding effect. In addition, it reduces overheating of the material and the number of chippings.

✅ Single Pulse

Precise control of linear energy during welding of thin sheets and aluminium. Less deformation and more control over the process.

✅ Advanced synergy

Simply select the type of material and the diameter of the wire, and the device will automatically select the optimal welding parameters. Available programs for:

• carbon steel,
• stainless steel,
• aluminium AlSi and AlMg,
• copper, CuSi and CuAl soldering.

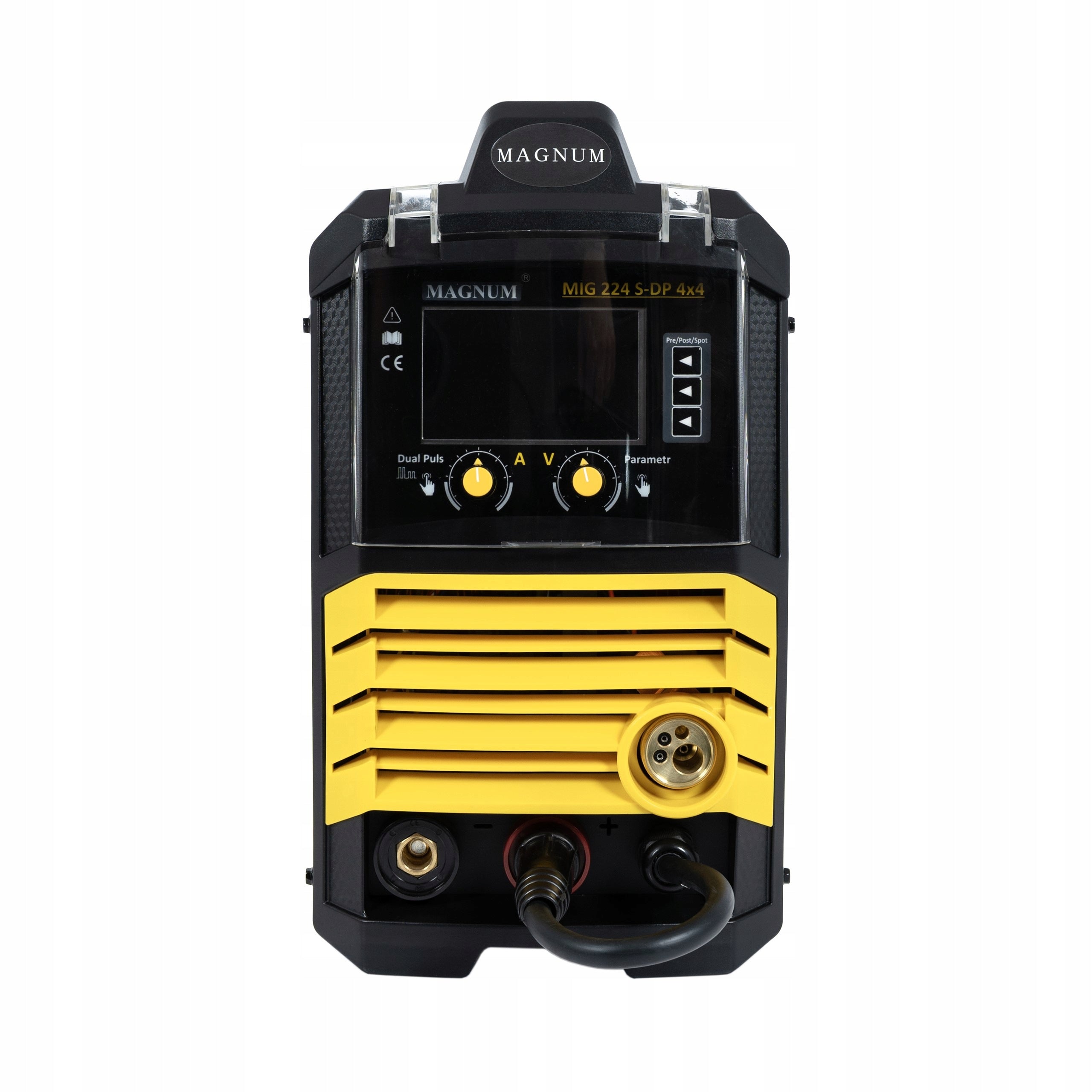

✅ 3 welding methods in one device

• MIG/MAG
• MMA
• TIG Lift

One device replaces several workstations.

Advanced features for professionals

• Regulation of inductance
• Correction of arc length
• Settings memory
• 2T/4T/SPOT Modes
• Arc Force
• Hot Start
• Anti Stick
• VRD
• Gas test
• Wire extension test
• Change of polarity to self-shielding wires
• 36V Gas Heater Socket

The most important technical parameters

• Power supply: 230V / 50-60 Hz
• MIG/MAG current range: 30 to 200 A
• MMA/TIG current range: 20 – 180 A
• Working cycle: 60%
• Supported wire diameters: 0.6 / 0.8 / 0.9 / 1.0 / 1.2 mm
• Weight: 12,6 kg
• Degree of protection: IP21S
• Technology: IGBT
• Synergy: Yes
• Pulse: YES
• Double Pulse: YES
• TIG Lift: YES
• 2T/4T/SPOT: YES

Rich standard equipment

In the set you get:

• MIG/MAG MB24/3 handle
• Teflon guide for aluminium
• MMA cable
• Bulk cable with clamp
• Set of rollers for steel and aluminum
• Additional steel guide
• User manual in Polish

Application

MAGNUM MIG 224 S-DP 4X4 is perfect for:

✔ locksmith workshops

✔ car services

✔ production of steel structures

✔ work with aluminium and stainless steel

✔ soldering of galvanized elements

✔ maintenance and assembly work

Why choose MAGNUM MIG 224 S-DP 4X4?

It is a device designed for users who expect reliability, high-quality welds and maximum control over the welding process. The combination of synergy, double pulsation and professional 4R feeder makes welding aluminum, stainless steel or structural steel faster, easier and more repeatable.

MAGNUM MIG 224 S-DP 4X4 – professional welding without compromise.

Specifications
