Trumpai apie prekę

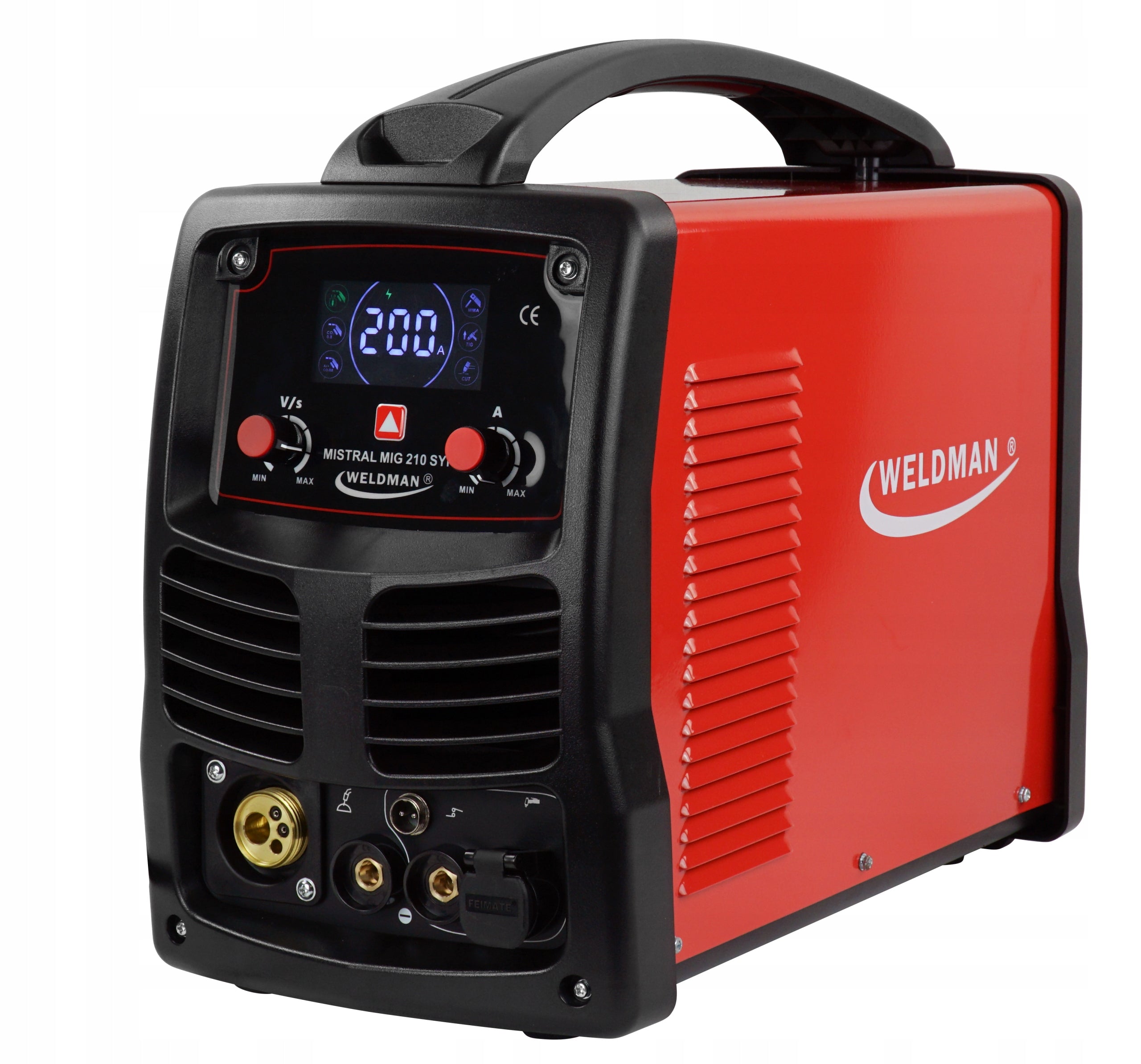

Prekė: Pusiau automatinis suvirinimo aparatas WELDMAN MISTRAL MIG 210 SYNERGY. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: Mistral MIG 210 SYNERGIA WELDMAN SPAWARKA I PLAZMA
- Ilgis: 520 mm
- Plotis: 220 mm
- Aukštis: 400 mm
✅ TIG:15–200A, MMA:20–200A, CUT: 20–40A,
✅ MAXIMUM PLASMA CUTTING THICKNESS: 12mm
✅ Modern internal electronics - **excellent welding parameters**,
✅ Powered by a single-phase 230V network,
✅ WELDING METHODS: MIG/MAG, TIG, MMA

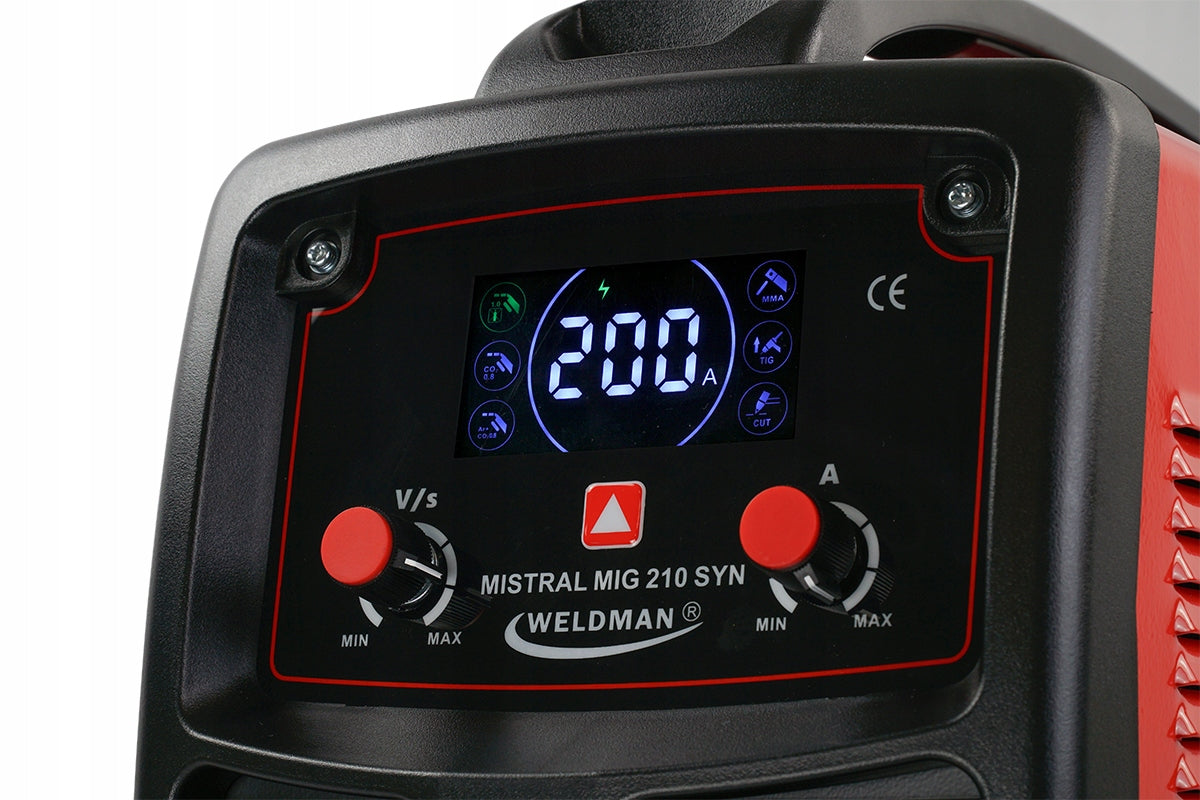

✅ User-friendly interface,
⏭WHAT WILL YOU FIND IN THE PACKAGE?
- Welding machine WELDMAN MISTRAL MIG 210 SYNERGY
- MiG MB15 welding torch - 3m
- Welding torch TIG WP 17V - 4m
- Plasma cutting holder PT-31 4m
- Mass cable 2 m with mass clamp 300A (DX25)
- Cable 2,5 m with electrode holder 200A (DX25)
- CO2 gas reducer
- Compressed air filter-reducer for plasma cutting
- Operating manual and warranty card
- mask and welding brush
⏩POWER SUPPLY PARAMETERS
- Power supply: 230V
- Welding methods:MIG, TIG DC, MMA, PLASMA CUTTING
- Network Security: 20A
- Dimensions: 520 x 220 x 40 mm
- Net weight: 14kg
- Degree of protection: IP21
- MIG/MAG WIRE DIAMETER: 0,6-1,0 / FLUX: 0,8-1,0
- SPOOL SIZE 5 kg (200mm)
- TYPE OF WIRE FEEDER 2-roll
- TOUCH ARC GLOW
- DIAMETER OF ELECTRODE 2,0 – 4.0
⏩ MIG welding parameters:
- MIG duty cycle: 60%
- Maximum TIG current consumption: 15,5A
- Welding current: 40 - 200A
- WELDING CURRENT (60%): 200 A
- WELDING CURRENT (100%): 155 A
- WELDING CURRENT VOLTAGE(60%):24V
- WELDING CURRENT VOLTAGE(100%):20,7 V
⏩ TIG DC LIFT welding parameters:
- TIG duty cycle: 60%
- Maximum TIG current consumption: 14A
- Welding current: 15 - 200A
- WELDING CURRENT (60%): 200 A
- WELDING CURRENT (100%): 155 A
- WELDING CURRENT VOLTAGE(60%):18V
- WELDING CURRENT VOLTAGE(100%):15,3 V
⏩ MMA welding parameters:
- MMA work cycle: 60%
- Maximum MMA current consumption: 16A
- Welding current: 40 - 200A
- WELDING CURRENT (60%): 200 A
- WELDING CURRENT (100%): 155 A
- WELDING CURRENT VOLTAGE(60%):28V
- WELDING CURRENT VOLTAGE(100%):25,3 V
⏩PLASMA CUTTING PARAMETERS
- Plasma cutting cycle: 60%
- Maximum current consumption: 15A
- Welding current: 20 - 40A
- WELDING CURRENT (60%): 40 A
- WELDING CURRENT (100%): 31 A
- WELDING CURRENT VOLTAGE(60%):96V
- WELDING CURRENT VOLTAGE(100%):90,7V
- TIG DC - welding with a non-melting electrode in an inert gas shield, e.g. alloy and non-alloy steels.
- MMA - this is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded. The MMA method does not require shielding gases. Welding is carried out using an electrode in a special sheath, which under the influence of the heat of the welding arc melts to form a weld. Melting sheath provides protection for the welding lake.
- IGBT - welding machine is made in modern inverter technology using IGBT transistors. Thanks to this, it has stable welding parameters, enjoys high efficiency and, above all, ensures good welding quality.
- CUT - Plasma cutting
- MIG/MAG is a popular process both in hobby applications and in industry. It consists in welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. The advantages of semi-automatic MIG/MAG welding include: ease of mastering the method at the basic level, high welding efficiency, high quality of the resulting weld.
- FCAW (FLUX) - a popular variant of the MAG method - semi-automatic welding with a hot melt electrode (welding wire on a spool). The main difference is that it is welded with a special self-shielding wire, which does not require the use of shielding gas. Simplifying, we can say that this method combines two processes: MAG welding and MMA electrode welding.
Choose a brand whose history dates back to the beginning of the twenty-first century. Weldman is a leading brand of welding equipment in Poland.
A wide range of Weldman devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.
Customers choose the Weldman brand most often due to its high quality, affordable price and reliability.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,0 |
| Parametry | Device weight | 14 kg |
| Parametry | Welding range | 40–200 A |
| Parametry | Height | 400 mm |
| Parametry | Length | 520 mm |
| Parametry | Width | 220 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 15 kg |
| Parametry | Manufacturer code | MISTRAL MIG 210 cut RSH2 |
| Parametry | EAN (GTIN) | 5902701751845 |
| Parametry | Packaging status | original |
| Parametry | Model | Mistral MIG 210 SYNERGIA WELDMAN SPAWARKA I PLAZMA |
| Parametry | Welding methods | plasma cutting,MIG/MAG,MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,EURO handle,LCD display |
