Trumpai apie prekę

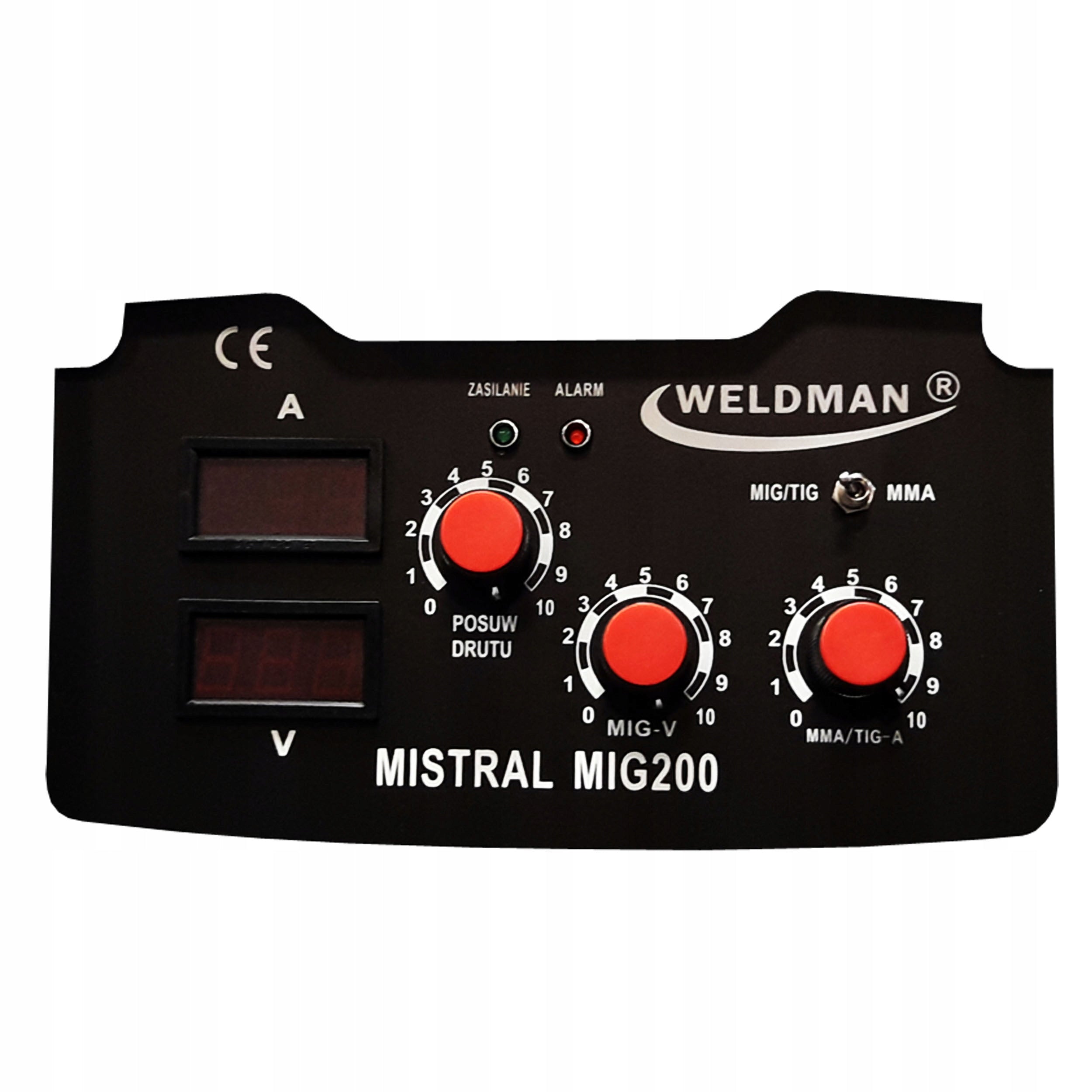

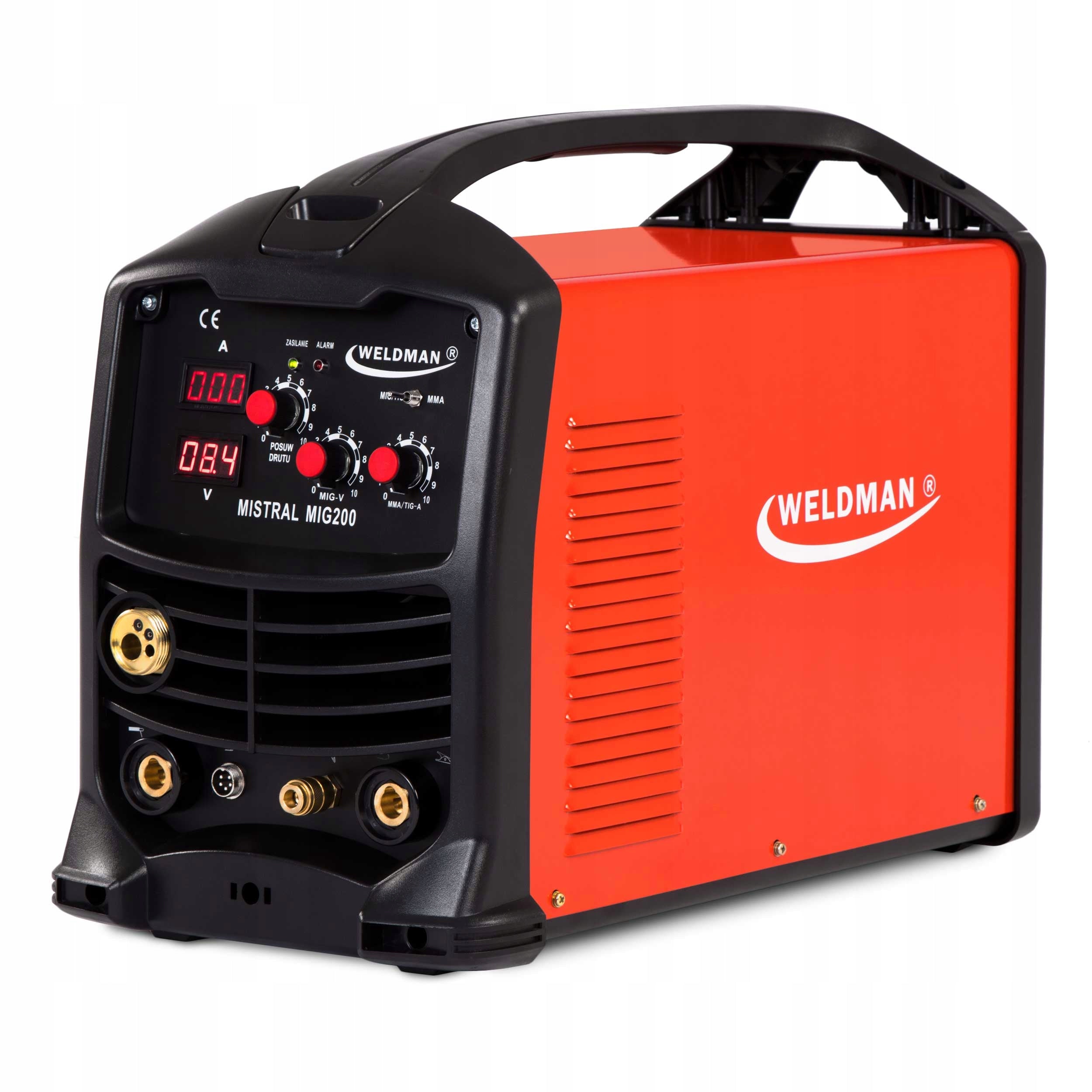

Prekė: Pusiau automatinis suvirinimo aparatas WELDMAN MISTRAL MIG 200 230V 200A MMA TIG DC FLUX. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: MISTRAL MIG 200
- Ilgis: 580 mm
- Plotis: 280 mm
- Aukštis: 420 mm
- Welding methods: MIG/MAG, MMA, TIG DC (LIFT), FLUX
- Power supply: 230V
- Operating cycle 60% at maximum welding current 200A
- For welding: low carbon steel, alloy steel, low alloy steel, stainless steel and aluminium and its alloys
- Max. thickness of welded material: 10 mm
- Smooth adjustment of welding current, wire feed speed
- Professional, metal, 2-roll wire feeder
- Two gas connections (enable simultaneous connection of argon cylinder and CO₂ cylinder)
- Cooling with fan
- Clean, aesthetic welds
- Made in IGBT technology
✔ FEATURES AND ADVANTAGES:
- TIG LIFT - arc glow by rubbing the electrode against the material; used in places where there is a risk of interference of electronics by high frequency current; welds are of high quality,
- FLUX - arc welding with powder wire without the use of a gas cylinder; self-shielding wire is filled with flux or a chemical substance generating protective gases,
- IGBT- bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.
⚙ TECHNICAL SPECIFICATION:
- Power Supply: 230V 50Hz (1ph)
- Network security: 20A
- Welding current: MIG: 50 - 200A | TIG, MMA: 10 - 200A
- Welding current voltage: MIG: 24V | MMA: 28V | TIG DC: 18V
- Idle voltage: 56V
- Wire diameter: FE: 0,8-1,0 | SS: 0,8-1,0 | AL: 0,8-1,0 | FLUX: 0,9-1,2 mm
- Spool size: 5 kg (200mm)
- Diameter of electrode: 1.6 - 4.0 mm
- Degree of protection: IP21S F
- Dimensions: 58 x 28 x 42 cm
- Weight: 16kg

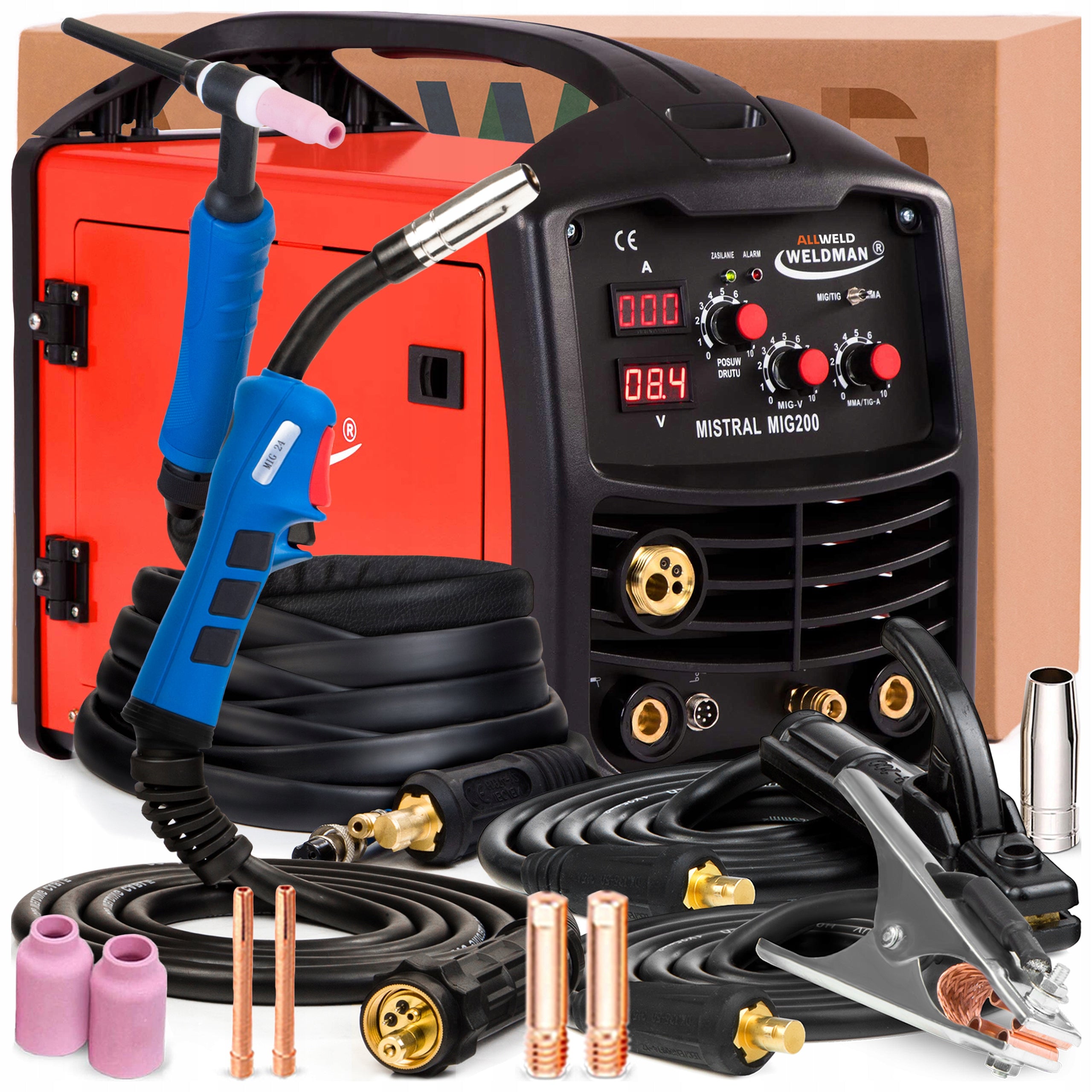

THE SET INCLUDES:
- WELDMAN MISTRAL MIG 200 welding machine,
- MIG/MAG welding torch type MB15 - 3m,
- TIG welding torch type SR26 - 4m,
- Mass holder - 2m,
- Electrode holder - 2m,
- Gas connections for technical hose 8 mm - 2 pcs. ,
- Welding shield,
- Brush,
- MIG gun consumables (nozzle x2, contact tip x3),
- TIG torch consumables (plug x2, collet x3, connector, nozzle x3),
- User manual and warranty card.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Power consumption | 8 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,2 |
| Parametry | Device weight | 16 kg |
| Parametry | Welding range | 10–200 A |
| Parametry | Height | 420 mm |
| Parametry | Length | 580 mm |
| Parametry | Width | 280 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Product weight with unit packaging | 19 kg |
| Parametry | Manufacturer code | 103102 |
| Parametry | EAN (GTIN) | 5902701750893 |
| Parametry | Packaging status | original |
| Parametry | Model | MISTRAL MIG 200 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,LCD display |
