Pusiau automatinis suvirinimo aparatas WELDMAN MISTRAL MIG 200, 200A, MMA, TIG

Kaina:
€455,49
Sandėlys:
Yra sandėlyje

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas WELDMAN MISTRAL MIG 200, 200A, MMA, TIG. Kategorija: Pusiau automatiniai suvirinimo aparatai.

  • Gamintojas: Weldman
  • Modelis: 103102
  • Ilgis: 580 mm
  • Plotis: 280 mm
  • Aukštis: 420 mm

Professional 3in1 Semi-Automatic Welding Machine

MIG/MAG, MMA, TIG

TECHNICAL PARAMETERS

  • Type of device MISTRAL MIG 200
  • Idle current voltage 56 V
  • Welding Current Adjustment Range MIG 50-200 A, TIG 10-200 A, MMA 10-200 A
  • Efficiency max at 40 °C EN 60974-1 200 A - 60%, 155 A - 100%
  • Wire diameter 0,8 – 1,2 mm
  • Protection class IP21S
  • Dimensions 580 x 280 x 420 mm
  • Weight 16 kg
  • Rated supply voltage 230 V; 50Hz (1ph)

Inverter semi-automatic welding machine MISTRAL MIG 200 WELDMAN

Semi-automatic welding machine powered by single-phase MISTRAL MIG 200 made in IGBT inverter technology for MIG/MAG welding (without gas shield) or FLUX welding (without gas shield), for MMA welding with direct current electrodes (DC) and TIG method with direct current (DC) with contact arc ignition (TIG LIFT).

Designed for welding with welding wires with a diameter of 0,6-1,0 mm, self-shielding wires of 0,9 mm and wrapped and tungsten electrodes with a diameter of up to 4 mm of low-carbon steel, low-alloy steel (MAG), alloy steel (MIG), aluminum and cast iron.

PRODUCT CHARACTERISTICS

  • Single-phase power supply
  • Panel in Polish
  • MIG/TIG and MMA operating method switch
  • Two digital displays of welding current parameters (ammeter, voltmeter)
  • Electronically controlled smooth regulation of welding current and wire feed speed
  • 2-roll wire feeder
  • In TIG welding method contact arc glow (TIG LIFT)
  • Red LED on the front panel informs about shutdown due to overload
  • Green LED on the front panel informs about connecting the device to the power supply
  • Two gas connections on the rear panel allow simultaneous connection of argon cylinders and carbon dioxide cylinders
  • Fan-cooled
  • Maximum spool with wire: 5 kg
  • Welding torch with a length of 2,0 m
  • Smooth regulation of welding current
  • Overload protection.

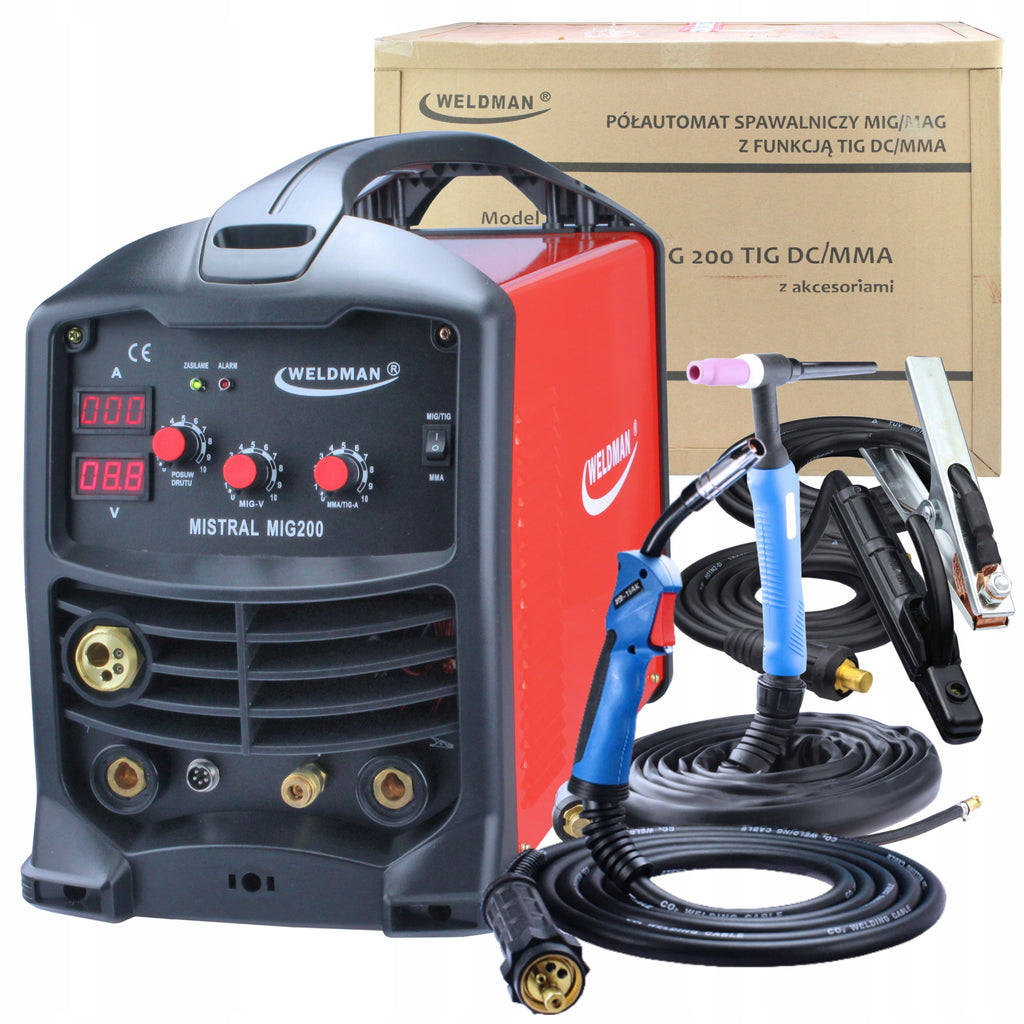

DELIVERY INCLUDES

  • Semi-automatic welding machine
  • 2 m power cord with 230V plug
  • Welding torch MB 15 3 m
  • TIG WP welding torch 26 4 m (DX50)
  • Welding cable 2 m with electrode holder 200A (DX50)
  • Mass cable 2 m with terminal 300A (DX50)
  • Two gas connections for 8 mm technical hose
  • 5-pin handle control socket and gas socket quick coupler mini type 21
  • Output socket 230V
  • Welding shield
  • Wire brush
  • Operating instructions

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Brand Weldman
Parametry Power consumption 8 kVA
Parametry Supply voltage (V) 230
Parametry Duty cycle time 60%
Parametry Maximum electrode diameter 4 mm
Parametry Wire diameter (mm) 0,8-1,2
Parametry Device weight 16 kg
Parametry Welding range 10–200 A
Parametry Height 420 mm
Parametry Length 580 mm
Parametry Width 280 mm
Parametry Length of ground cable 200 cm
Parametry Welding cable length 400 cm
Parametry Product weight with unit packaging 19 kg
Parametry Manufacturer code 103102
Parametry EAN (GTIN) 5902701750893
Parametry Model 103102
Parametry Welding methods MIG/MAG,MMA,TIG
Parametry Additional features infinitely adjustable welding current,LCD display
