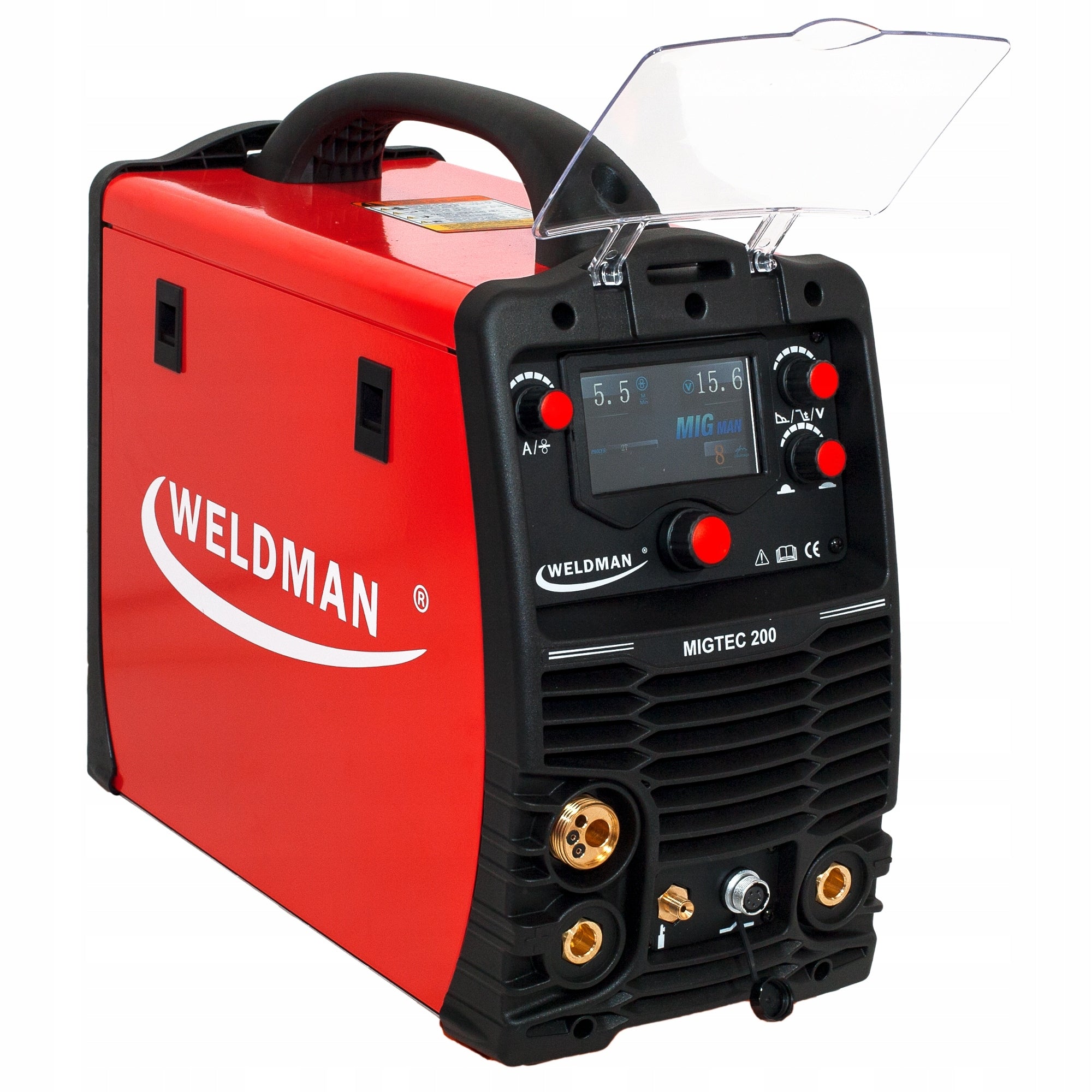

Pusiau automatinis suvirinimo aparatas WELDMAN MIGTEC 200 SYNERGY PAK, MIG/MAG, 200 A

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas WELDMAN MIGTEC 200 SYNERGY PAK, MIG/MAG, 200 A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: Spawarka Weldman MIGTEC MIG 200 LCD
• Ilgis: 420 mm
• Plotis: 230 mm
• Aukštis: 470 mm

SEMI-AUTOMATIC WELDING MACHINE MIGTEC 200 LCD SYNERGY - WELDING KIT #1

| Brand: WELDMAN| Welding methods: MMA, MIG,TIG LIFT | Power supply: 230V | Welding current: 200A | Efficiency: 25% |

Single-phase MIGTEC MIG 200 LCD microprocessor controlled welding machine, made in IGBT inverter technology for MIG/MAG (gas shielded) or FLUX (without gas shield), for welding with DC electrodes and TIG Lift method with direct current (DC) with contact arc ignition.

Designed for welding with welding wires with a diameter of 0,6-1,2 mm, self-shielding wires of 0,9 mm and wrapped and tungsten electrodes with a diameter of up to 4 mm of low-carbon steel, low-alloy steel (MAG), alloy steel (MIG), aluminum and cast iron.

Advantages of welding machine:

• SYNERGY - is a very helpful feature available in professional welding equipment of PREMIUM class. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.
• LUTOSPELING - is a method that resembles MIG/MAG welding to a fairly large extent, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with.
• EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.
• STRONG METAL HOUSING - reduces the risk of damage to the welding machine.
• CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.
• TWO-TACT 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off the welding current and gas outflow.
• FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.
• PROFESSIONAL WIRE FEEDER - enables precise extension of the welding wire excluding its slippage, guarantees stability and continuity of operation of the device.

IN ADDITION, THE DEVICE HAS THE FOLLOWING FUNCTIONS TO SUPPORT WELDING:

• ARC FORCE - "arch dynamics" - shortening the arc length is accompanied by an increase in welding current, which stabilizes the arc, regardless of its length. Reducing the value of the function gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc.
• ANTI STICK - short-circuit function - reduces the welding current to a minimum value when the welder makes a mistake and the electrode is glued to the welded material. This makes it easier to detach the electrode from the welded material and protects the electrode holder from damage.
• HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.
• WIRE BURNING FUNCTION - BURN BACK - it is possible to regulate the time, through which the voltage at the output of the device still occurs after stopping the wire feeding. This function prevents the welding wire from getting stuck in the workpiece and prepares the end of the wire for the next arc strike. Higher function values cause the wire to burn closer to the current tip.

THE WELDING MACHINE HAS SYNERGISTIC PROGRAMS FOR WELDING:

• FE - Plain steel
• SS - Stainless and acid-resistant steel
• Al - Aluminium
• FCAW-S - Welding with self-shielding powder wires
• FCAW-G - Wire welding of gas cylinders with flux core

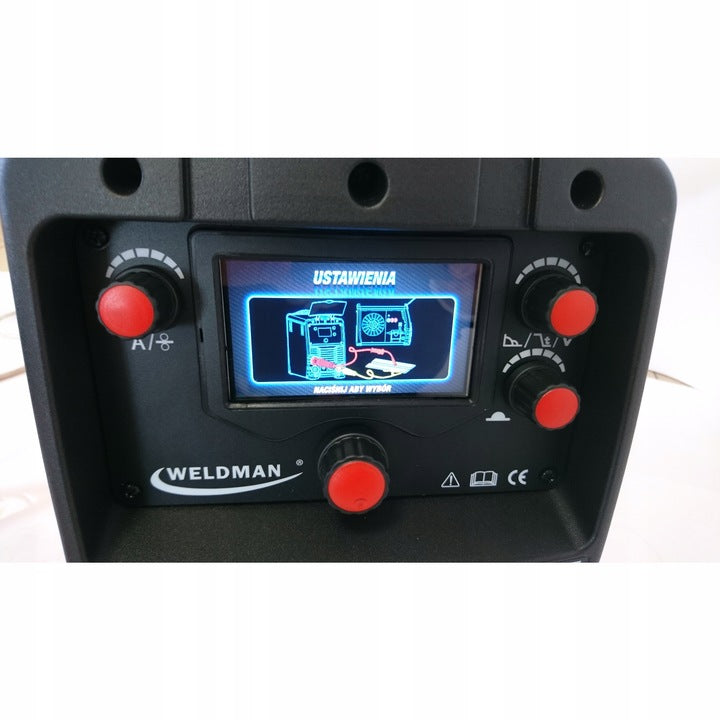

Control panel:

The easy-to-read LED display allows precise adjustment of the device, even in very strong lighting.

On the panel is m.in.

• Wire feed rate
• Welding current voltage in MIG method
• Welding process
• Handle operating mode
• Welded material
• Wire diameter
• Material thickness
• Inductance

Technical specification:

• Power supply voltage: × 230V
• Power protection: 20A
• Power supply: 36A
• EFF power supply current: 18A
• Idle voltage: 45V
• Aluminum wire diameter: 0,8 - 1,0 mm
• Diameter of self-shielding wire: 0,9 - 1,2 mm
• Wire diameter for stainless steel: 0,8 - 1.0 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Diameter of welding electrode: 1,6 - 4,0 mm

MIG PARAMETERS:

• Welding current: 200A
• Welding current adjustment range: 10 - 200A
• Working cycle and voltage at 25%: 200A / 24v
• Working cycle at and voltage 60%: 150A / 21.5v
• Working cycle at and voltage 100%: 130A / 20.5v
• Type of feeder: built-in, 2 - roller
• Wire spool: ≤ 5[kg]
• Wire spool diameters: D100, D200

TIG PARAMETERS:

• Welding current: 200A
• Welding current adjustment range: 10 - 200A
• Working cycle and voltage at 25%: 200A / 24v
• Working cycle at and voltage 60%: 150A / 21.5v
• Working cycle at and voltage 100%: 130A / 20.5v

PARAMETERS MMA:

• Welding current: 200A
• Welding current adjustment range: 10 - 200A
• Working cycle and voltage at 25%: 200A / 18v
• Working cycle at and voltage 60%: 150A / 16v
• Working cycle at and voltage 100%: 130A / 15,2v

THE REMAINING:

• Mass: 15.5 kg
• Overall dimensions L x W x H: 47x23x42
• Isolation class: F
• Security Degrees: IP 23
