Pusiau automatinis suvirinimo aparatas Weldman micro mig 235, MIG/MAG, MMA, TIG

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas Weldman micro mig 235, MIG/MAG, MMA, TIG. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: 103 133
• Ilgis: 485 mm
• Plotis: 240 mm
• Aukštis: 400 mm

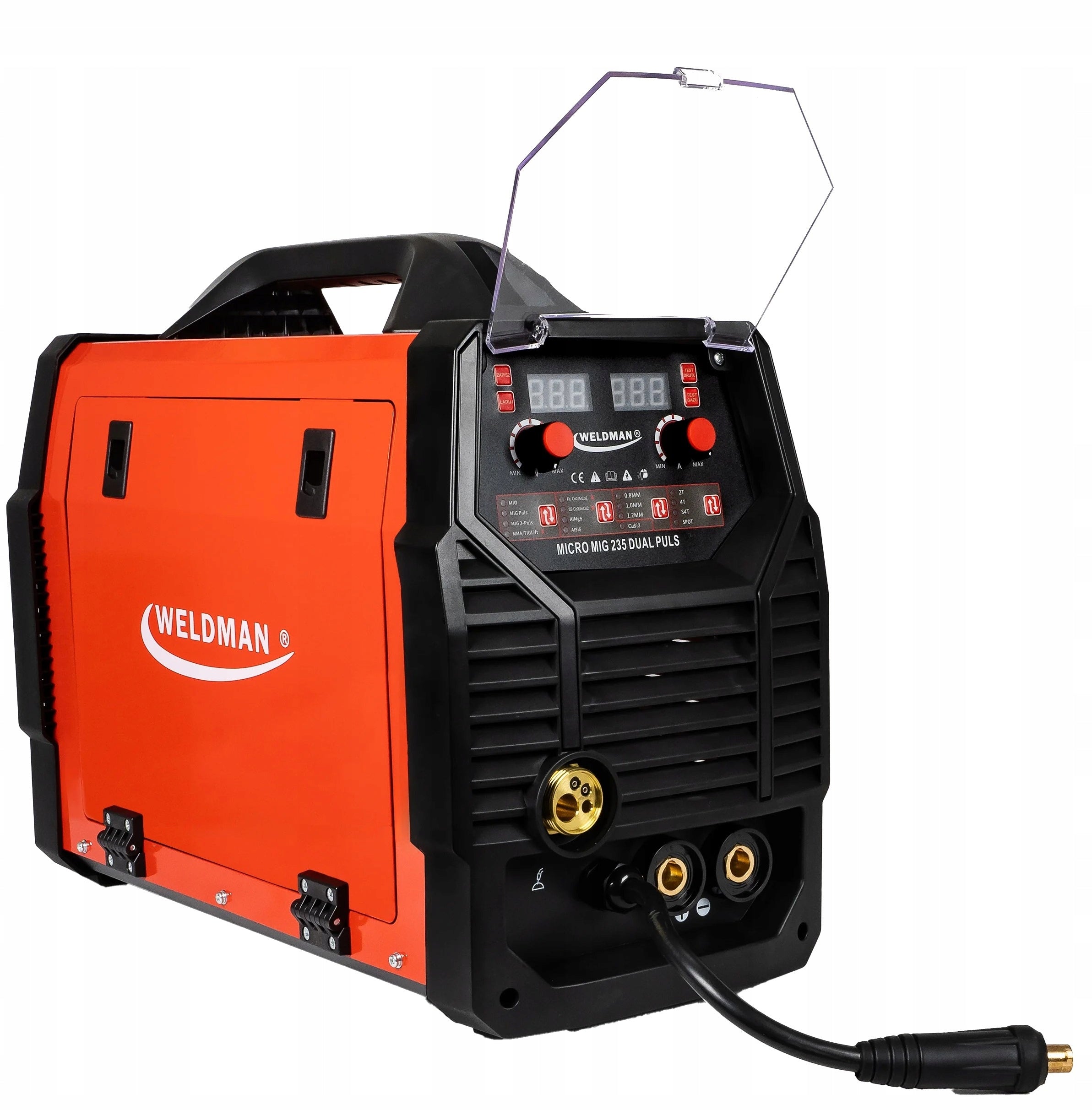

WELDMAN MICRO MIG 235 DUAL PULSE

| Brand: Weldman | Welding methods: MIG/MAG, MMA, TIG DC | Power supply: 230V | Welding current: 220A | Efficiency: 60% |

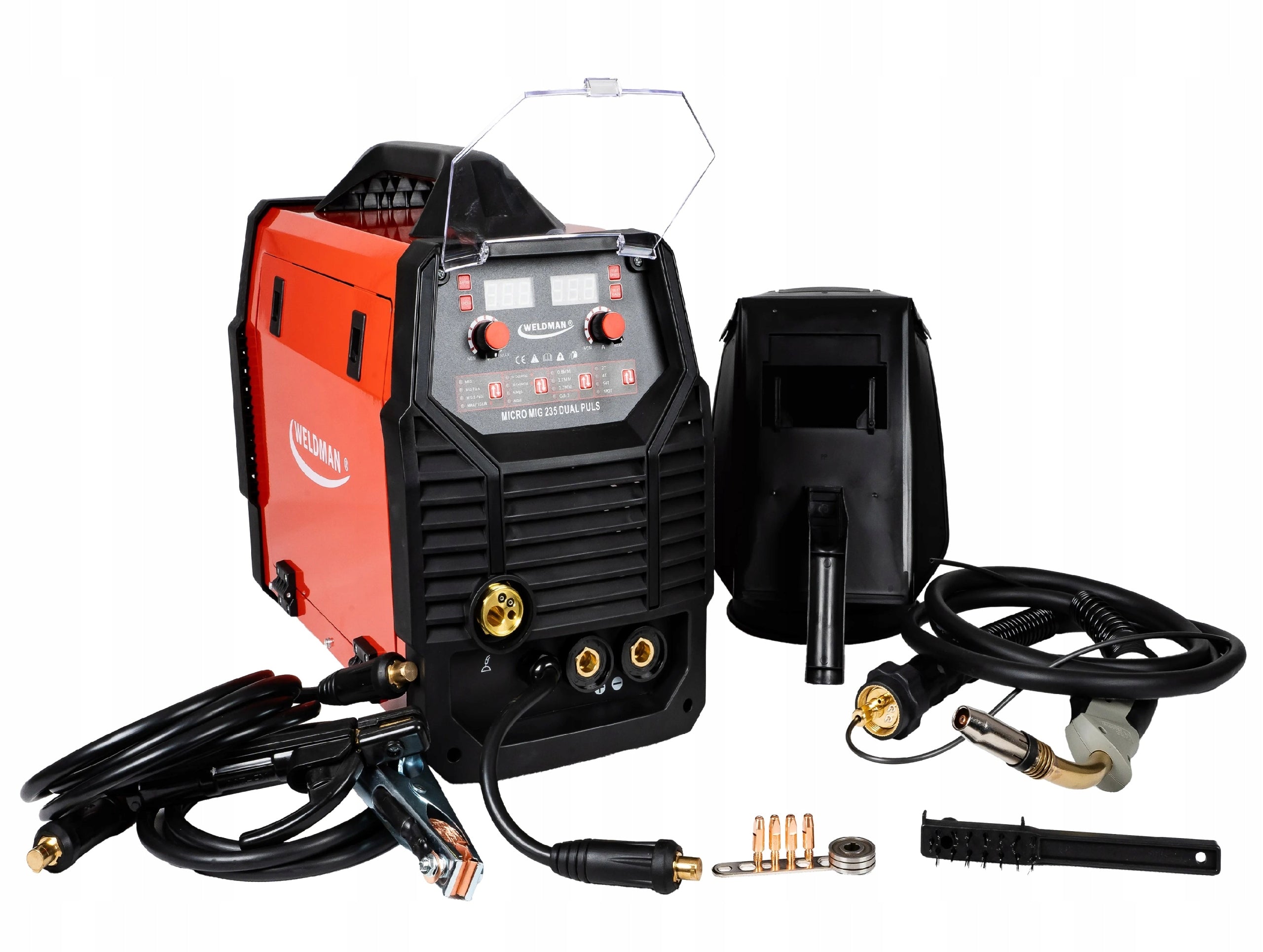

STANDARD EQUIPMENT

• Weldman Synergic welding machine MICRO MIG 235
• MIG welding torch 24 3m
• Mass cable 2 m with mass clamp 300A (DX50)
• Cable 2,5 m with electrode holder 200A (DX50)
• 2 m power cord with 230V plug
• 230V power socket located on the rear panel
• Gas connection (8 mm technical hose connector)
• Additional roll for Fe 0,8-1,0 V mm wire feeder
• Welding disc and brush

Microprocessor controlled, made in IGBT inverter technology for welding methods:

• MIG/MAG in the shield of inert and active gases,
• MIG/MAG with pulse
• MIG/MAG with dual pulse
• MMA with a wrapped electrode,
• TIG Lift with arc ignition by rubbing.
• FLUX easy polarity change allows welding with self-shielding wire without gas

The MICRO MIG 235 DUAL PULSE welding machine, thanks to the possibility of changing the polarity of welding, enables welding with self-shielding wire without gas.

Setting the parameters of the device is done using the control panel on which the displays and control knobs are placed. The above solution allows easy and quick setting and reading of all welding parameters.

MICRO MIG 235 DUAL PULSE enables wire work in the diameter range 0.8 - 1.2mm. Built-in two-roll feeder, ensures stable feeding of welding wire. Light weight and dimensions make it a handy welding device.

Thanks to this, the Micro Mig 235 semi-automatic welding machine makes the work even more dynamic, which translates into the effectiveness of the activities performed.

The device uses general protection such as protection against excessive voltage, excessive current, overheating of the device, etc.

Through its design, the Micro Mig 235 welding machine has a wide range of applications, so it will work perfectly in the flashing industry, workshops, as well as in the case of individual activities.

TECHNICAL DATA:

• Power supply voltage [V]: 230
• Idle current voltage [V]: 70
• Welding current adjustment range [A]: 20-220
• Efficiency max at 40°C EN 60974-1: MIG/MAG 220A@60% 180A@100% MMA 220A@60% 80A@100%
• TIG LIFT: 220A@60% 180A@100%
• Diameter of electrode [mm]: 1,6-4
• Protection class [IP]: 21
• Dimensions [cm]: 48,5x24x40
• Weight [kg]: 12,5

DEGREE OF PROTECTION

IP21 means that the device is adapted to work in closed rooms.

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and the speed of switching bipolar transistors. The use of IGBT technology has an impact on significantly extending the reliable operation of welding equipment.

PROTECTION AGAINST OVERHEATING

The IGBT module is protected from overheating by a protective installation that turns off the welding circuit of the device. After a few minutes, the welding machine is cooled to a temperature allowing it to be switched on again.

WORK CYCLE

The work cycle is based on a 10-minute period. The 60% duty cycle means that a 4-minute break is required after 6 minutes of operation of the device. The 100% duty cycle means that the device can work continuously, without interruptions.

MMA

A method in which a wrapped electrode is used, consisting of a metal core covered with a sheath. The device allows welding with all types of electrodes, e.g. alkaline, cellulose, rutile or acidic.

MIG PULSE

Advanced form of welding, which uses the best of the forms of transfer of molten electrode material to the welded object. Unlike short circuits, impulse welding does not produce splashes or threaten with cold “infiltration”.

By cooling the spray arc process, the pulsed MIG is able to extend the welding range, and a smaller heat input does not cause a problem with burning thin materials. MIG PULSE is one of the best welding processes for a wide range of metal applications and types.

FLASH DOUBLE PULSE

The MIG/MAG method with double pulse allows you to adjust the current pulsation (pulse balance) and adjust the wire feed speed. Thanks to this, we improve the appearance of the weld. When welding with the MIG/MAG double pulse method, current pulses occur in two ranges.

REGULATION OF INDUCTANCE

It allows you to optimize arch characteristics depending on the thickness of the welded element and the welding method and conditions. The function is useful during MIG/MAG welding of thin elements, preventing them from burning out and soldering galvanized elements.

2T/4T

2T - Pressing the welding torch button will cause the gas to pre-flow, then ignite the arc and start welding. When the button is released, the arc will be extinguished and the gas will flow out.

4T - Pressing and releasing the welding torch button will cause the gas to pre-flow, then the arc to glow and start welding. After pressing and releasing the button again, the arc will be extinguished and the gas will flow out.

TIG DC LIFT

In the TIG method, the electric arc is ignitioned in an inert gas (argon) shield between the welded element and the non-melting electrode, made of pure tungsten or tungsten with additives. .

SOLDERING

After selecting the type of CuSi wire, the device enables soldering, mainly used in the automotive industry to connect galvanized sheets.

SPOT WELDING SPOT

Time welding function, used to attach details, thanks to which an equal length of welding welds can be obtained.

S2T/S4T

S2T - two-tact special - after pressing the button, the gas will flow out at the time set by the user and the welding arc will glow. The arc voltage at the start will be increased and will drop to the value of the main welding current at the set time.

After releasing the button, the current will drop to the final current value. Then the arc will expire and shielding gas will flow out at the set time.

S4T - four-point special - after pressing and releasing the button, the gas will flow out at the time set by the user and the welding arc will glow. The arc voltage at the start will be increased and will drop to the value of the main welding current at the set time.

After pressing and releasing the button again, the current will drop to the value of the final current. Then the arc will expire and shielding gas will flow out at the set time.

EURODISCONNECTION

Standard welding torch connection that allows you to connect various types of torches (e.g. prepared for welding Aluminum or Soldering by replacing the Teflon cartridge and current tip).

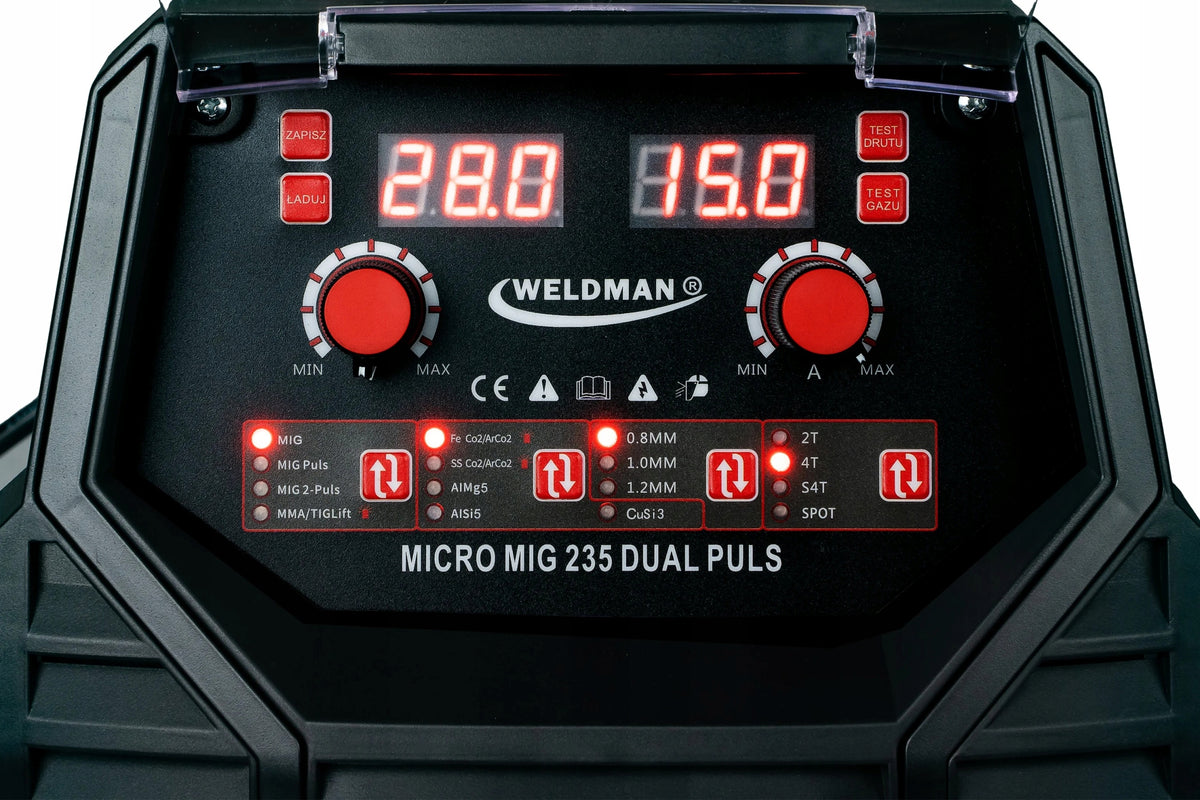

Easy-to-use control panel enables precise and smooth adjustment of parameters. The digital display indicates the actual current during welding.

COOLING

The device has a cooling system fan which definitely increases its efficiency

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Weldman
Parametry	Power consumption	7.5 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Device weight	12.5 kg
Parametry	Welding range	20–220 A
Parametry	Height	400 mm
Parametry	Length	485 mm
Parametry	Width	240 mm
Parametry	Length of ground cable	2 cm
Parametry	Welding cable length	3 cm
Parametry	Product weight with unit packaging	13 kg
Parametry	Manufacturer code	103 133
Parametry	EAN (GTIN)	5902701751906
Parametry	Packaging status	original
Parametry	Model	103 133
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle
