Trumpai apie prekę

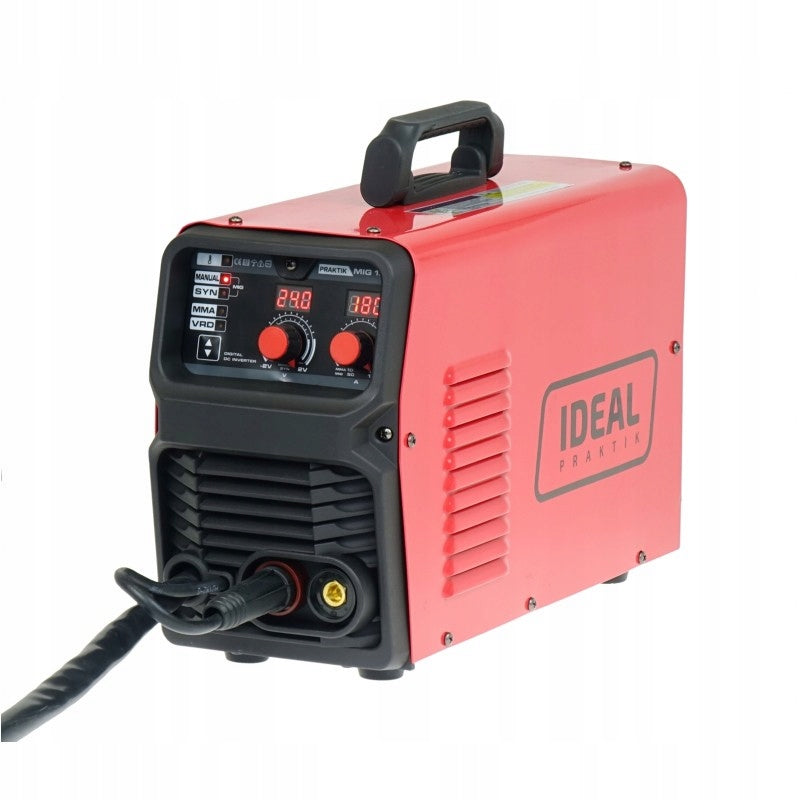

Prekė: Pusiau automatinis suvirinimo aparatas TIG MIG MMA 180A. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Ideal Praktik
- Modelis: PRAKTIK MIG 1800
- Ilgis: 400 mm
- Plotis: 160 mm
- Aukštis: 340 mm
PRATIK MIG 1800 180A 230V PMIG1800
PRAKTIK MIG 1800 MMA is an inverter semi-automatic welding machine designed for arc welding using the MIG/MAG, MMA, FLUX and TIG Lift methods. The device has been designed for a wide range of applications: from maintenance work to car body repairs.
PRAKTIK MIG 1800 is used for welding carbon and low alloy steels. Welding is carried out in the shield of active gas or mixture, and with reverse polarity without gas.
Physical parameters
The device has a fan cooling system which significantly increases its efficiency.
The device is equipped with overload protection, which increases its reliability.
Power supply parameters
Single-phase power supply 230V. The device is equipped with a power plug.
Equipment

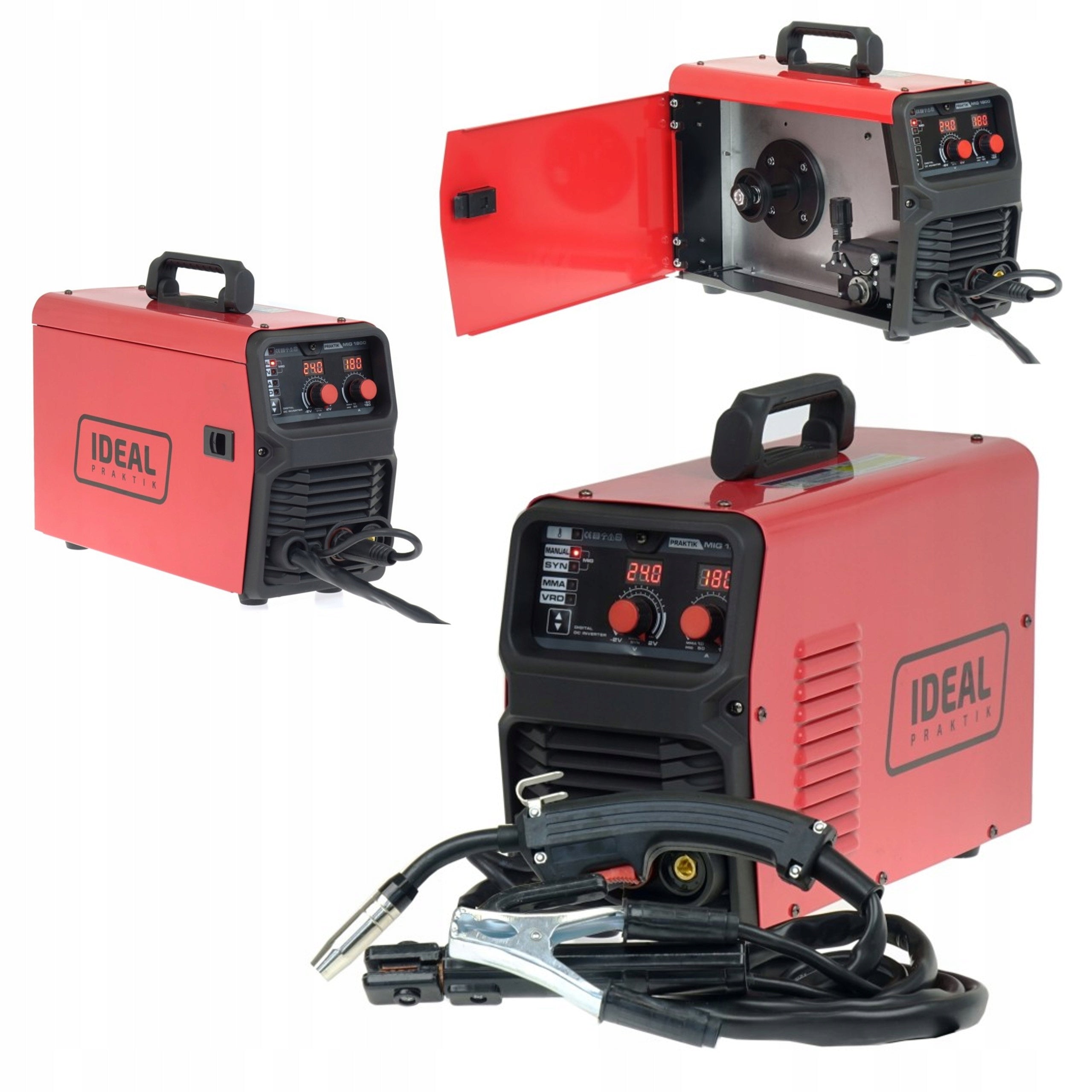

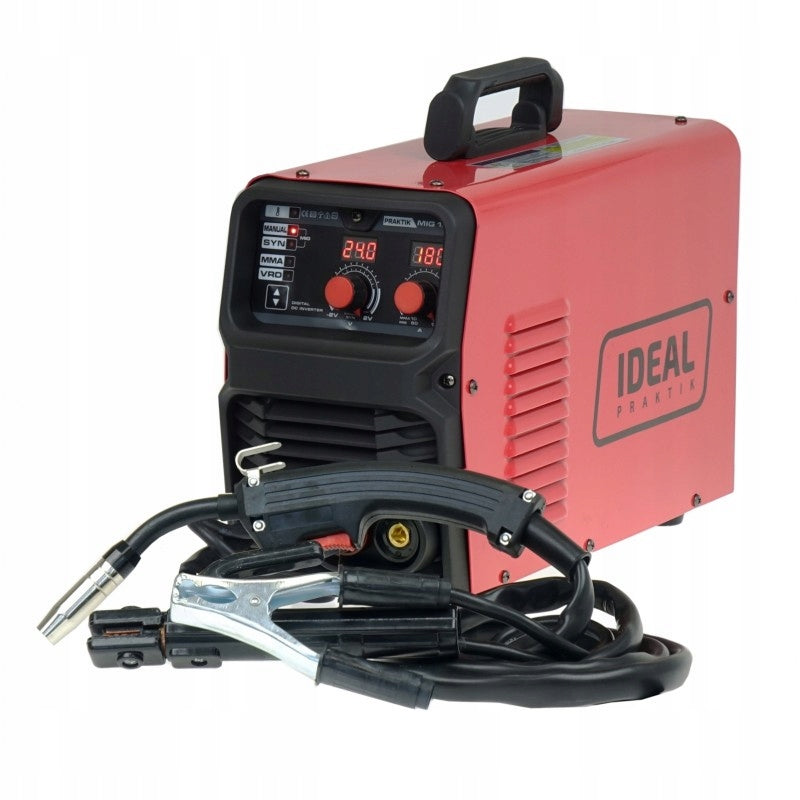

Delivery includes a device with a direct MIG welding torch, a mass cable with a length of 2 meters and an electrode cable with a length of 1,5 meters.
TECHNICAL DATA:
Physical parameters
- Wire spool sizemax 5kg
- Degree of protection IP 21S
- Weight of the device / set 11 / 12 kg
- Overall dimensions L x W x H 400x160x260 mm
- Package dimensions L x W x H 485x245x340 mm
Technical parameters
- Power 5 kW
- Idle voltage 51 V
- Maximum current 180 A (MIG) / 160 A (MMA)
- Current at work 100%139 A
- Current at work 60%180 A
- Diameter of self-shielding wire 0,8 - 0,9 mm
- Steel wire diameter 0,6 - 0,8 mm
- Welding electrode diameter 1,6 - 4,0 mm
- Welding Current Adjustment Range 50 - 180 A (MIG/MAG) / 10 - 160 A (MMA)
Power supply parameters
- Securing the C16A power supply network
- Rated supply voltage 230 V - 1 ph 50/60Hz
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Ideal Praktik |
| Parametry | Power consumption | 5 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,6-0,8 |
| Parametry | Device weight | 11 kg |
| Parametry | Welding range | 50–180 A |
| Parametry | Height | 340 mm |
| Parametry | Length | 400 mm |
| Parametry | Width | 160 mm |
| Parametry | Length of ground cable | 160 cm |
| Parametry | Welding cable length | 210 cm |
| Parametry | Additional features | infinitely adjustable welding current |
| Parametry | Product weight with unit packaging | 12 kg |
| Parametry | Manufacturer code | PMIG1800 |
| Parametry | EAN (GTIN) | 5903991100351 |
| Parametry | Model | PRAKTIK MIG 1800 |
| Parametry | Welding methods | MIG/MAG,MMA |
