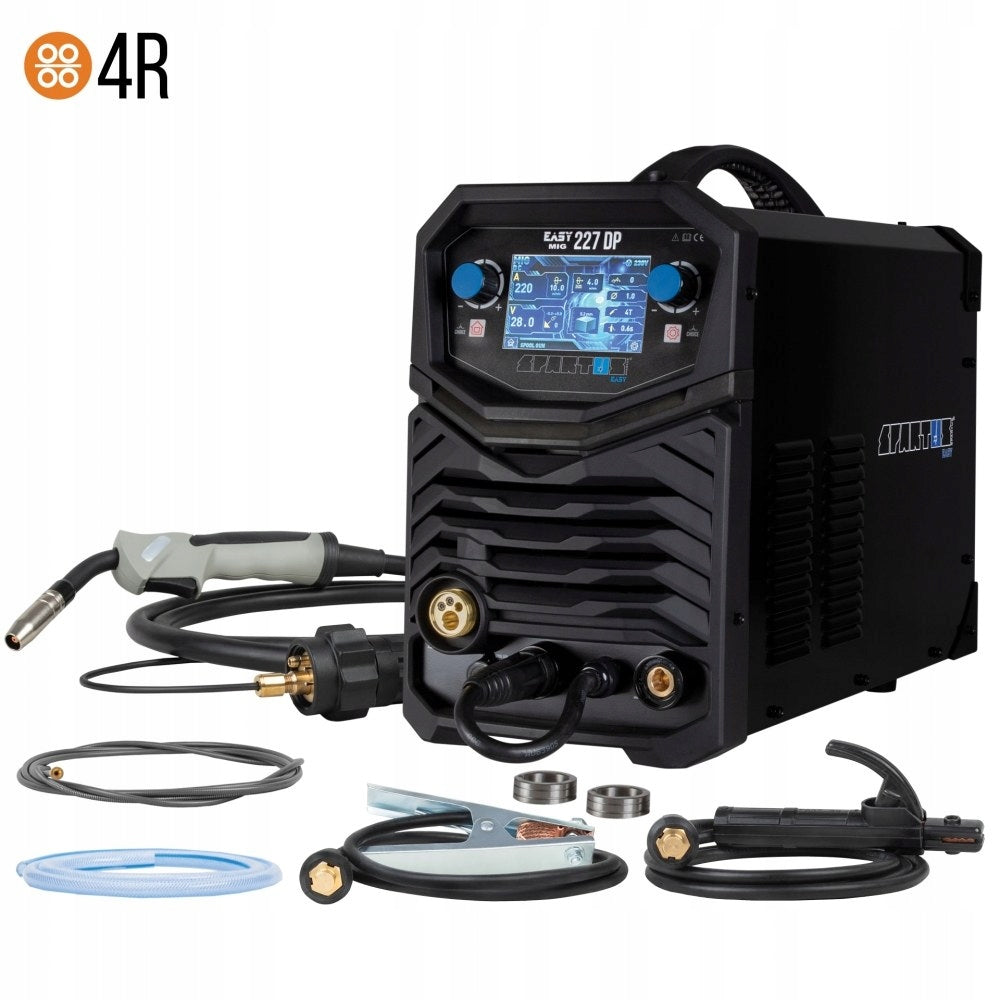

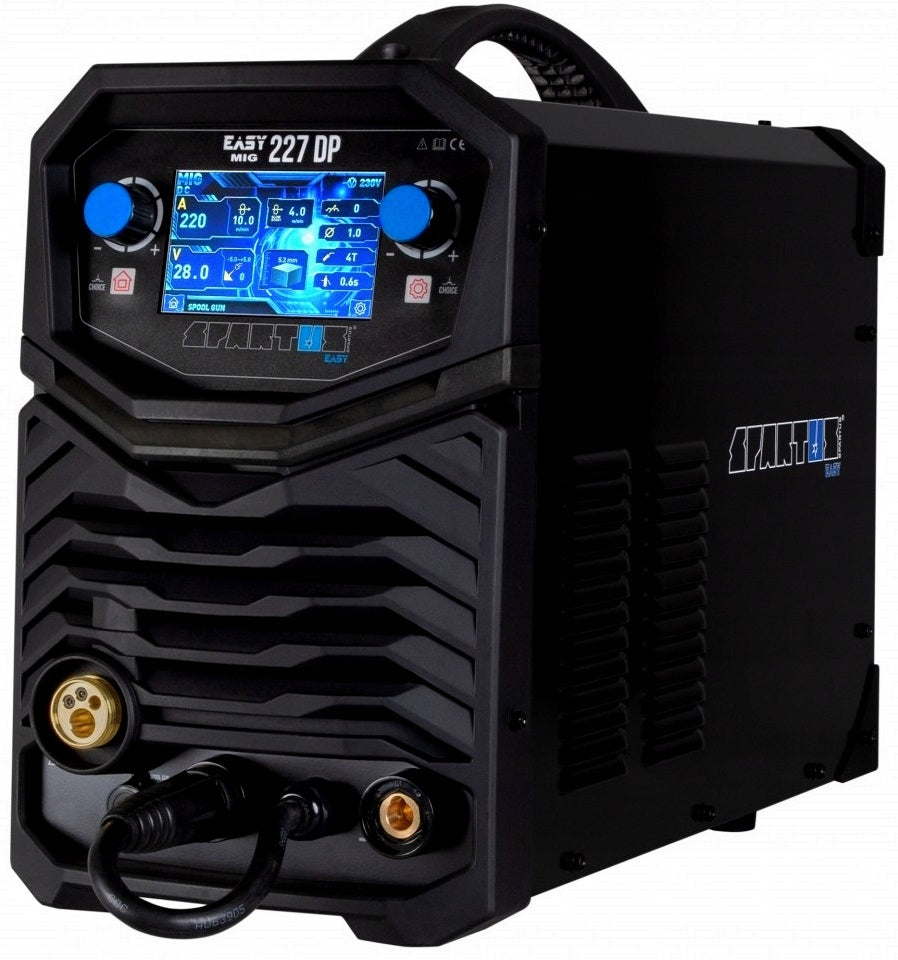

Pusiau automatinis suvirinimo aparatas SPARTUS EASYMIG 227 DP, dvigubas impulsas, 4 ritinėliai

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas SPARTUS EASYMIG 227 DP, dvigubas impulsas, 4 ritinėliai. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EASYMIG227DP-PAK-15-3

WELDING MACHINE SPARTUS EASYMIG 227DUAL PULSE 4 -ROLL

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• MIG SYN - MIG/MAG welding with synergistic settings,
• MIG MAN - MIG-MAG welding in manual (traditional) mode,
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not ignite the arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

The SPARTUS EASYMIG 227DP welding machine is used for welding:

✔ low alloy steels

✔ low carbon steel

✔ alloy steel

✔ other weldable metals and alloys

✔ aluminium and its alloys

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshopsetc.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with professional 4 ROLL wire feeder, which guarantees stability and continuity of operation of the device AT HANDLES 5-6MB

The feeder has a quick wire change knob as well as a wire feed roller.

The welder supports D200 / D300 wire spools. (5KG/15KG)

The welding machine is equipped with a professional 4 ROLL wire feeder, which guarantees stability and continuity of operation of the device AT 5-6MB

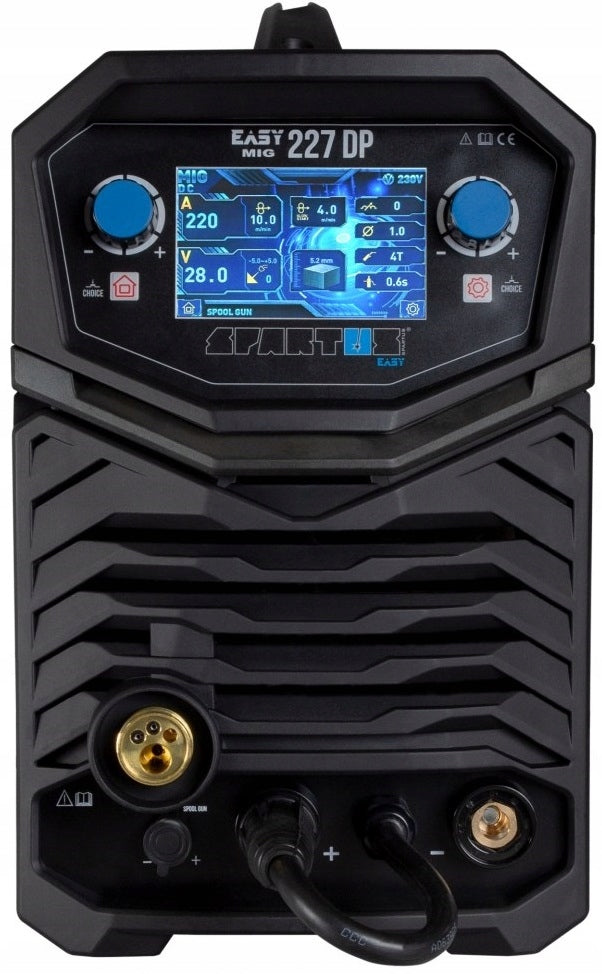

SPARTUS EASYMIG 227DP has a readable and easy to use function panel, which has m.in.:

L1 - LCD display,

L2 - Welding method selection knob / MIG voltage regulation,

L3 - Button – return to menu,

L4 - Parameter adjustment knob,

L5 - Welding parameter selection button:

• wire speed,
• wire diameter,
• inductance,
• mode 2-4T,
• Hot Start,
• Arc Force.

Description of parameters on the LCD display

G1 - Welding current,

G2 - Wire feed speed,

G3 - Welding voltage,

G4 - Arch length correction,

G5 - Currently selected program,

G6 - Inductance,

G7 - Wire feed speed at "slow loss",

G8 - Wire diameter,

G9 - Operating mode 2T/4T,

G10 - Post gas (gas flow after welding),

G11 - Thickness of welded material.

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ SYNERGY - is a very helpful feature available in professional welding equipment class PREMIUM. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

✔ DUAL PULSE - provides better transfer of the binder into the welded material, which fundamentally improves control over the welding process and the quality of the weld itself. It allows you to work in all positions and is especially useful for forced positions. It provides less heat impact, works well in the case of thinner materials or those with increased thermal conductivity, such as: aluminium alloys. Reduces the amount of chipping. The most advanced welding method, in which current pulses occur in two ranges, thanks to which we obtain the optimal aesthetics of the weld face, the so-called. husk effect.

✔ SOLDERING - is a method that is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with.

✔ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ARC FORCE - is a function that facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.

✔ VRD - is a voltage reduction system whose task is to turn off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level.

✔ SPOOL GUN - SpoolGun welding torch with built-in wire feeder is used for MIG/MAG welding. It is mainly used in car workshops and in welding thin sheets.

✔ SLOW FEED - regulation of the access speed of the wire, allows stable glow especially in cases of high speed of wire feeding. It reduces the risk of welding defects at the beginning of the weld to a minimum.

✔ POST GAS - regulation of gas outflow time after welding arc extinction. This is a helpful feature to cover the welding lake. The lack of additional gas shielding may result in oxidation of the weld.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

✔ EASY TO USE - The welding machine is equipped with an easy-to-use control panel, so it can be used even by amateurs.

⏩ TECHNICAL DATA:

• Power supply voltage: ~1× 230V ± 10% 50 / 60 Hz
• Output voltage : 16.5 - 25.0 V
• Power factor (cosφ): 0.8

⏩ MIG PARAMETERS:

• Welding current MIG [A]: 50 - 220
• Power consumption [A]: 45
• Type of feeder: built-in, 2 - roller
• Wire diameter : 0.8 / 1.0 / 1.2 mm
• Wire spool: ≤ 15kg / ∅200 /∅300 mm
• Working cycle [%]: 60
• Efficiency η [%]: 80.7

⏩ TIG PARAMETERS:

• TIG welding current [A]: 10 – 220
• Power consumption [A]: 35
• Welding TIG: Tig DC Lift
• Working cycle [%]: 60
• Efficiency η [%]: 78.5

⏩ MMA PARAMETERS:

• MMA welding current [A]: 10 – 200
• Power consumption [A]: 45
• Working cycle [%]: 60
• Hot Start: 0 – 10
• Arc Force: 0 – 10
• Efficiency η [%]: 83

⏩ OTHER:

• Mass: 19.5 kg
• Isolation class: H
• Idle voltage [V]: 62
• Degree of protection: IP21S
• Dimensions: 560 x 255 x 445mm

• WELDING MACHINE SPARTUS EASYMIG 227DP - 1pc
• Welding torch - SPARTUS MB 15/3m - 1pcs
• Guide roller 1.0-1.2U fi30 + additional 0.8-1.0V fi30
• Steel wire guide - 1pc.
• Electrode holder - 1 pcs.
• Bulk cable - 1 pcs.
• Gas hose - 1pc.
• Clippers - 2pcs
• Instruction service in Polish
• DEVICES IN OUR WAREHOUSE AVAILABLE IMMEDIATELY

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Spartus
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	5 mm
Parametry	Device weight	19.5 kg
Parametry	Welding range	50–220 A
Parametry	Welding cable length	300 cm
Parametry	Manufacturer code	EASYMIG227DP-PAK-15-3
Parametry	EAN (GTIN)	5900391245880
Parametry	Model	EASYMIG227DP-PAK-15-3
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	EURO handle,LCD display
