Trumpai apie prekę
Prekė: Pusiau automatinis suvirinimo aparatas SPARTUS EASY MIG 210S MMA TIG ALU SYN 3IN1. Kategorija: Inverteriniai suvirinimo aparatai.
- Gamintojas: Spartus
- Modelis: EasyMIG210S_pak_15-3
Manufacturer: SPARTUS ║ Welding methods: MIG/MAG, FLUX, MMA, TIG LIFT ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%
- Welding machine 3in1 - MIG/MAG, MMA, TIG DC
- Possibility of welding with self-shielding wire - FLUX
- Synergy - automatic selection of parameters - with the possibility of manual correction
- Programs synergistic for welding steel, aluminum and welding without gas

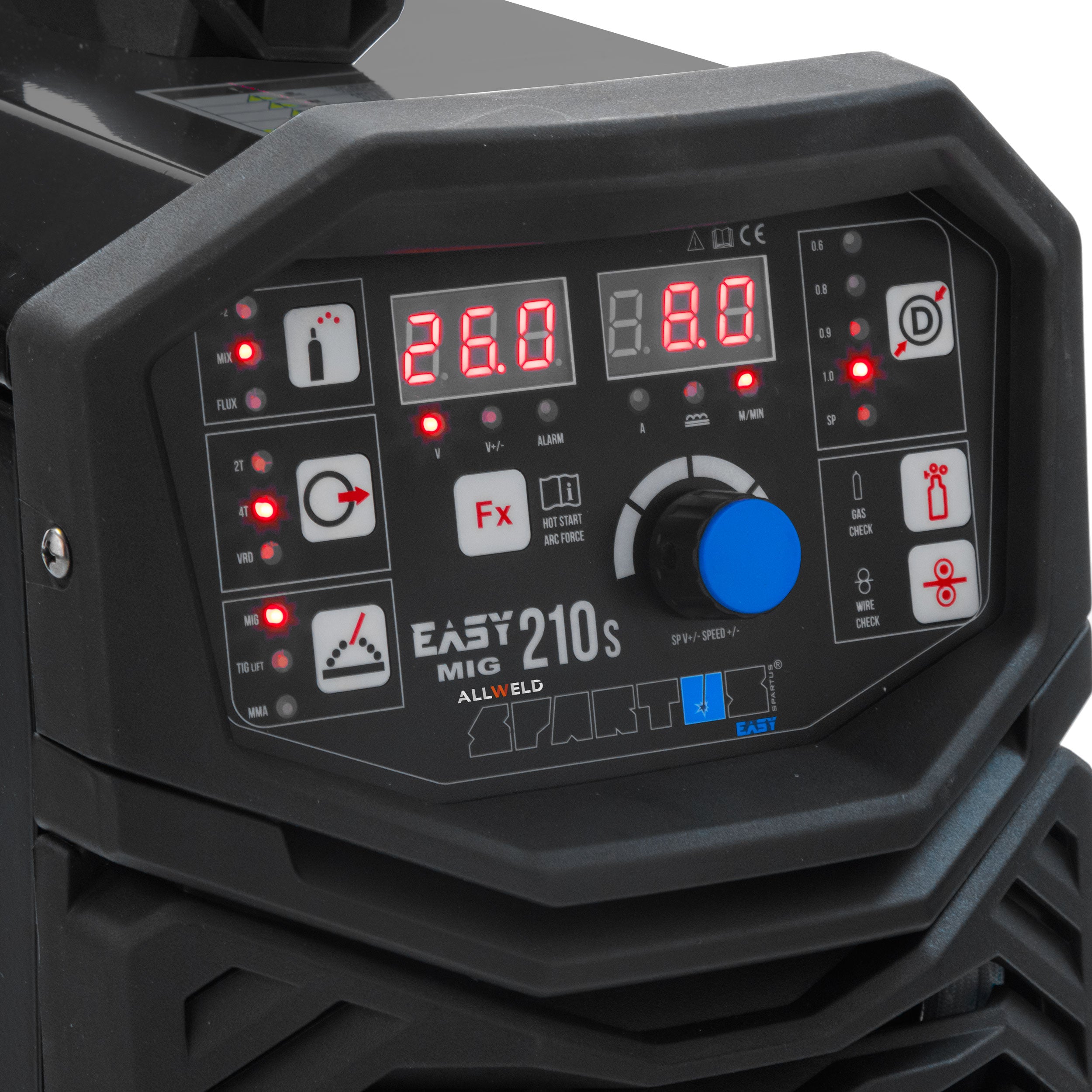

- Readable, soft control panel
- Welding current 200A with efficiency 60%
- 2T/4T mode
- HOT START function
- ARC FORCE function
- VRD function
- Lutowelding - adjustable inductance
- Feeder 2R - excellent work
- Excellent semi-automatic for working in workshops, platework, industry light and household
MULTIFUNCTIONAL SEMI-AUTOMATIC 3in1!
The SPARTUS EASYMIG 210S welding machine is a 3in1 welding machine that can be used for welding using the MIG/MAG, MMA (wrapped electrode) and TIG DC (with LIFT touch). The device allows for welding with a maximum current of 200A, ensuring excellent quality weld.
WIDE RANGE OF APPLICATIONS
The welding machine, thanks to its adjustable inductance , allows you to set the width and depth of the melt, and also allows you to weld without chipping both thin sheets and thick profiles and conduct the CuSi lutowelding process, thanks to which you can freely combine galvanized sheets, which are often used in car bodies.
SYNERGY WITH THE OPTION OF PARAMETER CORRECTION
The SPARTUS EASYMIG 210S welder gives us the opportunity to work on synergistic programs using steel wires in diameters from 0,6 to 1,0mm. An additional advantage of the semi-automatic is the option of manual correction of synergistic settings.
REG. INDUCTION - allowing less heat to be introduced into the welding site. The sheet does not deform and the protective layer of zinc is not damaged, useful in lutowelding.
LUTOSPELING - this method is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. However, the soldering method is used not only for bonding galvanized sheets, but also thin sheets made of stainless steel and various connections, i.a. acid-resistant steel of ordinary quality steel or copper with steel.
HOT START "hot start" - consists in temporarily increasing the welding current above the set value at the moment of arcing. This prevents the phenomenon of “sticking the electrode” in the initial phase of welding, making it easier to start the whole process.
2T/4T - at two bars after pressing the start button, the welding process takes place after releasing the button, the welding process is stopped - at four bars after the first press and release of the button, the welding process stops at the second press.
ARC FORCE “arch dynamics” – shortening the arc length is accompanied by an increase in welding current, which stabilizes the arc, regardless of its length.
FLUX - welding without gas shield with self-shielding wire
VRD - function that turns off (reduces) power after welding.
IGBT - modern IGBT transistors are used in the welding machine, the solution ensures lower electricity consumption, greater resistance to interference, voltage drops, but also trouble-free operation.
POWER SUPPLY PARAMETERS
- Power supply: 230V
- Number of phases: 1ph
- Frequency: 50/60Hz
- Max. power consumption [A]: MIG 50-200
MIG/MAG WELDING PARAMETERS
- Welding current: 50-200A
- Work cycle: 60%
- Wire feed speed: 2 – 12,5m/min

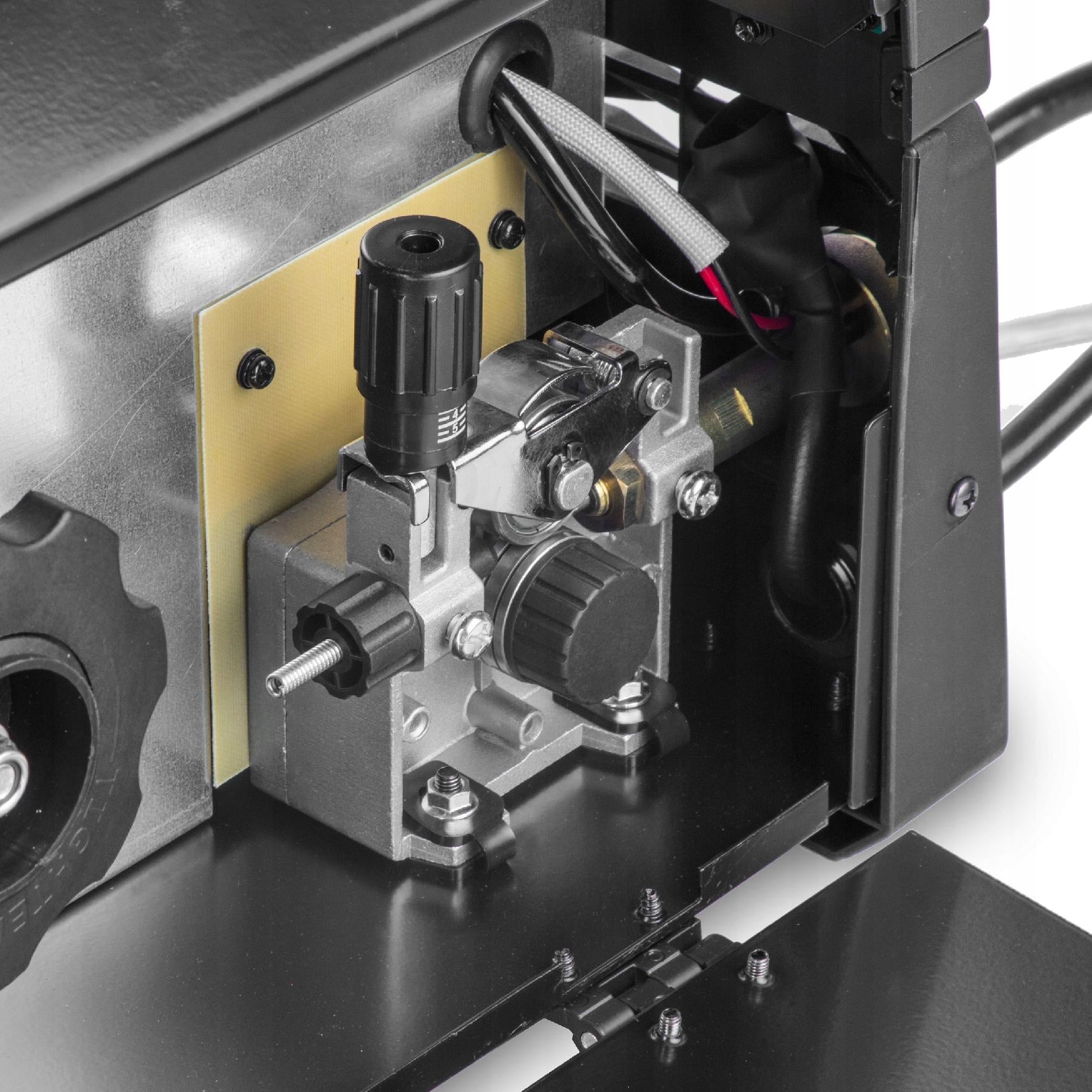

- Type of feeder: built-in, 2 - roller
- 2T/4T: YES
- Wire spool: ≤ 5kg / ∅200mm
- Wire diameter: 0.6 / 0.8 / 1.0mm
- Output voltage: 16,5 – 24V
WELDING PARAMETERS MMA
- Welding current: 10-160A
- Work cycle: 60%
WELDING PARAMETERS TIG DC LIFT
- Welding current: 10-200A
- Work cycle: 60%
- Arc glow: LIFT
ADDITIONAL FUNCTIONS
- ARC FORCE function: YES
- 2T/4T function: YES
- SOLDERING function: YES
- TIG LIFT function: YES
- SYNERGY: YES
PHYSICAL PARAMETERS
- Cooling: fan
- Isolation class: H
- Security rating: IP 21S
- Dimensions: 470x190x300mm
- Weight: 9 kg

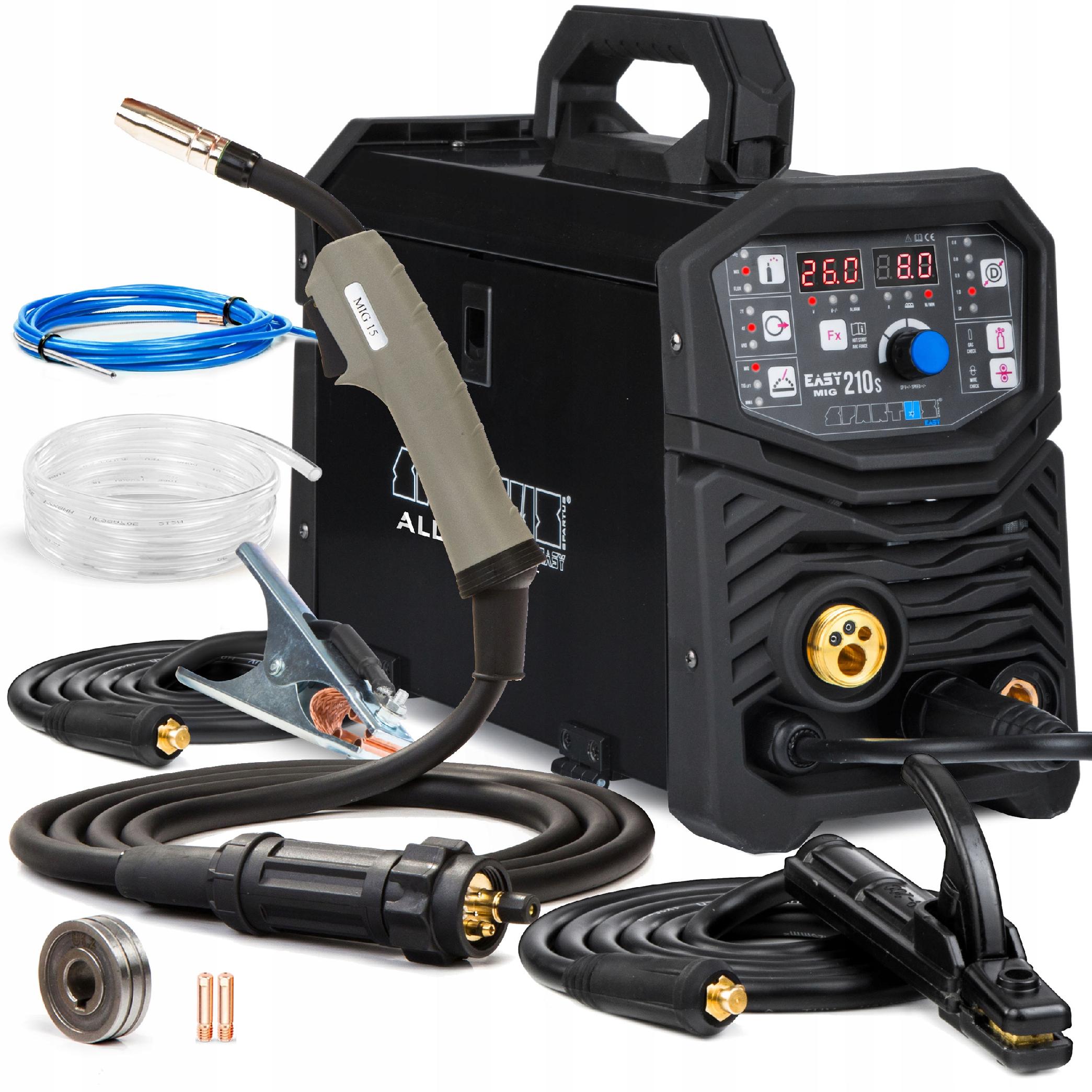

THE SET INCLUDES:
- Welding machine SPARTUS EasyMIG 210S
- Welding torch SPARTUS MIG SPE 150 MB 15 - 3 m
- Bulk holder - 2 m
- Electrode holder - 2 m
- Gas connection hose - 1 pcs
- Refill for steel wire (mounted in the holder) - 1 pcs
- Wire feeder roller (installed in the device) - 1 pcs
- Current terminals - 2 pcs
- Operating manual and warranty card
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Spartus |
| Parametry | Power consumption | 8.7 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 3.2 mm |
| Parametry | Device weight | 9 kg |
| Parametry | Welding range | 50–200 A |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 20 kg |
| Parametry | Manufacturer code | EasyMIG210S_pak_15-3 |
| Parametry | EAN (GTIN) | 5900391242254 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
