Pusiau automatinis suvirinimo aparatas SHERMAN 200A MMA VRD FLUX

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas SHERMAN 200A MMA VRD FLUX. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: DIGIMIG 200 SYNERGIA
• Ilgis: 480 mm
• Plotis: 210 mm
• Aukštis: 330 mm

+MIG/MAG, MMA, TIG WELDING KIT, WHICH INCLUDES:

✅ AUTOMATIC VISOR IDEAL APS-510G

✅ CYLINDER WITH REDUCER

✅ WELDING WIRES

✅ WELDING ACCESSORIES

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

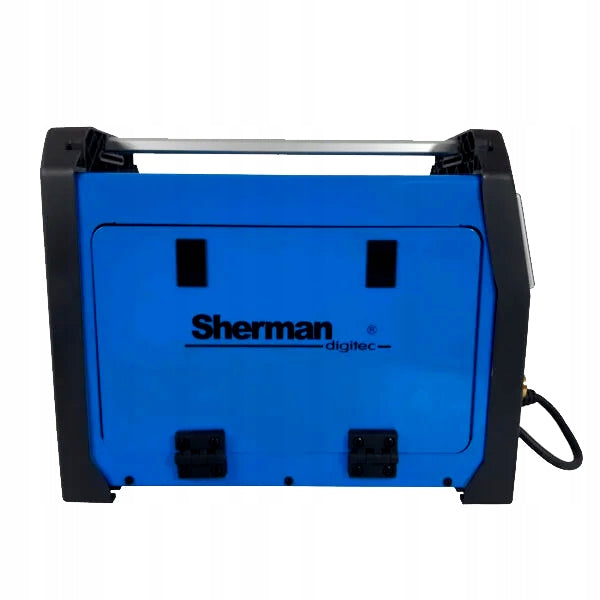

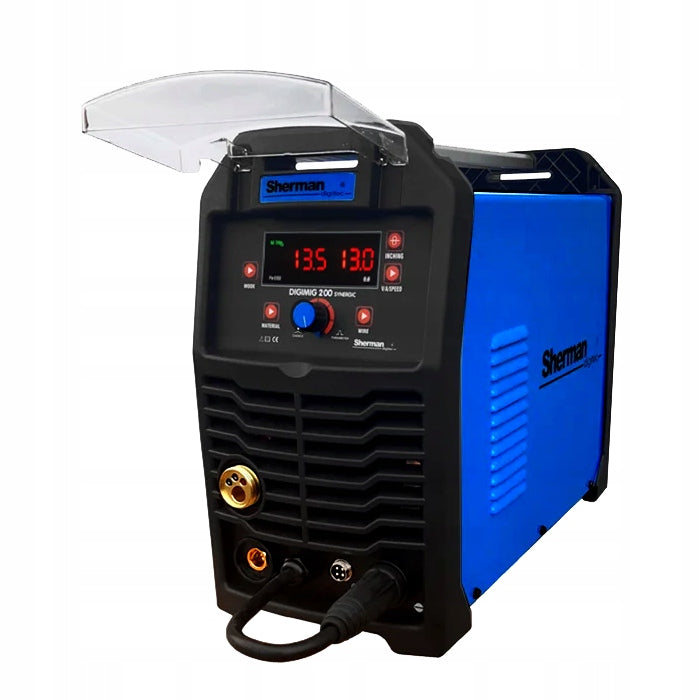

The Sherman DIGIMIG 200 SYNERGIC welding machine is an inverter semi-automatic welding machine designed for welding by:

• MIG/MAG - arc hot melt electrode in the shield of inert or active gases
• MMA - welding with wrapped electrodes
• TIG LIFT - welding with a special handle with a valve, arcing is then carried out by lightly rubbing the non-melting electrode against the welded material.
• FLUX / FCAW - welding with self-shielding wire.

The Sherman DIGIMIG 200 SYNERGIC welding machine is used for welding:

✔ low alloy steel

✔ low carbon steel

✔ alloy steel

✔ aluminium and its alloys

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial, factories, etc.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

The Sherman DIGIMIG 200 SYNERGIC welding machine has, among other advantages, synergistic aluminum welding programs unparalleled in this class and for soldering with CuSi3 wire. The design and software allows to obtain the highest quality weld when welding any weldable materials, made of black steel, stainless steel, copper alloys and aluminum

☀ SYNERGY - is a very helpful feature available in professional welding equipment class PREMIUM. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

LIST OF SYNERGISTIC PROGRAMMES:

• Fe CO2 - welding of carbon steels in CO2 shield.
• Fe MIX - welding of carbon steels in Ar/ CO2 mixture cover. The recommended proportions of the mixture are 82% Ar18% CO2.
• FLUX - welding with self-shielding wire.
• ALU - welding of aluminium alloys.

• INCHING button-fast wire selection
• V/A/SPEED button - active only during welding using the MIG.MAG method.
• WIRE button - selection of electrode wire diameter
• Knob/button adjustment - Knob is used to adjust welding parameters
• MATERIAL button - selection of welded material
• MODE button - the choice of welding method of the appropriate mode is confirmed by the ignition of the control diode.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

ADVANTAGES AND FUNCTIONS OF THE WELDING MACHINE:

⭐INDUCTANCE - optimizes the characteristics of the arc depending on the thickness of the material being welded. This function is useful when welding thin elements using the MIG/MAG method - it prevents them from burning out (the thinner the inductance element should be greater). Inductance affects the shape of the weld, its width, depth of melting and the number of splashes.

⭐ SOLDERING - is a method that resembles MIG/MAG welding to a large extent, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material with which we work.

⭐ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

⭐ SPOOL GUN CONNECTOR - allows you to connect a special handle with space for an additional spool with wire.

⭐ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off the welding current and gas outflow.

⭐ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✅ HOT START: facilitates the ignition of the electrode by providing more welding current with each arc.

✅ ARC FORCE: facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from being extinguished when the drop of electrode contacts the welding lake

✅ ANTI STICK - anti-short-circuit function - reduces the welding current to a minimum value when the welder makes a mistake and the electrode is glued to the welded material. This makes it easier to detach the electrode from the welded material and protects the electrode holder from damage.

✅GAZ TEST – a function that allows you to switch on the solenoid valve itself without switching on the power source and wire feeder (this function is used to determine the value of the shielding gas flow and check the patency of the gas circuit.

✅ VRD - is a voltage reduction system whose task is to turn off the power supply within a few milliseconds after finishing welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level

✅ WIRE BURNING FUNCTION - BURN BACK - It is possible to regulate the time, through which the voltage at the output of the device still occurs after stopping the wire feeding. This function prevents the welding wire from getting stuck in the workpiece and prepares the end of the wire for the next arc strike. Higher values of the pow function

✅MEMORY SETTINGS - The device has a memory of the last settings, i.e. When disabled and re-enabled, the last set parameters are restored. In order for the settings to be remembered, do not change any of the parameters for at least a minute.

⭐ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and industrial work.

⭐EASE OF USE - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

⭐ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

⭐The device is designed for both Semi-professional and Professional users

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

✔ REPAIR WORKSHOP

✔ LOCKSMITH WORKSHOP

✔ FACTORIES

✔ SHIPYARD

✔ FARMS

✔ HOMEWORK

AND WHEREVER RELIABILITY MATTERS!

The welder is equipped with a professional wire feeder, which guarantees stability and continuity of operation of the device

The 2-roll feeder allows precise extension of the welding wire excluding its slippage.

On the display there is a button (INCHING) EXTEND WIRE, Pressing the button causes a quick ejection of the electrode wire. It can be used when putting on a spool with wire in order to quickly introduce it into the welding torch. .

It is implemented in the door-to-door system without transport costs on the part of the user.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

Inductance adjustment allows optimization of arc characteristics depending on the thickness of the welded element and the welding method and conditions.

The function is useful during MIG/MAG welding of thin elements, preventing them from burning out and soldering galvanized elements.

The thinner the MIG/MAG welded element, the higher the inductance (soft arc - less melting), for thick elements vice versa (hard arch - greater melting).

The standard neutral inductance setting is in the middle of the scale.

Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding.

The optimal setting of the inductance value depends on several factors and may differ from the standard recommendations, it should be selected during welding tests by manipulating the potentiometer knob.

THANKS TO THE INDUCTANCE ADJUSTMENT, THE WELDING MACHINE IS SUITABLE FOR SOLDERING!

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

TO MEET CUSTOMERS, BASED ON OUR MANY YEARS OF EXPERIENCE, WE HAVE CREATED PROFESSIONAL SETS FOR YOU, THANKS TO WHICH WE PROVIDE YOU WITH EQUIPMENT READY FOR USE IMMEDIATELY AFTER CONNECTING TO ELECTRICITY.

⌚ SAVE YOUR TIME ⌚

BUY INCLUDED AND WE'LL TAKE CARE OF THE REST!

JOIN THE BEST - START YOUR WELDING ADVENTURE WITH US!

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

• Automatic visor IDEAL 510G - 1 pc.
• New 8L MIX or CO2 cylinder with 10-year legalization - 1 pc.
• Gas reducer Co2/Ar with 2 pressure gauges - 1 pc.
• Professional gloves - 1 pair
• Spray anti-chipping - 1 pc.
• Angle magnetic - 11 kg - 1 pc.
• Welding wire 5 kg 0,8 mm- 1 pc.
• Welding wire FOR ALUMINIUM 0,8mm - 0,45kg - 1pcs
• Welding wire 308LSi 0,8mm - 1kg
• Welding wire CuSi3 0,8mm - 1kg
• Tip current 0,8 mm - 5 pcs.
• Gas nozzle for handle - 2 pcs.
• Socket current - 2 pcs.
• Insulator - 2 pcs.
• Electrode pack - 1kg

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

Welding visors with variable degree of protection DIN 4/9-13, variable lightening time and the ability to set sensor sensitivity.

Designed for MIG/MAG, TIG and TIG PULSE and MMA welding, equipped with a grinding function.

High quality LCD filters in optical class 1/1/1/2.

Power source: photovoltaic cell + replaceable battery.

4-spoke adjustable headrest ensures comfort of use.

The shell compliant with EN175B provides greater impact resistance.

PHYSICAL PARAMETERS

• Type of welding filter: APS-510G
• Weight: 475g
• Filter size: 96x39 mm

TECHNICAL PARAMETERS

• Response time: < 1/30000s
• Number of sensors: 2
• Optical class: 1/1/1/2
• UV/IR protection: up to 16 DIN
• Dimming adjustment: 4/9-13 DIN
• Adjustable sensitivity: √
• Adjustable delay: Gradually 0.1-1.0s
• Standard: CE, EN175B, EN379, EN166
• Battery depletion rate: √
• Power supply: Photovoltaic cell + battery 1xCR2032

APPLICATION

• Plasma cutting: √
• MIG/MAG ; MMA: √
• Grinding: √
• TIG, minimum current: √, >10A

ATTENTION! Masks are shipped in the color currently available in stock.

☀ VERSATILITY OF THE DEVICE ☀

Migomat company SHERMAN is a device with a wide range of applications, designed as an inverter power source enabling welding with hot melt wire in a gas shield MIG/MAG or FCAW self-shielding wire (after changing polarity), welding with a buffer electrode MMA, as well as the TIG Lift method.

✔ MIG/MAG welding

Arc welding in gas shields is one of the most commonly used processes for the manufacture of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the material of the hot melt electrode with the heat of an electric arc glowing between the electrode in the form of a solid wire and the welded detail, in an inert or active gas shield.

✔ Welding MMA

In the MMA method, a wrapped electrode is used, consisting of a metal core covered with a sheath. An electric arc is produced between the end of the electrode and the welded material. Arching is created by touching the end of the electrode to the welded material.

✔ Welding TIG DC

In the TIG (Tungsten Inert Gas) method, the electric arc is ignitioned in an inert gas (argon) shield between the welded element and the non-melting electrode, made of pure tungsten or tungsten with additives. In TIG DC Lift mode, the arc glow occurs when the electrode comes into contact with the welded element. In TIG DC mode, the current is constant.

❗❗ The TIG method can be welded after connecting an additional handle, available at our auctions ❗❗

✔ Self-shielding wire welding FCAW

Thanks to the polarity change function, it is possible to weld without shielding gas, with FCAW self-shielding wire. The wire is designed for general production work, also in field conditions, and for welding structures that are not subject to impact requirements. Welding current DC(-).

Self-shielding powder wire fi 0,8mm/1kg E71T-GS is designed for welding ordinary carbon steels and increased strength not exceeding 510 MPa.

It is used in prefabrication, construction, tank production, agricultural equipment, etc. Used in both production and repair of equipment.

SELF-SHIELDED WIRE IS AVAILABLE SEPARATELY AT OUR AUCTIONS AND IN OTHER SETS

TECHNICAL DATA:

POWER SUPPLY PARAMETERS

• Power supply voltage: AC 230V 50Hz
• Maximum power consumption: 6,6 kVA
• Number of phases: 1ph
• Network security: A 25
• Power supply frequency: 50 [Hz]

TECHNICAL PARAMETERS

• MIG/MAG welding current: 30 ÷ 200A
• MMA welding current: 20 ÷ 180A
• TIG LIFT welding current: 10 ÷ 200A
• MMA welding voltage: 20,8 ÷ 27,5V
• Welding voltage MIG: 15,5 – 24V
• TIG LIFT welding voltage: 10,4 ÷ 18V
• Idle voltage: 65V
• Efficiency: 60%
• Feeder: 2R
• Spool diameters with wire: to 200mm
• Max. Spool size: 5kg
• Wire diameter: 0.8/1.0/1.2 mm
• Wire feed speed: 2 – 15 m/min
• Degree of protection: IP21

ADDITIONAL FUNCTIONS

• MMA function: YES
• SYNERGY function: YES
• HOT START function: YES
• ARC FORCE function: YES
• 2T/4T function: YES
• SOLDERING function: YES
• TIG LIFT function: YES
• VRD function: YES

PHYSICAL PARAMETERS

• Housing protection: IP21
• Cooling: fan
• Dimensions: 480 x210x330mm
• Weight: 13kg

• Welder SHERMAN DIGIMIG 200 SYNERGIC - 1pc.
• Welding torch MB15/3m - 1pc
• Electrode holder - 2 m - 1 pcs.
• Bulk cable - 2 m - 1 pcs.
• Instruction manual in Polish
• Guarantee card

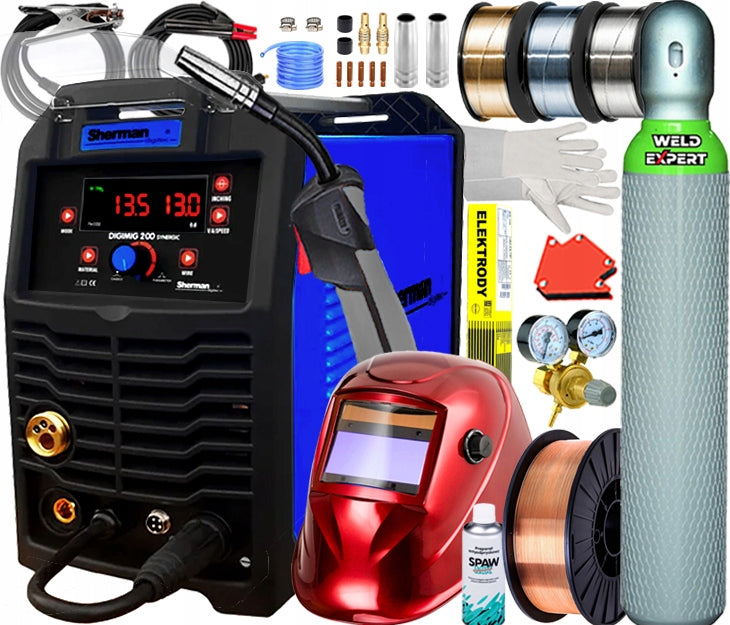

+ MIG/MAG + MMA WELDING KIT:

• Automatic visor IDEAL APS510G - 1pc.
• New 8L MIX or CO2 cylinder with 10-year legalization - 1 pc.
• Gas reducer Co2/Ar with 2 pressure gauges - 1pc.
• Professional gloves welding - 1pair
• Welding wire 5 kg 0,8 mm- 1 pc.
• Welding wire FOR ALUMINIUM 0,8mm - 0,45kg
• Welding wire 308LSi 0,8mm - 1kg
• Welding wire CuSi3 0,8mm - 1kg
• Spray anti-chipping - 1 pc.
• Angle magnetic - 11 kg - 1pc.
• Tip current - 5 pcs.
• Gas nozzle for handle - 2 pcs.
• Socket current - 2 pcs.
• Insulator - 2 pcs.
• Electrode pack - 1kg (2.5 or 3.2mm to choose from)

(Set of 10)
