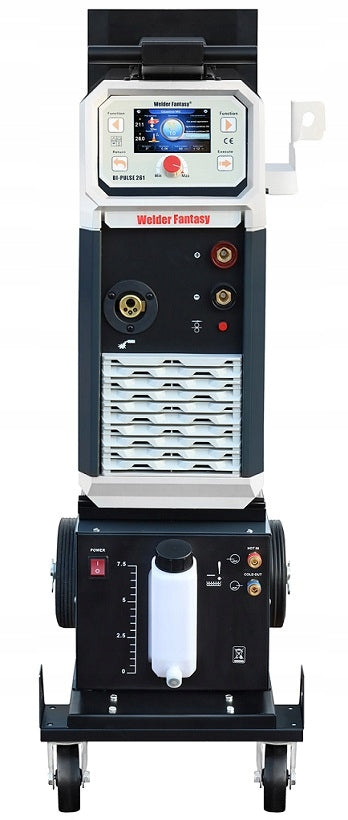

Pusiau automatinis suvirinimo aparatas PERFECT BI-PULSE 261 tower MIG ROLLS

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas PERFECT BI-PULSE 261 tower MIG ROLLS. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Welder Fantasy
• Modelis: PERFECT BI-PULSE 261 TOWER

• Producer: Welder Fantasy
• Welding methods: MIG/MAG, SPOT, FLUX, MMA, TIG DC
• Power supply: 400 V
• Welding Current: 250 A
• Efficiency: 60 %

The multifunctional inverter semi-automatic welding machine PERFECT BI-PULSE 261 TOWER, equipped with a radiator and 4-roll wire feeder, is designed for manual arc welding of metals and metal alloys. The Welder Fantasy PERFECT BI-PULSE 261 TOWER is a modern synergistic inverter source offering many possibilities when performing welding work, its main advantages are the possibility of welding using single or double pulsation current in MIG or MAG mode and the possibility of using synergistic settings. The wide range of applications of the device makes it satisfy even the most demanding users.

The device allows welding by the following methods:

- MIG/MAG with dual pulse option

- MIG/MAG with single pulse option

- MIG/MAG continuous welding

- Soldering

- FCAW

- SPOT spot welding

- TIG DC lift

- MMA

The user can choose one of five menu languages:

- Polish

- English

- German

- French

- Czech

Technical data:

• GENERAL PARAMETERS

- supply voltage 3~400 V

- diameter of the power cord 4G 2,5 mm2

- 50 Hz current frequency

- power consumption 9,5 kVA

- immediate protection min. 20 A

- power factor 0,93 cosφ

- Insulation class: F

- Housing protection degree: IP21

- dimensions 1050 x 440 x 1150 mm

- 70 kg weight

• MIG/MAG PARAMETERS

- output voltage 16 - 26,5 V

- welding current range 40 - 250 A

- efficiency 60% 250 A

- efficiency 100% 194 A

- feeder type 4 rolls

- diameter of welding wire 0,8 - 1,0 - 1,2 mm

- spool diameter 200 mm - 5 kg , 300 mm - 15 kg

• PARAMETERS MMA

- output voltage VRD 13,6 / 79 V

- welding current range 30 - 250 A

- efficiency 60% 250 A

- efficiency 100% 194 A

• TIG PARAMETERS

- output voltage 10,4 - 20 V

- welding current range 10 - 250 A

- efficiency 60% 250 A

- efficiency 100% 194 A

https://youtu.be/eLuu09aejOU?si=7kkVtLoXP33QIhIE

(copy and paste the above link into any web browser)

Features of the device:

- Compact, compact design

- Easy-to-use control panel

- high efficiency 60%

- 4 roller feeder

- Illuminated feeder compartment

- EURO socket

- 36 V heater socket

- possibility of mounting gas cylinders

- cooler

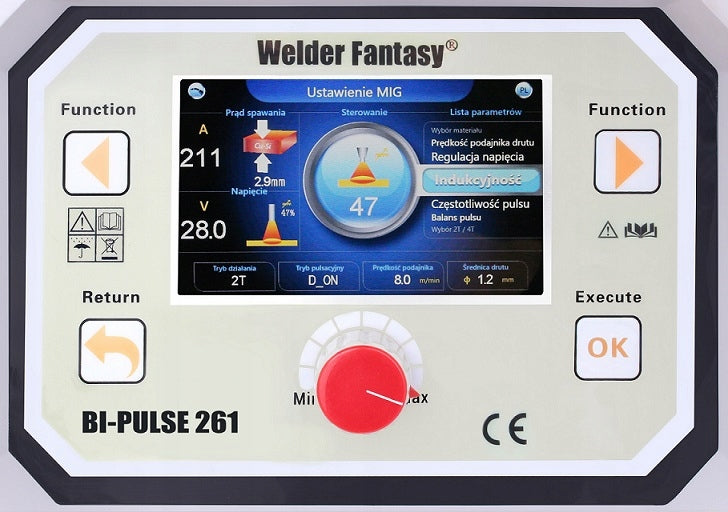

Intuitive easy-to-use control panel with color display allows you to quickly set all the most important welding parameters. The user can choose one of five menu languages, including Polish. Thanks to synergistic settings, it is possible to automatically adjust welding parameters to the diameter of the welding wire and the thickness and type of material. The device has a smooth regulation of welding voltage and current and is equipped with an overload thermal protection system protecting against excessive heating of integrated circuits. The semi-automatic machine has the ability to save 18 user programs and light an arc by:

• 2T - two-bar
• 4T - four-bar
• SPOT - spot welding with the possibility of setting the following parameters:

- gas before ignition

- spot welding ON arc glow time in spot welding

- spot welding OFF time between arcs in spot welding

- gas after expiration

• S-2T - two-bar special arc glow through two-bar with the possibility of setting the following parameters:

- gas before ignition

- start current

- time of electricity build-up

- time of falling current

- final current

- gas after expiration

• S-4T - four-bar special arc glow through four-bar with the possibility of setting the following parameters:

- gas before ignition

- start current

- time of electricity build-up

- time of falling current

- final current

- gas after expiration

Additional features:

- Regulation of inductance in the MIG/MAG method properly selected welding inductance contributes to reducing the number of chippings depends on the diameter of the welding wire, shielding gas used, current and welding position. The reduction in inductance makes the arc more stable and concentrated, and the increase contributes to the formation of a more liquid lake and the reduction of chipping. Correctly selected is characterized by a stable arc, even transfer of liquid metal droplets, maintaining a constant size of the welding lake and a characteristic repetitive sound without splashes and explosions.

- Spot welding SPOT temporary welding function, used to attach details, thanks to which an equal length of welding welds can be obtained.

- Lutowelding mainly used in the automotive industry to connect galvanized sheets together.

- PRE GAS regulation of shielding gas outflow time before welding.

- POST GAS regulation of shielding gas outflow time after welding.

- HOT START function to help you start welding. At the moment of arcing, the welding current is temporarily increased in order to warm up the material and electrode at the point of contact and to properly shape the melt and weld face in the initial phase of welding.

- ARC FORCE function stabilizing the arc by maintaining the voltage value of the welding arc regardless of its length and facilitating control over the number of chippings.

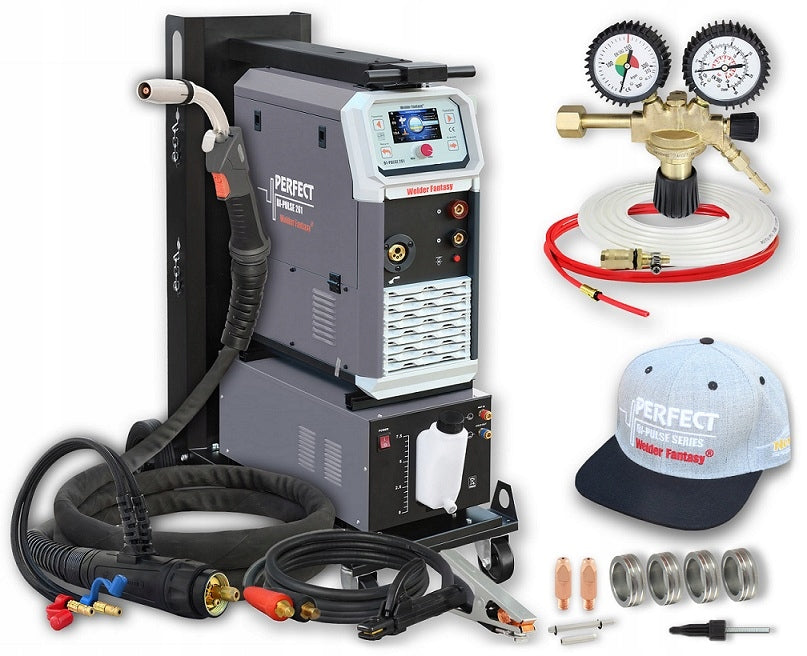

- PERFECT BI-PULSE 261 TOWER Welder Fantasy semi-automatic welding machine

• PERFECT BI-PULSE 261 Tower
• liquid cooler (flooded with coolant)
• integrated transport trolley

- MIG/MAG cooled welding torch Parker SGB2400W euro 5 m

- 3 m electrode holder

- 3 m mass handle

- Argon/CO₂ cylinder reducer 1 pc.

- hose with quick coupler for gas 1 pc.

- clamp band

- Teflon wire feeder cartridge 1 pc.

- steel wire feeder cartridge 1 pc. (mounted in the holder)

- rollers for aluminium 1,0-1,2 2 pcs. (mounted in the feeder)

- rollers for steel 1,0-1,2 2 pcs.

- current nozzles

- additional elements:

• capillary tubes 2 pcs.

- instruction manual

- Warranty card

- SUPER CAP PERFECT Welder Fantasy

The set does not include TIG welding torch!!!
