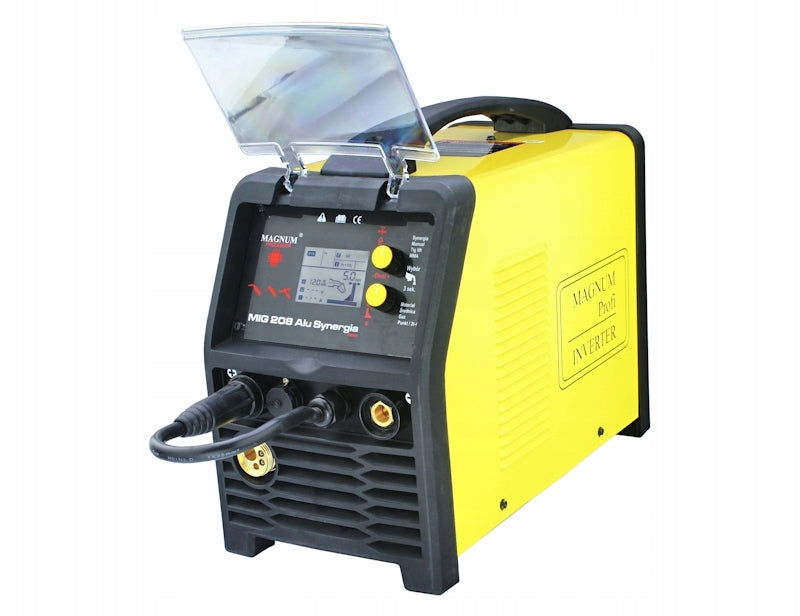

Pusiau automatinis suvirinimo aparatas MIGOMAT MIG 208 ALU SYNERGY MAGNUM komplektas

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas MIGOMAT MIG 208 ALU SYNERGY MAGNUM komplektas. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: spawarka migomat U MI 208ALDII

Inverter semi-automatic welding machine

TECHNICAL PARAMETERS

• Security Required: 20 [A]
• Efficiency: 40 [%]
• MIG/MAG welding current: 20 - 180 [A]
• MIG/MAG welding voltage: 15 - 23 [V]
• Idle Voltage: 78 [V]
• Welding without gas: Yes
• Wire diameter: 0,6/0,8/0,9/1,0 [mm]

PHYSICAL PARAMETERS

• Wire spool size 0,45 - 5 kg
• Degree of protection IP 21S
• Weight of the device / set 16/17 kg
• Overall dimensions 440x220x380 mm

POWER SUPPLY PARAMETERS

• Current taken from the 20,3 A network
• 25C power supply network protection
• Rated supply voltage 230 V; 50Hz (1ph)

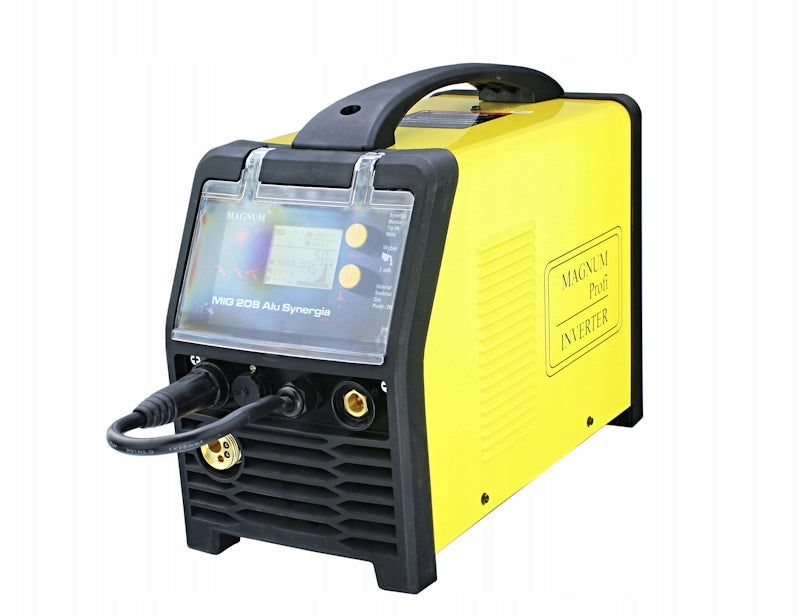

Inverter semi-automatic welding machine MIG 208 ALU SYNERGY MAGNUM

MIG 208 Alu Synergy brand MAGNUM is a technologically advanced welding device for welding using the MIG-MAG, MMA, TIG LIFT, FCAW and LUTOSPAWANIA methods. Designed for manual, electric welding of low carbon steels, low alloy steels, low and high alloy steels, aluminum and its alloys, copper and its alloys, soldering, etc.

MIG 208 Alu Synergy is designed for all kinds of welding work in locksmith workshops, repair workshops, automotive industry, factories, etc. The device is dedicated to professionals, requiring the highest standards, for welding equipment.

The power source was built on IGBT transistors providing a minimum of electromagnetic interference, small power losses in basic systems, enabling increased efficiency and reliability of the power source. Very high efficiency, which translates directly into lower energy consumption, and high switching frequency, ensure rapid adjustment of the current to changes in parameters during welding.

Among other advantages, the MIG 208 Alu Synergy has an synergic program for welding aluminium alloys, unparalleled in this class of devices. The design and software allows you to obtain the highest quality weld when welding any weldable materials, made of black steel, stainless steel, copper alloys and aluminum.

LCD display allows accurate adjustment of welding parameters such as :

- regulation of inductance

- wire access

- wire burning

- gas outflow after welding

SUMMARY OF PRODUCT CHARACTERISTICS

• Intuitive controls - migomat has been designed in such a way that its operation does not cause problems even for people starting their adventure with welding
• Single-phase power supply 230 V - allows you to work with the device practically anywhere with access to the electrical network
• IGBT transistorsThe device uses modern IGBT transistors, which provide a minimum of electromagnetic interference and low power losses in basic systems. The use of IGBT transistors provides an increase in the efficiency and reliability of the power source, reducing the total weight of the welding machine.
• Readable LCD display - fast synergistic adjustment of welding parameters : welding current, welding voltage, wire feed speed
• Device equipped with EURO socket for connecting a welding torch
• Polarity change for FLUX welding without shielding gas
• Synergic control with thickness adjustment of welded material
• Accurate adjustment of welding arc length
• Smooth regulation of welding current - provides the possibility of accurate selection of welding parameters depending on the type and thickness of the material
• Lightweight and very compact, can be easily transported both inside and outside buildings
• The device is equipped with overload protection, which increases its reliability
• Professional wire feeder: internal, 2-roll
• The device has a fan cooling system which significantly increases its efficiency
• Designed to work with a generator (+/- 15%)
• Maximum spool with wire - 5 kg

The device has been equipped with many useful functions useful during operation:

• SYNERGY

It is an innovative control using a microprocessor built into the device. Migomat after approval of the necessary parameters, i.e. wire diameter, type and thickness of material automatically selecting operating parameters.

• Lutowelding (Inductance)

It is an innovative method for joining thin sheets covered with a layer of zinc. The soldering method can be successfully used to join thin sheets made of stainless steel and various name connections, m.in. acid-resistant steel of ordinary quality steel or copper with steel

• Hot Start

- Function for easy initiation of the electric arc.

• Arc Force

- function facilitating the conduction and maintenance of the electric arc, especially in the case of materials and/or electrodes that are difficult to weld, e.g. corroded, uncleaned materials, alkaline, acidic electrodes, etc.

• Anti Stick

- short-circuit function, which reduces the welding current to a minimum value when the welder makes a mistake and the electrode is glued to the welded material

• gas cylinder 8 liters - Ar+CO2 (mixture) - 8 L cylinder filled with argon mixture (82 %) carbon dioxide (18 %) intended for use in welding and industry. The cylinders have 10 years of legalization and meet EN-1964-1 standards and have the Π mark, which allows them to be used in all EU countries. The cylinder fits most reducers available on the market
• CO2/Ar reducer with 2 pressure gauges - one-stage with two pressure gauges, designed for Argon and CO2 gases. With the help of a reducer, you can smoothly adjust (lower) the working pressure and flow of gas flowing from the cylinder
• welding wire 0,8/5kg - high quality copper welding wire ER70S-6 with a diameter of 0.8 mm and a spool weight of 5 kg. Made of high-quality steel. Designed for MIG/MAG welding. Wrapped on a D200 size plastic spool

• long welding gloves - protective gloves made entirely of cowhide leather
• magnetic angle - a magnetic angle that will allow precise and durable positioning of the material at an angle of 45, 90 or 135 degrees. It is an indispensable helper during welding or soldering, and at the same time it is cheap and reliable. The product is made of strong, high durability magnets additionally covered with a very resistant plastic shell

• set of 13 parts for MIG handle MB 15 - set of spare parts for MIG 15 handle will be used when individual elements wear out or the diameter of the welding wire changes
• spray anti-spatter ANTI-SPAW - spray in the form of an aerosol is an odorless agent used to protect the nozzle of the burner, tools and the surface of the welded material from melting metal chips during welding with electrical techniques. CONTENTS: 400ml

Diameters of supported wires:

• Fe – ordinary steels: 0.6 / 0.8 / 1.0 mm
• Ss – stainless steel and acid resistant: 0.8 / 1.0 mm
• Al – aluminium and aluminium alloys: 0.8 / 1.0 mm
• CuSi, CuAl – soldering: 0.8 / 1.0 mm
• Flux – core wire welding: 0.8 / 0.9 / 1.2 mm

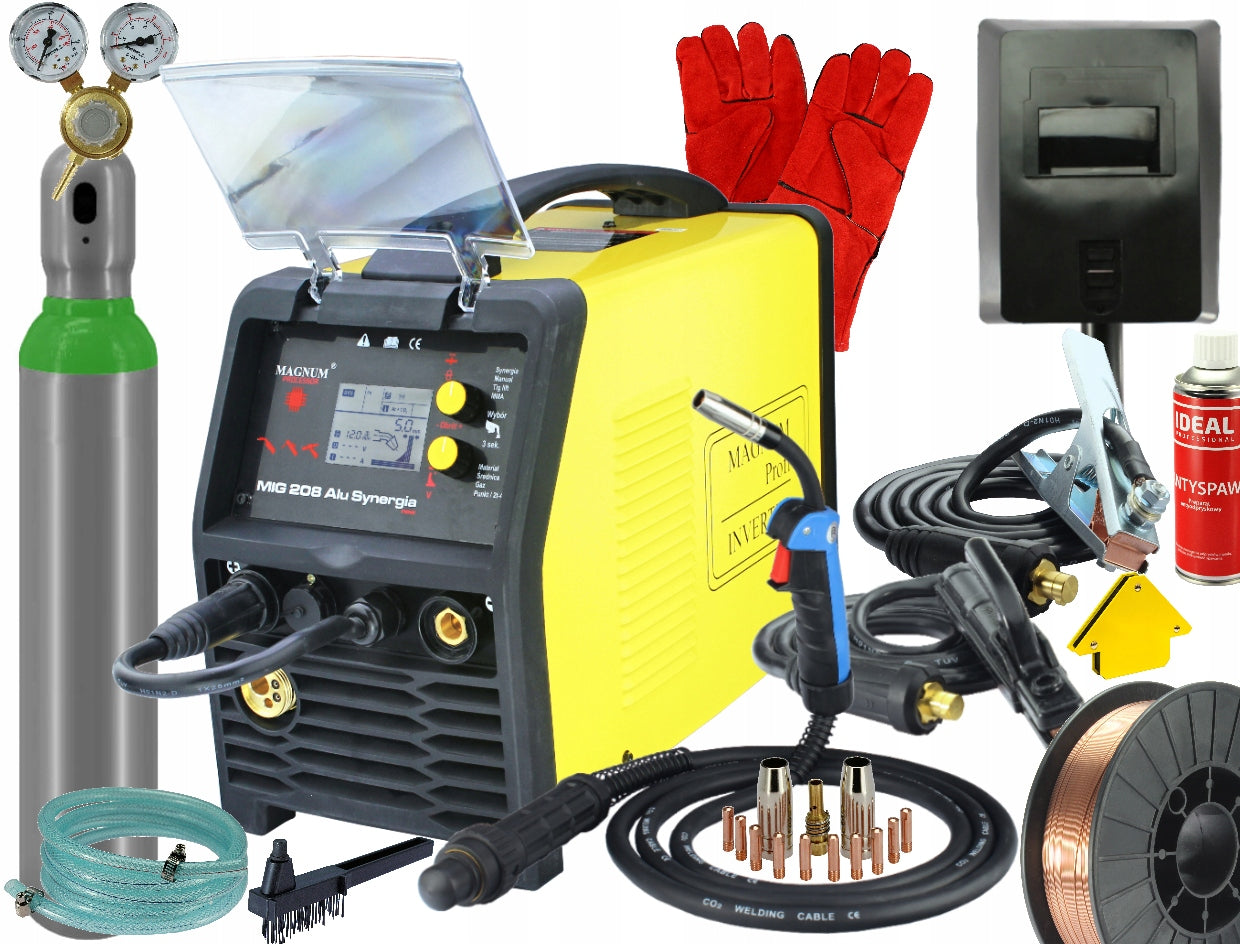

• Semi-automatic welding machine
• MIG welding torch 15/3m
• Mass cable 2m
• Electrode cable 2m
• Welding shield
• Gas hose with auger bands
• Welding hammer with wire brush
• Operating instructions
• Warranty card

+ ADDITIONAL ACCESSORIES

• Full gas cylinder 8l (MIX) mixture
• Reducer with 2 pressure gauges
• Magnetic angle
• Welding gloves
• Spray anti-chipping ANTI-SPAW IDEAL
• Wire SG2 0,8/5kg
• Handle repair kit MB15 (13 elements)

Specifications
