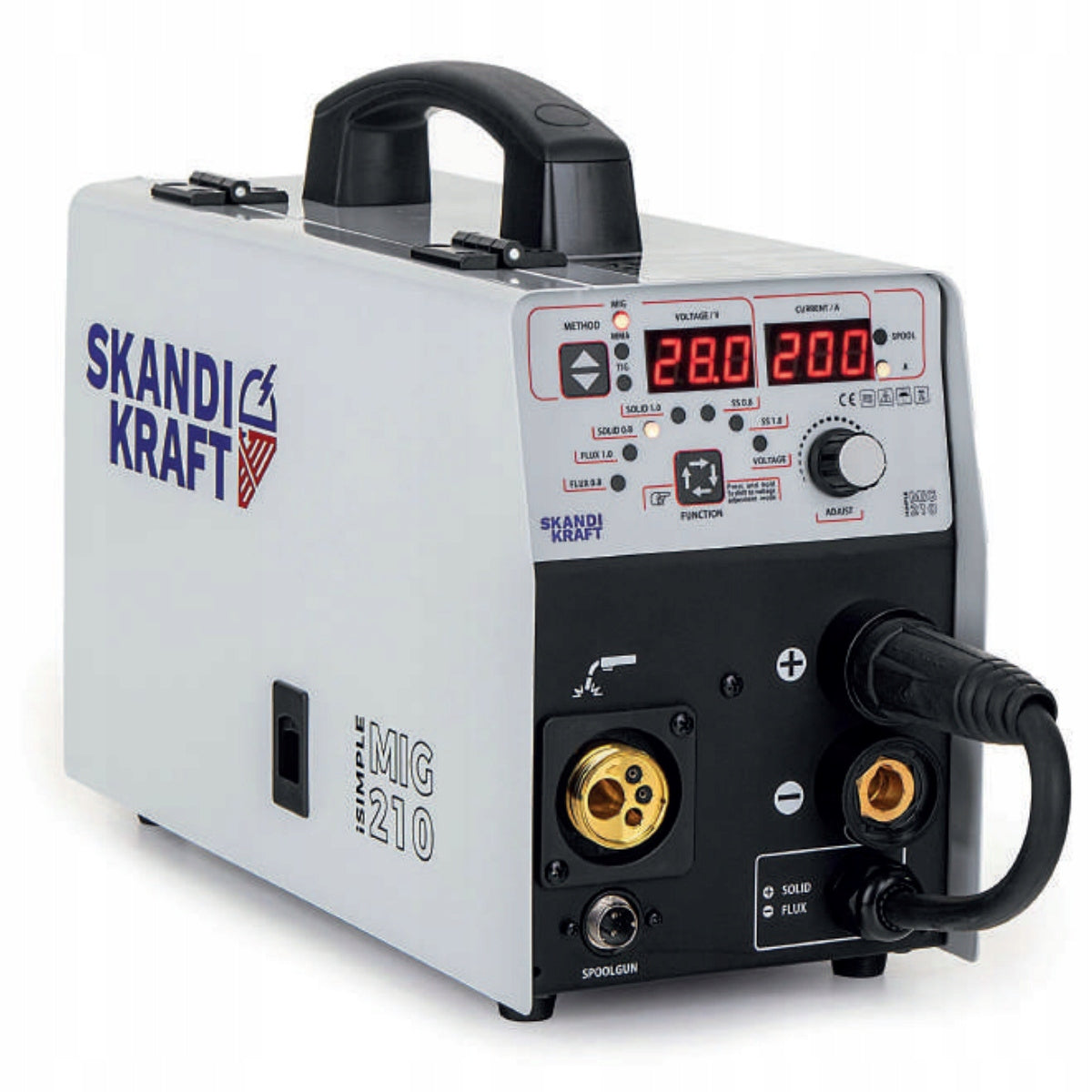

Pusiau automatinis suvirinimo aparatas MIG/MMA/TIG iSimple MIG 210 SKANDI KRAFT

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas MIG/MMA/TIG iSimple MIG 210 SKANDI KRAFT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: SKANDI KRAFT
• Modelis: iSIMPLE MIG 210
• Ilgis: 375 mm
• Plotis: 270 mm
• Aukštis: 375 mm

BRAND: SKANDI KRAFT | TYPE: MIG/MAG, MMA, TIG LIFT | WELDING CURRENT: 200 A | POWER: 230 V

POWER SUPPLY PARAMETERS

• Power supply: 230 V
• Frequency: 50/60 Hz
• Idle Voltage: 59 V

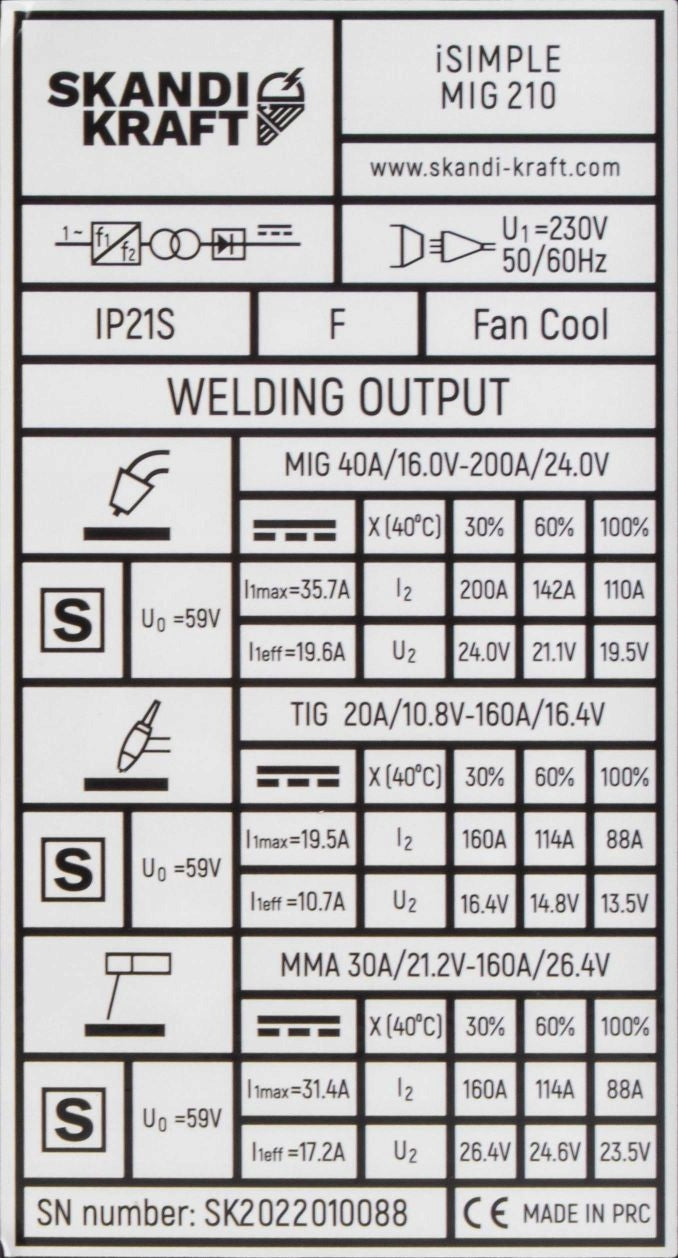

TECHNICAL PARAMETERS

• Welding current [MIG]: 40-200 A
• Welding voltage [METHOD]: 16 - 24 V
• MIG efficiency (for temp. 40°C):

1. 30%/200 A/24 V
2. 60%/142 A/21.1 V
3. 100%/100 A/ 19.5 V

• TIG welding current: 20 - 160 A
• Welding voltage [METHOD]: 10.8 - 16.4 V
• TIG efficiency (for temp. 40°C):

1. 30%/160 A/16.4 V
2. 60%/114 A/ 14.8 V
3. 100%/88 A/ 13.5 V

• MMA welding current: 30 - 160 A
• Welding voltage [METHOD]: 21.2-26.4 V
• MMA efficiency (for temp. 40°C):

1. 30%/160 A/26.4 V
2. 60%/114 A/24.6 V
3. 100%/88 A/ 23.5 V

• Feeder: 2R
• Wire spool diameters: D200
• Maximum spool size: 5 kg
• Wire diameter for use in welding machine: 0.6/0.8/1.0/1.2 [mm]

ADDITIONAL FUNCTIONS

• FAN STOP turning off the fan at rest, quiet operation: yes
• Quick coupler for connecting the gas hose: yes
• Gas Heater Connector: Yes
• SPOOL GUN external wire feeder holder: yes

PHYSICAL PARAMETERS

• Length x width x height: 37.5 × 27 × 37,5 [cm]
• Weight: welding machine [net] 8.5 kg, in carton [gross] 13,8 kg
• Housing protection: IP21S
• Cooling: Fan
• Spool D200 2-5kg

The most compact and mobile version of the welding machine with industrial capabilities. Lightweight (only 8,5 kg) and convenient to carry. For welding with 3 methods, both using gas cylinders (MIG/MAG), self-shielding wire (FLUX), electrodes (MMA) and TIG LIFT. After setting the amperage on a convenient digital panel, it automatically adjusts the voltage to the wire feed, making it easy to use even for people starting their adventure with welding. It features a 3-meter power cable, a 3-meter mass and electrode holder, and a 4-meter MIG handle that will allow you to work even in hard-to-reach areas.

• Simple, small and handy welding machine for your home and workshop. You will take it with you to the plot, to work and to the garage. Fits in your trunk
• 3 welding methods, you weld MIG/MAG with gas, MIG/MAG without gas (FLUX) using self-shielding wire, MMA using electrode, TIG LIFT using non-melting electrode
• Quick setting of the welding machine, first selecting the welding method, then the thickness and type of wire, and adjusting the amperage.
• Smooth parameter adjustment by setting the voltage and amperage values using a multifunction knob with a rubber shell
• Long and powerful power cable 3-meter, current conductor cross section 2,5 [mm2]
• Long handle MIG MB15 4-meter, making it easy to work in hard-to-reach places
• Mass holder made of pure copper with a length of 3 meters, better conductive current
• Copper-plated electrode holder with a length of 3 meters
• Adaptive fan, turns off at rest of the welding machine, so that the operation of the welding machine is quiet (FAN STOP)
• Efficient cooling system protects the device during operation, against overheating
• Built with IGBT transistors, which are characterized by the highest performance
• The possibility of connecting the reducer with the heater or the heater itself and heating the gas to a positive temperature by using the gas heater connector socket (36V)
• Quick coupler for quick connection of the gas hose from the reducer
• The possibility of connecting the SPOOL GUN handle (external wire feeder), which will help in even smoother wire feeding or welding with two types of wire without the need to replace the wire in the feeder
• Transport handle for convenient carrying of the welding machine, attached to the top of the device housing

FUNCTIONS OF THE SKANDI KRAFT WELDING MACHINE

• Choose the welding method on a convenient panel
• Setting the voltage and amperage values using a multifunction knob with a rubber shell for smooth parameter adjustment
• Choose wire thickness depending on the welding method chosen - welding with SOLID (full wire), SS (stainless steel) and FLUX (gas-free) gas
• Additional option to connect external feeder of SPOOL GUN wire

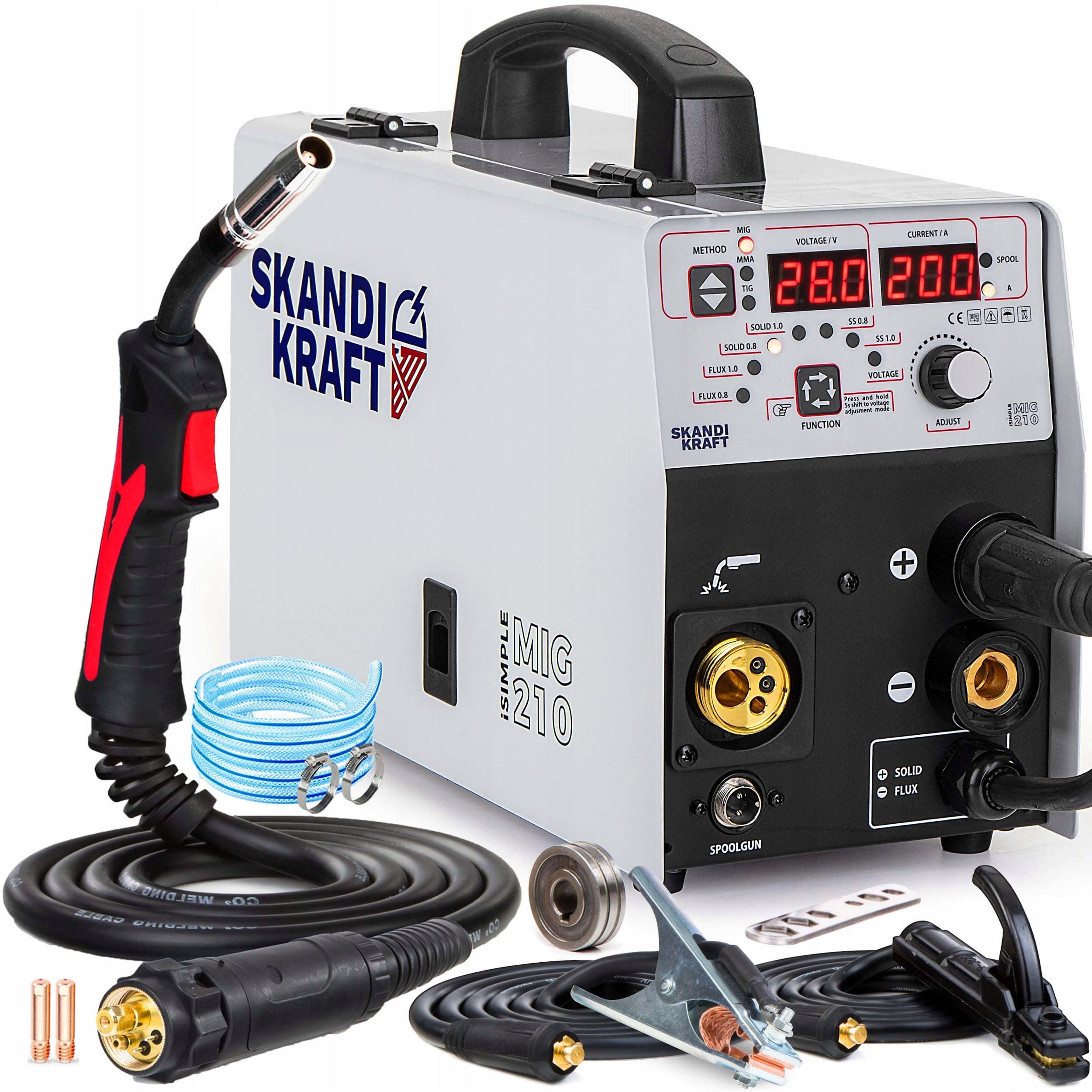

• Welder SKANDI KRAFT iSIMPLE MIG 210
• Handle for welding MIG, MB 15 4 meters with Teflon-graphite cartridge black
• Cable power with a length of 3 meters, cross section 3G x 2,5 [mm2]
• Handle mass fully copper 3 meters, cross section 25 [mm2]
• Handle electrode copper plated 3 meters, cross section 25 [mm2]
• Rolls wire: for steel 1x 0.8-1.0 V, for aluminium 1x 1.0-1.2 U, (wire feeder roll size: 22/10/30 [mm])
• Gas cylinder mounting elements: 2 x gas reducer mounting band; gas hose 2 meters; manual; key; allen
• Ends current for MIG MB15 (1 x 0.8 and 1 x 1.0)
