Trumpai apie prekę

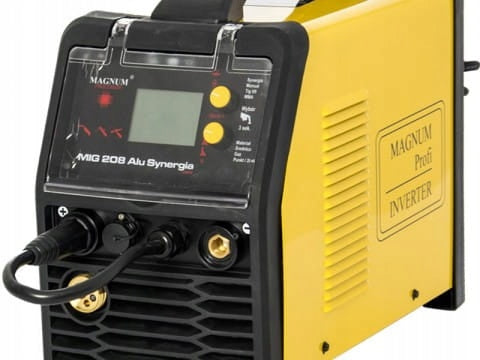

Prekė: Pusiau automatinis suvirinimo aparatas MIG MAG Magnum 208 200A 230V dujinis. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: MIG 208
- Ilgis: 530 mm
- Plotis: 230 mm
- Aukštis: 380 mm

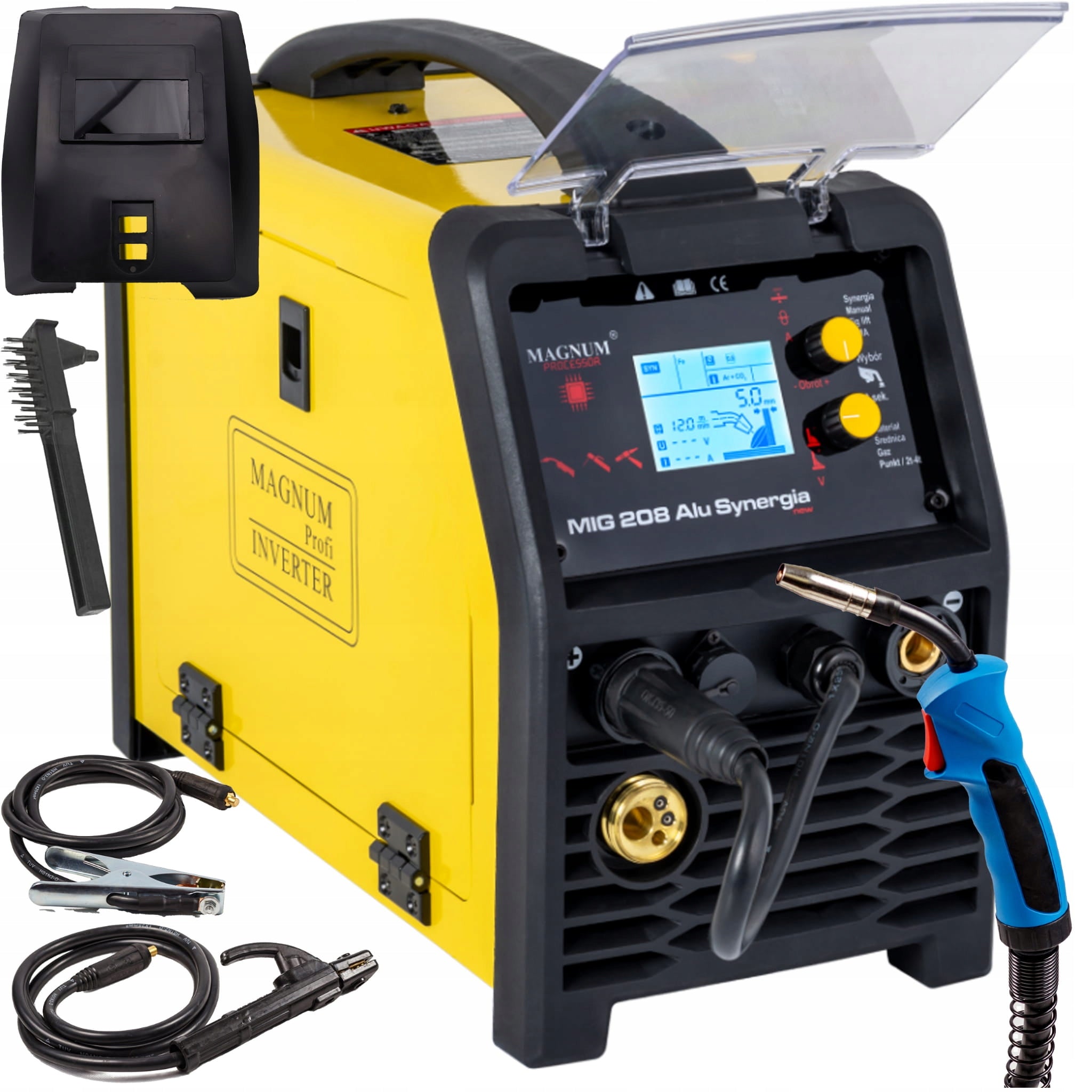

- Migomat MAGNUM MIG 208 SYNERGY NEW
- Holder for migomate MB 15 3m
- Electrode holder
- Bulk Holder
is a lightweight portable semi-automatic welding machine made in inverter technology, powered from a single-phase 230V network. The device is equipped with an LCD display and an intuitive, easy-to-use control panel. The synergy function used in the device allows you to quickly set welding parameters.
LIST OF SYNERGISTIC PROGRAMMES:
- Fe - non-alloy low-alloy steels,
- Ss - stainless and acid-resistant steels,
- Al - aluminium and aluminium alloys,
- CuSi, CuAl - soldering,
- Flux - welding with core wires, self-shielding wire,
AVAILABLE WELDING METHODS:
- MIG/MAG with synergy,
- MIG/MAG with manual settings,
- TIG LIFT: using a special handle with a valve, arc ignition is then carried out by lightly rubbing the non-melting electrode against the welded material,
- MMA: using hot melt electrodes wrapped in rutile, alkaline, acidic.
The power source is built on the latest technology using IGBT transistors, which translates into reduced electromagnetic interference, low power losses, increased efficiency and reliability of the power source, and lower power consumption.
The device has smooth adjustments of welding parameters, is equipped with an overload thermal protection system, preventing excessive overheating. The 2-roll wire feeder with "euro connector" socket used in the device allows you to connect different types of welding brackets.
The welding machine is characterized by a wide range of applications, it is dedicated to all kinds of welding work in households, locksmith workshops, repair workshops, etc.
- Power supply: AC 230 [V], 50 [Hz],
- Security Required: 20 [A]
- Efficiency: 40 [%]
- MIG/MAG welding current: 20 - 180 [A]
- MIG/MAG welding voltage: 15 - 23 [V]
- Idle Voltage: 78 [V]
- Welding without gas: Yes
- Wire spool weight: max: 5 [kg]
- Wire diameter: 0,6/0,8/0,9/1,0 [mm]
- Housing Protection Class: IP21S
- Weight: 16 [kg]
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Power consumption | 7 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 40% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,6-1,0 |
| Parametry | Device weight | 10.7 kg |
| Parametry | Welding range | 40–200 A |
| Parametry | Height | 380 mm |
| Parametry | Length | 530 mm |
| Parametry | Width | 230 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 15 kg |
| Parametry | Manufacturer code | Migomat Magnum MIG 208 klapka HRS6 |
| Parametry | EAN (GTIN) | 5904624002714 |
| Parametry | Packaging status | original |
| Parametry | Model | MIG 208 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,EURO handle,LCD display |
