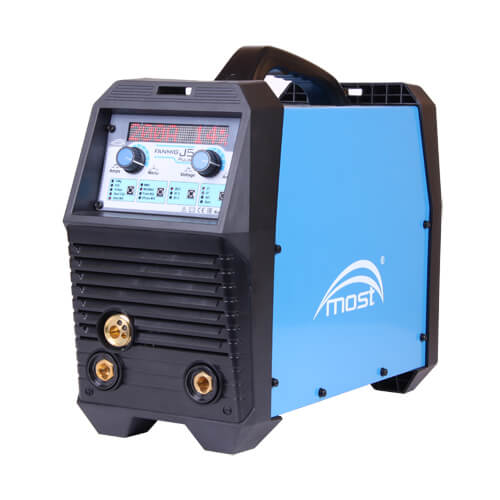

Pusiau automatinis suvirinimo aparatas MIG FANMIG J5 PULSE MOST

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas MIG FANMIG J5 PULSE MOST. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: MOST
• Modelis: 5100020195
• Ilgis: 490 mm
• Plotis: 210 mm
• Aukštis: 410 mm

FANMIG J5 Pulse MOST is a modern semi-automatic welding machine for MIG/MAG welding with short-circuit and pulsating arc (pulse or double pulse) as well as for MMA electrode welding. The device is used for welding steel, stainless steel or aluminum in a gas shield. The basic applications are crafts, car flashing machine, hobby work, renovations, etc.

Setting the welding parameters is made to the front panel of the welding machine. Welding parameters are set synergistically. You should choose the welding method, the grade of the welded material and the diameter of the wire to run the appropriate program. Welding is available in 2-bar, 4-bar, spot, intermittent and also with crater filling. Numerous auxiliary functions are available in the internal MENU.

The device is powered from a single-phase 230 V network.

The wire feeder allows wire welding from 5 kg/D200 or 1 kg spools. Recommended diameters of steel wires are 0,8 mm and 1,0 mm, for aluminium 1,0 mm or 1,2 mm

Fanmig J5 Pulse MOST creates a convenient set for work and transport when placed together with a gas cylinder on a WUS HD MOST trolley.

The device is protected against overheating by a fan and thermal sensor.

The device is made in accordance with EN 60974-1.

Fanmiga J5 Pulse MOST:

• Higher welding current than similar, traditional
• Semi-automatic machines powered from the 230 V mains.
• Possibility of chipping-free MIG/MAG welding with pulsating current or double pulse.
• Possibility of MMA welding with VRD function (reduced idle voltage).
• Effective possibility of welding aluminium with 1,0 mm or 1,2 mm ML 24 ALSGRIP handle length 2 m
• Display of welding current and set parameters.
• Eurosocket for connecting any MIG/MAG holder.
• Typical mass socket (35/50).
• Low weight thanks to the use of an inverter power source.
• Quiet fan.

Fanmig J5 Pulse MOST

• Power supply and tolerance: 1x230/ 50-60 V/ Hz ±15%
• Welding current range:

MIG/MAG: 30-200 A

MMA: 20-180 A

• Idle voltage: 69
• Network security: 16 A (immediate)
• Nominal power consumption (100%):

1. 8,0 kVA (MMA);
2. 7,7 kVA (MIG/MAG)

• Current

1. 19,6 (MMA)
2. 22,3 (MIG/MAG)

• Current max:

1. 31A (MMA)
2. 35,2 (MIG/MAG)

• Work cycle:

1. MIG/MAG - 200 A (20%), 89 A (100%)
2. MIG/MAG Pulse - 170 A (20%),76 A (100%)
3. MMA - 180 A (20%),80 A (100%)

• Wire feed speed: 1-15 m/min
• Protection class: IP21S
• Dimensions: 490x210x410 mm
• Mass:13,3 kg

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	MOST
Parametry	Supply voltage (V)	230
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Device weight	13.3 kg
Parametry	Welding range	20–200 A
Parametry	Height	410 mm
Parametry	Length	490 mm
Parametry	Width	210 mm
Parametry	Length of ground cable	200 cm
Parametry	Product weight with unit packaging	15 kg
Parametry	Manufacturer code	5100020195
Parametry	EAN (GTIN)	5906340809707
Parametry	Welding methods	MIG/MAG,MMA
