Trumpai apie prekę
Prekė: Pusiau automatinis suvirinimo aparatas MIG 230 BLACK 37410. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Black
- Modelis: BLACK-37414

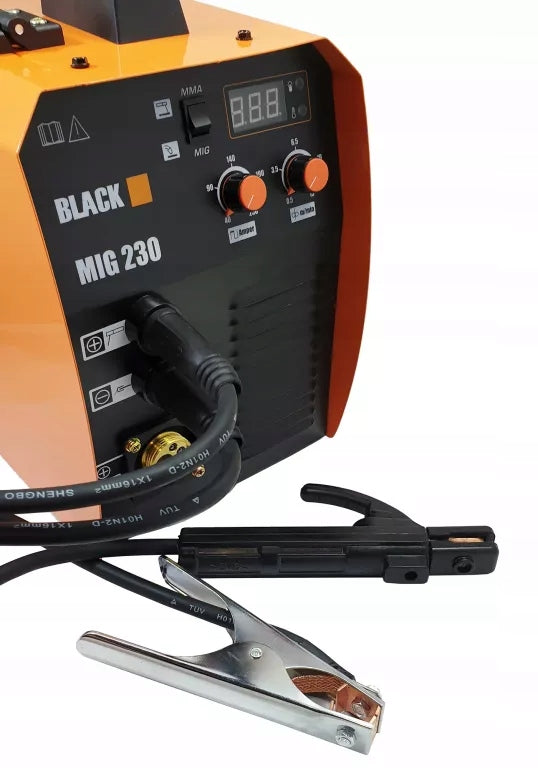

SEMI-AUTOMATIC WELDING MIG 230 BLACK 37410
- New product

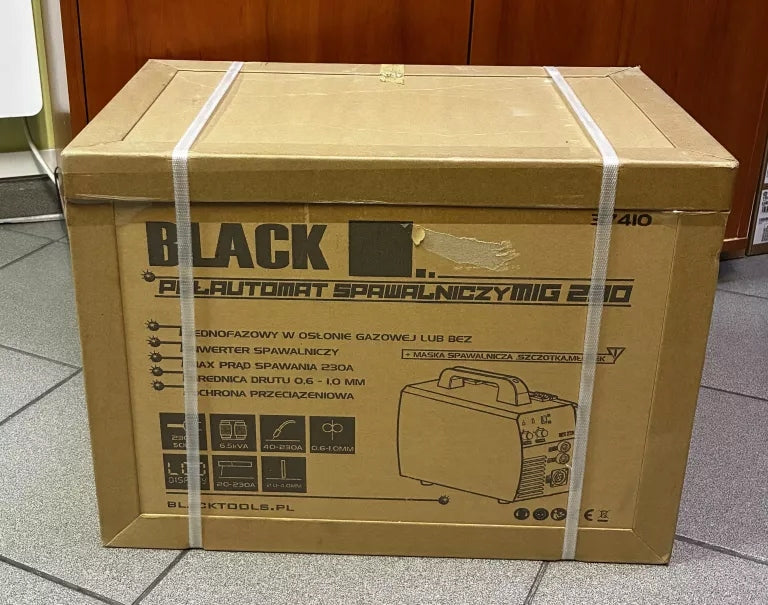

- Factory-packed
- Possible damage to the box
TECHNICAL DATA:
-Code: 37410
-Device type: MIG 230
-Technology: IGBT Inverter
-Power supply voltage [V]: 230
-Idle current voltage [V]: 56
-Scope of welding current regulation [A]: 20-230
- MIG/MAG welding current: 20 - 230A
-Maximum efficiency at 40C EN 60974-1: 170A@60%, 130A@100%
-Diameter of electrode [mm]: 1,6-4
-Protection class [IP]: 21
-Dimensions [cm]: 68x32x48
-Weight [kg]: 19
Equipment:
- Welding handle fixed MB 15
-mass cable 2 m with mass clamp 300A
-2,5 m cable with 200A electrode holder
- 2 m power cord with plug
These MIG 230 series devices are based on IGBT inverter technology. The device uses general protections such as protection against excessive voltage, excessive current, overheating of the device, etc.
The welding machine is designed for welding using the following methods: MIG/MAG, FLUX, MMA carbon steel, stainless steel, alloy steel, cast iron and aluminum.
Inside the welding machine there is a wire feeder that allows you to attach a spool up to 5kg.
Next to the wire feeder there are sockets for changing the polarity of the handles, which must be replaced in the case of welding without a gas shield (FLUX).
Setting other parameters of the device is carried out using the control panel on which the displays and control knobs are placed.
The above solution allows easy and quick setting and reading of all welding parameters.
A solid chassis with space for a gas cylinder and strong driving wheels is a huge advantage of this device.
A complete set with a gas cylinder can move freely around the workshop. Noteworthy is the strong rear axle and torsional pair of front wheels for easy rolling of the device.
The welder is designed for semi-professional users.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Black |
| Parametry | Welding methods | MIG/MAG |
| Parametry | Power consumption | 2.6 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Wire diameter (mm) | 0,6-0,8 |
| Parametry | Device weight | 5 kg |
| Parametry | Welding range | 40–250 A |
| Parametry | Length of ground cable | 1.5 cm |
| Parametry | Welding cable length | 2 cm |
| Parametry | Manufacturer code | BLACK-37414 |
| Parametry | EAN (GTIN) | 5902280024767 |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,LCD display |
