Trumpai apie prekę

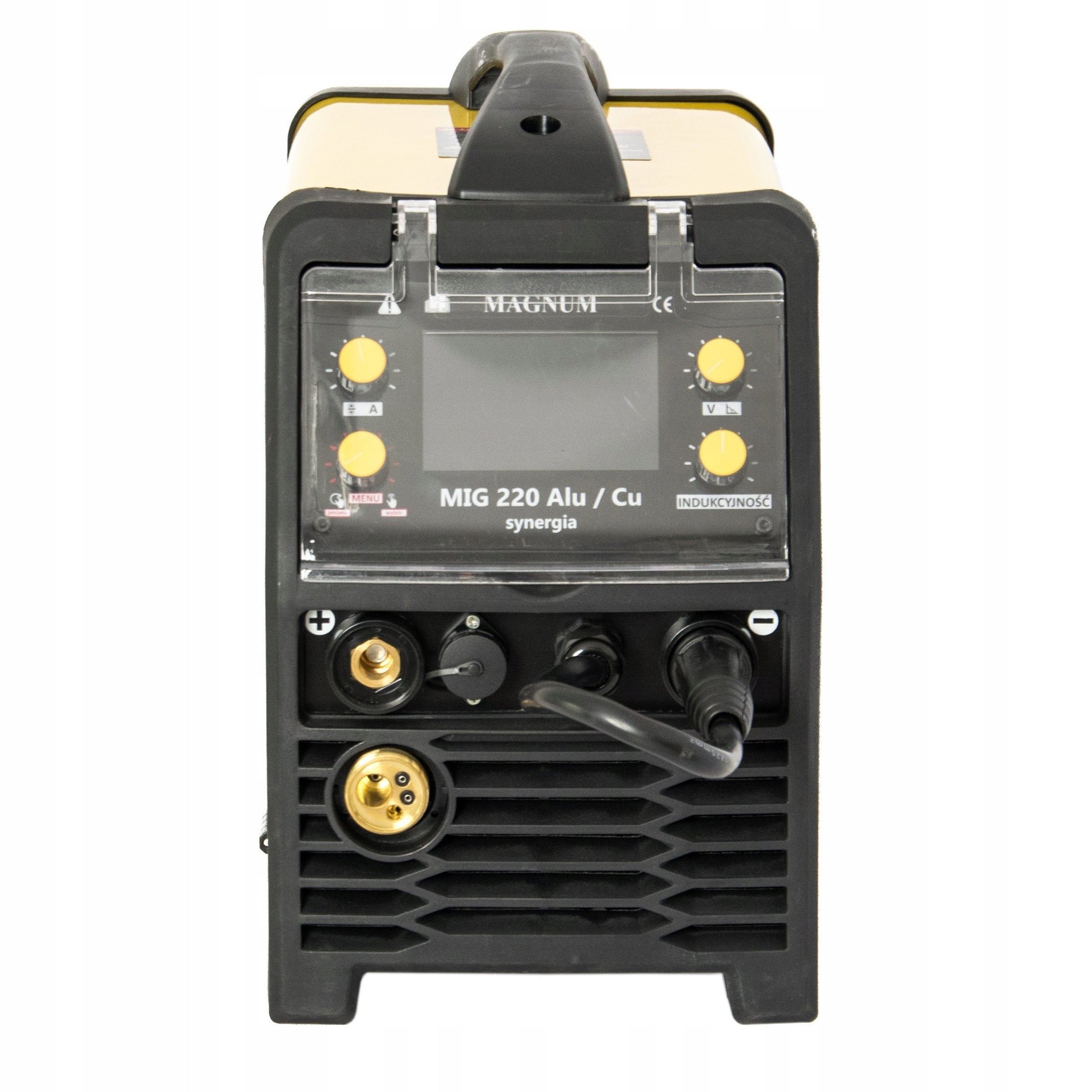

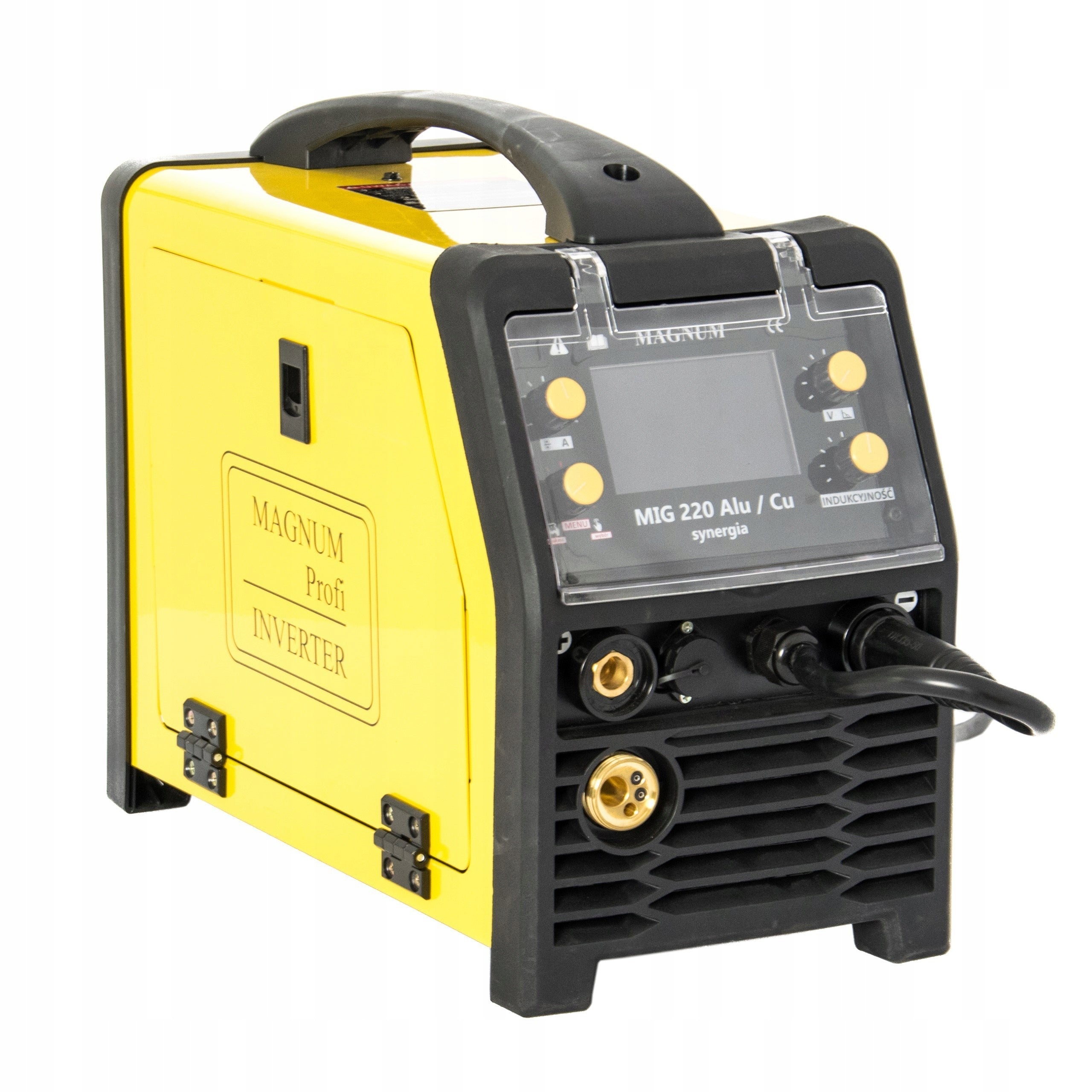

Prekė: Pusiau automatinis suvirinimo aparatas MAGNUM MIG/MAG 220 ALU/CU SYNERGY LCD. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: MIG 220 ALU
The MIG 208 ALU SYNERGIA welding machine by MAGNUM is a lightweight portable semi-automatic welding machine made in inverter technology, powered from a single-phase 230V network. The device is equipped with a LCD display and an intuitive, easy-to-use control panel. The synergy function used in the device allows you to quickly set welding parameters.
LIST OF SYNERGISTIC PROGRAMMES:
- Fe - non-alloy low-alloy steels,
- Ss - stainless and acid-resistant steels,
- Al - aluminium and aluminium alloys,
- CuSi, CuAl - soldering,
- Flux - welding with core wires, self-shielding wire.
WELDING METHODS AVAILABLE:
✅ MIG/MAG with synergy,
✅ MIG/MAG with manual settings,
✅ TIG LIFT: using a special handle with a valve, arc ignition is then carried out by lightly rubbing the non-melting electrode against the welded material,
✅ MMA: using hot melt electrodes wrapped in rutile, alkaline, acidic.
The power source was built on the basis of the latest technology using IGBT transistors, which translates into reduced electromagnetic interference, low power losses, increased efficiency and reliability of the power source and lower energy consumption.
The device has smooth adjustments of welding parameters, is equipped with an overload thermal protection system, preventing excessive overheating. The 2-roll wire feeder with "euro connector" socket used in the device allows you to connect different types of welding brackets.
The welding machine is characterized by a wide range of applications, it is dedicated to all kinds of welding work in households, locksmith workshops, repair workshops, etc.
Technical data:
- Power supply: AC 230 [V], 50 [Hz],
- Security required: 20 [A]
- Efficiency: 40 [%]
- MIG/MAG welding current: 20 - 200 [A]
- MIG/MAG welding voltage: 15 - 23 [V]
- Idle voltage: 78 [V]
- Welding without gas: Yes
- Wire spool weight: max: 5 [kg]
- Wire diameter: 0,6/0,8/0,9/1,0 [mm]
- Housing protection class: IP21S
- Weight: 16 [kg]

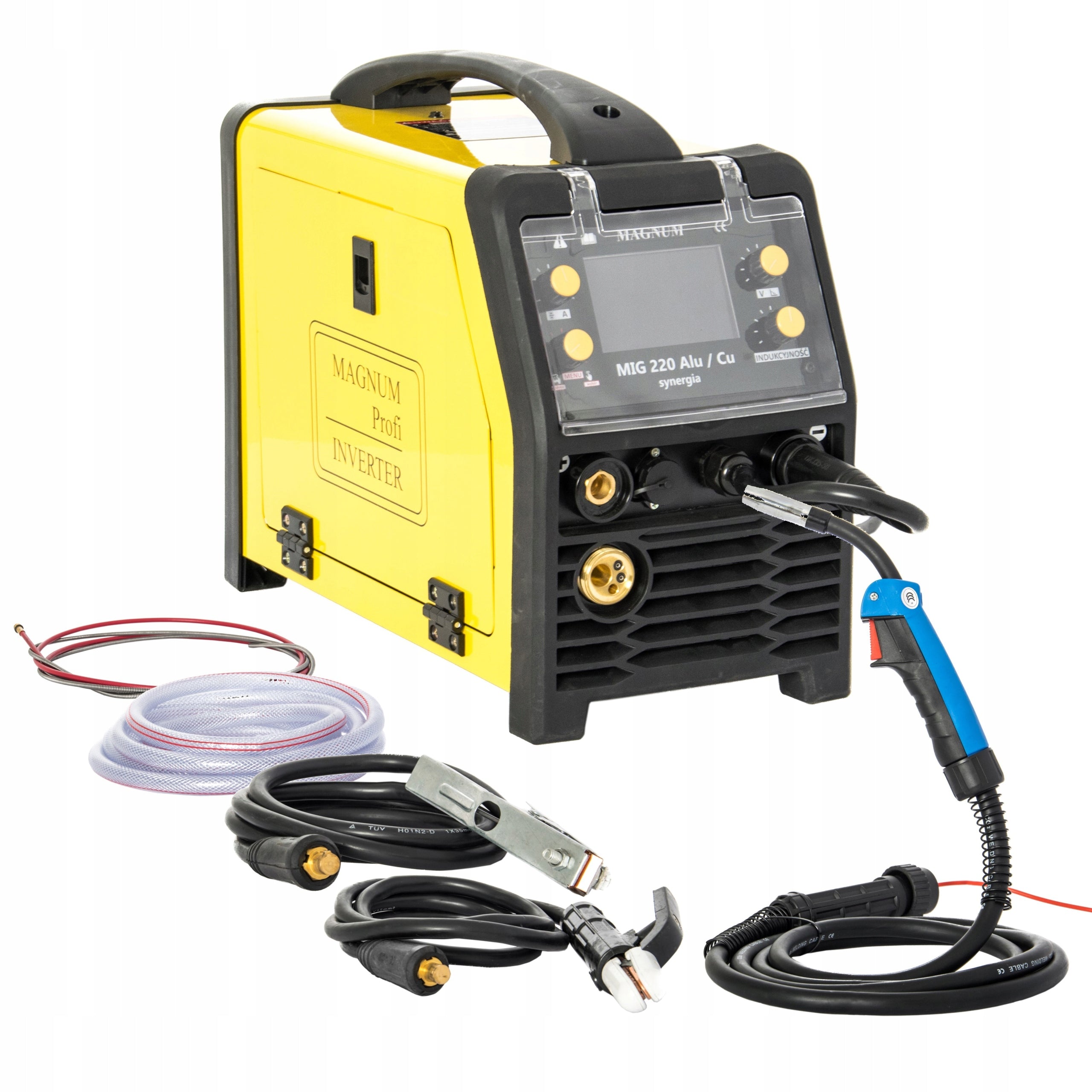

The set includes:
➡ MAGNUM MIG 208 ALDIA,
➡ MIG/MAG MB 15 3m working cable,
➡ MMA working cable,
➡ Holder with mass clamp,
➡ Operating instructions.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Power consumption | 7.51 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,6-1,0 |
| Parametry | Device weight | 10 kg |
| Parametry | Welding range | 40–200 A |
| Parametry | Product weight with unit packaging | 19 kg |
| Parametry | Manufacturer code | MIGOMAT MAGNUM MIG 220 HRSx |
| Parametry | EAN (GTIN) | 5904624036719 |
| Parametry | Model | MIG 220 ALU |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
