Pusiau automatinis suvirinimo aparatas Kemppi Master M 355 G Synergy PULS + 4 ritės MIG/MAG

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas Kemppi Master M 355 G Synergy PULS + 4 ritės MIG/MAG. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Kemppi
• Modelis: MASTER M 355 G
• Ilgis: 602 mm
• Plotis: 298 mm
• Aukštis: 447 mm

Master M 355 G Synergy Double Pulse (Included rollers (4pcs) and wire feeder sleeves of the selected diameter (0,8 or 1,0 or 1,2 for steel) - please write after placing the order that we have to attach.

Technical data:

• Power supply voltage 3~, 50/60 Hz : 380...460 V ±10 %
• Rated maximum input power [S1max] : 14 kVA
• Network Security: 16 A
• Maximum welding current: 350 A
• Efficiency: 350 A 40% / 280A 60% / 220 A 100%
• Welding Current Adjustment Range: 15 A - 350 A
• Wire feeder mechanism: 4-roll, Single motor
• Wire diameter: from 0,8 to 1,2 mm
• Wire feed speed: 0,5 – 25 m/min
• Maximum weight / diameter of wire spool: 20 kg / 300 mm

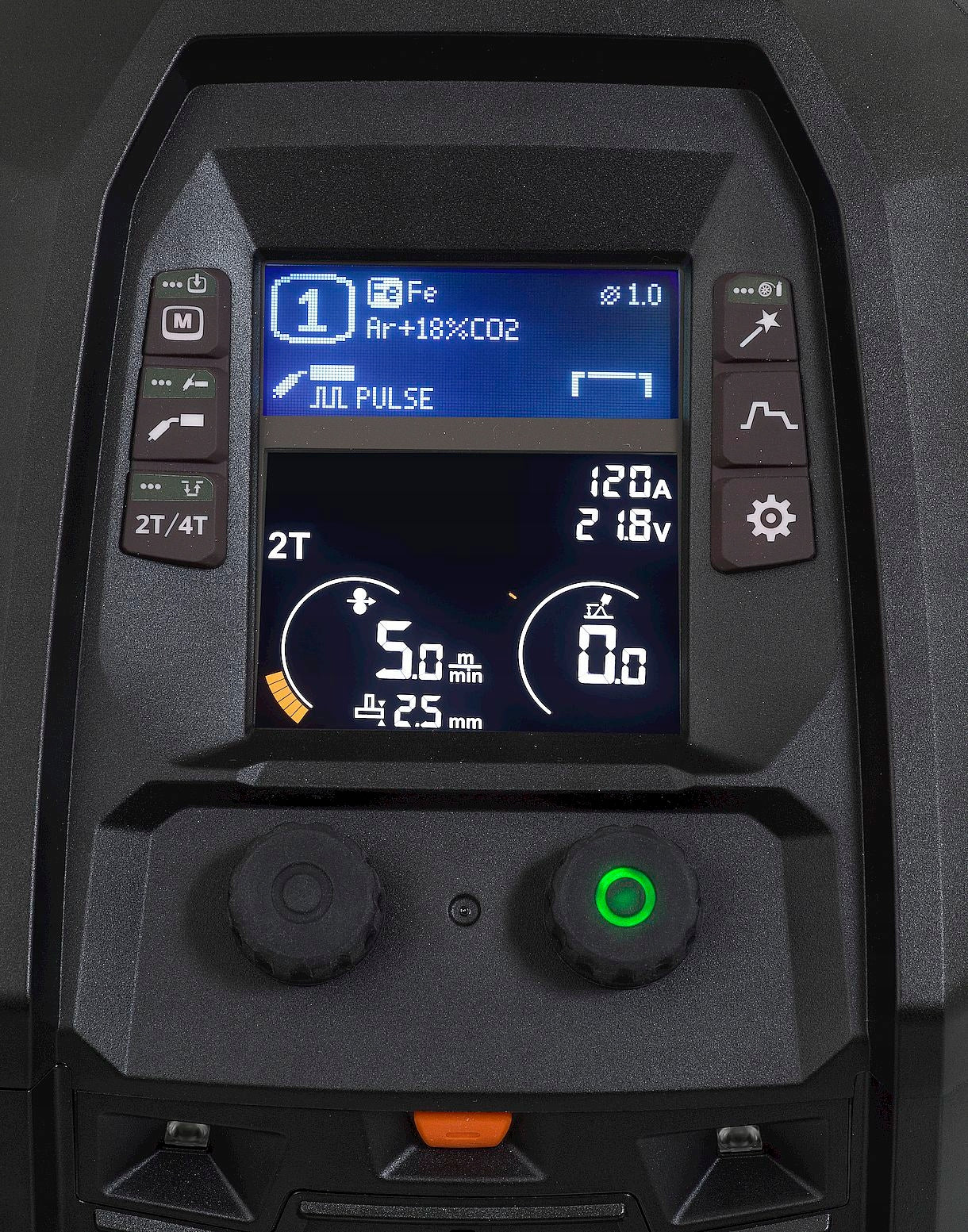

• Control panel, display: LCD display/color
• External dimensions L. x sz. x H : 602 x 298 x 447 mm
• Weight (without handle and cables) : 27 kg
• Electromagnetic Compatibility Class: A
• Standards : IEC 60974-1, -10

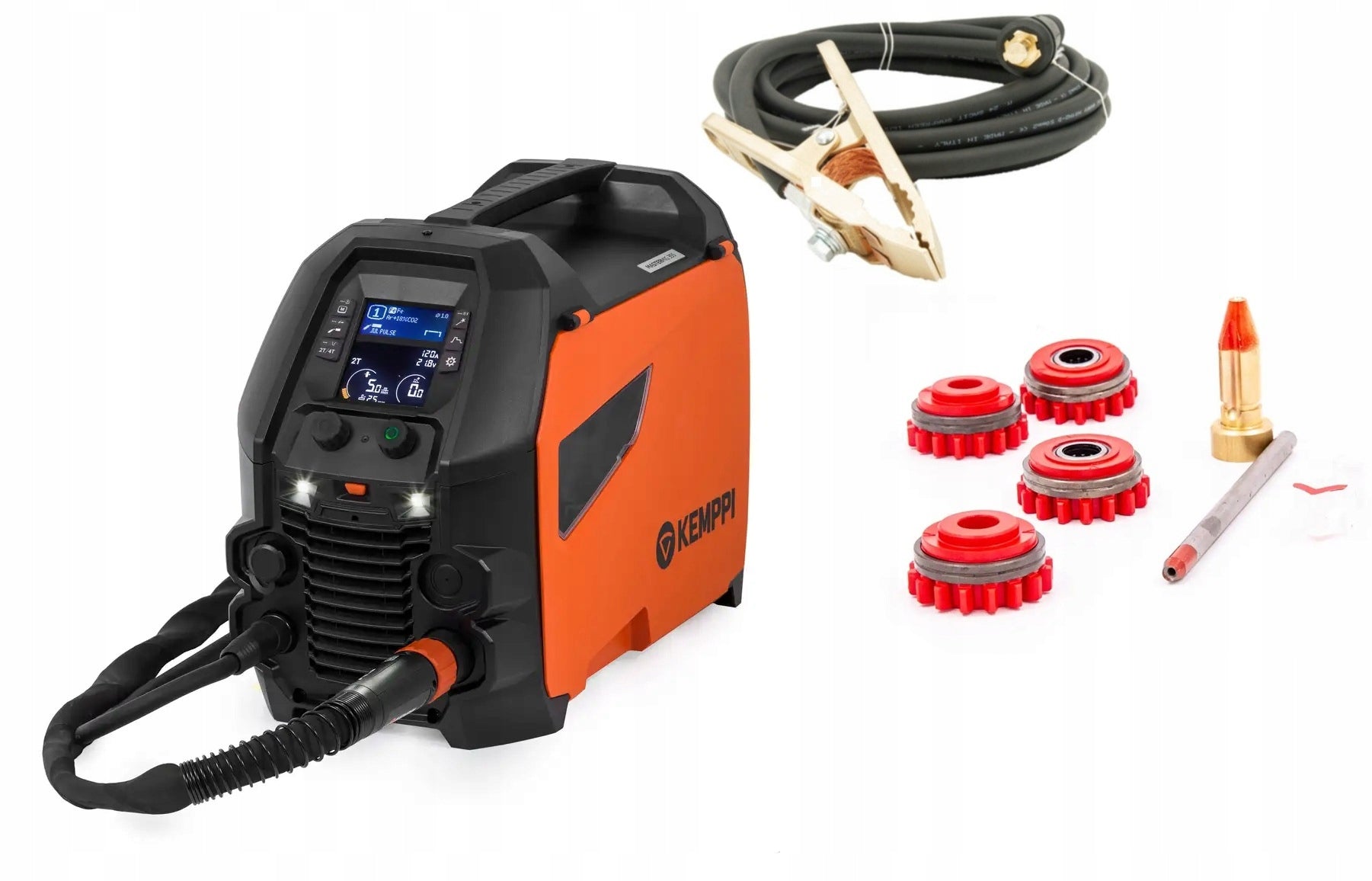

Package includes:

• Master M 355 G Synergy Dual Pulse Semi-Automatic Inverter 350 A / 40 % (source with LCD panel)
• 48 synergistic programs for short-circuit arc, pulse and double pulse welding WiseFusion
• Welding Assistant, 6 Channel Memory, Powerlog, TSI, 2-Stage LED Lighting, GasGuard and Gas Regulator
• Set of rollers (4pcs) and wire feeder sleeve of the selected diameter (0,8 or 1,0 or 1,2 for steel) - please indicate when ordering which we should attach
• 4-roll feeder with smooth speed setting
• Network cable without plug 5 m
• Weight cable 50 mm² - 5 m
• Shielding gas hose 6 m

THE DEVICE IS NOT EQUIPPED WITH A WELDING TORCH

The set with the handle can be purchased at our other auctions

The handle shown in the picture is not included in the set from this listing.

The wire spool shown in the picture is illustrative and not included.

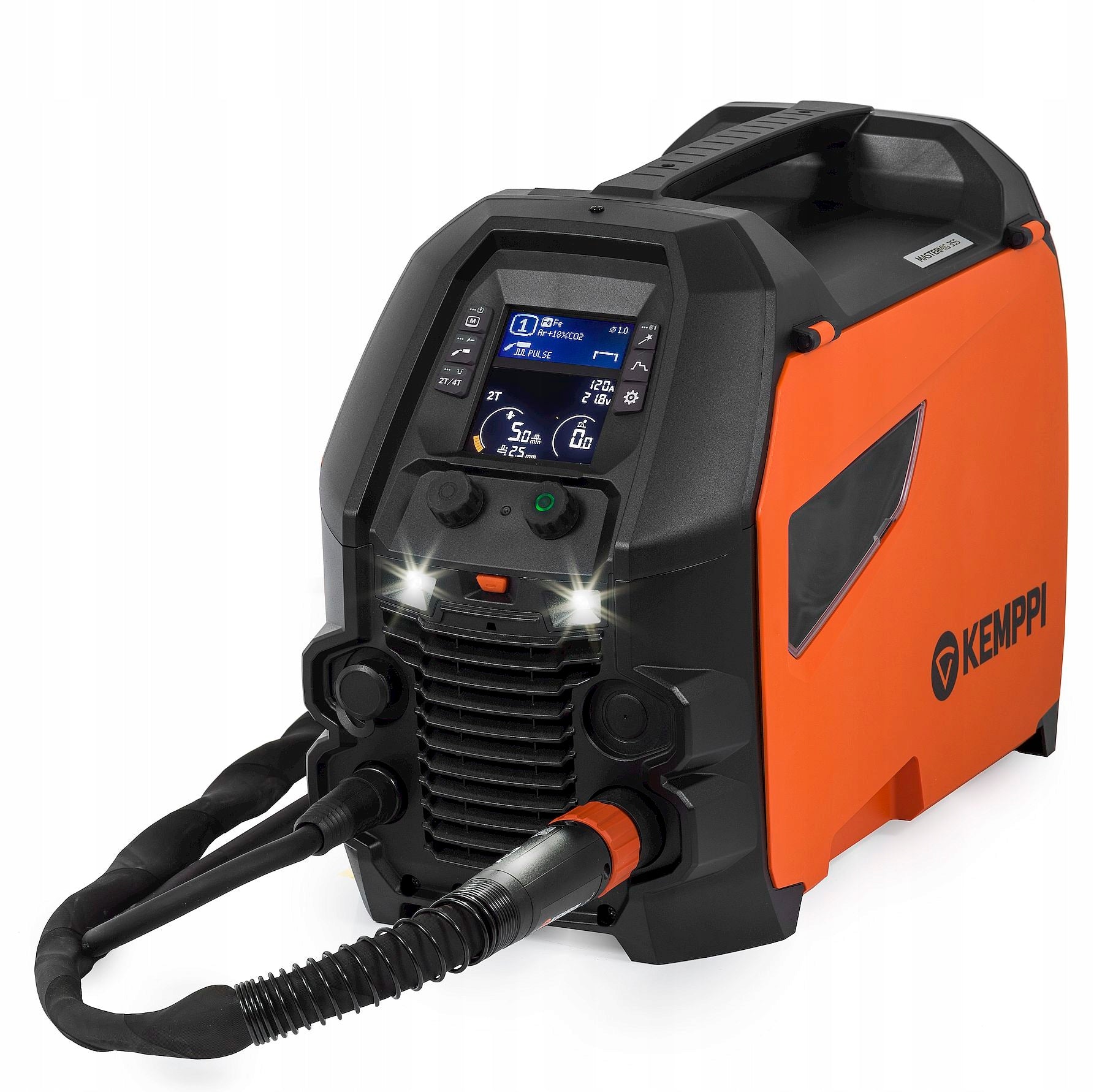

The Kemppi Master M semi-automatic machine is a compact MIG/MAG welding device with the option of manual welding, synergistic (Auto) pulse welding (Auto Pulse) and double pulsation welding. Generates 350 A current in 40% duty cycle

Main features:

• Comprehensive selection of welding processes in industrial conditions: manual, 1-MIG, pulse MIG, DC TIG and MMA
• Welding programs: Fe, Ss, Al, CuSi, CuAl, Fe metallic, Fe rutile, FC-CrNiMo
• MAX and Wise welding processes for demanding steel, stainless steel and aluminium welding applications
• Welding device with the ability to work with Cobot, quick and easy configuration thanks to the digital communication module and the Kemppi Cobotics application
• Weld Assist helps in setting welding parameters
• Self-charging LED work light improves work safety
• Handle for safe carrying and lifting
• 2- and 4-wheel transport trolleys for easy movement (optional)
• SuperSnake GTX intermediate feeder for maximum range in demanding welding locations
• Reporting welds and work orders to WeldEye software via the welding machine user interface
• WeldEye ArcVision provides better insight into welding production
• WeldEye Quality Management offers an A 360 degree view and 100% traceability of any welding project
• The kinetic spool brake prevents the wire from unrolling from the spool when the feed is stopped, automatically slowing down and reversing the wire spool when each weld is finished
• Compatible with aggregates and multi-voltage mode
• Memory channels for saving the best welding parameter settings

Why is it worth buying in our warehouse:

• We have been operating in the welding industry for 10 years
• We provide our clients with advice on the selection of welding machines
• we have MIG/MAG, TIG, MMA welding machines available immediately
