Pusiau automatinis suvirinimo aparatas Kemppi FastMig X3 420W, 5 m, MIG/MAG

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas Kemppi FastMig X3 420W, 5 m, MIG/MAG. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Kemppi
• Modelis: X3HD300

What do you gain by buying in the Official Store Kemppi?

• always the original product,
• Polish distribution network,
• quality of Kemppi products,
• full range of the manufacturer,
• technical support, service and after-sales support.

• power source FASTMIG X3S 420W with radiator with synergistic programs (40 programs)
• feeder X3 HD300
• 4-wheel chassis X3
• 5m source-feeder intermediate cable
• welding torch Trafimet ERGOPLUS 500 tyb Binzel length 5 m liquid cooled
• one set of rollers and bushings (to choose from ∅ 0,8 mm or 1,0 mm or 1,2 mm)
• 5m mass cable
• When purchasing, select the diameter of the rollers (∅ 0,8 mm or 1,0 mm or 1,2 mm)

There is a possibility of any configuration of the machine - different lengths of intermediate cables, welding torch, fixings and feeder chassis.

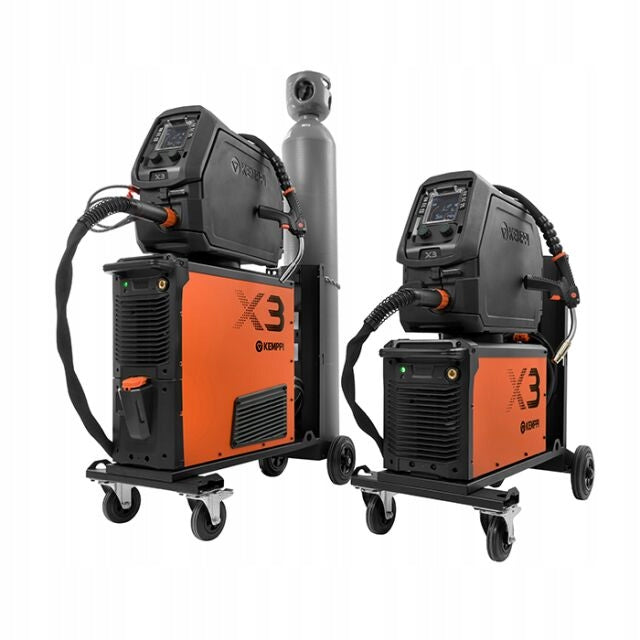

NOTE: the offered set does not include a gas cylinder, the photo with the cylinder is an example.

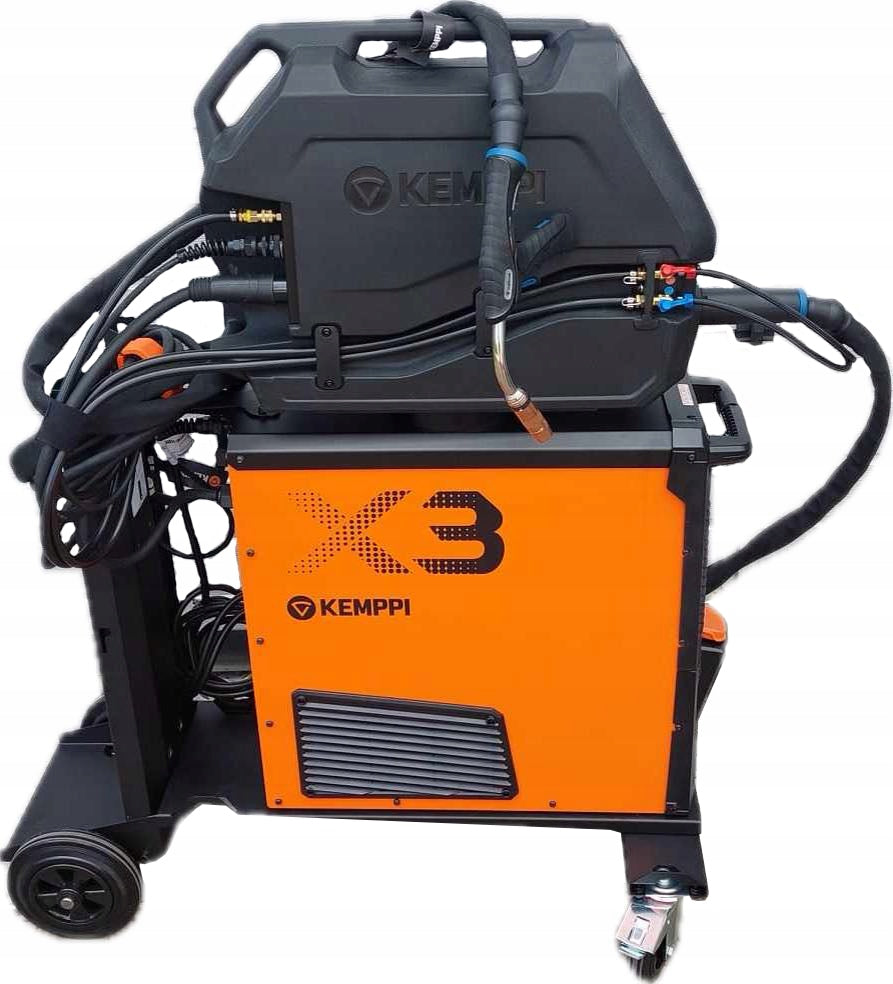

The X3 FastMig MIG/MAG welding machine allows you to achieve high-quality welds in the shortest possible time in difficult conditions. With its robust construction and durable wire feeder, the X3 FastMig system is perfect for heavy-duty MIG/MAG industrial welding environments. It looks solid, and at the same time it is simple and precise. The new user interface with icons speeds up the trowel with quick configuration and easy parameter selection. The X3 FastMig provides instant control over key functions, allowing you to perform high-quality welds with ease and efficiency.

It is a brilliantly simple MIG/MAG welding device with extremely high power. When you need to do tough jobs, the X3 FastMig will meet all production requirements. Do you have a key task to do on the construction site? No problem! The power of 420 amps in a 60% duty cycle ensures uncompromising efficiency while maintaining high quality. Choose the right parameters and confidently complete the task until the very end. The X3 FastMig system is perfect for industrial MIG/MAG welding, and at the same time is precise enough to quickly make straight welds.

The X3 MIG/MAG welding machine is equipped with an HD300 wire feeder with a 4x4 feeding mechanism in a strong, double-walled plastic housing. The HD300 wire feeder is connected to the MIG/MAG power source of the X3 FastMig system using a rotating plate with a wide base, and a special handle allows you to safely lift and hang the device.

• MIG/MAG synergistic welding, MMA and gouging processes
• Power 420 A in 60% duty cycle
• More than 40 factory-installed welding programs with synergistic adjustment
• Cooler integrated with power source
• Intuitive user interface with icons
• Wired HR53 Remote Control with Display
• Optional 2- and 4-wheel trolleys
• Possibility of hanging the wire feeder on the boom
• Handle for safe lifting in wire feeder
• Possibility of fixing a very long coil (marathon) on the wire feeder
• Built-in storage for parts in the side door of the wire feeder
• Five channels of memory
• Cable Calibration
• Safety lock

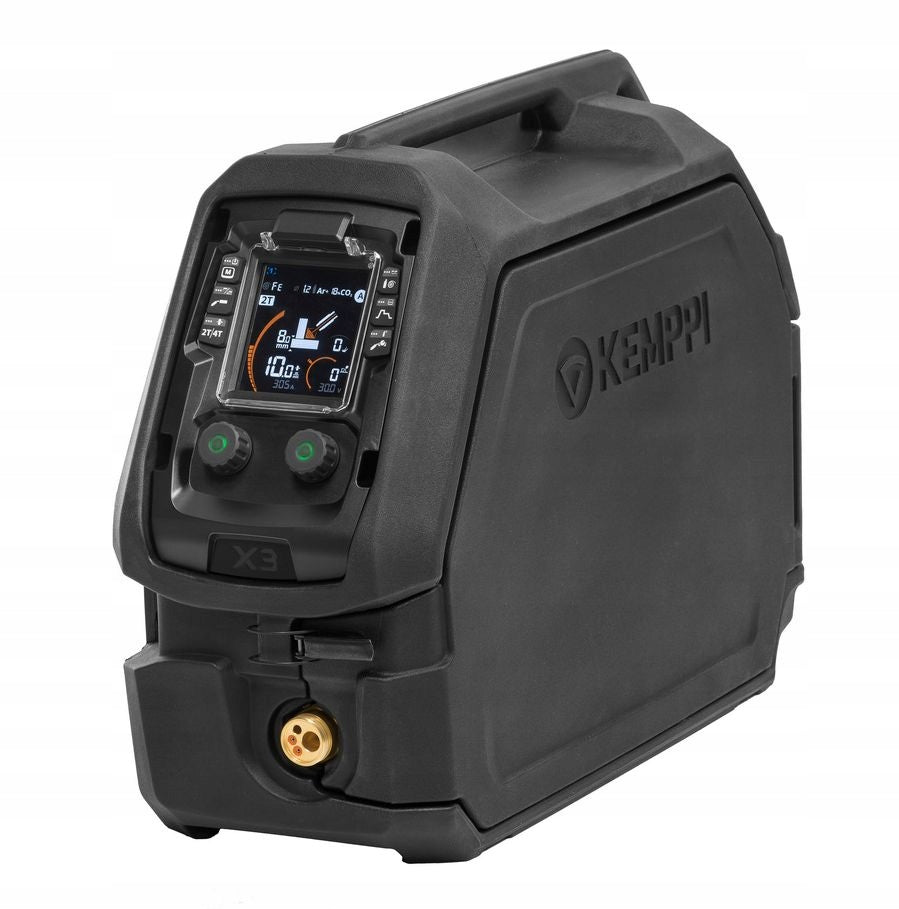

Side-charged wire feeder for all X3 FastMig power sources equipped with a digital LCD display. 4-roll feeding mechanism, special handle for safe lifting and built-in storage for parts in the side doors. The strong double-walled plastic housing effectively absorbs weaker and stronger impacts inevitable during intensive welding in industrial settings. The X3 Wire Feeder HD300 has a plastic rotary plate included.

Source with radiator:

• Power supply 3~, 50/60 Hz: 380-415 V (+/- 10%)
• Immediate protection: 25A
• Welding Current Range (MIG, MMA): 15-420 A
• Welding current (60%): 420 A
• Welding current (100%): 350 A
• Operating temperature range: -20°C to +40°C
• External dimensions (L. x W x H ): 698 × 251 × 613 mm
• Degree of protection: IP23
• Weight: 47kg

HD feeder:

• Wire feed speed: 0,5 – 25 m/min
• Wire feeder mechanism: 4-ro roller
• Diameter of feeder rollers: 32 mm
• ø Fe, Ss: 0,8–2,0 mm
• ø core wire: 0,8 – 2,4 mm
• ø Al: 1,0–2,4 mm
• Spool with wire: max. mass / max. ø: 20 kg / 300 mm
• External dimensions (L. x W x H ): 670 × 240 × 465 mm
• Weight: 14,4kg

Specifications
