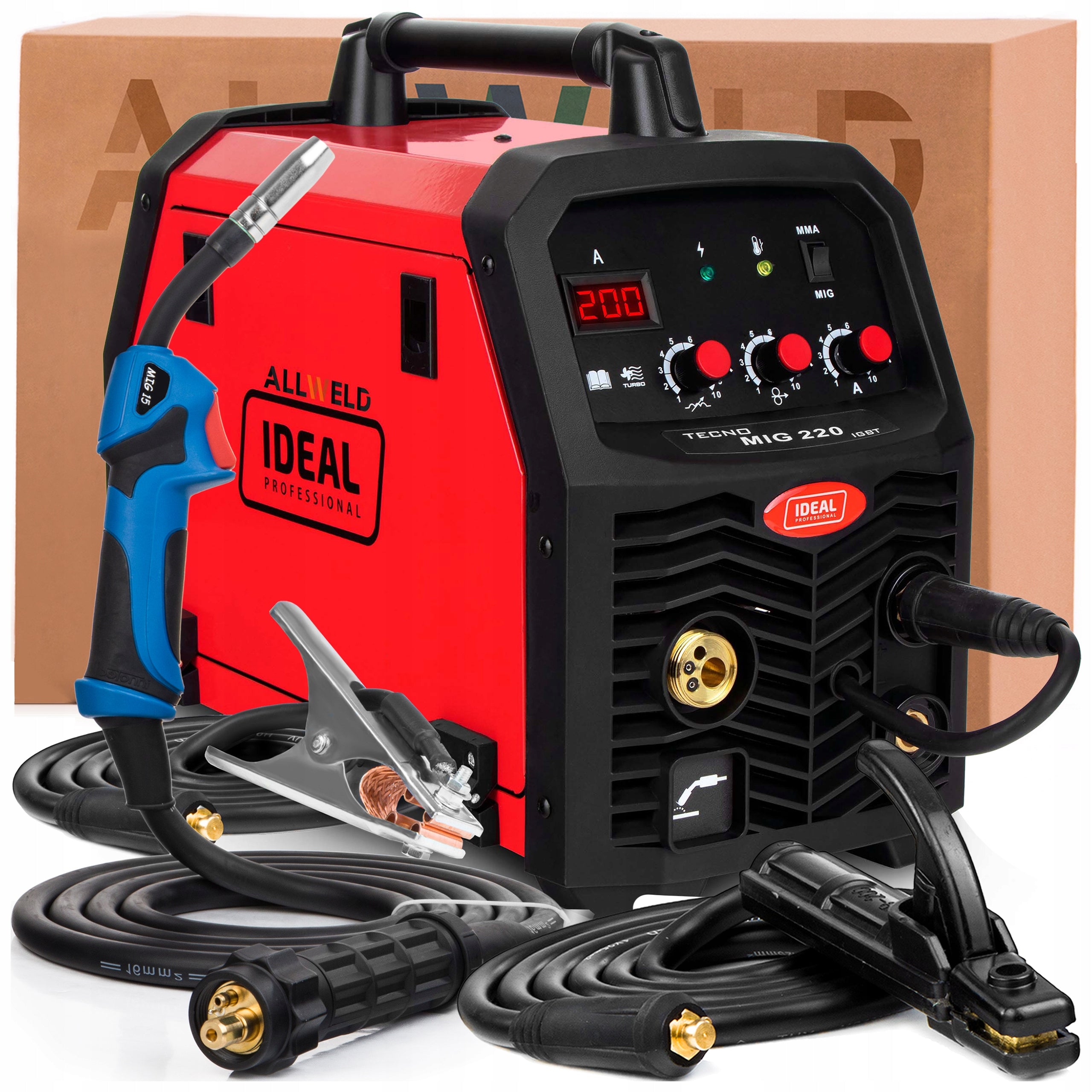

Pusiau automatinis suvirinimo aparatas IDEAL TECNO MIG 220, 230V, 220A, MMA, FLUX, aliuminiui ir plienui

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas IDEAL TECNO MIG 220, 230V, 220A, MMA, FLUX, aliuminiui ir plienui. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TECNO MIG 220 IGBT
• Ilgis: 540 mm
• Plotis: 240 mm
• Aukštis: 385 mm

• Welding methods: MIG/MAG, MMA, SOLDERING, FLUX
• Power supply: 230V
• Operating cycle 60% at maximum welding current 220A
• For welding: stainless steel, carbon, low alloy, aluminium and its alloys
• Max. thickness of welded material: 10mm (5mm melt)
• Regulation of inductance
• Professional metal 2-roll wire feeder
• Euroconnector
• Overload switch
• Cooling with fan
• Clean, aesthetic welds
• Made in IGBT technology

COMPREHENSIVE USE

The device supports many welding methods, including MIG/MAG, MMA (wrapped electrodes), FLUX (without gas) and LUTOSPELING, making it an extremely versatile solution for a variety of welding tasks. In addition, the EUROCONNECTOR allows for the interchangeable use of different handles, increasing flexibility and convenience of work.

✔ FEATURES AND ADVANTAGES:

• INDUCTION REGULATION - the introduction of less heat prevents sheet deformation and damage to the zinc layer,

• LUTOSPELING - a method that uses less energy; for joining thin galvanized sheets, stainless steels, and various types of joints,

• FLUX - arc welding with powder wire without the use of a gas cylinder; self-shielding wire is filled with flux or a chemical substance generating protective gases,

• EUROCONNECTOR - allows the interchangeable use of various types of handles,

• OVERLOAD SWITCH - protects against overvoltage, cutting off power to protect the network and device from damage,

• IGBT- bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.

⚙ TECHNICAL SPECIFICATION:

• Power supply: 230V 50/60Hz (1ph)
• Network security: 25A “C”
• Power consumption in idle state: 42W
• MIG/MAG welding current: 30 - 220A
• Power at work 60%: MIG/MAG: 200A | MMA, TIG: 180A
• Power at work 100% MIG/MAG, MMA, TIG: 130A
• Idle voltage: 43V
• Spools with wire: 100mm, 200mm; up to 5kg
• Protection rating: IP21S H
• Dimensions: 51 x 23 x 37 cm
• Weight: 16kg

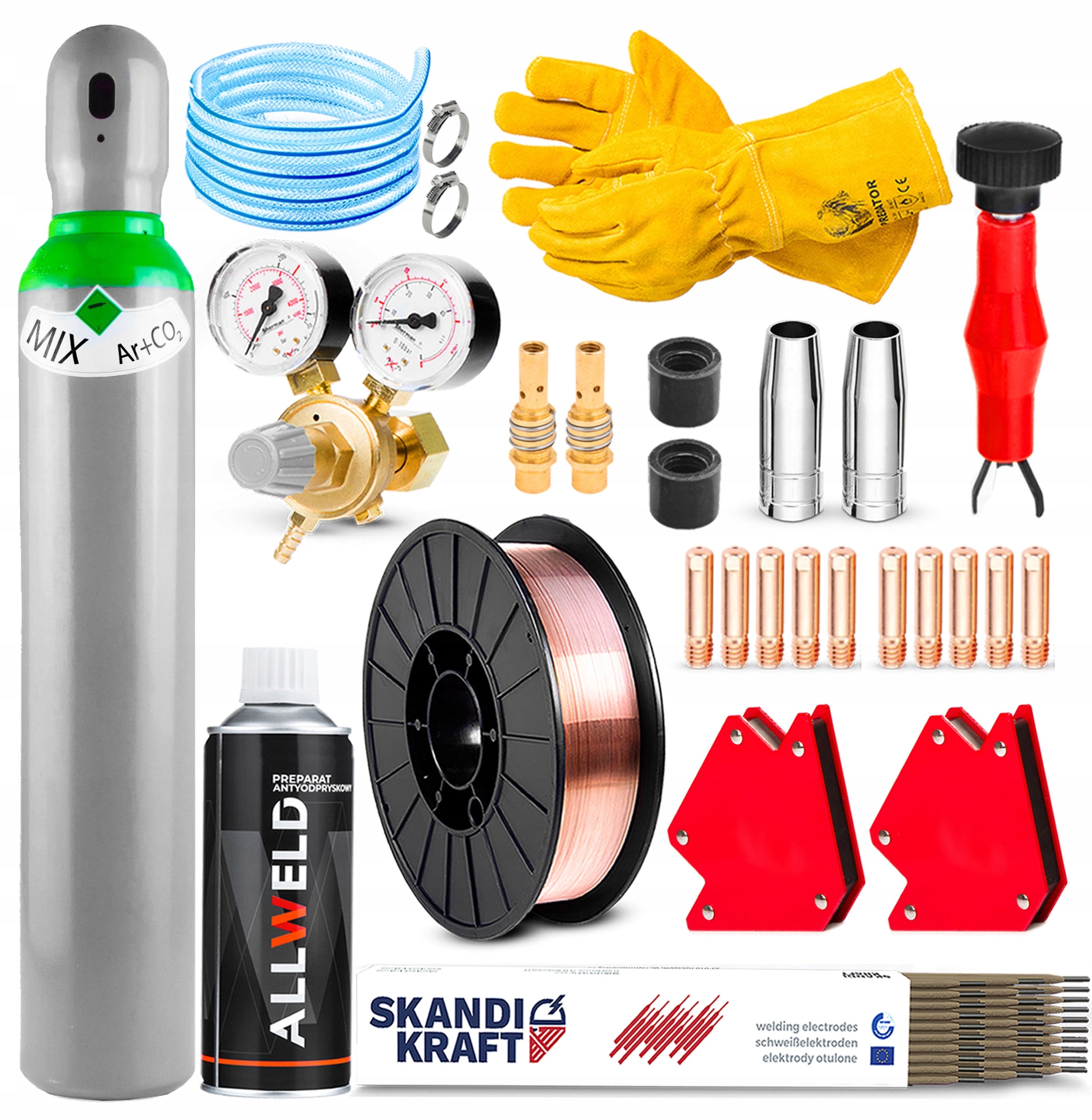

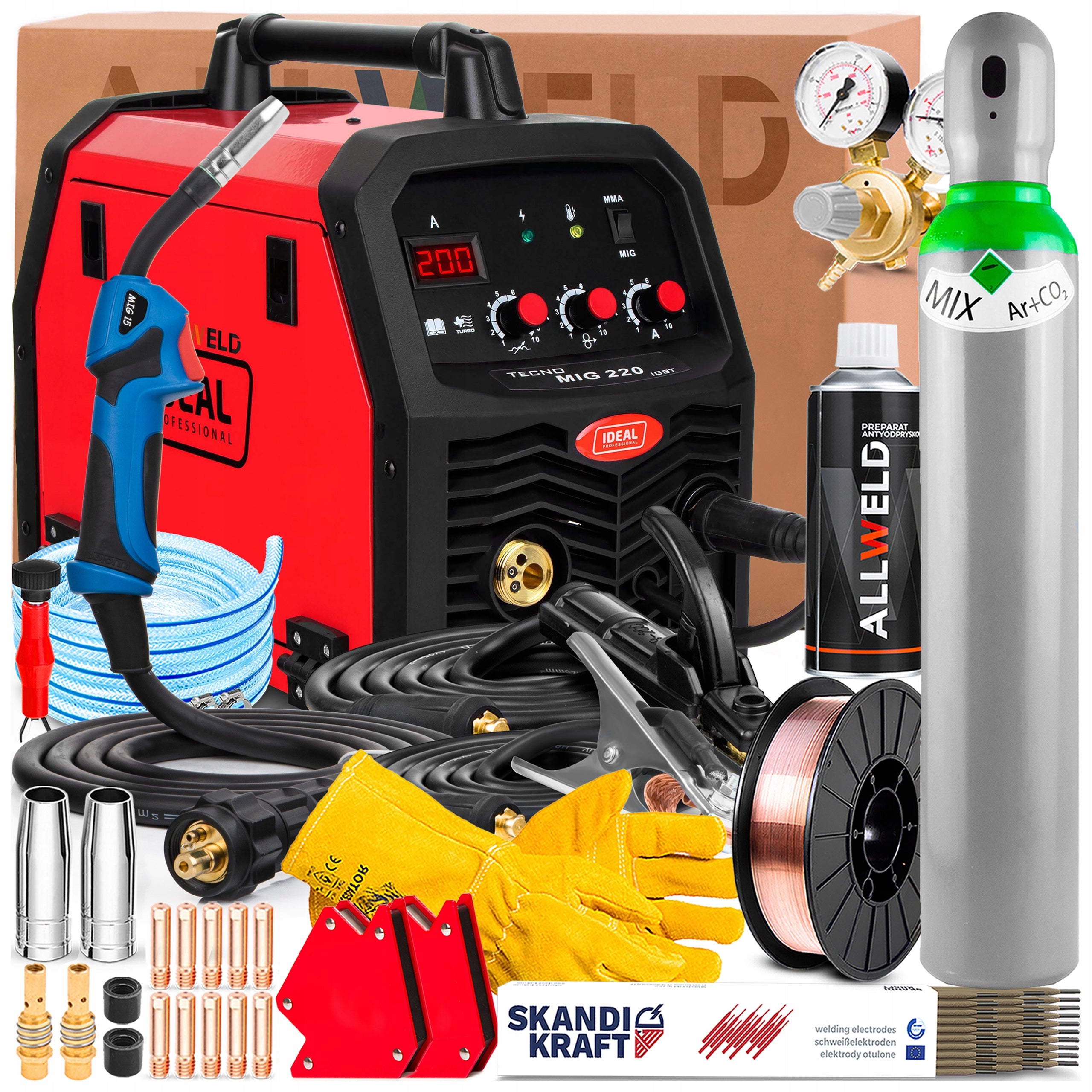

INCLUDED IN THE SET:

• Factory new reusable cylinder with a mixture of Ar (82%) / CO2 (18%) with a capacity of 8l; 10-year legalization, the possibility of filling at any point with technical gases,
• Gas hose with clamps - for connecting the reducer - 1pcs. ,
• Reducer with two pressure gauges - precise reducer with adjustment; for controlling the pressure in the cylinder and the amount of gas flowing out,
• Anti-chipping preparation - protects the nozzle and metal against welding chipping,
• Welding wire SG2 5kg - 1pcs ,
• Gloves welding - 1 pair,
• Scraper for gas nozzles,
• Exploitation parts of MIG/MAG handle (nozzles, connectors, tips, insulators),
• Angles magnetic 11kg - 2 pcs. ,
• Electrodes SkandiKraft 1kg - 1pack.

THE SET INCLUDES:

• Welding machine Ideal TECNO MIG 220 MMA DIGITAL
• Welding torch MIG/MAG type MB 15 - 3m,
• mass handle - 2m,
• electrode holder - 2m,
• User manual in Polish.

ADDITIONAL ACCESSORIES:

• Bottle with gas mixture Argon/CO2,
• Reducer cylinder Ar/CO2 MINI with two pressure gauges,
• Welding wire SG2 0,8mm - 5kg,
• Preparation anti-chipping ALLWELD,
• Angle magnetic 11kg - 2 pcs.,
• Electrodes SkandiKraft - 1kg,
• Flame-retardant gloves for welding,
• Hose for connecting gas with clamps - 2m,
• Scraper for gas nozzles.

+ HANDLE CONSUMABLE PARTS:

• Gas nozzle - 2 pcs.
• Current connector - 2 pcs.
• End current - 10 pcs.
• Gas distributor - 2 pcs.

Specifications
