Trumpai apie prekę
Prekė: Pusiau automatinis suvirinimo aparatas Ideal EXMIG201LCD EXPERT MIG 201 LCD. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: IDEAL
- Modelis: EXPERT MIG 201 LCD
- Ilgis: 465 mm
- Plotis: 190 mm
- Aukštis: 360 mm
Product Code: EXMIG201LCD
Brand: Ideal

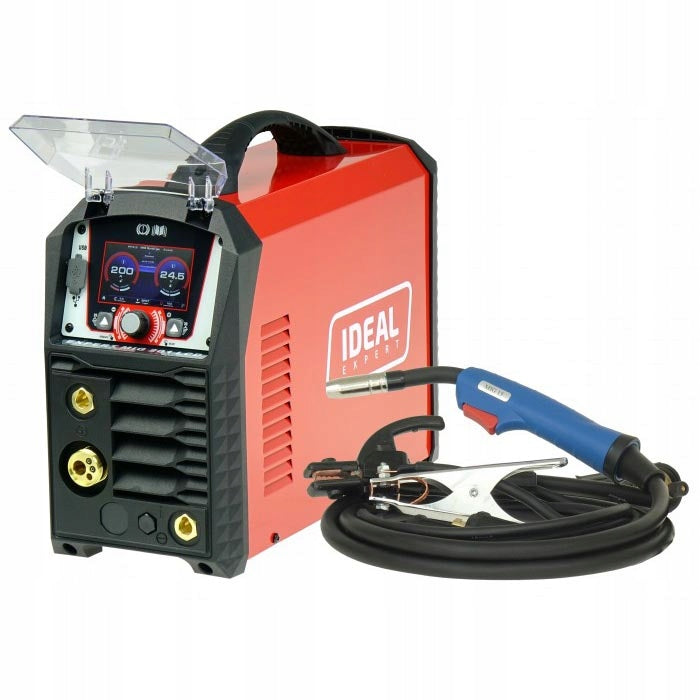

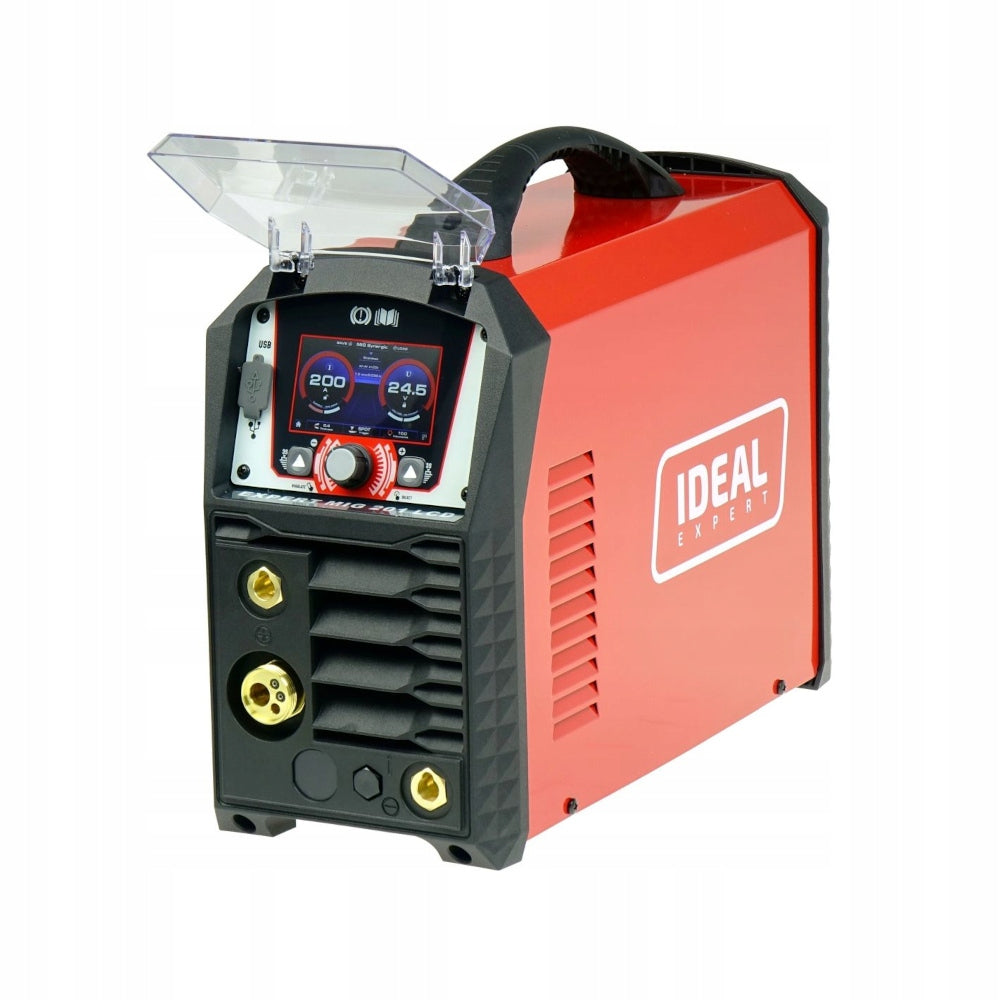

Microprocessor-controlled semi-automatic welding machine Ideal Expert MIG 201 LCD for MIG/MAG, TIG Lift, MMA (wrapped electrode), as well as FLUX (self-shielded wire) and soldering of galvanized sheets.
Ideal Expert MIG 201 LCD is the ideal solution for a wide range of applications: from maintenance work to car body repairs. Thanks to its flexibility, it can weld various types of materials: steel, stainless steel, aluminum or solder galvanized and constantly high-strength bodies.

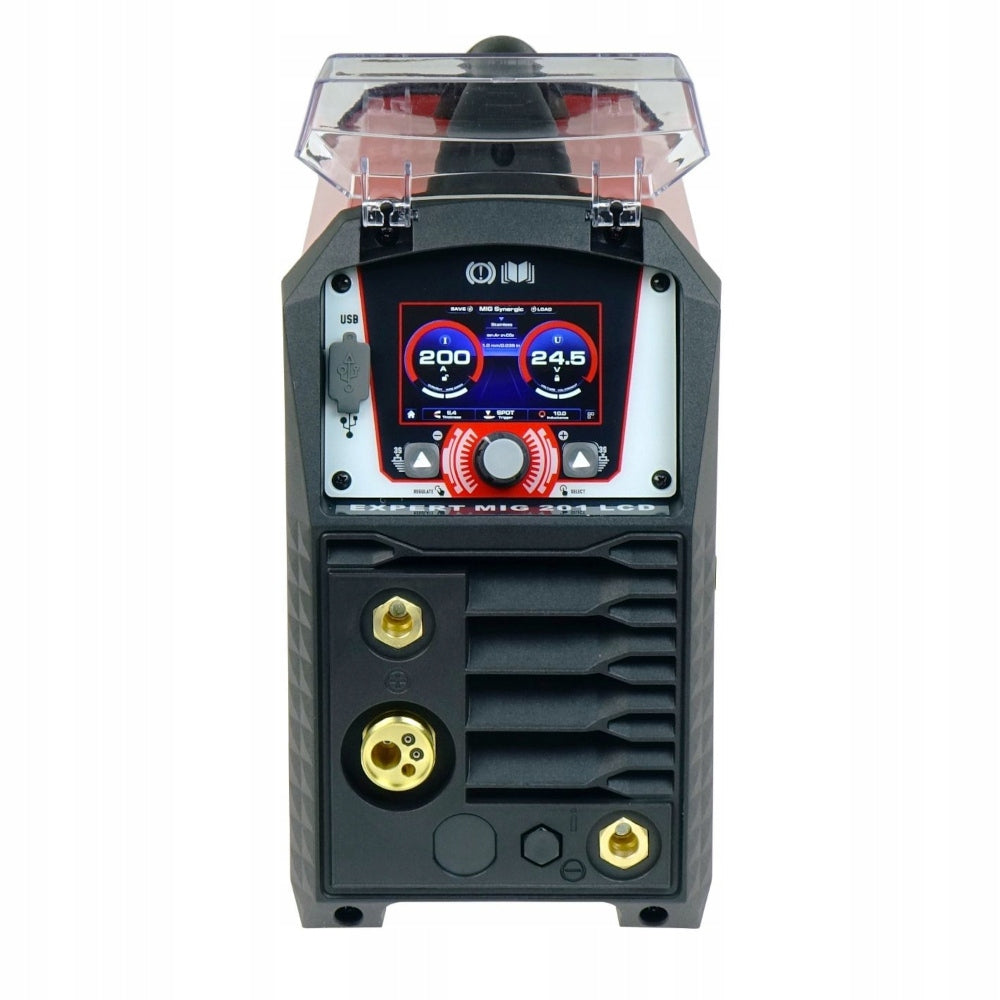

Quick synergistic adjustment of welding parameters via LCD display makes the device very easy to use.
All you need to do is set basic parameters such as the type of material or wire diameter so that the device selects the optimal values before welding.
The user can also manually set the length of the welding arc and adjust the appearance of the weld to suit their needs.
Supported diameters:
- Steel wire: 0,6 - 1,0 mm
- Stainless steel wire: 0,8 - 1,0 mm
- Aluminum wire: 0,8 - 1,2 mm
- Soldering wire: 0,8 - 1,0 mm
- Self-shielded wire: 0,8 - 1,0 mm
- Welding electrodes: 1,6 - 5,0 mm
In addition to synergistic mode, the source also has a manual mode. In it, you can set the wire feed speed and arc voltage in full range.
With the MIG/MAG method, we can choose the button function in the handle, between 2T mode (without button lock), 4T (button lock for long welds), S2T (2T mode with current rise/fall setting and time), S4T (4T mode with current rise/fall setting) and SPOT (point welding).
The device has 2 fan cooling modes, which definitely increases its efficiency. It is also equipped with overload protection, which increases its reliability.
The device is equipped with a power plug.
Technical parameters:
- Power supply network protection: C25 A
- Rated supply voltage: 230 V; 50 Hz (1 ph)
- Power: 7,5 kW
- Power at work 100%: 127 A
- Power at work 60%: 200 A
- Welding current adjustment range: 25 - 200 A (MIG) / 10 - 200 A (TIG/MMA)
- Degree of protection: IP21S
- Weight of the device / set: 11 / 16 kg
- Overall dimensions: 465 x 190 x 360 mm
- Package dimensions: 640 x 280 x 460 mm
Standard equipment:
- MIG MB-15 welding torch with euro connector
- Electrode cable with MMA handle
- Bulk cable
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Power consumption | 7.5 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 5 mm |
| Parametry | Wire diameter (mm) | 0,6-1,0 |
| Parametry | Device weight | 11 kg |
| Parametry | Welding range | 40–200 A |
| Parametry | Height | 360 mm |
| Parametry | Length | 465 mm |
| Parametry | Width | 190 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 16 kg |
| Parametry | Manufacturer code | EXMIG201LCD |
| Parametry | EAN (GTIN) | 5903991109309 |
| Parametry | Model | EXPERT MIG 201 LCD |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
