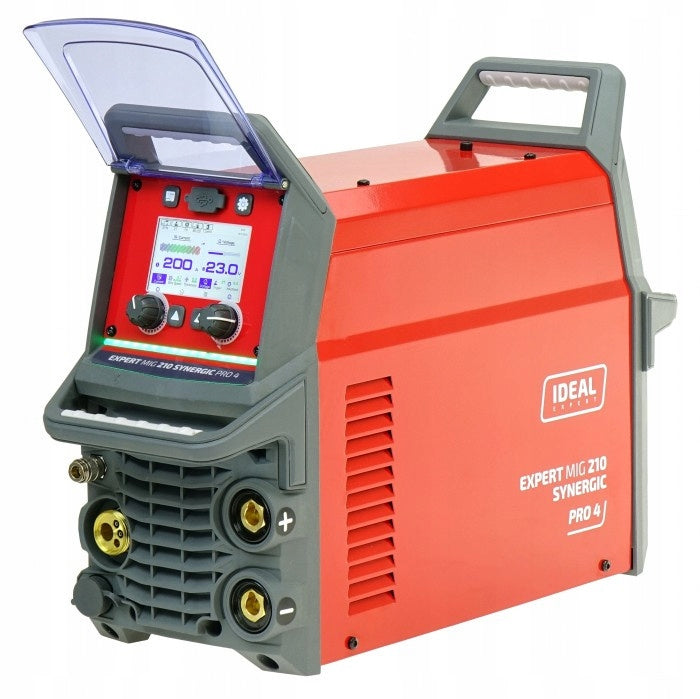

Pusiau automatinis suvirinimo aparatas Badek EXPERT MIG 210 SYNERGIC Pro4 (LCD)

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas Badek EXPERT MIG 210 SYNERGIC Pro4 (LCD). Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: Expert MIG 210
• Ilgis: 570 mm
• Plotis: 205 mm
• Aukštis: 410 mm

EXPERT MIG 210 SYNERGIC Pro4 LCD is an inverter, synergistic and multifunctional welding source, designed for arc welding using MIG/MAG, FLUX, TIG LIFT and MMA method (wrapped electrode).

The device has been designed for a wide range of applications: from maintenance work, through welding of steel structures, to repairs of car bodies. It is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas shield, active or mixture, and with reverse polarity without gas.

Quick synergistic adjustment of welding parameters through a 4-inch LCD display makes the device very easy to use. Just set the thickness and type of welded material and start welding: intelligent and automatic welding arc control system, step by step, will choose the best parameters, for each welding position and for each material. The user can also manually set the length of the welding arc and adjust the appearance of the weld to suit their needs.

With the MIG/MAG method, we can choose the button mode in the handle, between SPOT mode (point welding), 2-bar (without lock), 4-bar (button lock for long welds), S2-bar and S4-bar.

The device has a manual mode (MIG MAN) and a synergistic mode (MIG SYN) with the possibility of adjusting:

gas before welding

gas after welding

wire access

Wire burning

voltage corrections

spot welding time

inductance

Rising/falling current

In the TIG LIFT welding method, you can set:

welding current

time of current drop

final outflow of shielding gas

Button mode: 2T or 4T

thickness of welded material

MMA welding (wrapped electrode) allows you to perform additional functions:

HOT START

HOT START time

ARC FORCE

The device has an extensive system of recording and reading welding parameters (JOB function), which facilitates work on various materials, without the need to re-adjust the device, with any changes (e.g. gas or wire), as well as a fan cooling system, which definitely increases its efficiency. Fan cooling system - NORMAL or SMART mode (only activated if necessary) - reduces contamination inside the device.

EXPERT MIG 210 SYNERGIC Pro4 LCD is equipped with overload protection, overvoltage protection, to work with a generator (+/- 15%), which increases its reliability. The device is equipped with a power plug.

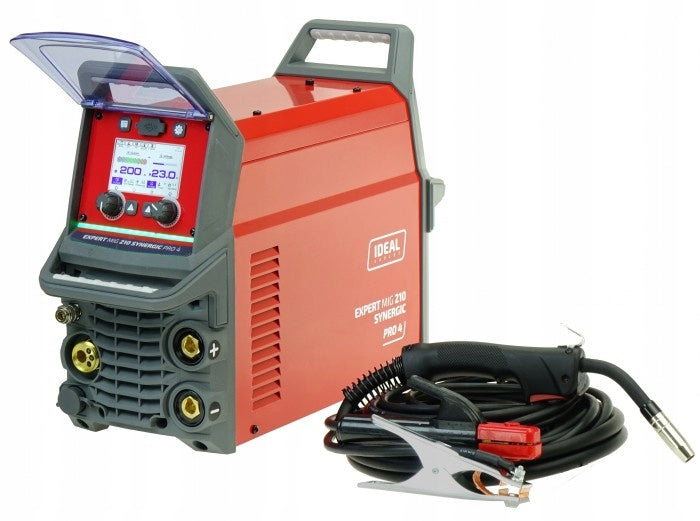

The delivery includes a device with a MIG 15 welding torch with a length of 3 meters and an electrode and mass cable with a length of 3 meters. In addition, a hose with a quick coupler is included.

Parameters:

Securing the power supply network

C25

Rated supply voltage

230V; 50-60Hz (1ph)

Power

7.4kW

Idle voltage

70V

Maximum current

200A

Current at work 100%

127A (MIG/MAG) / 127A (MMA/TIG)

Current at work 60%

200A (MIG/MAG) / 200A (MMA/TIG)

Diameter of aluminum wire

0.9÷1.0mm

Wire diameter for soldering

0.8÷0.9mm

Powder Wire Diameter

0.8÷1.0mm

Diameter of self-shielding wire

0.8÷1.0mm

Diameter of steel wire

0.6÷1.0mm

Stainless Steel Wire Diameter

0.8÷1.0mm

Welding electrode diameter

1.6÷5.0mm

Welding Current Adjustment Range

20÷200A (MIG/MAG) / 10÷200A (MMA/TIG)

Wire spool size

D200 (2kg and 5kg)

Degree of protection

IP21S

Weight of the device / set

14/19kg

Overall dimensions L x W x H

570x205x410mm

Specifications
