Trumpai apie prekę
Prekė: Pusiau automatinis MIG/MAG suvirinimo aparatas FANMIG J5, 4 dalių rinkinys, MOST. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: MOST
- Modelis: 5100020K23
- Ilgis: 440 mm
- Plotis: 180 mm
- Aukštis: 350 mm
Welding kit based on a modern inverter semi-automatic welding machine for MIG/MAG welding. The device is used for welding steel or stainless steel in a gas mixture cover. The basic applications are crafts, car bodywork, hobby work, renovations.
Extract and weld!
A set selected by our specialists will allow you to start welding work without any problems.
Cheaper included!
Set configured for diameter 0,8mm
The best price, you will not get such a price by completing this set yourself.
- Designed mainly for hobby and workshop applications, but it also performs well in industry.
- MIG/MAG, TIG Lift and MMA welding, i.e. wrapped electrode.
- Ready To Weld Device - Ready to Weld!
Method of use
Before starting work, please read the instruction manual attached to the device.

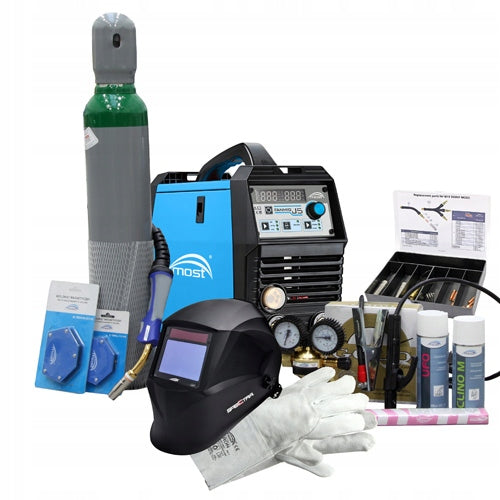

Included:
- Semi-automatic welding machine MOST FANMIG J5.
- Welding wires (mass and electrode included).
- Welding torch MOST M15 S-GRIP 3m.
- Welding visor MOST SPECTRA BLACK.
- Welding gloves MOST HURON.
- Magnetic polygon - size M.
- Cylinder with Arg/Co2 8L mixture.
- Gas reducer Arg/Co2 MOST BLACK.
- Welding wire G3Si1 GOLD 5KG 0,8mm.
- Welding electrodes MOST 6013 (pink) diameter 2,5mm 1KG.
- Anti-chipping preparation MOST UFO SPRAY, 400ml.
- Cleaning and maintenance agent for visors CLINO M 320ml.
- Set of nozzles and welding tips for the handle.
The MOST SPECTRA welding visor can be used for any welding method. It offers a combination of the highest level of security, comfort and very good technical parameters. The low weight of the visor and ergonomic, adjustable headrest provides the user with maximum comfort during long periods of use. By adding a large field of view, the best optical grades and a full range of darkening adjustment make it a welding visor for professionals.
- Large field of view: 100 x 65 mm
- Effectively protects eyes and face from sparks, chipping and harmful UV/IR rays.
- Full range of darkening adjustment from 4 to 13 DIN.
- Smooth adjustment of filter sensitivity and lightening delay.
- GRIND function, allowing you to perform grinding work without having to remove the visor.
- Highest Optical Classes: 1/1/1/1.

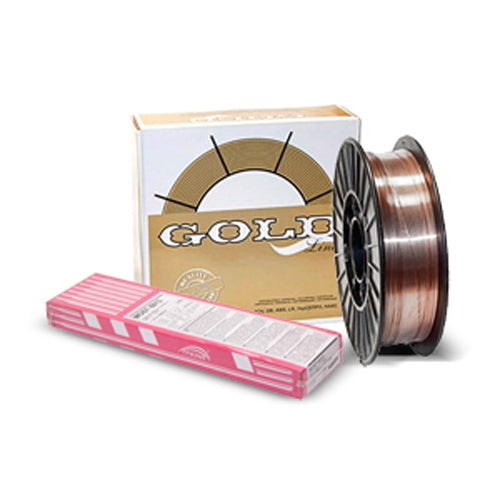

Welding wire G3Si1 GOLD 5KG and electrodes MOST 6013 (pink) diameter 2,5mm 1KG
- Universal medium coated rutile electrode with very good welding properties for welding steel structures and assembly work.
- Manganese-silicon electrode wire, copper-plated, designed for MAG welding of low-carbon structural steels, boiler steels, marine steels, as well as fine-grained carbon-manganese steels. It allows the use of high current intensities at the spray arc and low in short-circuit metal transfer.

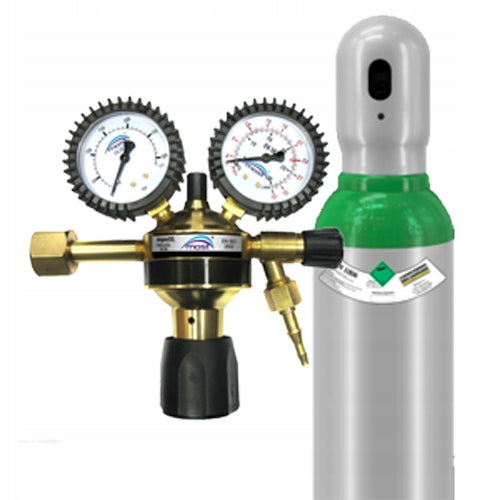

Reducer ARG/CO2, cylinder 8L ARG/CO2
- The trolley makes it easy to transport equipment and cylinders.
- Protects the cylinder from falling.
- Everything necessary is always at hand.
- Operation at an inlet pressure of 200 bar (20 MPa)
- Compliance with EN ISO 2503
- Shut-off valve as standard
- Body made of aluminium alloys
- High-quality pressure gauges equipped with covers
- Easy and precise adjustment of working pressure
- Operating pressure range 0,5-6 bar
- Max. throughput 0-32 l/min
- Nut thread at inlet W 21,8 x 1/14"
- G 1/4 output stub thread
- Hose tip 6,3 mm
- Full cylinder with 8L ARG/CO2 mixture
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | MOST |
| Parametry | Power consumption | 3.9 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 20% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,0 |
| Parametry | Device weight | 9.2 kg |
| Parametry | Welding range | 30–200 A |
| Parametry | Height | 350 mm |
| Parametry | Length | 440 mm |
| Parametry | Width | 180 mm |
| Parametry | Length of ground cable | 300 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 15 kg |
| Parametry | Manufacturer code | 5100020K23 |
| Parametry | EAN (GTIN) | 5906340818853 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,EURO handle,LCD display |
