Pusaplautis suvirinimo aparatas SHERMAN DIGIMIG 203L SWIFT 3in1 MIG/TIG/MMA, 200A

Trumpai apie prekę

Prekė: Pusaplautis suvirinimo aparatas SHERMAN DIGIMIG 203L SWIFT 3in1 MIG/TIG/MMA, 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: SET_1_203L SWIFT
• Ilgis: 375 mm
• Plotis: 220 mm
• Aukštis: 490 mm

WELDING METHODS: MIG/MAG, MMA, FLUX, TIG DC, Soldering | Synergy MIG MAG, 2T/4T, ATC, Inductance adjustment, Spool Gun option | POWER SUPPLY: 230V

Synergistic welding machine DIGIMIG 203L SWIFT is used for manual welding of steel and non-ferrous metals. It enables welding using MMA (wrapped electrode), TIG Lift, and MIG/MAG methods. The MIG/MAG method can be used in manual and synergic mode, simplifying its operation and allowing the use of the welding machine by people with less experience and hobbyists. Thanks to the change of polarity, the device allows MIG/MAG welding using both standard wires in the protective gas shield and self-shielding powder wires.

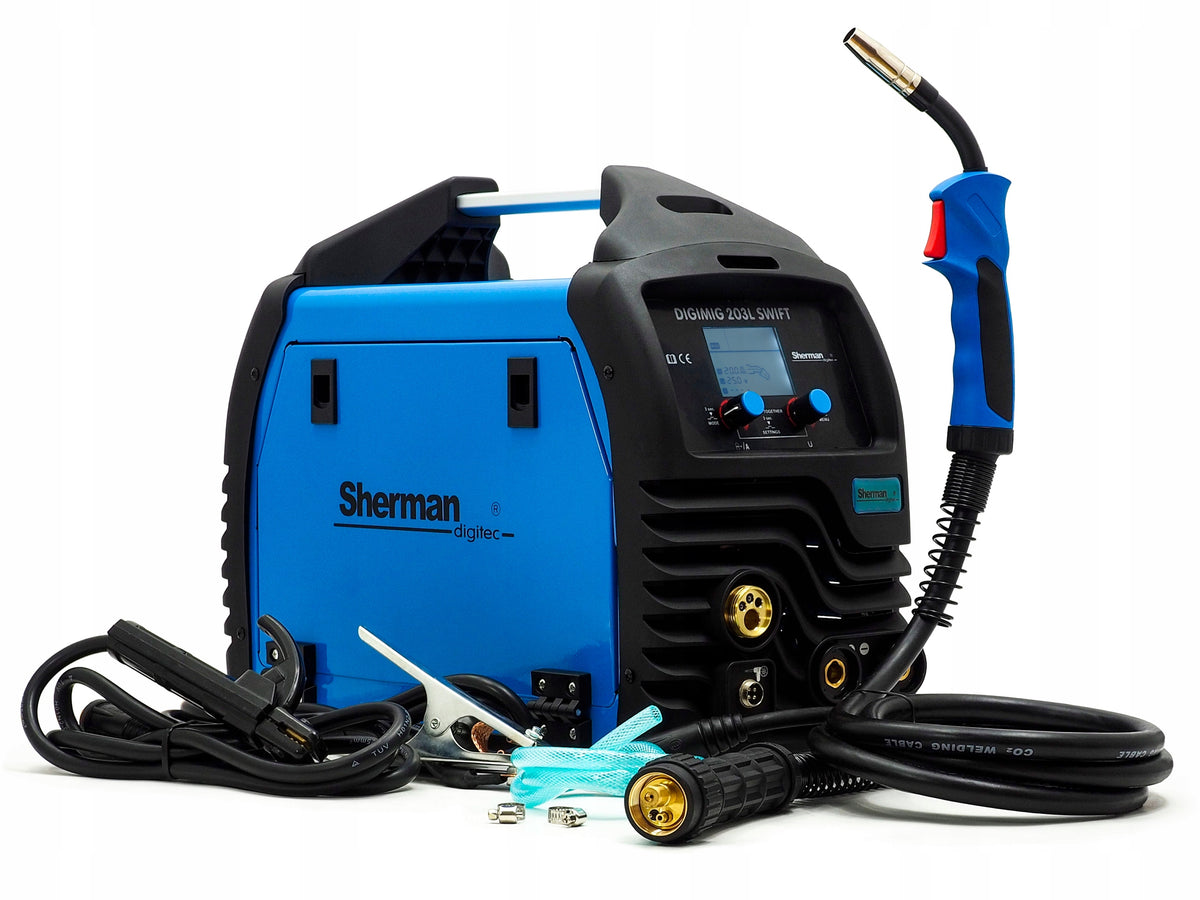

The set includes:

• Device Sherman DIGIMIG 203L SWIFT
• Handle MB15 3m
• Electrode cable
• Bulk cable
• User manual

• Cylinder with Argon/CO2 mixture or pure CO2 (to choose)
• Cylinder reducer MINI AR/CO2 with 2 pressure gauges
• 1 x 5kg welding wire SG2 0,8 mm
• Handle accessories: 2x gas nozzle MB-15, 3x tip MB-15 0,8mm, 1x current connector
• Welding gloves
• 2x Anti-chipping spray preparation SPAWMIX

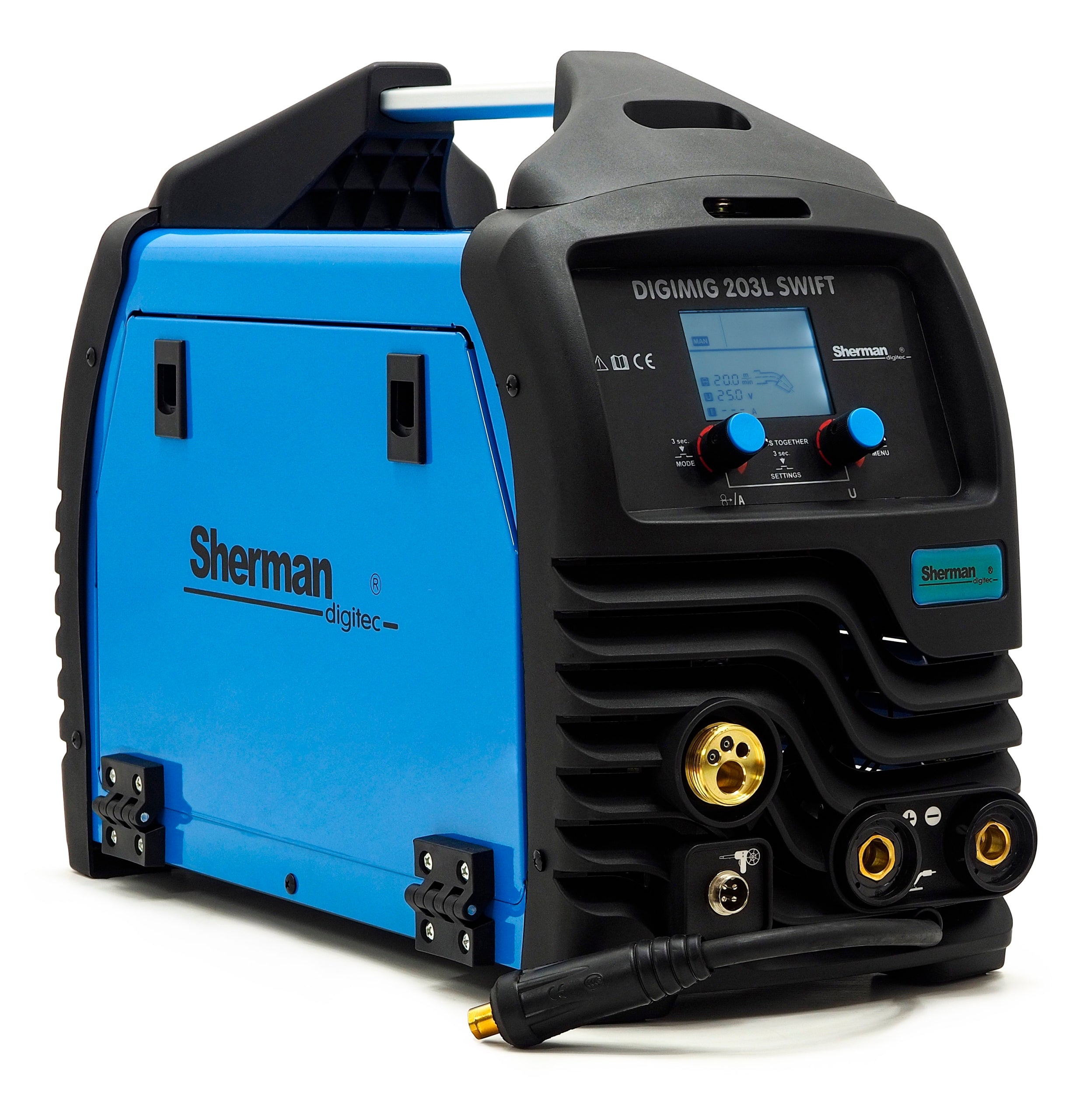

Sherman DIGIMIG 203L SWIFT is equipped with a easy-to-read LCD display. The welder is made in IGBT technology allowing for a significant reduction in weight and dimensions of the device and an increase in efficiency while reducing energy consumption. The welding machine is used in closed or covered rooms, not exposed to direct atmospheric influences.

• Smooth adjustment of all welding parameters,
• Synergy - the device has synergistic programs,
• Manual settings mode,
• 2T/4T operating modes - weld as standard in 2T mode or switch to 4T mode when you have a lot of work and long welds to position,
• Regulation of welding inductance - wider face and smaller melt or narrow face and deep melt? Choose the optimal settings for the work you are currently doing, thanks to the MIG/MAG welding inductance adjustment,
• TIG DC Lift welding capability,
• Possibility of using the Spool Gun handle,
• ATC function - controls heat, activates when thin materials are welded,
• Gas flow MIG,
• MIG spot welding,
• Access speed of the feeder.

Professional 2R feeder - reliable and precise wire feeding, thanks to the use of a professional feeder - ensures smooth wire feeding to the handle and stable welding parameters.

CHANGE OF WELDING POLARITY ON THE MIG HANDLE

Fast and safe change of welding polarity possible from the position of the front panel of the device. Weld with reverse polarity with self-shielding welding wires that do not require shielding gas. A great option when you need to take the machine to work in the field, and you do not necessarily want to take a cylinder with you with accessories.

POSSIBILITY OF CONNECTING THE SPOOL GUN HOLDER

The device allows you to connect a Spool Gun holder with a mini wire feeder mounted in it and a D100 spool of steel or colored wire. The MIG/MAG method can be used in manual and synergistic mode. Synergistic programs are available for steel, Al. alloys and for self-shielding wire welding.

REGULATION OF MIG/MAG WELDING INDUCTANCE

Full control over arc characteristics thanks to MIG/MAG welding inductance adjustment. Control the amount of chipping and the width of the weld face and the depth of melting.

Technical data:

• Catalog number: 7812675
• Power supply voltage [V]: AC 230
• Welding methods: soldering, MIG/MAG, MMA DC, TIG Lift (by rubbing) DC
• Execution technology: IGBT
• Max MMA welding current [A]: 160
• Max welding current TIG DC [A]: 160
• Max MIG/MAG welding current [A]: 200
• MMA duty cycle [%]: 60
• TIG duty cycle [%]: 60
• MIG/MAG duty cycle [%]: 60
• Voltage without load [V]: 78
• Wire feed speed [m/min]: 2 – 20
• Commuting speed of feeder: 30-100% feed speed
• MIG welding voltage [V]: 16,5 – 24
• Welding voltage correction: -1,0 – +1,0
• Gas flow MIG [s]: 0-5
• Wire burning time [s]: 0 – 0,2
• Spot welding time MIG [s]: 0-5
• Max MMA power consumption [kVA]: 7,7
• Maximum TIG power consumption [kVA]: 7,7
• Max MIG/MAG power consumption [kVA]: 7,7
• Max MMA current consumption [A]: 32
• Maximum current consumption TIG [A]: 32
• Max MIG/MAG current consumption [A]: 32
• Wed. spools with wire ø [mm]: 100, 200
• Roller dimensions [mm]: 30x10x10
• Network security [A]: 16
• Weight [kg]: 16,5 kg
• Dimensions (D x SZ x W) [cm]: 49 x 22 x 37,5
• Weight with packaging [kg]: 17
• Dimensions with packaging [cm]: 58 x 32 x 44

The new, lightweight Ar/CO2 cylinder contains 8l (1.5 m3) of a high-quality mixture of 82% argon and 18% CO2 used in welding and industry.

Protective cap protects the valve from damage during transport or storage. The cylinder is full, factory new and has an operating pressure of 150 bar. The cylinders have 10 years of legalization, meet the standards EN-1964-1 and have a mark Π which allows them to be used and filled in all EU countries.

The standard W 21.8x1/14 thread for this type of gas allows the use of Ar/CO2 reducers available on the market with most of them.

• Capacity: 8 liters
• Working pressure: 150 bar
• Trial pressure: 250 bar
• Thread on valve: W 21.8x1/14
• Amount of gas: ok. 1,5 m3
• Diameter: 136 mm
• Height: 820 mm
• Painting: powder in accordance with PN-EN standards
• Mass: ok. 15 kg

The cylinder contains 8 litres / 6kg of high-quality CO2 carbon dioxide for welding and other industrial applications. Protective cap protects the valve from damage during transport or storage.

The bottle is brand new and contains 6kg of CO2. The cylinder and valve are made in accordance with EN 1964: 1999, and have the π (pi) mark of conformity with the requirements of ADR/RID.

• Capacity: 8 liters
• Maximum working pressure: 200 bar
• Amount of gas: 6 kg
• Diameter: 136 mm
• Height: 820 mm
• Weight: 18 kg

After purchase, please inform us about the selected cylinder.

CYLINDER REDUCER MINI AR/CO2

Argon/CO2 cylinder reducer with two pressure gauges. Ideally suited for smaller welding machines. Its task is to reduce the pressure of gas taken directly from the cylinder to the required working pressure.

TECHNICAL SPECIFICATION:

• Gas type: carbon dioxide(CO2), argon(Ar)
• Thread at inlet: W21,8 x 1/14 (Standard)
• Thread of nut at outlet: G 1/4 (Standard)
• Outlet connector: FI 6,3mm
• Inlet pressure: 200bar
• Exhaust pressure: 4bars
• Capacity: 12l/min
• Weight: 0,75 kg
• Package size: 14 x 13 x 15 cm

MIG/MAG WELDING WIRE SG2 0,8mm 5 kg

SG2 welding wire is a guarantee of the highest quality. Material designed for MAG welding. The wire complies with G3Si1, DIN EN ISO 14341-A, SFA/AWS 5.18:ER70S-6 has TUV, DB42.142.01, ABS, LR certificates. Recommended as welding wire for ordinary steel.

Specifications
