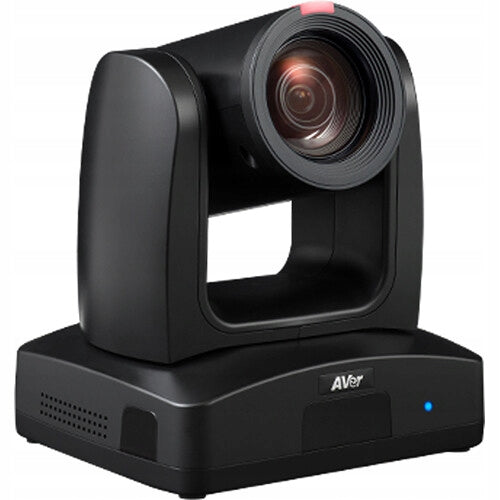

PTZ kamera AVer TR315

Trumpai apie prekę

Prekė: PTZ kamera AVer TR315. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: AVer
• Modelis: TR315

PTZ camera with automatic AI tracking

The new AVer TR315 extends the powerful and reliable capabilities of Pro AV cameras to users across industries. The TR315 offers proprietary features - including Presenter Mode, Zone Mode and Hybrid Tracking - powered by advanced AI processing. Perfectly combining lens with 12x optical zoom, 4K 60 fps resolution and hybrid automatic tracking for smooth PTZ operations.

HDMI/USB/IP. 4K 60 FPS.

Harness the potential of TR315 for 4K 60 fps streaming via HDMI, USB and IP outputs. With no complicated setups or tangled cables, you can effortlessly use multiple devices at once for smooth video streams.

Various automatic tracking modes

Automatic AI tracking makes streaming smart and seamless. Thanks to highly precise processing, AVer’s state-of-the-art automatic AI tracking algorithms easily identify and record human figures and moving objects. With TR315’s unparalleled tracking precision, you’ll never lose sight of your target again.

• Presenter Mode - This dynamic feature allows presenters to step outside the stage to engage the audience, while the camera keeps track of smoothly
• Zone mode - increases the ability to capture content on multiple displays. Generate up to four dedicated zones to consistently capture displayed information or items, prioritizing important presentation materials over presenter movements
• Hybrid mode - Use pre-set zones to track zones, allowing the camera to seamlessly switch to a full view of each pre-defined location as performers move through those areas. If they move outside these zones, the camera adjusts smoothly, switching to Presenter Mode to effortlessly and accurately track their movements.

SPECIFICATION:

Camera

• 1/2.8 4K Exmor CMOS
• 8 Mpix
• Output Resolution: 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Exposure control: Automatic, manual, priority AE (snapshot, IRIS), BLC, WDR
• White balance: automatic, manual
• 12X optical zoom
• 12X Digital Zoom
• Viewing angles
• DFOV: 80,6 (wide) to 7,7 (tele)
• HFOV: 72,8 (wide) to 6,7 (tele)
• VFOV: 44,1 (wide) to 3,8 (tele)
• Focal length: f = 3,9 mm (wide) to 46,8 mm (tele)
• Aperture: F = 1,6 (wide) to 2,8 (tele)
• Minimum working distance: 0,3 m (wide), 1,5 m (tele)
• Angles of rotation/inclination
• Turnover: 170
• Tilt: +90 / -30
• Rotation / tilt speed (manual)
• Rotation: 0,1 to 100/s
• Tilt: 0,1 to 100/s
• Pre-set speed
• Rotation: 200/s
• Tilt: 200/s

Control

• Pre-set positions
• 10 (IR)
• 256 (RS-232, RS-422, IP)
• Camera control - interfaces
• RS-232 (DIN8)
• RS-422 (RJ45)
• IP
• USB
• Camera control - protocols
• VISCA (RS-232 / RS-422 / IP)
• PELCO-D AND PELCO-P (RS-232 / RS-422)
• CGI (IP)
• USB
• ONVIF
• Image processing
• Noise reduction (2D/3D)
• Reversal
• Mirror
• WDR
• BLC
• Network protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP/RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP

Functions

• Gesture control
• Presenter mode
• Zone mode
• Hybrid mode

Dimensions (W) x H x D. ): 180,0 x 192,0 x 145,0 mm

Net weight: 2,0 (±0,1) kg

Hubbub.

• Camera: 5 years
• Accessories: 1 year

Accessories included

• remote control,
• RS-232 I/O cable,
• Din 8-D-Sub 9 cable,
• charger,
• power cord,
• cable ties (x 4),
• screws M2 x 4 mm (x 3),
• screws M3 x 6 mm (x 3),
• 1/4'-20L 6,5 mm screws (x 2),
• plate for fixing cables,
• ceiling mounting brackets (x 2),
• paper for drilling,
• Quick Start Guide

Optional accessories

• Controller CL01
• Wall Mount Type L
• USB 3.1 optical cable (10m/20m/30m)

Range of PTZ traffic

Pan : ±170°

Tilt: +90° / -30°

Communication ports

3GSDI

HDMI

RS232

USB (b)

True WDR

YES

Image rotation (for ceiling mounting)

YES

Kensington security slot

YES

Libra

2 kg

Hubbub.

Camera: 5 years

Accessories: 1 year

Color

Black

Dimensions

180.0 x 192.0 x 145.0 mm mm

Matrix

1/2.8” 4K Exmor CMOS

Optical Zoom

12 x

Digital Zoom

12 x

Presets

10

PoE+ power supply

YES

Focal length lens

f=3.9 (wide) 46.8 (tele)
