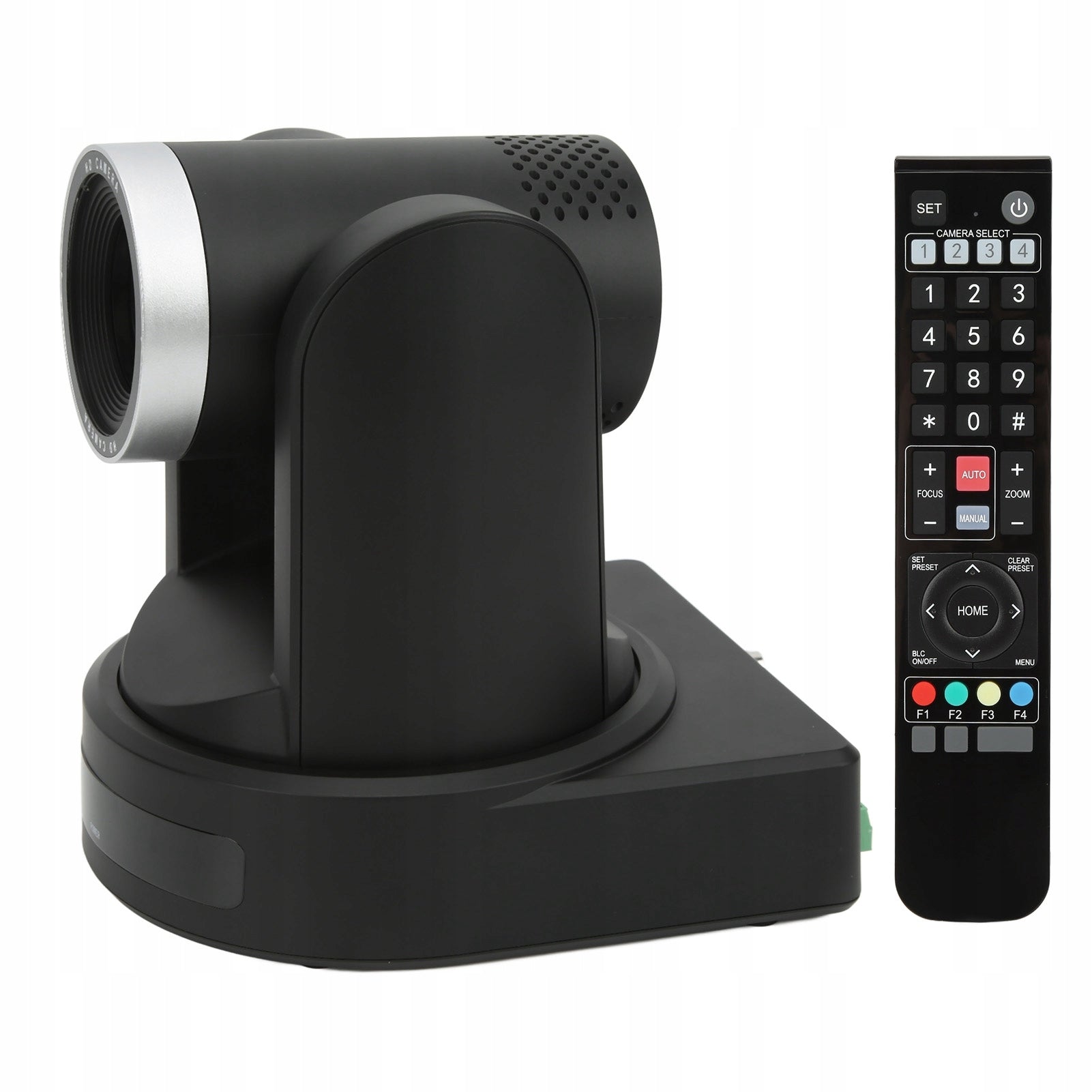

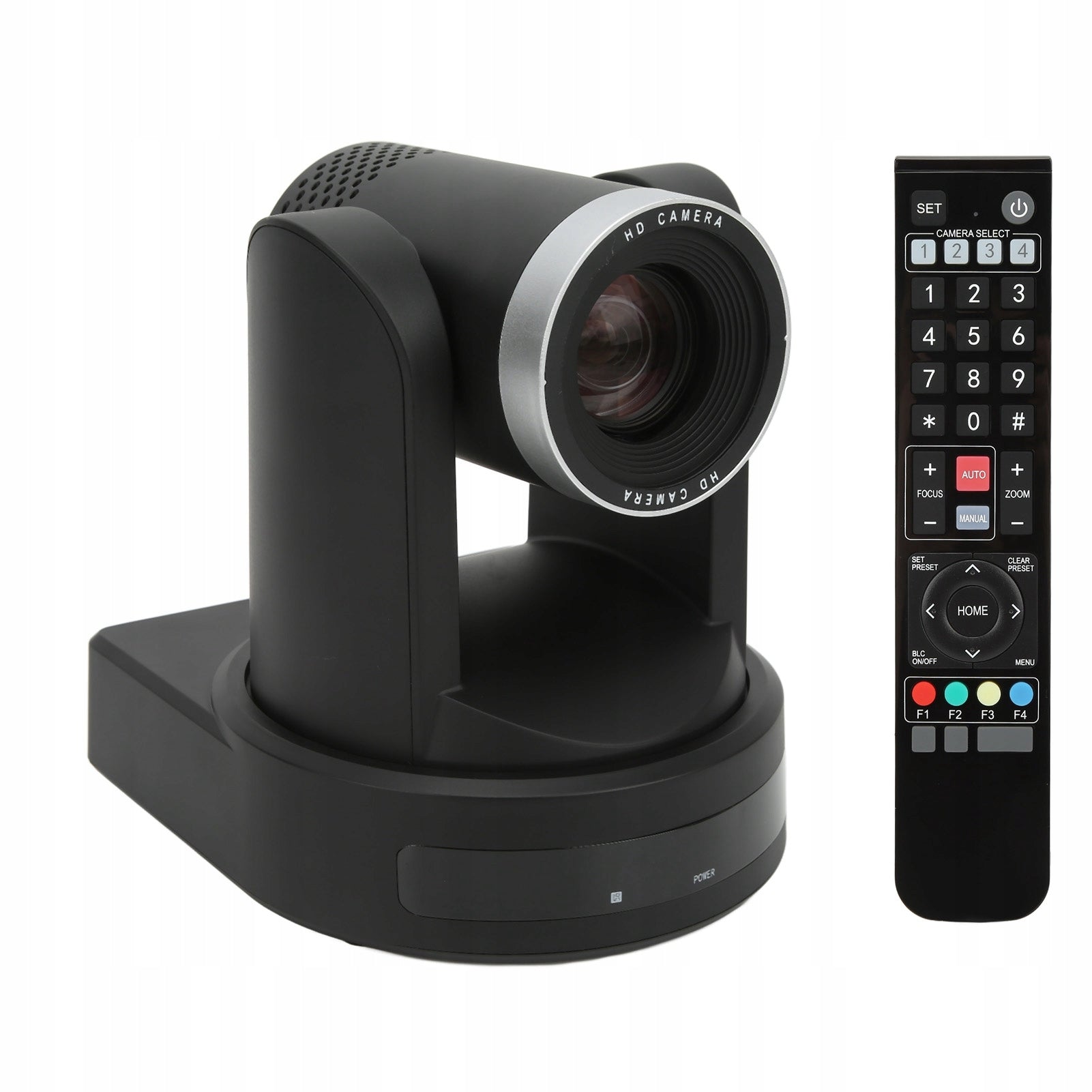

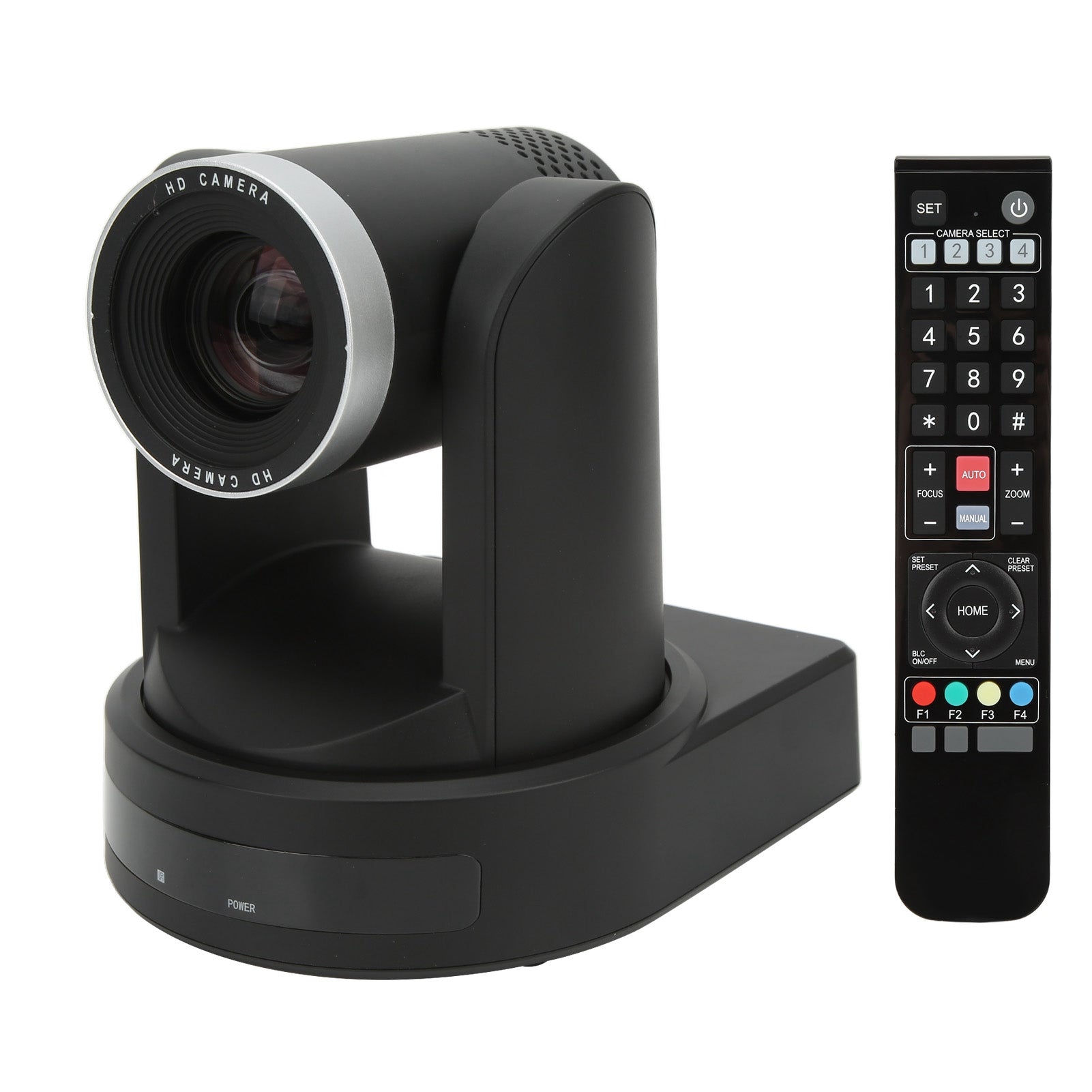

PTZ kamera 1080p 20x optinis priartinimas HD 60fps mokymams SB

Trumpai apie prekę

Prekė: PTZ kamera 1080p 20x optinis priartinimas HD 60fps mokymams SB. Kategorija: Veidrodiniai fotoaparatai.

• Gamintojas: no brand
• Modelis: 5629KBNV
• Komplektacija: not specified

Function:

1. Silent motor algorithm: To control the head and accurate positioning (± 0,01°), supporting ‑170 to +170 degree horizontal rotation, –30 to +90 degree pitching rotation, all round shooting, fast and smooth rotation, rotation, rotation, rotation, rotation, rotation from all space.

2. CMOS sensor: Using low noise 1/2,8 inch low noise CMOS sensor, it can provide 1080p 60fps HD image and video, 20x optical zoom, HD multimedia interface/SDI/IP video output interface.

3. Supported devices and 255 pre-set bits: supports IR Pilot Control, IP, RS232, RS485 and 4 Control Methods, VISCA. 255 pre-set bits, supporting image flipping, using 2D and 3D noise reduction technology, low noise, high signal-to-noise ratio to ensure clear images.

4. Encoding and installation: Support H.264/H.265 encoding, video under low bandwidth conditions more smoothly and clean. Variety of installation methods, supporting desktop computer, lifting, wall mounting, tripod installation.

5. Strong Compliance: Supports video conferencing software and instant messaging software commonly used in the brand. Suitable for various scenarios, wide range of applications. It can be used for live broadcasting, online teaching, video conferencing, video calling, distance education, telemedicine, churches, courts, media centers, etc.

Specification:

• Item Type: PTZ Camera
• Product Material: ABS and Optical Glass
• Weight: approx. 2400G / 84,66 oz
• Image sensor: 1/2,8 inch high quality HD CMOS sensor
• Available pixels: 2,07 million available pixels
• Video format:
• HD multimedia interface: 1080p 60/50, 1080p 30/25 frames, 1080i 60/50 frames, 720p 60/50 frames
• SDI: 1080p 60/50/30/25 cages, 1080i 60/50, 720p 60/50/30/25 cages
• IP: 1080p 60/50/30/25 frames, 1080i 60/50, 720p 60/50/30/25 frames
• Optical Zoom: 20x optical zoom
• Viewing Angle: 58,7°(W)~3,2°(t)
• SNR: ≥50dB
• Minimum lighting: 0,1 lx
• Profit: automatic/manual
• White balance: automatic/internal/external/one button/manual
• AE Control: Automatic/Manual
• Flip Image: Yes
• Backlight Compensation: Yes
• Noise Cancellation Function (3D NR): Yes
• Video output interface: HD/HD SDI (3G)/Wirless LAN multimedia interface (Wi-Fi 5G module, POE Choosable), Maximum SDI transmission about 100 m/3937.01in
• Preset Bits: 255
• Intelligent Cruise Mode: Supported
• Image: Supported
• Control protocol: for automatic pairing of Visca
• Control interface: RS232/RS485 (support transparent transmission and infrared cascading)
• Installation method: formal installation/lifting/stand
• PTZ Control: IR Pilot Control/IP/RS232/RS485 4 Control Modes
• Horizontal rotation angle: horizontal rotation: ± 170 degrees; stroke rotation: -30 degrees ~ +90 degrees
• Head control speed: level: 0,1-100 °/ s; Pitch: 0,1-60 °/ Seccoding Technology: H.264/ H.265
• Audio interface: approx.
• Audio sampling rate: support 8000, 16000, 32000, 44100, 48000
• Remote Control Battery: AAAX2 (not included)

How to use:

• Connect adapter, power cord and camera, connect power supply, DC12V, maximum current 2A
• List of packages

:

• 1 x PTZ Camera
• 1 x Adapter
• 1 x Power Line
• 1 x Remote Control
• 1 x Mounting Bracket
• 4 x Screw Installation
• 4 x Plastic Fittings
• Line 1 x RS232 Screw 1 x 1/4 inches
• 1 x specification
