Projektorius Epson EB-L690SE, 1920 x 1200 WUXGA, 6000 liumenų

Trumpai apie prekę

Prekė: Projektorius Epson EB-L690SE, 1920 x 1200 WUXGA, 6000 liumenų. Kategorija: Įrenginiai.

• Gamintojas: Epson
• Modelis: EB-L690SE
• Spalva: white

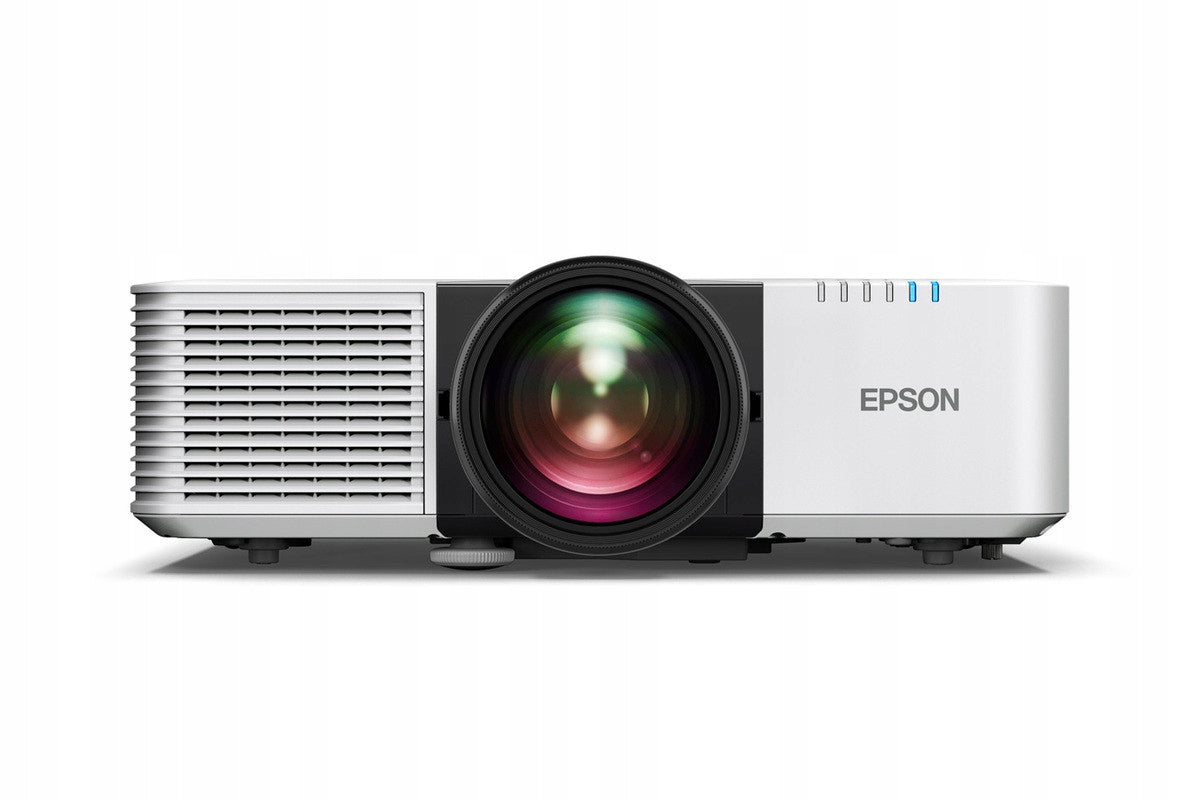

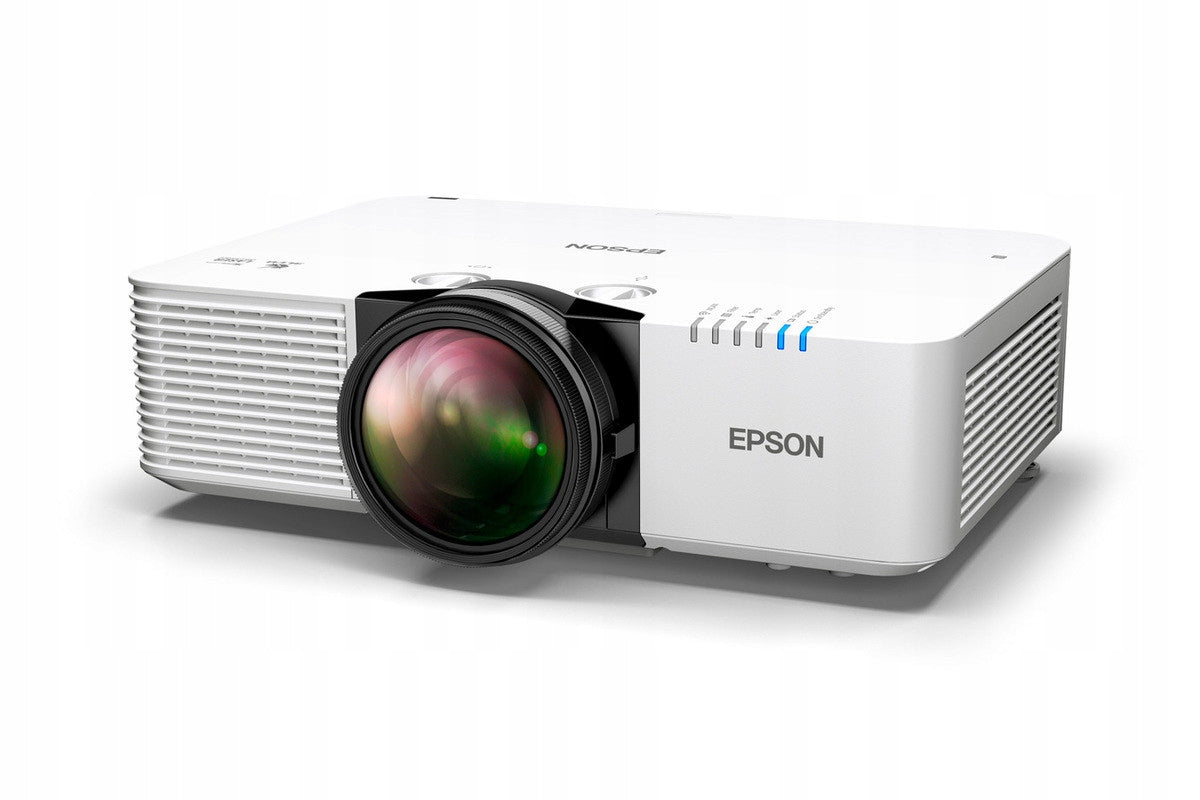

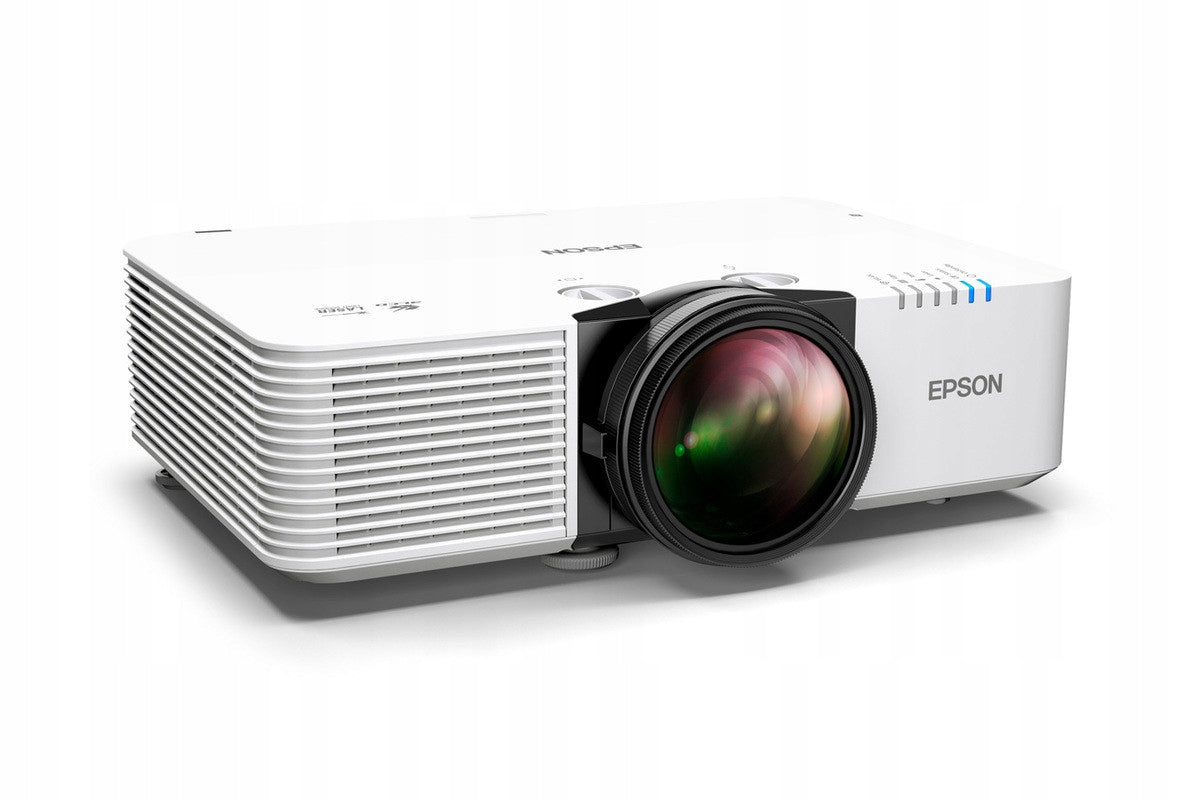

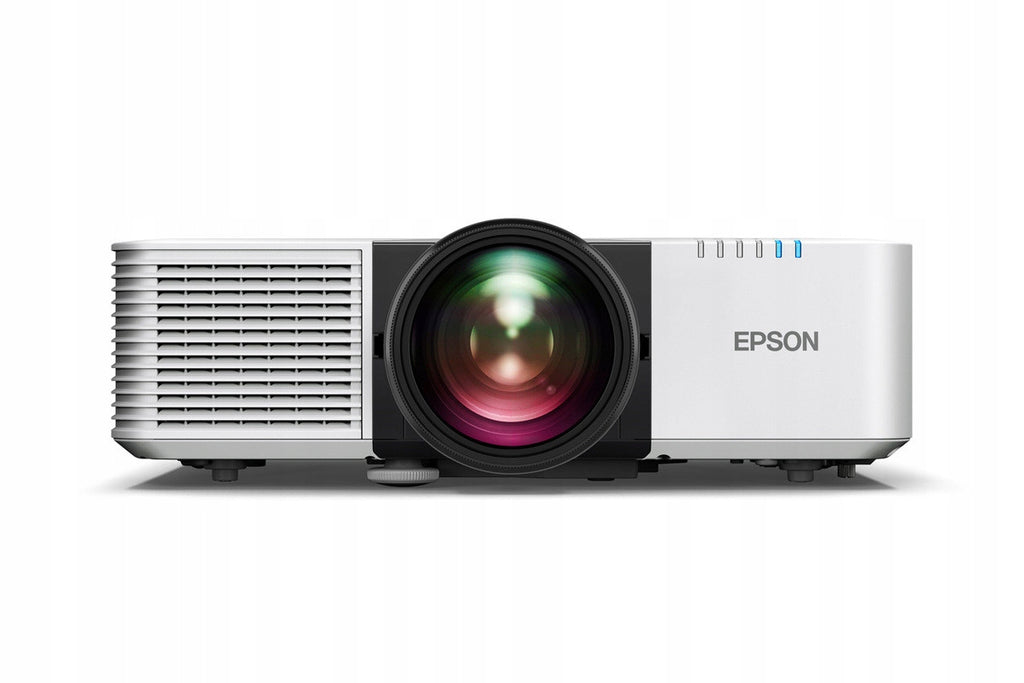

Projector Epson EB-L690SE (V11HB36080)

EB-L690SE

6000-lumen 3LCD short throw laser projector with 4K resolution enhancement function

The most important features of the product

• 6000 lumens of colour/white brightness
• WUXGA with 4K Enhancement for Clear and Detailed Images
• Throw Ratio 0,5 – 0,7 and Optical Zoom 1,4x
• Display images up to 500 inches in 16:10 format, as well as 16:6 and 21:9 ultrawide formats
• Lightweight, compact design for easy installation

This extremely compact projector provides images larger than they actually are with a projection ratio of 0,5 – 0,7.

Experience the incredible versatility and performance of our bright and compact L-series. Expanding the capabilities of this powerful line of projectors, the EB-L690SE features a short projection ratio of 0,5 to 0,7 and a large display of up to 500". With wide vertical and horizontal lens offsets and 1,4x optical zoom, this flexible projector is ideal for a variety of applications such as floor and rear projection, golf simulation, museum exhibitions and more. Deliver vivid images in rooms with high ambient lighting with 6000 lumens of equal color brightness and whiteness. Plus, enjoy sharp, detailed images with 4K enhancement technology that displays dual HD resolution on the screen.

Easy to install, the EB-L690SE is easy to operate from start to finish. Built-in NFC functionality, wide lens travel, 360-degree mounting, geometric correction tools and much more enable simple, seamless integration. Designed with convenience in mind, the projector is equipped with a laser light source virtually maintenance-free for up to 30 000 hours and an extended air filter. In addition, simplify complex multi-projector applications with the optional PixAlign™ camera included.

The L series from Epson offers a range of solutions that will meet virtually any application. This line also includes ultra-bright short throw options, including the EB-L690SE, which provides a wider throw ratio of 0,8 to 1,36.

Bright, realistic images

3LCD 3-chip technology and 6000 lumens with equal color brightness and white

WUXGA with 4K enhancement technology

Supports signal up to 4K and provides 1920 x 1200 resolution for vivid, high-resolution images

Short-focal lens with powerful optical zoom

With a projection ratio of 0,5 to 0,7 and 1,4x optical zoom, you can get large images at close range; ideal for display on the floor or behind the screen

Large, versatile display options

Easily create displays up to 500 inches in 16:10 aspect ratios, as well as ultra-wide 16:6 and 21:9 displays for better display and visibility of content

Simplified installation

Compact and lightweight design with wide vertical and horizontal lens offset range, 1,4x optical zoom, 360 degree mount, built-in geometric correction tools and universal VESA mounting pattern

Low maintenance costs

Laser light source with a lifespan of up to 30 000 hours and air filter in extended mode

• Built-in NFC – reduces installation time for multiple projectors; reads and writes settings information using the Epson Projector Config Tool
• Optional PixAlign Connectable Camera – Adds powerful tools to support multiple projectors including screen matching, automatic color calibration, mixing aid for ultra-wide size displays, and simple stacking without an external computer
• Wireless updates – the user can optionally receive notifications about the availability of firmware updates
• Improved connectivity – two HDBaseT® and HDMI® inputs and one output for serial connection and signal monitoring

Ecological functions

• RoHS compliant
• End-of-life options available
• Epson America, Inc. is a SmartWay® Transportation Partner
• Design and production centres use 100% renewable electricity
• Dynamic Contrast (ECO) mode reduces energy consumption by 36%

Technical parameters

Technology

Projection system

3LCD Technology, Liquid Crystal RGB Shutter

LCD panel

0,67 inch with C2 Fine


Color light intensity

6.000 lumen- 4.200 lumen (economy mode) according to IDMS15.4

White light intensity

6.000 lumen - 4.200 lumen (economy mode) In accordance with ISO 21118:2020

Resolution

WUXGA

Increase in resolution

Optimization of 4K

Image aspect ratio

16:10

Contrast ratio

Over 5.000.000: 1

Light source

Laser

Light source

20.000 Hours Durability High, 30.000 Hours Durability Eco

Image Correction

Manual operation (or "Operating Manual") vertically: ±30 °, Manual operation (or "Operating Manual") horizontally ±30 °

Video processing

10 Bit

Color reproduction

up to 1,07 billion colours

Optical system

Throwing factor

0,50 - 0,70:1

Zoom

Manual, Factor:1 - 1,4

Lens

Optical

Lens offset

Manual operation - Vertical ±50 %, horizontal ±20 %

Projection size

100 inches - 500 inches

Projection distance, wide-angle system

1,1 m - 5,6 m

Projection distance, Tele system

1,5 m - 7,8 m

Distance display, wide-angle/tele

1,09 m - 7,84 m

The aperture value of the projection lens

1,8 - 2

Focal distance

7,54 mm - 10,55 mm

Focus

Manually

Connectors

Connections

USB 2.0-A (2x), USB 2.0 Type-B (Service Only), RS-232C, Ethernet Interface (100 Base-TX / 10 Base-T), IEEE 802.11a/b/g/n Wireless LAN (Optional), HDMI Output, HDBaseT, Output Plug Socket, HDMI (HDCP 2.3) (2x), Short Range Communication (NFC)

Network protocol

HTTPS, SNMP, ESC/VP.net, PJLink

Advanced features

Security

Kensington Lock, Control Panel Lock, Padlock, Security Cable Hole, Wireless LAN Module Lock, Password Protection

2D color modes

Dynamic, Natural, Cinema, Presentation, DICOM SIM

Other functions

21:9 aspect ratio support, 4K optimization, A/V mute,Automatic switching on, User logo with the possibility of personalization,Direct on/off, Compatible with document scanner,Edge Blending (Projection Combination), Display, JPEG Browser,Network Projection, OSD Copy Function, Without Computer,Point correction, Quick Corner, Scheduling function,Screen Split Function, Panoramic Screen (16:6), Network control, Online remote control function, iProjection app

Color Modes

Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709

Projector control

via: Crestron Integrated Partner, Extron XTP, AMX Finding

General information

Power consumption

362 W (Normal On-Mode), 250 W (Eco On-Mode), 415 W (Normal Peak-mode), 303 W (Eco Peak-Mode), 0,4 W (Energy saving standby)

Power supply voltage

AC 100 V - 240 V, 50 Hz - 60 Hz

Product dimensions

440 x 368 x 151 mm (Width x Depth x Height)

Product weight

9,3 kg

Noise level

Normal mode:36 dB (A) - Economy mode:26 dB (A)

Temperature

Storage -10°C - 60°C

Air humidity

Work 20% - 80%, Storage 10% - 90%

Options

Air filter, Camera module, Ceiling mount, Document camera, External speaker, HDBaseT transmitter, Safety wire set, Suspension adapter, Wireless LAN module

Type of room / application

Meeting Room, Games, Large Conference Rooms/Studies, Conference Room/Classroom, Projection Mapping, Rentals/Stage Installations, Visual Advertising/Retail, Sports, Tourist Attractions

setting

Ceiling Mount, Desk Projectors

Color

White

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Epson
Parametry	Model	EB-L690SE
Parametry	Product weight with unit packaging	13.5 kg
Parametry	Product width	44 cm
Parametry	Product height	23 cm
Parametry	Product depth	36.8 cm
Parametry	Product weight	9.3 kg
Parametry	Color	white
Parametry	Display technology	LCD
Parametry	Lamp lifetime in normal mode	20000 h
Parametry	Lamp life in power saving mode	30000 h
Parametry	Operating volume	26 dB
Parametry	Power consumption	362 W
Parametry	Functions	zoom
Parametry	Built-in speakers	yes
Parametry	ANSI brightness	6000 lm
Parametry	Basic resolution (px)	1920 x 1200
Parametry	Maximum resolution (px)	1920 x 1200
Parametry	Contrast (x:1)	5000000
Parametry	Image format	16:10
Parametry	EAN (GTIN)	8715946737904
Parametry	Manufacturer code	V11HB36080
