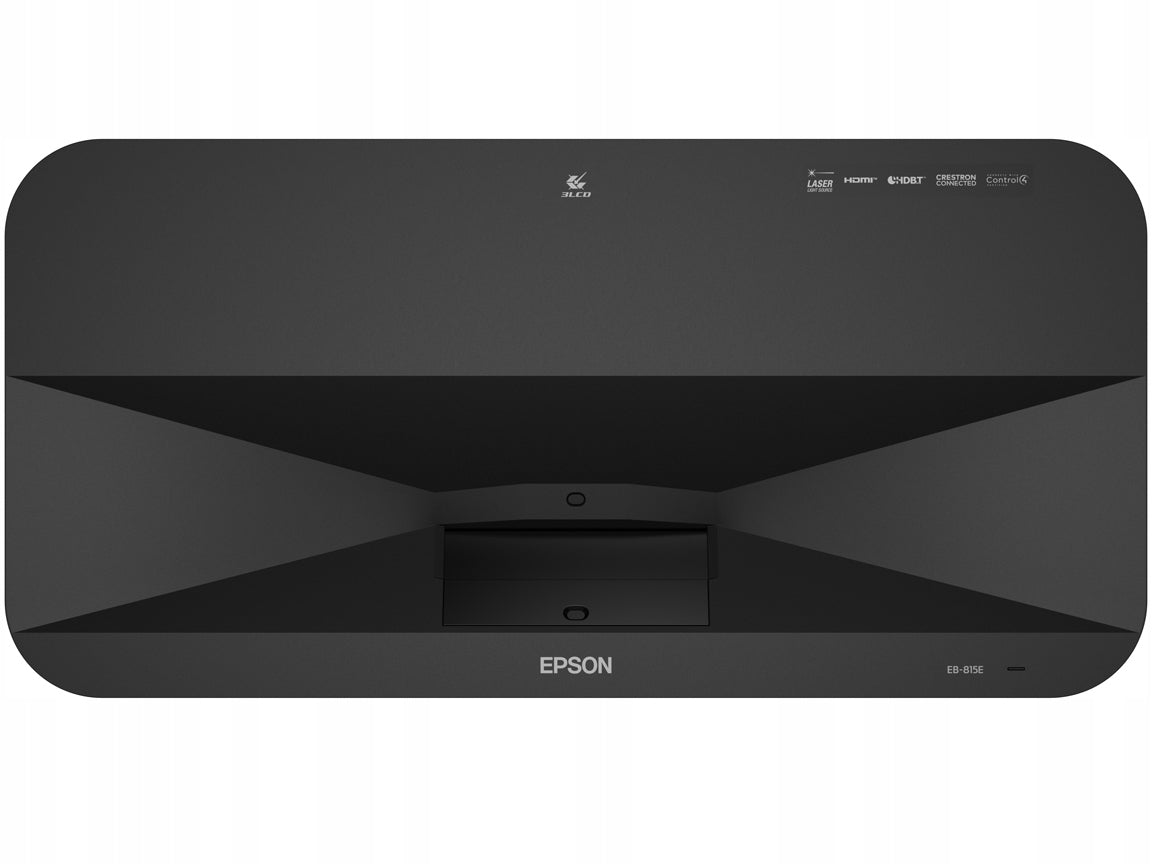

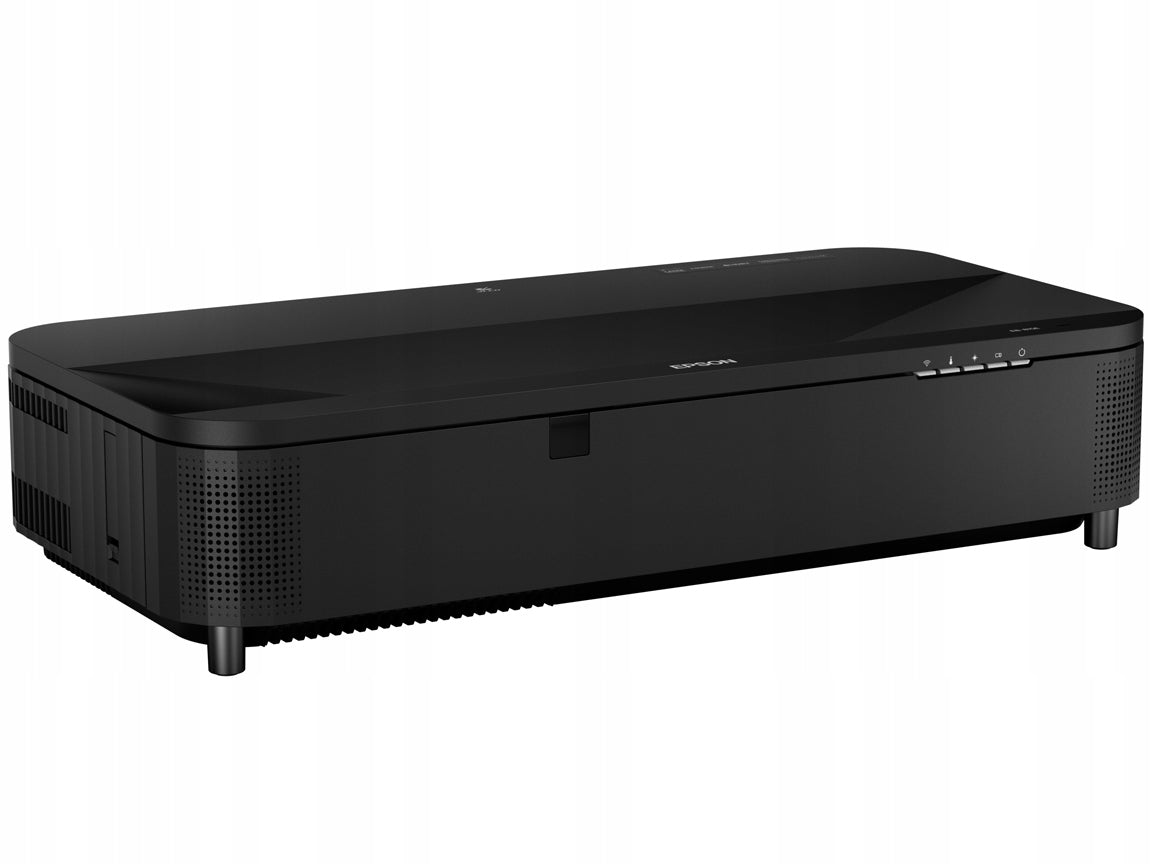

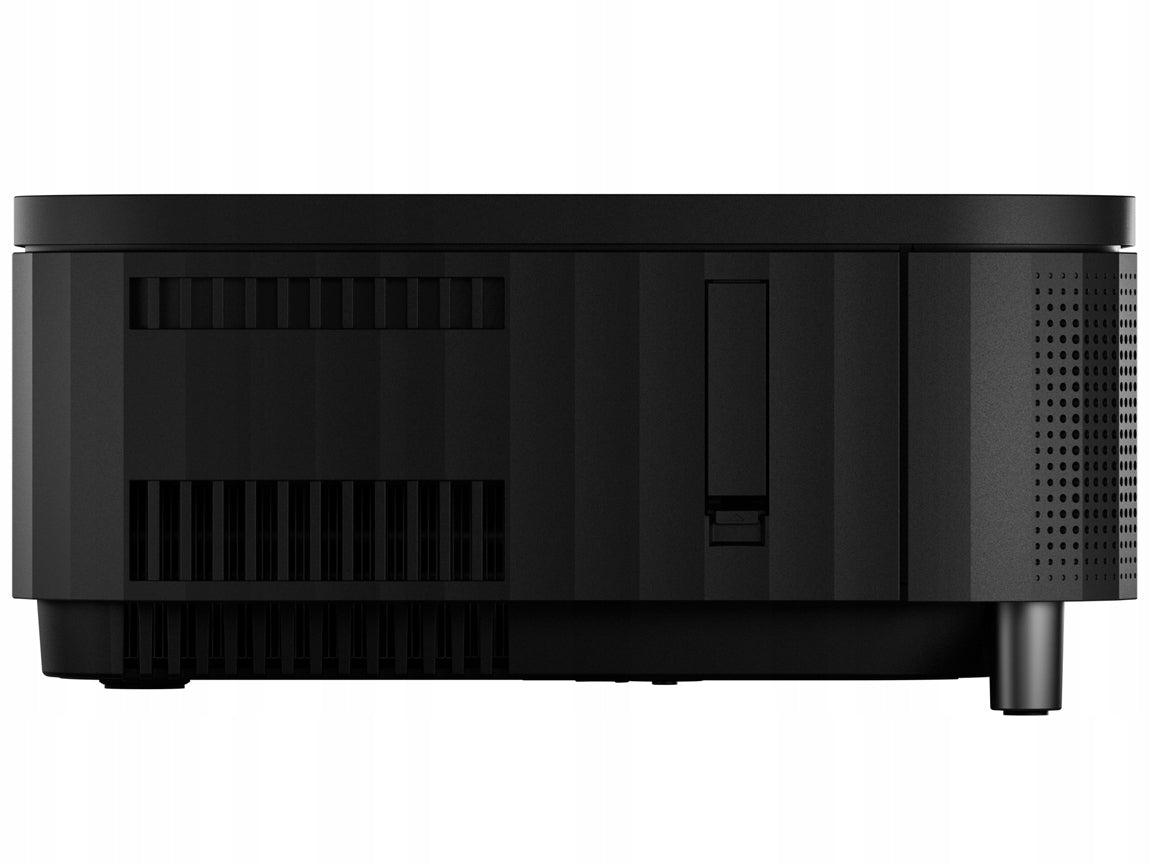

Projektorius Epson EB-815E

Trumpai apie prekę

Prekė: Projektorius Epson EB-815E. Kategorija: Įrenginiai.

• Gamintojas: Epson
• Modelis: EB-815E
• Spalva: black

4KE ultra-short throw projector

• Scalable 4KE image for any room 80-160” ultra-short throw image that is not limited by shadows or reflections
• Bright and energy-saving laser Brightness of 5000 lm for white and color light and 3LCD technology provide brighter colors
• Seamless connectivity options Auto-on, wired/wireless projection with USB 2A output for media players
• Easy operation and durable design Virtually maintenance-free device with 5 years or 12 000 hours warranty
• Alternative to LED/video walls Surprisingly affordable low power consumption solution

The EB-815E’s super ultra-short throw projector lens allows discreet positioning near the wall, allowing presenters freedom of movement without casting a shadow.

3LCD technology and 5000 lumens brightness for white and color light make the EB-815E projector image bright and crisp up to 160" and provides excellent visibility of content from any angle and from any distance. It provides an immersive experience and is extremely easy to use.

Versatile wired and wireless connectivity options, including Miracast™ screen cloning, ensure seamless content sharing across multiple devices.

Weighing just 12,3 kg, it is very portable and the Epson Setting Assistant app makes setup quick and simple. The ideal solution for displaying content, suitable for different room sizes, featuring versatile flexible installation options.

The EB-815E supports multiple aspect ratios and edge blending (combining projections from multiple projectors), making it an affordable, easy-to-use and energy-efficient projector for ultra-wide images, ideal for video conferencing.

Combined with the Epson Ambient Light Rejection Screen, the EB-815E projector delivers such high image quality that it can be confused with a video wall or LED display, but at the same time it is surprisingly affordable and offers significantly lower power consumption.

Technique

Projection system

3LCD Technology, Liquid Crystal RGB Shutter

LCD panel

0.62 inch with C2 Fine


Color light intensity

5.000 lumen- 3.500 lumen (economy mode) according to IDMS15.4

White light intensity

5.000 lumen - 3.500 lumen (economy mode) In accordance with ISO 21118:2020

Resolution

1080p

Increase in resolution

Optimization of 4K

Image aspect ratio

16:9

On-Screen Pixel Count

2,073,600 dots (1,920 x 1,080) x 3

Contrast ratio

Over 5,000,000 : 1

Light source

Laser

Light source

20.000 Hours Durability High, 30.000 Hours Durability Eco

Video processing

10 Bit

Vertical refresh rate 2D

192 Hz - 240 Hz

HDR support

HDR10, HLG

Optical system

Projection ratio

0,16 - 0,40:1

Zoom

Digital, Factor: 1 - 1.35

Lens

Optical

Projection size

80 inches - 160 inches

The aperture value of the projection lens

1,8

Focal distance

2,3 mm

Focus

Manually

Shift

7 : 1

Connectors

Connections

USB 2.0-A (2x), USB 2.0 Type-B (service only), RS-232C, Ethernet Interface (100 Base-TX / 10 Base-T), IEEE 802.11a/b/g/n/ac Wireless LAN (WiFi 5), HDMI Input (2x), HDMI Output, HDBaseT, Miracast

Connection to smartphone

Ad-hoc / Infrastruktura

Network protocol

HTTPS, IPv4, IPv6, SNMP, ESC/ VP.net , PJLink

Advanced features

Security

Kensington Lock, Control Panel Lock, Password Protection, Padlock, Wireless LAN Module Lock, Wireless LAN Security, Password Protection

3D

NO

2D color modes

Dynamic, Natural, Cinema, Presentation, Black Board, DICOM SIM

Functions

21:9 aspect ratio support, 4K optimization, A/V mute, Arc correction function, Auto power on, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Multi-device daisy chain projection, Digital zoom, Direct power on/off, Document scanner compatible, Edge blending, Email notification, Fit to screen function, Display, Horizontal and vertical keystone correction, Image shift, JPEG viewer, Long life light source, PC free, Point correction, Power on button, Quick Corner, Schedule function, Screen mirroring, Source function, Split screen function, Wide screen (16:6), Network control, Online remote control function, Wireless LAN capable, iProjection app

Color Modes

Whiteboard, Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection

projector control

via: AMX, Extron, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Finding, Control4 Simple Device Discovery Protocol

General information

Power consumption

290 W (Normal On-Mode), 192 W (Eco On-Mode), 380 W (Normal Peak-mode), 286 W (Eco Peak-Mode), 0.4 W (Energy saving standby)

Heat dissipation

1.292 BTU/hour (max)

Power supply voltage

AC 100 V - 240 V, 50 Hz - 60 Hz

Product dimensions

695 x 341 x 156 mm (Width x Depth x Height)

Product weight

12,5 kg

Noise level

Normal mode: 35 dB (A) - Economy mode: 26 dB (A)

Temperature

Storage -10°C - 60°C

Air humidity

Work 20% - 80%, Storage 10% - 90%

If the projector is mounted on a ceiling or wall in a place exposed to oil smoke,evaporated oils or chemicals, or in place,in which soap bubbles and smoke are produced during events,and where aromatic oils are often roasted,some parts of our products may become susceptible to material degradation over time,This can result in the projector breaking the mount and falling off the ceiling.

Included software

Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management, Epson Setting Assistant

Options

Air filter, Ceiling mount, Connection and control box, Ceiling mount kit MB22, Safety wire set, Visualiser camera, WP System - ELPWP10, WP System - ELPWP20, Wall hanging bracket, Wall mount, Wireless LAN module, Wireless transmitter - ELPWT01

Type of room / application

4K Streaming, Conference Room, Meeting Room/Portable, For Large Meeting Rooms/Auditorials, Conference Room/Classroom, Visual Advertising/Retail, Tourist Attractions

setting

Ceiling Mount, Desk Projectors, TV Cabinet, Wall Mount

Color

Black

TCO certificate
