Priekinis žibintas RAVEMEN FR1000, įkraunamas, su GPS laikikliu Garmin/Wahoo/XOSS

Trumpai apie prekę

Prekė: Priekinis žibintas RAVEMEN FR1000, įkraunamas, su GPS laikikliu Garmin/Wahoo/XOSS. Kategorija: Apšvietimas.

• Gamintojas: Ravemen
• Modelis: FR1000
• Svoris: 101 g
• Spalva: black

✅ Target group: Cyclists in need of road lighting + warning daylight, preferring the installation of a bicycle computer and saving space

✅ Tailored weather conditions: All day and all conditions — day, dusk, night, rain, fog, snow

✅ Tailored routes: Full coverage of urban, rural and suburban roads

⚠ Important note: Not all bicycle computers can be mounted with this light, details of supported brands are below

⚠ Installation: Only mounting on round handlebars with a diameter of 31,8 mm and 35 mm is supported, mounting on aerodynamic handlebars is not possible

➡ Product parameters

Product name: RAVEMEN FR1000

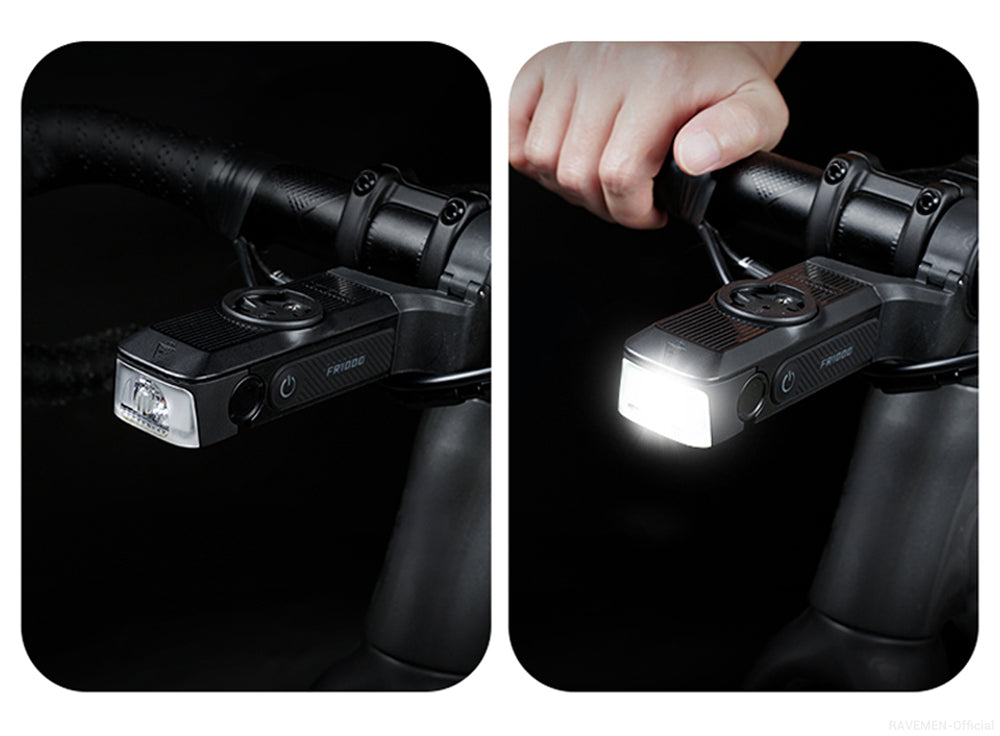

Light Source Type: LED

Maximum brightness: 1000 lm

Maximum range: 140 m

Battery capacity: 3000 mAh

Charging time: 2.7 h

Charging Interface: USB‑C

Waterproof rating: IPX6

Product Dimensions: 108 mm * 40 mm * 34.5 mm

Product weight: 130 g (with handle 168 g)

Housing Material: PC+ABS

Product Certificates: CE, RoHS

Special Features: Bicycle Computer Mount, 270° Wide Viewing Angle, Automatic On/Off, Power Bank Function

Mode / Brightness in lm / Working time

• High brightness: 1000 lm | 2.5 h

• Average brightness: 500 lm | 3.5 h

• Low brightness: 300 lm | 7 h

• Warning flickering: 150 lm | 10 h

• Fast flickering: 500 lm | 39 h

➡️ 2-in-1: Light + Warning

FR1000 Core Safety Values:

• Lights up your night, warns during the day – one light meets all your driving needs, day and night.

• 1000 lumens brightness easily adapts to daily situations and your riding routes.

• High flash mode improves visibility in sunny, cloudy, rainy, foggy, or snowy conditions.

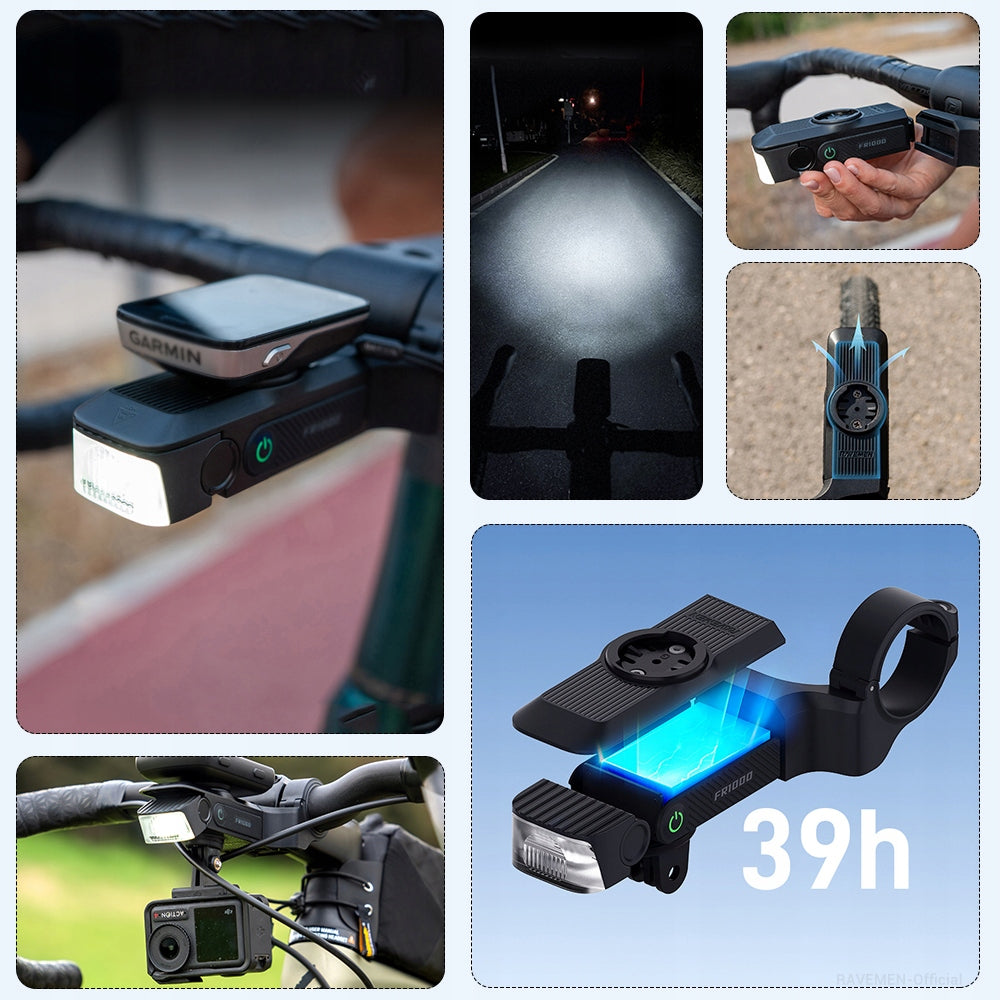

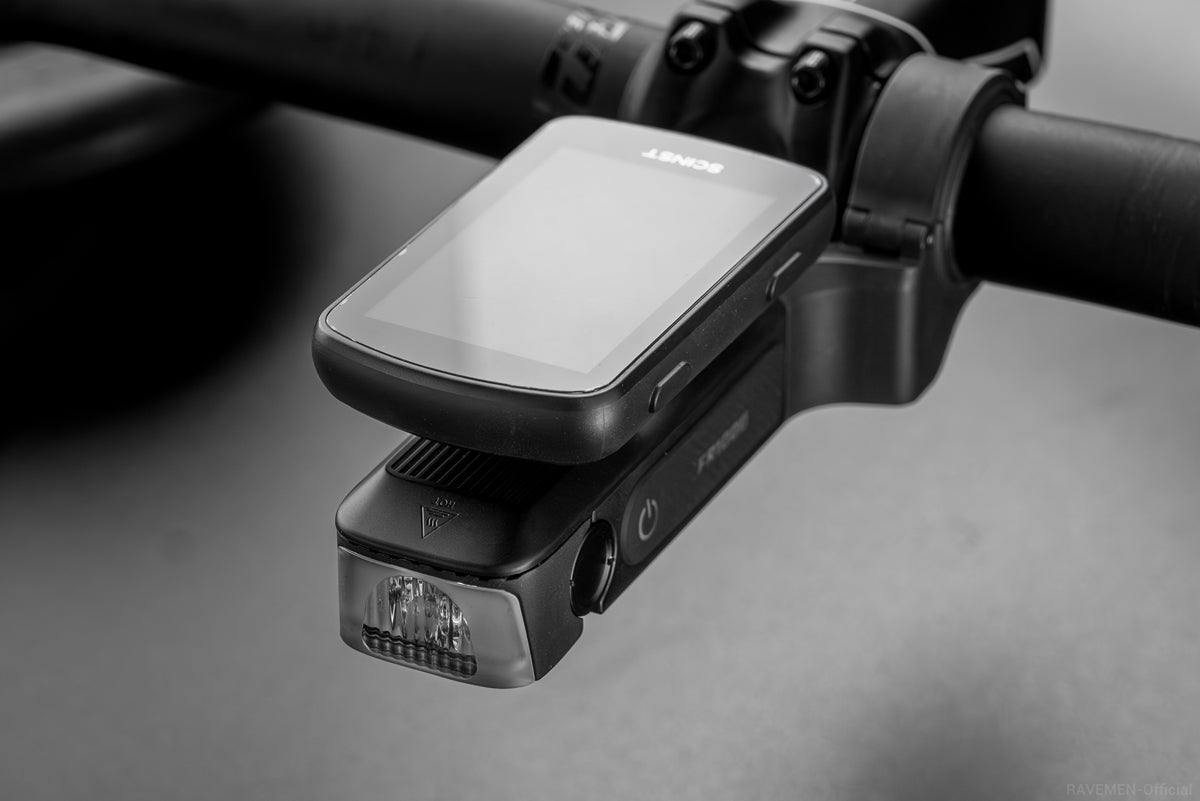

➡️ Built with Bike Computer Mounts

The top mount is standard Garmin-compatible, allowing direct installation of bike computers with Garmin mounts for a clean, space-saving setup.

✅ Direct Light Mount Supported Brands (Bike Computers):

Garmin, iGPSPORT, Magene, CYCPLUS, Coospo, XOSS, NAVIHOOD, and other cycling computers with Garmin mounts.

✅ Brands Requiring Mount Swap (Bike Computers):

Wahoo: Includes compatible mount (included in product package).

Bryton: Includes compatible mount (included in product package).

❌ Not Supported for Light Installation:

SIGMA, Cateye, VDO, and other bike computers with mounts not compatible with Garmin standards.

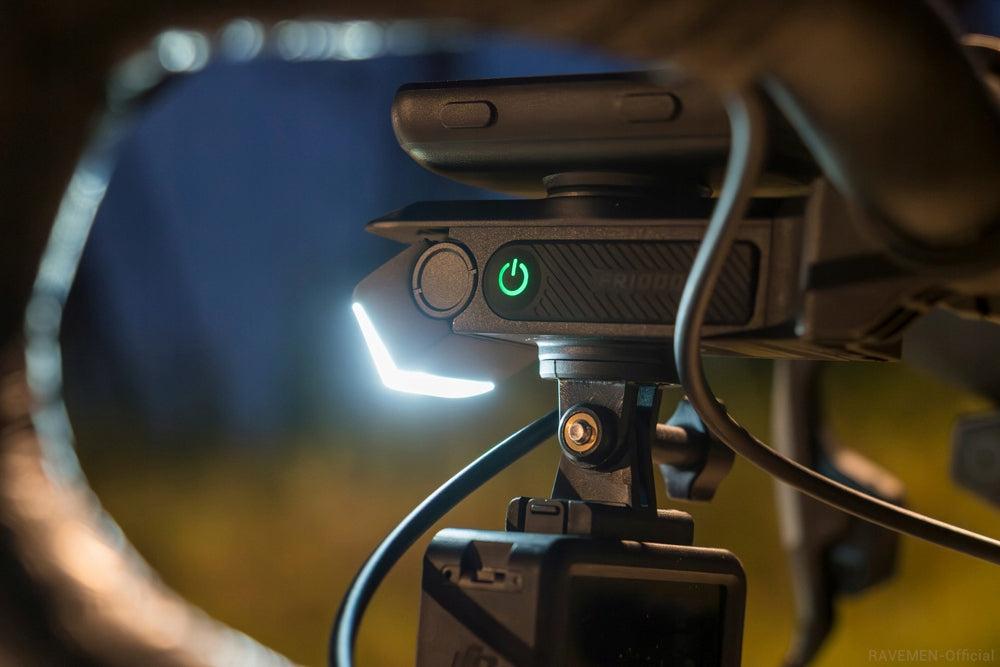

➡ 270° wide viewing angle

Wide-angle lens design for better visibility from the sides

Eliminates the dead side zones of traditional bicycle lights, greatly improving the chance of being noticed from the sides

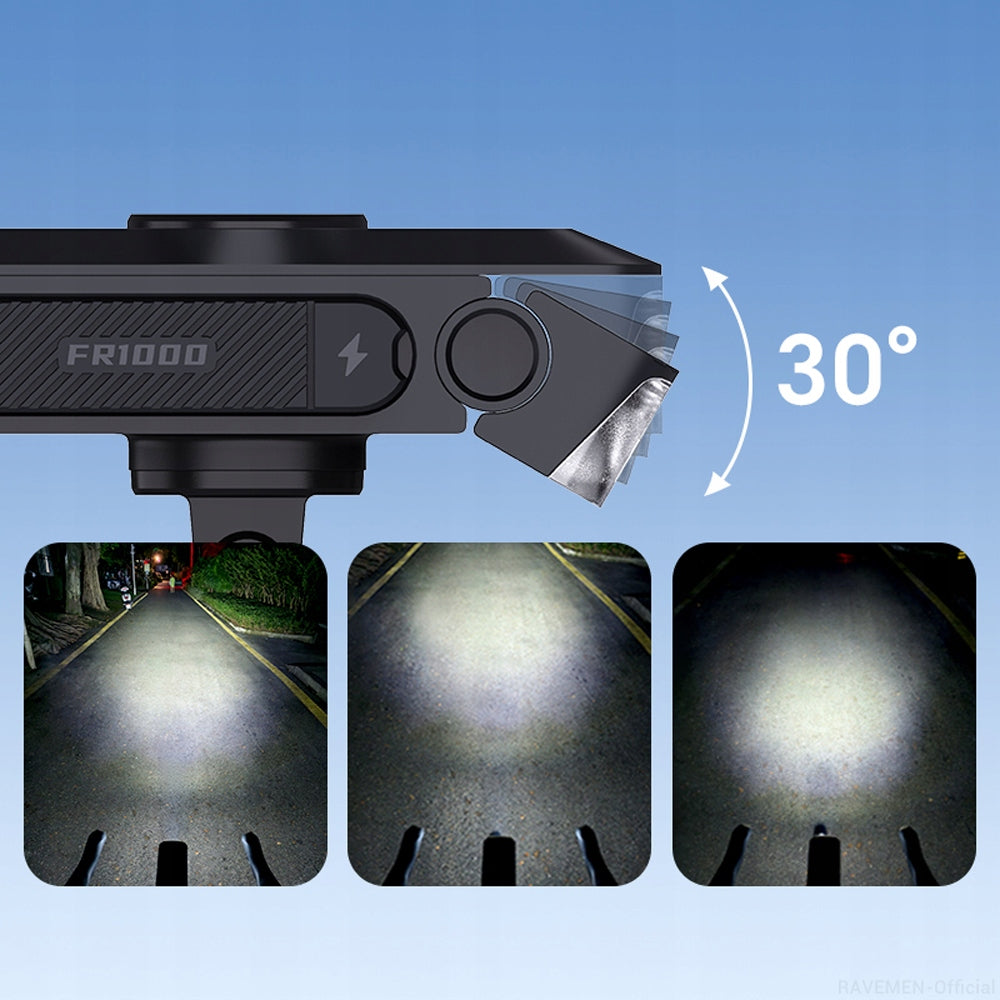

➡ Light head angle adjustment in 3 levels

The light head is adjustable up to 30°, 10° for each level

Easily meets lighting needs from different driving angles

➡ Automatic on/off mode

Light turns off automatically after 2 minutes of stillness

Turns on quickly when vibration is detected

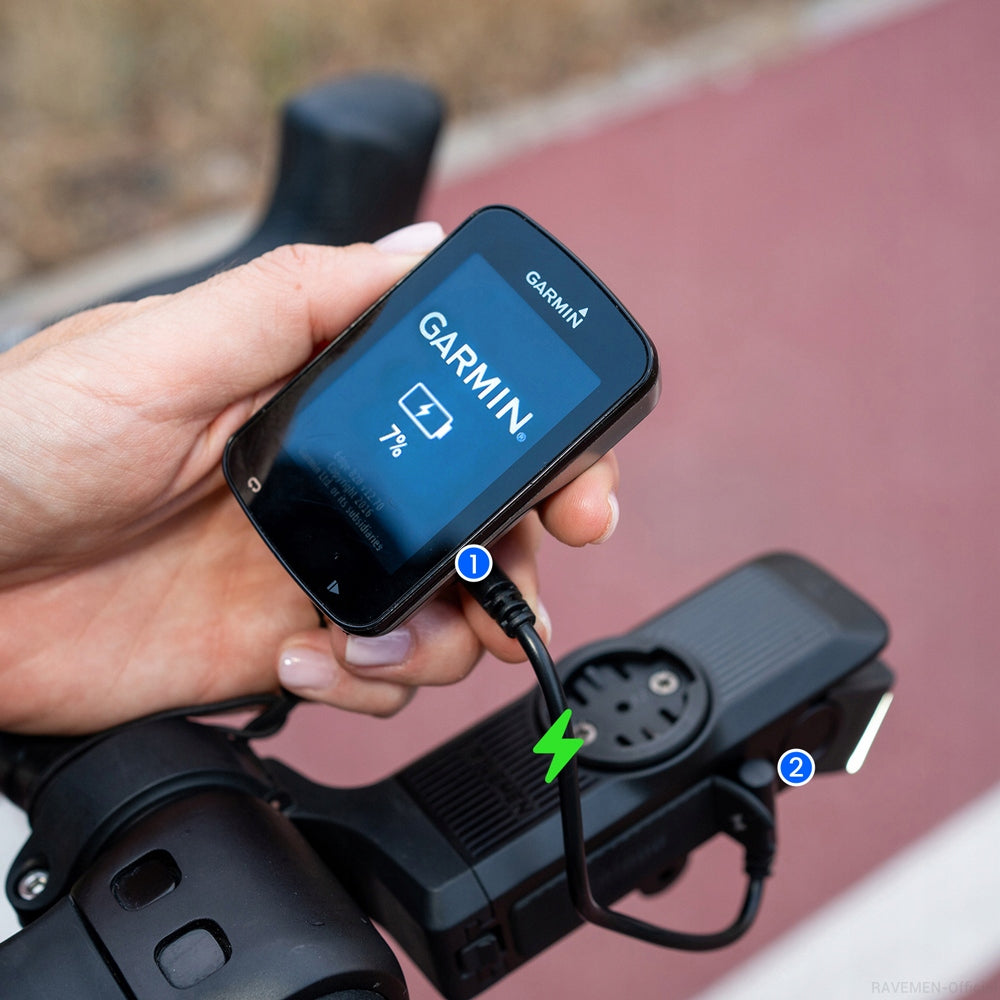

➡ Power bank function

The light can charge your phone or bike computer in emergency situations

⚠ Note: Only for temporary emergency charging, does not have the ability to power a professional power bank

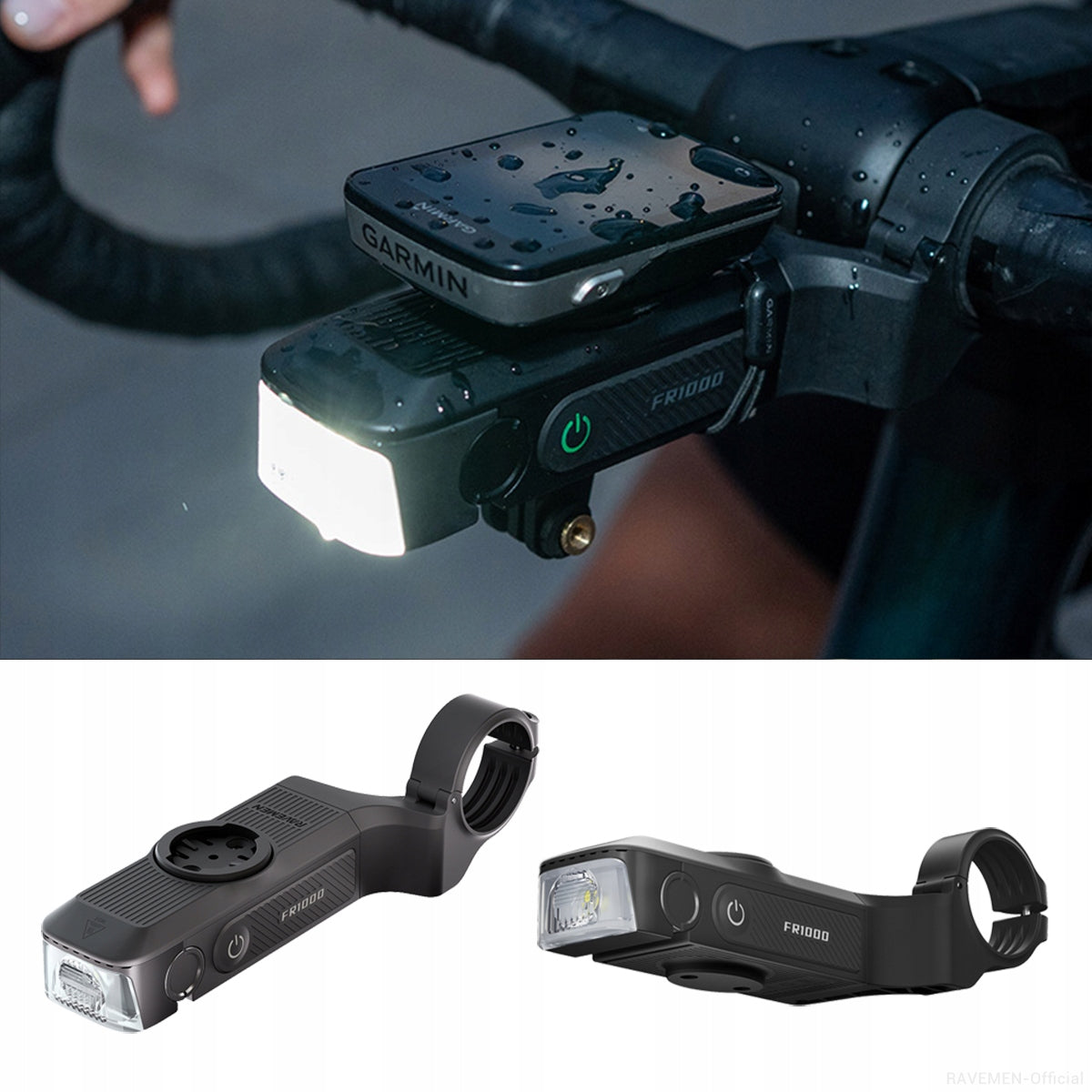

➡ IPX6 waterproof

Suitable for driving in the rain, does not require protection when driving in the rain

⚠ Key note: The charging port is not waterproof, be sure to close the charging port cap before using in the rain

➡ Quick dismantling design

Quick assembly and disassembly, easy photo to charge the light

➡ Practical details · Easy to use

Efficient cooling: The lower part with aluminum cooling component

Mode Memory: Automatically remembers the current mode when turned off, no need to adjust again when turned on

One-button control: All light functions are controlled by power button

Charging during operation: Supports charging light during use

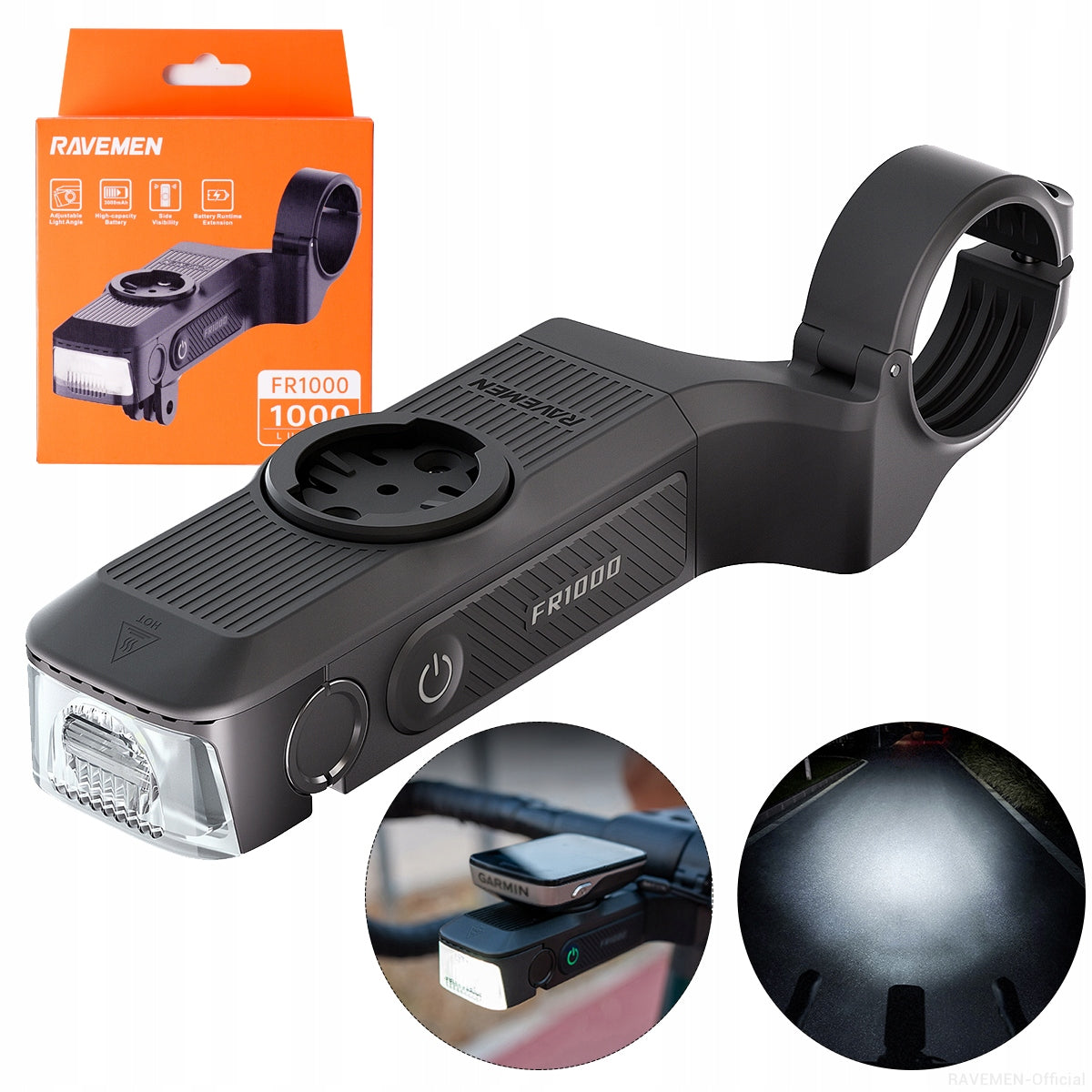

➡ Contents of the set

1 * FR1000

1 * ABM20 handle

1 * C-C charging cable

1 * C-Micro Charging Cable

1 * Dismountable GoPro AGX03 interface

1 * Compatible Wahoo Bike Computer Holder

1 * Compatible Bryton Bike Computer Holder

1 * User Manual

➡️ Frequently Asked Questions (FAQ)

➡ 产品参数

➡️ Common Questions

1. How do I know if my bike computer is compatible?

Answer: Please check the bike computer mount instructions above.

2. How do I install it on aero handlebars?

Answer: Cannot be installed on flat aero handlebars. Only supports round handlebars with diameters of 31.8mm and 35mm.

3. FR500 vs. FR1000: Which one should I choose?

• FR500: Dual function light (lighting + warning), smaller and lighter, requires a separate bike computer mount, max brightness 500 lumens, weight 100g.

• FR1000: Dual function light (lighting + warning), higher brightness, larger battery capacity, built-in mount, max brightness 1000 lumens, weight 130g.

• Final Choice Tips:

• If your daily riding speed is <30km/h and you prioritize a lightweight option with good warning light effect → Choose FR500.

• If you sometimes ride >30km/h and prefer an integrated mount and adjustable light angle design → Choose FR1000.

➡ Product Description

Product name: RAVEMEN FR1000

Light Source Type: LED

Maximum brightness: 1000 lm

Maximum range: 140 m

Battery capacity: 3000 mAh

Charging time: 2.7 h

Charging Interface: USB‑C

Waterproof rating: IPX6

Product Dimensions: 108 mm * 40 mm * 34.5 mm

Product weight: 130 g (with handle 168 g)

Housing Material: PC+ABS

Product Certificates: CE, RoHS

Special Features: Bicycle Computer Mount, 270° Wide Viewing Angle, Automatic On/Off, Power Bank Function

Mode / Brightness in lm / Working time

• High brightness: 1000 lm | 2.5 h

• Average brightness: 500 lm | 3.5 h

• Low brightness: 300 lm | 7 h

• Warning flickering: 150 lm | 10 h

• Fast flickering: 500 lm | 39 h

Note: All parameters have been tested under standard laboratory conditions, actual data may vary depending on the usage environment

【Quick start】

1、Press and hold the power button for 1.5s to turn the light on/off; single press changes the light modes

2、Automatic on/off mode

On: In the light off state, press and hold the power button for 3 seconds until the light starts flashing quickly, then release. In this mode, the light turns off automatically after 2 minutes of stillness and turns on quickly when vibration is detected

Off: In the light off state, press and hold the power button for 3 s until the light starts flashing slowly, then release

3、Memory function:

The light automatically remembers the mode when turned off, does not need to be adjusted again when turned on again

4、Battery level indicator:

Green power button indicator lights up continuously: 40%~100%

Red power button indicator lights up continuously: 5%~40%

Red power button indicator flashes: ＜ 5%

When the light is off, a single press of the power button activates the battery level indicator

5、USB-C charging

Standard charging time: 2.7 h

Maximum input: 5 V, DC/1 A

Built-in overcharge protection

Note: Some chargers may not charge the light due to differences in charging protocol, just replace the charger or charging cable

6、Charging indicator:

Red indicator flashes: Charging in progress

Green indicator lights up constantly: Charging completed

【Usage Notes】

1、Before first use, it is recommended to fully charge the light

2、For long non-use, it is recommended to store with 50% battery level

3、Do not disassemble or modify the light body yourself, otherwise you will lose your right to warranty

4、Built-in rechargeable battery: Prohibited heating and combustion to avoid safety risk

5、Before using in the rain, be sure to close the charging port stopper, only protect against splashing water, not from immersion
