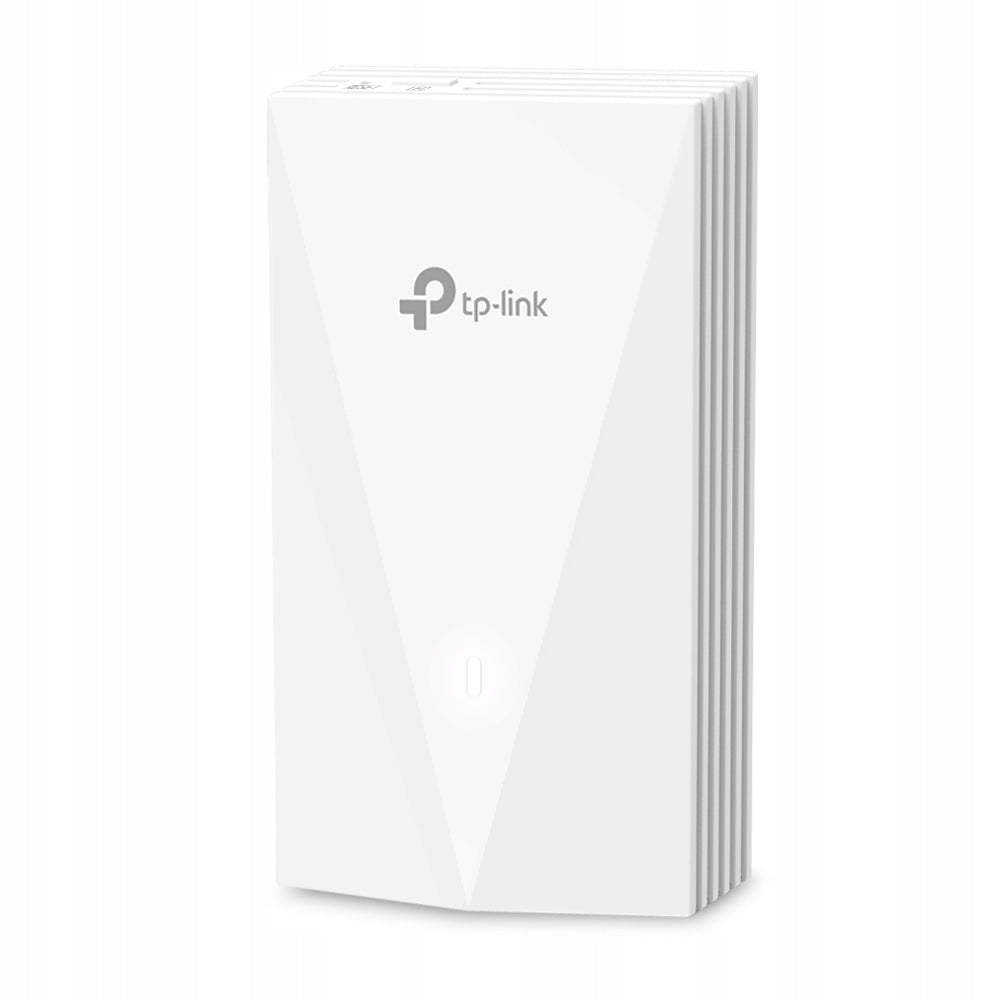

Prieigos taškas TP-Link EAP655-Wall Omada

Trumpai apie prekę

Prekė: Prieigos taškas TP-Link EAP655-Wall Omada. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: TP-Link
• Modelis: EAP655-Wall
• Plotis: 143 mm
• Aukštis: 210 mm

Access Point TP-Link EAP655-Wall PoE/PoE+

EAP655-Wall is a WiFi 6, AX3000 wireless wall-mounted access point. The device offers a simultaneous speed of 574Mbps in the 2,4 GHz band and 2402Mbps in the 5 GHz band. The total Wi-Fi speed is 2976Mbps, which allows you to get data transmissions to multiple devices at the same time and lower latency. A strong signal will cover Wi-Fi in every corner of the room. Connect multiple wired devices using three gigabit downlink ports, including one with PoE Pass-Through.

• Extremely fast WiFi 6 AX3000: Simultaneous speed of 574Mbps in the 2,4 GHz band and 2402Mbps in the 5 GHz band, offers a total Wi-Fi speed of 2976Mbps.
• High connection performance: Data transmission to multiple devices at the same time and lower latency.
• Full Wi-Fi coverage in the room: Guarantee strong signal and Wi-Fi coverage in every corner of the room.
• Gigabit Ports: Connect multiple wired devices using three gigabit downlink ports, including one with PoE Pass-Through.
• Centralized management: Integration with the Omada SDN platform provides cloud access and remote management.
• Secure Guest Network: There are many authentication methods available (SMS/Facebook Wi-Fi/ Voucher) and numerous technologies that protect wireless access. §
• Simple installation and PoE support: The design ensures ease of installation thanks to compatibility with 86mm installation box and standard EU installation box and support for 802.3af/at PoE power supply.

Connect your room with Wi-Fi 6 AX3000

Wi-Fi 6 Wall Mounted Access Point, AX3000

EAP655-Wall

• AX3000 WiFi 6 2402 Mbps in the 5 GHz band + 574 Mbps in the 2,4 GHz band
• High Performance WiFi 6 More Connected Devices, Higher Speed
• Centralized management in the cloud. Manage your network remotely via the cloud
• 160 MHz channel - Double the amount of peak transmission data on a single stream with HE160‡
• Enhanced security - Guest Network, Portal Login, WPA3 Encryption
• Smooth Roaming - Uninterrupted streaming when navigating between access points§
• Four gigabit ports - Three gigabit downlink ports, including one with PoE Pass-Through
• 802.3af/at PoE Support - Flexible and Easy Deployment
• Quick and simple installation -Compatibility with 86 mm EU standard installation box

Created entirely for private Wi-Fi in every room

• Hotel industry
• Combination of room-room with elegant design
• Dormitories
• Stable wired and wireless connections
• Flats
• Private and secure network access for every family
• House
• Wi-Fi coverage with seamless roaming throughout your home
• Conference room
• Faster streaming, downloading, video conferencing and more to meet your demands

Lightning fast Wi-Fi 6, AX3000

Wi-Fi 6 provides higher speeds, lower latency, less interference, and more capacity. Enjoy more than double the Wi-Fi 5 speed available in Wi-Fi 6 of the new era, reaching speeds of up to 2976Mbps. The latest WiFi 6 technology offers advanced wireless networking features for higher network performance and lower latency.



Security of your data

Secure your network and its data against Brute Force and Snooping attacks. You can do this using Enterprise-class WPA3 encryption, authorization through the portal, and network segregation for guests.

• Secure Guest Network Up to 16 SSID - Guest Network provides enhanced security for users. Different SSIDs allow for easy management.
• Guest Network with Facebook WiFi and SMS Login - The welcome page (including SMS, Facebook WiFi and Voucher) and 802.1x authentication help you maintain guest authorization and network access. Grow your business with a personalized advertising page.
• WPA3 for open public networks – With advanced enterprise-class security, WPA3 provides enhanced data security for previously unsecured WiFi hotspots.

Gigabit ports

Devices such as VoIP phones can be powered without the use of additional electrical cables. This is possible thanks to the PoE Pass-Through function of one of the Downlink ports. Four ports (1 Uplink + 3 Downlink) transmit data at high speed. As a result, it allows you to connect devices to your gigabit network.

With support for PoE 802.3af/802.3at, there is no need for additional wiring. Connect your device to existing Ethernet cables and you're done.

Quick installation and easy management

With its easy-to-assemble design, you don't have to spend a lot of time and money on a professional to install the device.

The Omada Software Defined Networking (SDN) platform integrates network devices such as access points, switches and routers. To provide 100% centralized management in the cloud and highly scalable managed networks from a single interface.

Setting up the network through the app takes just a few minutes. Omada allows you to adjust settings to your preferences, monitor the status of your network and manage connected clients – all from your smartphone or tablet.

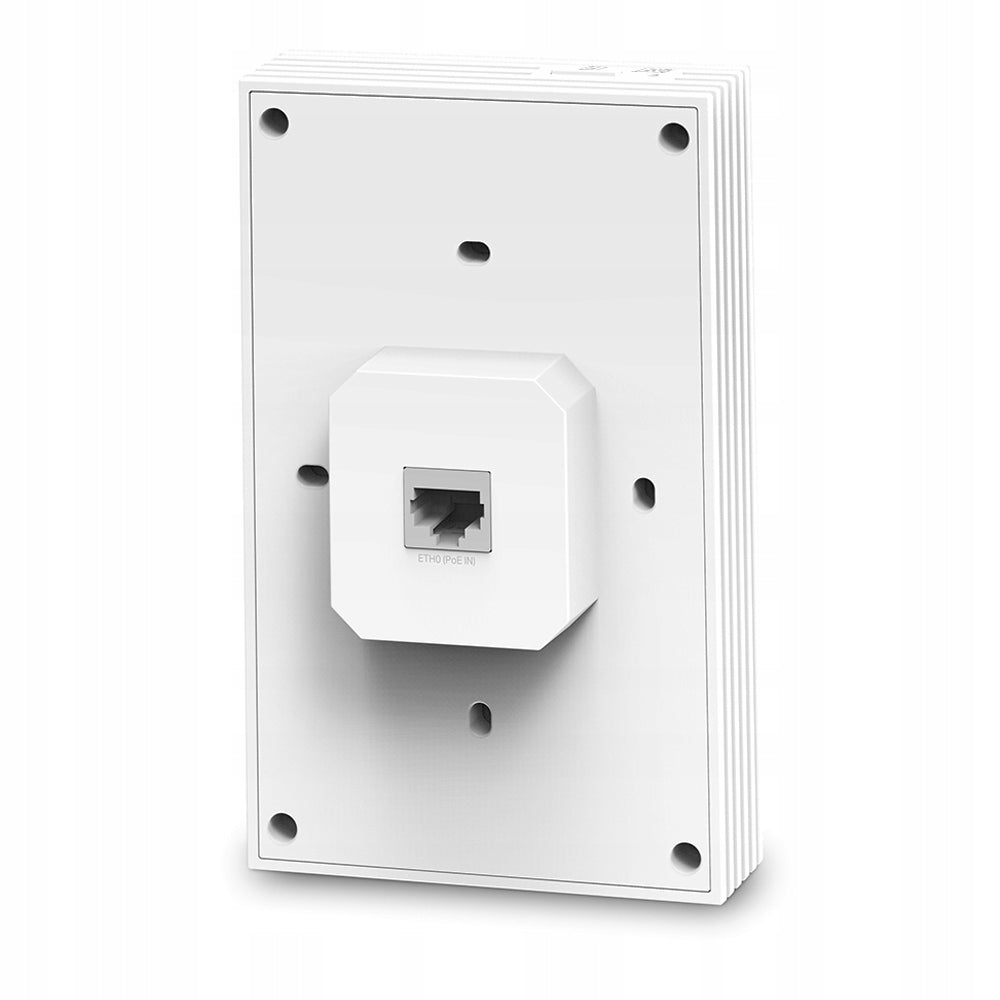

HARDWARE FEATURES:

• Ports:
• • Uplink: 1 10/100/1000 Mbps Ethernet port
• • Downlink: 3 10/100/1000 Mbps Ethernet ports
• (One port supports PoE Out. This function requires powering the input in the 802.3at PoE+ standard. )
• Physical security: None
• Buttons: Reset, LED
• Power Supply: 802.3af/at PoE
• Power consumption: • EU: 12W (802.3at PoE, without PoE Out)
• Dimensions: 143 × 86 × 42,6 mm
• (5,6 × 3,4 × 1,7 inches)
• Antenna: 2 dual-band antennas
• • 2,4 GHz: 2x3 dBi
• • 5 GHz: 2x5 dBi
• Assembly: Wall mounting
• (mounting hardware included)

WIRELESS TRANSMISSION PROPERTIES:

• Number of simultaneous clients: 100+
• Wireless standards: IEEE 802.11ax/ac/n/g/b/a
• Working frequency: 2,4 GHz and 5 GHz
• Transmission speed:
• • 5 GHz: up to 2402 Mbps
• • 2,4 GHz: up to 574 Mbps
• Wireless transmission functions:
• • 16 SSID (up to 8 SSIDs on each band)
• • Disabling the wireless network
• • Automatic channel selection
• • Transmission power control
• • QoS (WMM)
• • Smooth roaming§
• • Beamforming
• • Speed limit
• • Bandwidth load balancing
• • Airtime Fairness
• • Band control
• • Reboot schedule
• • Wireless network scheduler
• • RADIUS Accounting
• • MAC Authorization
• • Wireless network statistics
• • Static IP, Dynamic IP
• Wireless transmission security:
• • Authentication via the welcome page§
• • Access control
• • MAC Address Filtering
• • Wireless client isolation
• • VLANs
• • Detection of unauthorized APs
• • Support 802.1X
• • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise encryption
• Power of transmission:
• • CE:
• < 20 dBm (2,4GHz, EIRP)
• < 23 dBm (5GHz band1 & 2, EIRP)
• < 26 dBm (5GHz band3, EIRP)
• • FCC:
• < 21 dBm (2,4 GHz)
• < 21 dBm (5 GHz)

MANAGEMENT:

• Omada app: Yes
• Central management:
• • Omada hardware controller (OC300)
• • Omada hardware controller (OC200)
• • Omada software controller
• • Cloud-based Omada Controller
• Cloud access: Yes (via OC300 controller, OC200 controller, Omada software controller or Omada cloud-based controller)
• Email notifications: Yes
• LED switch: Yes
• Access control by MAC addresses: Yes
• SNMP: v1, v2c, v3
• System log: Local and remote
• SSH: Yes
• Browser management: HTTP/HTTPS
• Management L3: Yes
• Multi-site management: Yes
• VLAN management: Yes
• Support-free ZTP configuration: Yes. Requires the use of a cloud-based Omada controller.

OTHER:

• Certificates: FCC, RoHS

Contents of the pack:

• • EAP655-Wall
• • Installation instructions
• • Mounting kit

System requirements:

• Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

Working environment:

• • Permissible operating temperature: 0? -40? (32? -104? )
• • Permissible storage temperature: -40? -70? (-40? -158? )
• • Permissible air humidity: 10%–90%, non-condensing
• • Permissible storage humidity: 5%–90%, non-condensing

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Mode of operation	Access Point
Parametry	Wireless operation standard	802.11ax (Wi-Fi 6)
Parametry	Band	5 GHz
Parametry	Internal modem	no modem
Parametry	Management	website
Parametry	Number of LAN (RJ-45) ports	3
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	Ports	USB 3.0
Parametry	Antenna	external removable
Parametry	Additional features	hotel mode
Parametry	Width	143 mm
Parametry	Height	210 mm
Parametry	Depth	86 mm
Parametry	Product weight with unit packaging	0.4 kg
Parametry	EAN (GTIN)	4897098683576
Parametry	Manufacturer code	EAP655-Wall
Parametry	Model	EAP655-Wall
Parametry	The highest standard supported	802.11ax (Wi-Fi 6)
Parametry	Batteries included	no
