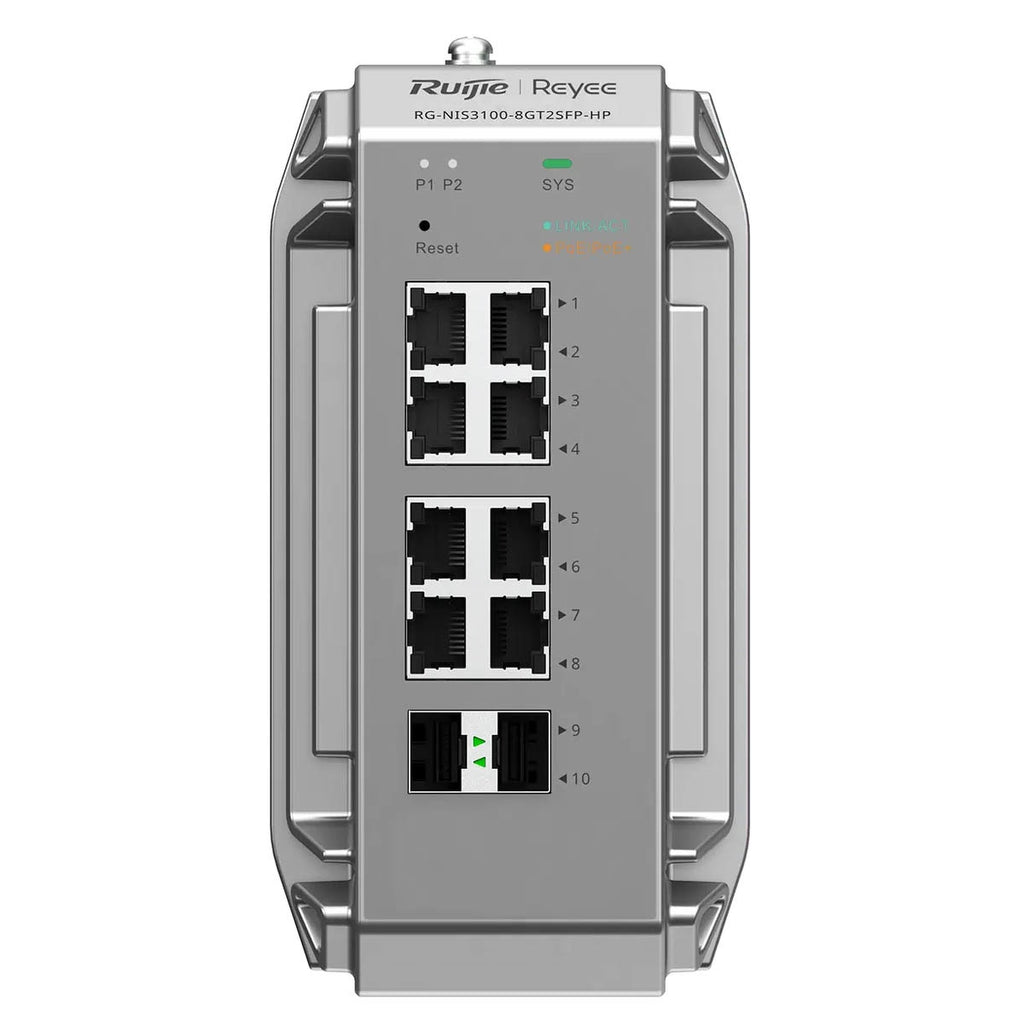

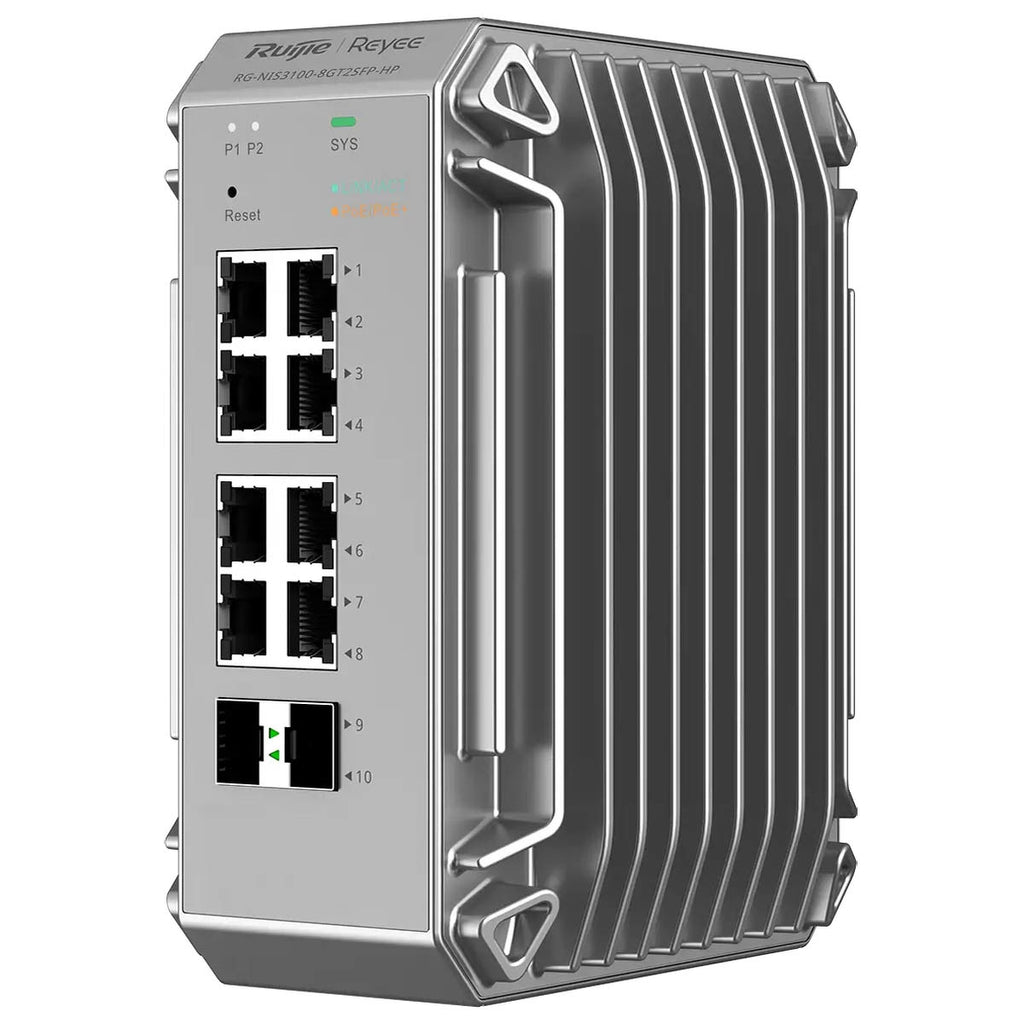

Pramoninis valdomas jungiklis Ruijie Reyee RG-NIS3100-8GT2SFP-HP, 10 prievadų

Trumpai apie prekę

Prekė: Pramoninis valdomas jungiklis Ruijie Reyee RG-NIS3100-8GT2SFP-HP, 10 prievadų. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Ruijie
• Modelis: RG-NIS3100-8GT2SFP-HP

Ruijie Reyee RG-NIS3100-8GT2SFP-HP | Industrial Managed Switch, 10 Por

Ruijie

RG-NIS3100-8GT2SFP-HP True industrial grade specially designed for harsh environmental conditions

CCTV, factory, coastal areas, high dust environment, etc.

Key features:

• Three different models meet different business needs
• Unique industrial design ensures stable operation at temperatures from -40℃ to 80℃
• 8 KV Protection: Protection against voltage spikes
• Degree of protection IP40 against intrusion of pollen with a diameter of 1 mm under dust conditions
• ERPS provides network stability: service failover within 50ms
• SON local area network, easy setup even without cloud
• Ruijie Cloud: easy management even in harsh environmental conditions

Essential for coastal areas, resistant to corrosion caused by salt spray

50 μm protective coating on PCBs. Precisely applied coating with a thickness of 50 μm

effectively insulates against salt spray, maintaining the thermal efficiency and conductivity of the equipment.

Improved port gilding

Gold plating thickness on ports from 3 μm to 15 μm

prevents corrosion caused by salt spray.

Improved port gilding

Gold plating thickness on ports from 3 μm to 15 μm

prevents corrosion caused by salt spray.

Unique industrial design, ensures stable operation in temperatures from -40°C to 80°C

Double heat dissipation surface

Housing made entirely of aluminium alloy, Cooling 360°

Aluminium (Al), thermal conductivity 237 W/(m x K)

Industrial grade chips

Strong signal during a sandstorm

IP40: Higher dust resistance, blocks 1mm objects

Protection against high voltage:

Protection against discharges

Overvoltage protection 6 kV

Protection against ESD discharges 8kV

ERPS Plug-and-Play

Self-organizing LAN

Ruijie Cloud: Barrier-free remoteness

Power supply

Specification:

• Number of optical ports 1 Gbps (SFP): 2
• Number of ports 10/100/1000BASE-T: 4
• Layers: Layer 2
• Switching bandwidth: 12 Gbps
• Transfer speed: 8,928 Mpps
• MAC address table size: 8000
• Maximum number of VLANs: 4094
• Dimensions (Width × D. × H ): 85 mm × 132 mm × 165 mm (3,35 inch × 5,20 inch × 6,50 inch)
• Net weight: 1,39 kg (3,06 lbs)
• Average time between failures (MTBF): 200 000 hours
• Port surge protection: Common mode: 6 kV
• Number of fans: Fanless
• Certification: CE, FCC

• Redundant power supply: yes
• Management: yes
• Type of main ports: RJ45
• Root port throughput: Gigabit Ethernet
• PoE support: yes
• PoE power budget: 240 W
• Number of PoE ports: 8 pcs
• Device type: Industrial switch
• Included in the set: Mounting kit
• Quantity in collective packaging: 8 pcs
• Color: Gray
• Height: 16.5 cm
• Width: 13.2 cm
• Depth: 8.5 cm
• Weight: 1.84 kg
• Manufacturer details: RUIJIE NETWORKS CO. LTD.ChinaFuzhou350002Building 19 Juyuanzhou Industrial Park No.618 Jinshan Avenue Cangshan DistrictLora Xuexueyanping@ ruijie . com.cn +8617338125684
• Details of the responsible person in the EU: ENIF PEGASUS SRLRomaniaBucharest22883Str.RADOVANU Nr.7 Bloc 42 Scara 1 Etaj 5 Apartament 29Pmeriadragutagss@gmail.com +40768511765
