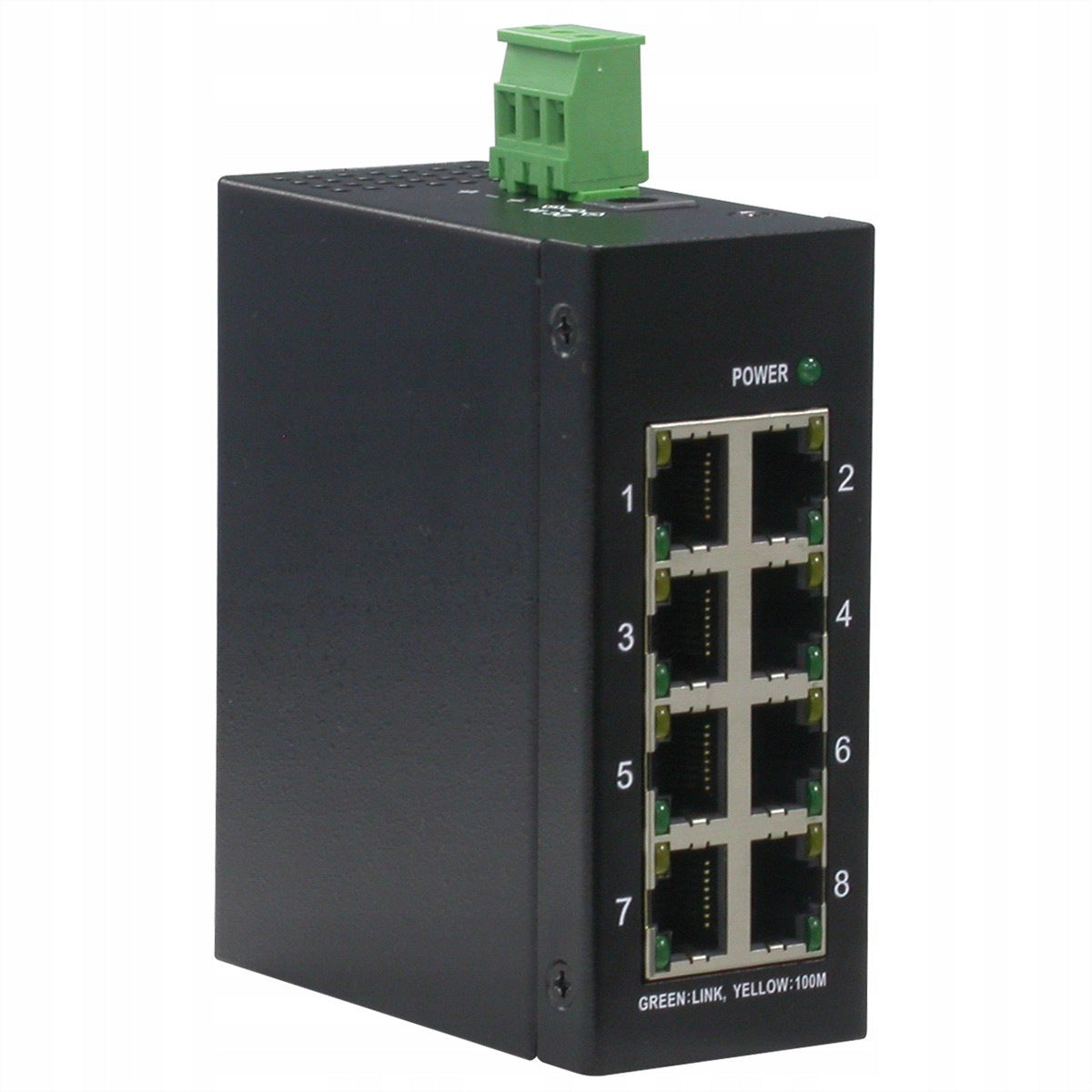

Pramoninis tinklo jungiklis ROLINE, 8x RJ-45, nevaldomas

Trumpai apie prekę

Prekė: Pramoninis tinklo jungiklis ROLINE, 8x RJ-45, nevaldomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Roline
• Modelis: 21.13.1156

Product number: 21.13.1156

Network switch for use in industrial environments

• Fast Ethernet Switch with 8 Ports 10/100Base-T
• For use in industrial environments
• DIN rail mounting
• Operating voltage: +7 to +30VDC
• Operating temperature range: -10 °C - +70 °C
• DC input via terminal block or empty DC connector (6,3mm/2,0mm)
• As a suitable power supply, we recommend the DIN rail power supply NDR-75-24 (21.13.1311).

• Fast Ethernet RJ-45 ports: 8
• Color: Black
• Product Type: Fast Ethernet Switch, Fast Ethernet Switch
• Manufacturer: ROLINE
• Width: 40 mm
• Height: 95 mm
• Packaging height (single piece): 60 mm
• Package width (single piece): 130 mm
• Packaging depth (single piece): 160 mm
• Package weight (single piece): 0.365 kg
• Current catalogue edition: C23-01.10
• Depth: 80 mm
• Working temperature min: -10 °C
• Product group: Network switches
• Number of ports: 8
• Weight: 300.56 g
• Power supply (internal/external): External
• Working temperature max: 70 °C
• Dimensions (H x width x D. ): 95 x 40 x 80 mm
• Network connection: Loose cable / screw terminals
• LAN (Mbps): 10/100
• Network standard: Fast Ethernet
• Management: No
• Dimensions (HxWxD): 95 x 40 x 80 mm
• Technical details: - 10 ºC - +70 ºC
• Network connection: Loose cable / screw terminals
• Number of ports: 8
• Package weight: 0.365 kg, 0.365
• Catalog edition: 23.1
• Package width: 130 mm
• Packaging height: 60 mm
• Packaging depth: 160 mm
• Directory page: 1.07
• design type: DIN rail
• LAN (Mbit/s): 10/100
• Power supply (external/internal): external
• Stackable: No, No
• Device type: Industrial switch

Specifications
