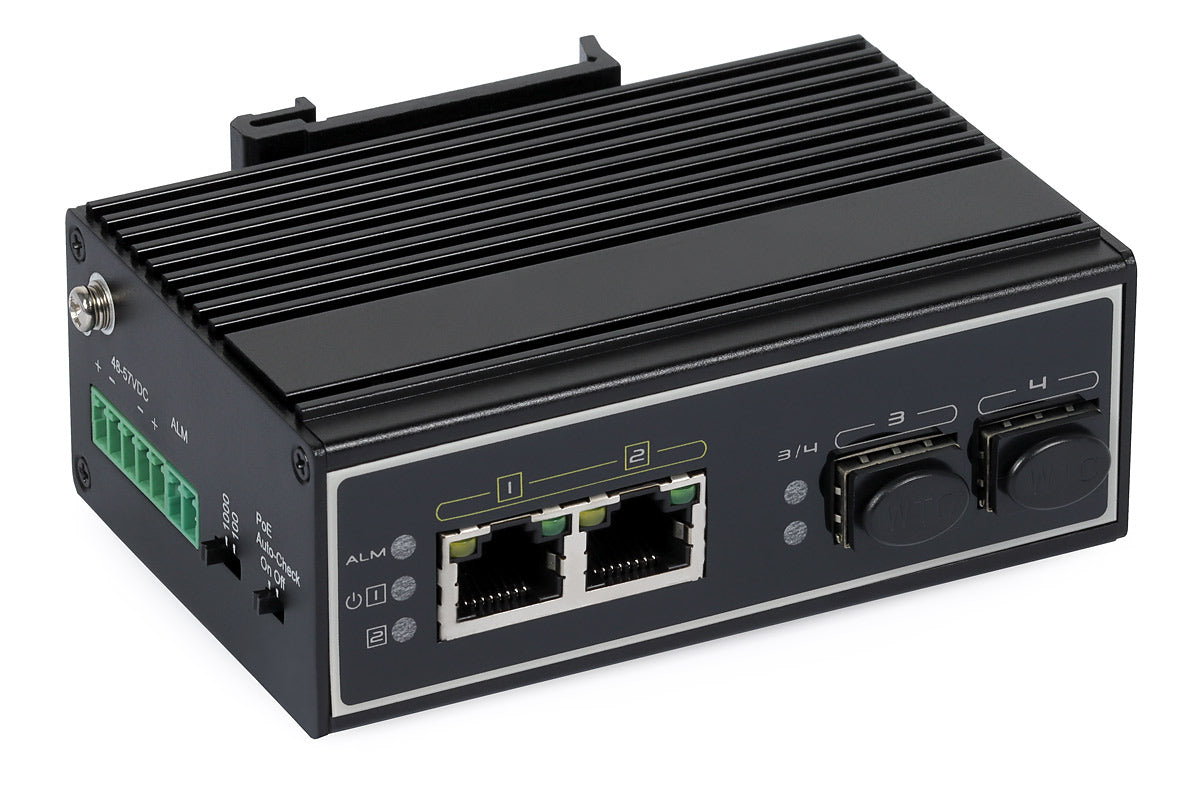

Pramoninis PoE komutatorius ULTIPOWER 322SFP-mini

Trumpai apie prekę

Prekė: Pramoninis PoE komutatorius ULTIPOWER 322SFP-mini. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: N299712

Product Code: 322SFP-MINI

Industrial PoE Switch ULTIPOWER 322SFP mini 2xGE(2xPoE) 2xSFP(1000M) 802.3af/at HiPoE 180W PoE Auto-Check

• Degree of protection: IP40
• Power supply:48-57 V DC
• Possibility to connect two power supplies (second as redundant)
• Power Consumption: < 5W (without PoE)
• Ethernet ports: 2x GigabitEthernet 10/100/1000 Mbps
• PoE ports: 2 802.3af/at
• Fiber Optic Transmission: 2x SFP 1000 Mbps
• Protection against electrostatic discharge: 6kV
• Operating temperature range: -40...75℃
• Permissible ambient humidity: 5...95%
• Possible mounting on DIN rail

The ULTIPOWER PoE Switch is an industrial-grade device that provides seamless network transmission. It allows you to establish connections at a speed of 10/100/1000 Mbps. It has 2 RJ45 ports supporting automatic connection speed negotiation and Power over Ethernet (PoE) function. The switch automatically detects PD devices. Power Device) operating in IEEE 802.3af/at standard and provides them with power. This allows you to extend the range of the network in places where there is no access to sockets or power lines, and where there is a need to place access points, IP cameras, IP phones, etc. Switch additionally equipped with two uplink ports SFP 1000 Mb/s.

Switches of this type should be used in installations implemented in industrial facilities where it is possible to have unfavourable conditions for the operation of devices, such as increased dustiness, high or low temperature, or high humidity. Installation of industrial switches is also recommended for installations carried out on poles - in hermetic housings. Switches have Ethernet ports (depending on the Fast Ethernet or Gigabit Ethernet model) for connecting devices such as IP cameras or computers. ULTIPOWER industrial switches have a housing that meets the IP40 standard (protection against access to hazardous parts, protection against foreign solids with a diameter of more than 1 mm). All ports have the ability to power PoE devices connected to them.

Technical data:

• Name Industrial PoE Switch ULTIPOWER 322SFP mini
• Model 322SFP mini
• Purpose PoE Switch, Industrial Switch
• Manufacturer ULTIPOWER
• Device interfaces
• Ethernet ports number of ports 2
• type of Gigabit Ethernet ports
• 10/100/1000 Mbps 2 Mbps
• PoE 10/100/1000 Mbps 2
• Optical port SFP slot Yes
• SFP slot 1000 Mb/s 2
• Console port No
• Hardware performance
• Capacity 8 Gbps
• Package redirection speed 5,95 Mp/s
• Buffer memory 0,5 Mb
• MAC address board 1K
• Properties of PoE
• PoE Yes
• Standard PoE 802.3af, 802.3at, 802.3bt 60 W, 802.3bt 90 W
• Power budget 180 W
• Maximum power for port 90 W
• Priority for PoE port No
• PoE Auto Check Yes
• PoE Schedule No
• Extend mode No
• Hardware Properties
• Power supply 48...57 V DC
• Number of fans None
• Dimensions 99 x 65 x 50 mm
• Assembly method Desktop, DIN (TH35)
• Redundant power Yes
• Certificates CE/FCC
• Package Content Manual, Switch, DIN Mounting Brackets
• Working environment
• Temperature of work -40...+75 ℃
• storage -40...+75 ℃
• Humidity of air 10...90 %
• storage 5...90 %
