Pramoninis PoE komutatorius GTX-P1-5-41GSFP, 4 SFP prievadai

Trumpai apie prekę

Prekė: Pramoninis PoE komutatorius GTX-P1-5-41GSFP, 4 SFP prievadai. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: GTX-P1-5-41GSFP

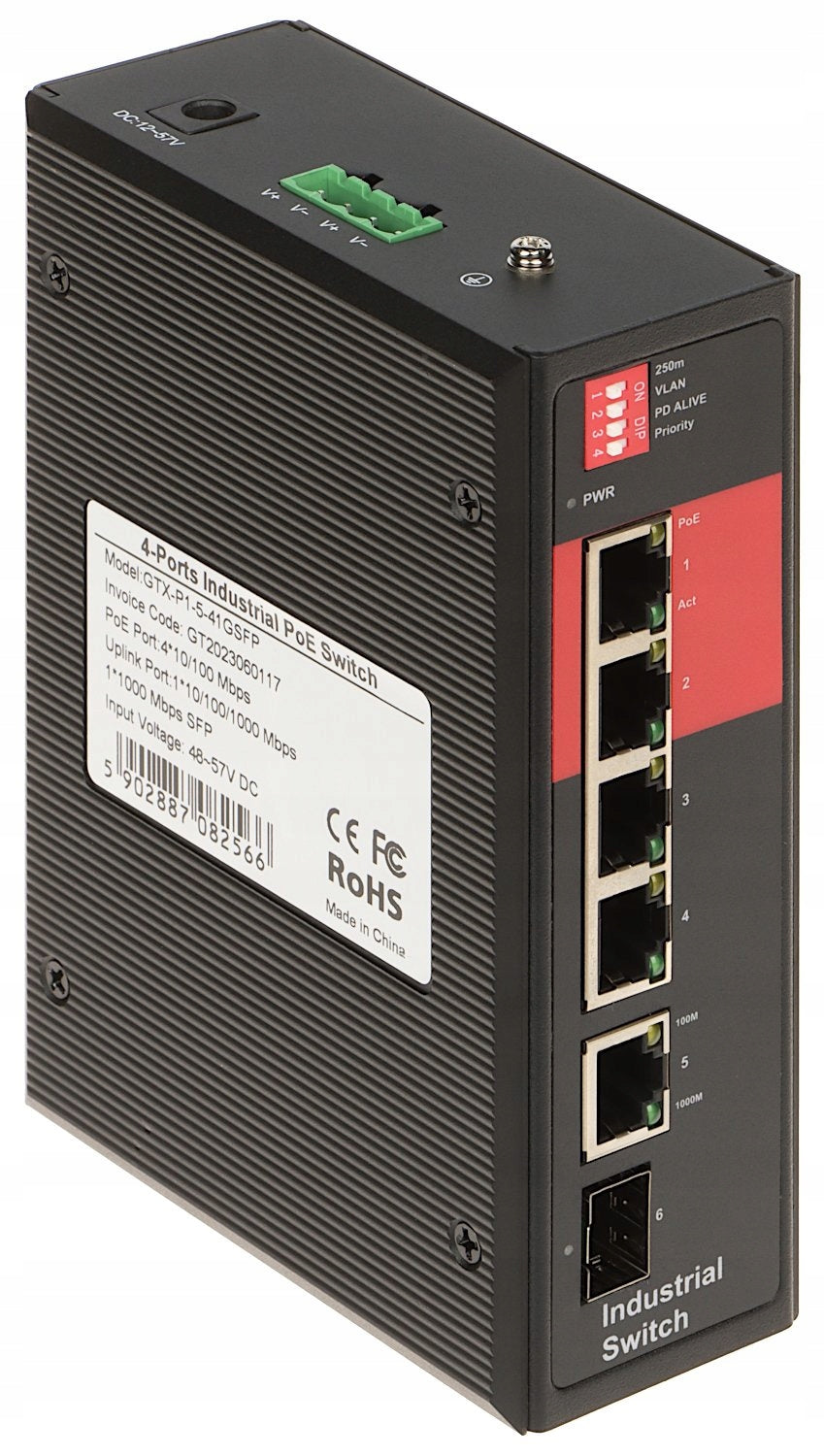

INDUSTRIAL SWITCH POE GTX-P1-5-41GSFP 4-PORT SFP

The GTX-P1-5-41GSFP PoE Switch is an industrial-grade device that provides seamless network transmission at 10 / 100 Mbps The device is ideal for building a network of IP cameras with 802.3af / 802.3at PoE power supply. Attention! Enabling the 250m Extend function increases the PoE range to 250m and reduces the transmission speed to 10 Mbps. Note! No power supply included

LAN ports:

• 4 x RJ45 10/100 Base-T ( 2 x Hi-PoE + 2 x PoE (802.3af/at) ),
• 1 x RJ45 10/100/1000 Base-T - Uplink,
• 1 x SFP 1000 Base-X port - Uplink

Management: No LEDs: Power, PoE, Link/Act Transmission Rate:

• 10 / 100 Mb/s: 4 x LAN & PoE port,
• 10 / 100 / 1000 Mbps : 1 x RJ45 port (Uplink),
• 1000 Mb/s : 1 x SFP Port (Uplink)

Operating modes:

• 250 m ( Extend ) - Range : 250 m @ 10 Mbps
• VLAN - ports 1 ... 4 are isolated from each other and work separately with ports 5, 6
• XP Alive
• PoE Priority Port

Maximum output power:

• 60 W / Hi-PoE port - Ports 1, 2
• 30 W / PoE port 802.3af/at - Ports 3, 4

Selected features:

• PD Alive mode - monitoring the ports that power PoE devices and automatic restart by cutting off the power when detecting an unresponsive device
• Ports 1 ... 4 support transmission priorities
• Possibility of connecting two power supplies - redundant power supply
• Designed for industrial applications in a wide temperature range.
• Protection Class: IP40
• DIN rail mounting devices, TS-35

Certificates: CE, FCC, RoHS Security:

• Surge protection: 6 kV
• Contact/Air (ESD/EMP): 6/8 kV

Power supply: 48 ... 57 V DC - Socket 2.1/5.5 mm or twisted terminals (not included) Operating temperature: -40 °C ... 75 °C Weight: 0.5 kg Dimensions: 145 x 103 x 45 mm

• :

Specifications
