Pramoninis LANBERG PoE komutatorius, 1x BT, 3x AT, SFP+ETH, DIN, Fast Ethernet

Trumpai apie prekę

Prekė: Pramoninis LANBERG PoE komutatorius, 1x BT, 3x AT, SFP+ETH, DIN, Fast Ethernet. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Lanberg
• Modelis: ILFE-4P-1GE-1S-90

Switch Lanberg Light industrial POE 1XBT 3XAT SFP+ETH DIN Fast Ethernet

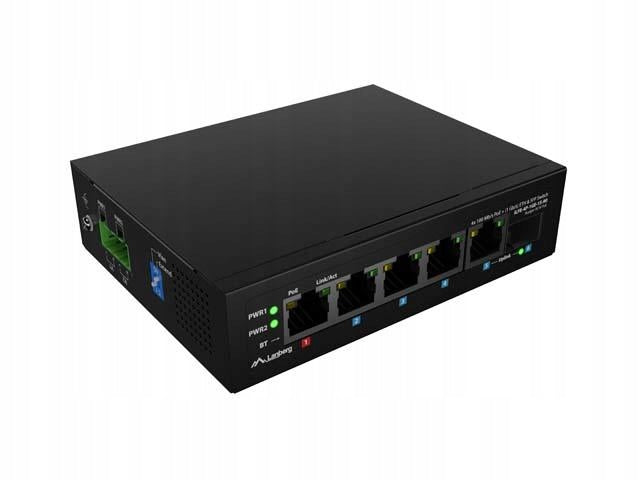

Lightweight unmanaged industrial switch Lanberg ILFE-4P-1GE-1S-90

Industrial switches are an indispensable device active in every network structure – from automation and SCADA systems, through cable TV networks, to distributed IoT installations and monitoring. The Lanberg series of lightweight industrial switches has been designed for demanding working environments: metal housing, passive cooling and operating parameters allow for stable operation in a wide range of ambient temperatures. The main advantages of the series are high PoE power, redundant power supply (you can connect 2 power supplies), DIN rail mounting, VLAN and EXTEND function, automatic MDI/MDI-X, Flow control, intelligent PoE port disconnection function and MAC auto-learning.

In practice, it is a network switch created for distributed infrastructure: industry, street lighting infrastructure, external CCTV monitoring, alarm systems and internal and external installations, where both Ethernet data transmission and PoE power supply of end devices (cameras, recorders, access points, controllers, sensors) – often requiring more power supply – count.

NOTE: The power supply of the device included in the product kit.

Industrial switch ILFE-4P-1GE-1S-90 with a wide selection of ports

This switch is equipped with ports optimized for CCTV/IoT installations:

• 4 Fast Ethernet RJ45 PoE ports (10/100 Mbps): 1× 802.3bt PoE++ (up to 90W) + 3× 802.3af/802.3at PoE+.
• 1× uplink 1000BASE-T (Gigabit Ethernet) – for traffic aggregation and connection to the network core / NVR / router.
• 1× SFP 1000BASE-X slot as fiber optic uplink – parameters depend on the SFP module used.

Switches Lanberg gigabit Ethernet with PoE++ technology

PoE, PoE+ and PoE++ technology is an improved version of power supply via Ethernet cable, which allows you to provide power to peripheral devices that are elements of the network – without an additional power supply at the device. The technology based on the protocols 802.3at, 802.3af, 802.3bt allows users to power peripheral devices with power up to 120 W (90 W or 120 W depending on the model). An important advantage of the improved version of the technology is also high quality and high data transfer rate (up to 1Gbps, depending on the model). Thanks to such high data transfer capabilities, the PoE solution has been widely used in extensive monitoring networks. PoE+ and PoE++ technology allows you to transfer images from 4K cameras in real time while maintaining full smoothness.

• Switch Lanberg Light industrial POE 1XBT 3XAT SFP+ETH DIN Fast Ethernet

Basic information

• Type of wired device: Unmanaged switch

Technical

• PoE Port: Yes
• Supported protocols / Compliance with standards: IEEE 802.3u
• Supported protocols / Compliance with standards: IEEE 802.3af
• Supported protocols / Compliance with standards: IEEE 802.3at Power over Ethernet Plus (PoE+)
• Supported protocols / Compliance with standards: IEEE 802.3x
• Supported protocols / Compliance with standards: IEEE 802.3i
• Housing type: Din rail

Characteristics

• LAN architecture: Fast Ethernet
• MAC board size: 2 K
• Web management (Smart): No
• Management from the command line (CLI): No
• Capacity (Gb/s): 12.0
• Open Networking: No
• Stackable: No

Connectors

• Number of ports: 5
• Input/output ports: 1x 100BASE-T 802.3bt PoE++
• Input/output ports: 3x 100BASE-T 802.3af/802.3at PoE+
• Number of RJ-45 10/100MbE ports: 5 pcs.
• Number of PoE ports: 4

Physical

• Dimensions [G x S x W] (mm): 119 x 94 x 30
• Net weight (kg): 0.400

Other parameters

• Additional information: Supported PoE standards 802.3at 802.3af 802.3bt
• Additional information: PoE PoE+ PoE++ power supply type
• Additional information: Cooling Ventilation holes Passive
• Additional information: Total PoE budget 90 W
• Additional information: 48~56V DC power requirements
• Additional information: 6 kV surge protection
• Additional information: Plug & Play support Yes
• Additional information: Operating signal LED
• Additional information: Functions Extend mode Intelligent PoE port disconnection function
• Additional information: Automatic MDI/MDI-X Flow control MAC auto-learning VLAN
• Additional information: Material Metal
• Additional information: Recommended ambient temperature -25 - 65 °C
• Additional information: Recommended ambient humidity 10 - 90 %

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Lanberg
Parametry	Product weight with unit packaging	0.93 kg
Parametry	Number of ports	5
Parametry	Number of LAN (RJ-45) ports	4
Parametry	EAN (GTIN)	5901969447354
Parametry	Manufacturer code	ILFE-4P-1GE-1S-90
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
