Pramoninis komutatorius BCS-L-SP0801G-1SFP(2), 8x PoE, 1x RJ45, SFP, 1Gbps, 96W, DIN

Trumpai apie prekę

Prekė: Pramoninis komutatorius BCS-L-SP0801G-1SFP(2), 8x PoE, 1x RJ45, SFP, 1Gbps, 96W, DIN. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: BCS
• Modelis: 1441

BCS

8 port industrial PoE switch for DIN rail

Series: BCS Line

Model: BCS-L-SP0801G-1SFP(2)

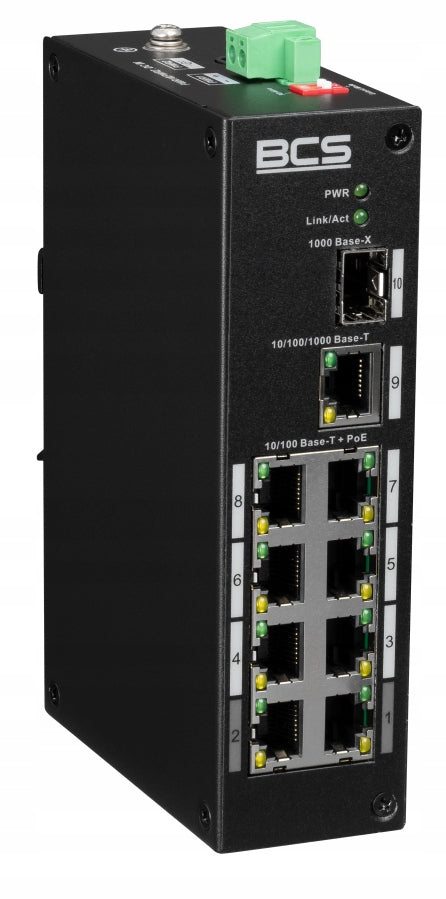

BCS-L-SP0801G-1SFP(2) is an industrial, intelligent PoE switch with 8 PoE ports of 100Mbps and two uplink ports (1×RJ45 1Gbps and 1×SFP 1Gbps). The device is designed to expand LAN networks in industrial and office environments, offering stable PoE power for cameras, access points, and other network devices. With support for modern PoE standards (IEEE 802.3af/at/bt and Hi-PoE) and extended data transmission up to 250 meters, the switch provides flexibility and reliability.

The most important advantages and features

• 8 10/100 Mbps PoE ports for power and data transmission for network devices
• 2 uplink ports 1 Gbps: 1×RJ45 and 1×SFP for fast connection to the parent network
• High PoE power: up to 90W per port (1-2 ports), 30W per other ports, total PoE power up to 96W
• Support for popular PoE standards: IEEE 802.3af/at/bt and Hi-PoE
• Long distance transmission mode up to 250 meters at 10 Mbps
• PoE watchdog function for monitoring and automatic reset of PoE devices
• Resistant metal housing for DIN rail mounting, resistant to industrial conditions
• Wide operating temperature range from –30°C to +65°C

Detailed technical specification

Ports and standards:

• 8×RJ-45 PoE 10/100 Mbps
• 1×RJ-45 uplink 10/100/1000 Mbps
• 1×SFP uplink 1000 Mbps (fiber optic)
• Supported Ethernet standards: IEEE 802.3 (10Base-T), 802.3u (100Base-TX), 802.3ab (1000Base-T), 802.3z (1000Base-X), 802.3x (flow control)

PoE power supply:

• PoE Standards: IEEE 802.3af (15,4W), 802.3at (30W), 802.3bt (up to 90W), and Hi-PoE
• PoE total power: 96 W
• Ports 1-2: max 90 W, ports 3-8: max 30 W
• PoE Pinout: 1,2,4,5 (plus), 3,6,7,8 (minus)

Network functions and management:

• Bandwidth: 7.60 Gbps
• Packet forwarding: 4.17 Mpps (millions of packets per second)
• Buffer Memory: 1 Mbit
• MAC board: 8K entries
• PoE operating modes: standard (up to 100 m) and long distance (up to 250 m at 10 Mbps)
• PoE watchdog function for monitoring devices

Security:

• Electrostatic protection: up to 8 kV environmental, 6 kV contact
• Surge protection: 2 kV differential (DM), 4 kV common (CM)

Physical parameters and power supply:

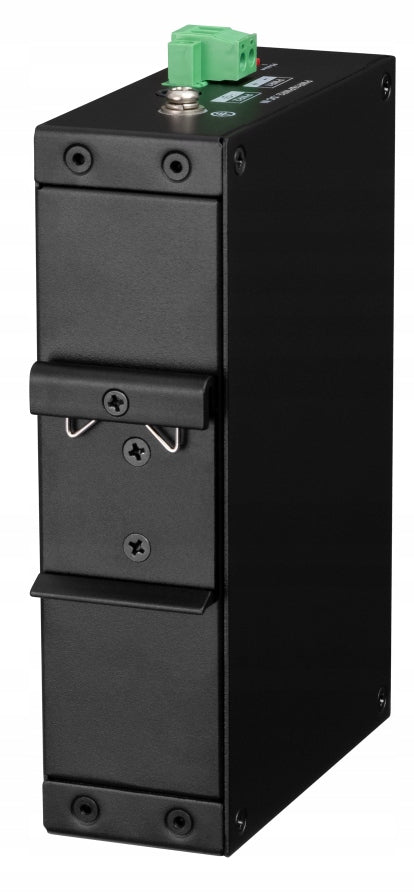

• Housing: metal, DIN rail mounting
• Dimensions: 150 mm × 100 mm × 42 mm
• Weight: 0.54 kg
• Power supply: 48 to 57 V DC (external power supply)
• Power consumption: min. 3 W, max. 96 W
• Operating temperature: –30°C to +65°C
• Operating humidity: 5% – 95% (non-condensing)

Explanation of technical abbreviations and terms

• PoE (Power over Ethernet) – technology that allows you to transfer electrical power and data from one network cable, so you can power devices such as cameras or access points without additional wiring.
• IEEE 802.3af/at/bt – various PoE standards that specify the maximum power delivered to the device (af up to 15,4 W, at up to 30 W, bt up to 90 W).
• Hi-PoE – an extended PoE standard offering more power than IEEE 802.3at.
• RJ-45 – a type of connector used for Ethernet network cables.
• SFP (Small Form-factor Pluggable) – an optical module that allows fiber optic connection, enabling long network connections.
• VLAN (Virtual Local Area Network) – a virtual local area network that divides a physical network into smaller, logical segments for better organization and security.
• QoS (Quality of Service) – a function of network traffic management, allowing you to prioritize selected services or devices.
• MAC (Media Access Control) – unique hardware address of the network device.
• Mpps (million packets per second) – the number of millions of data packets that a device can transmit per second.
• Flow control – a mechanism that manages data flow, prevents overloads.

PoE ports 802.3af/at

Simultaneous data transmission and camera power

Switch BCS-L-SP0801G-1SFP(2) has built-in 8 PoE fast ethernet ports, in the standard 802.3af / 802.3at (PoE port 1 and 2 also support the PoE standard 802.3bt). With their help, it is possible to transmit data and power PoE cameras on the same UTP cable. Due to this property, PoE technology improves installation flexibility. The most important advantages of Power over Ethernet technology include:

• It allows you to mount cameras in places where standard power supplies cannot be brought. This significantly improves the flexibility of the monitoring system installation
• Reduces the number of wires necessary for proper camera installation, which can speed up and reduce the cost of their installation
• It does not require any prior configuration. Switch automatically recognizes whether the connected camera supports the PoE standard and, if so, automatically powers it

The total power consumption of all cameras connected to the switch must not exceed 96 W. The maximum power for PoE ports 1-2 is 96 W, and for PoE ports 3-8: 30 W.

EXTEND mode

Increasing transmission range

Another advantage of the BCS-L-SP0801G-1SFP(2) switch is support for EXTEND mode. Switch operating in this mode increases the effective transmission range from 100 m to 250 m. Thanks to this, the switch can be used to build a relatively extensive monitoring system. Switching to EXTEND mode, however, involves limiting the bandwidth of PoE ports to 10 Mbps.

MDI/MDIX function

Simple connection of cameras

Another advantage of the switch is the support for the MDI/MDIX automatic patching function. The function recognizes whether a straight or patch cable has been used and adjusts the port operating parameters to it. Thanks to it, the correct connection of the switch is even easier.

Switch BCS-L-SP0801G-1SFP(2) is a robust, reliable device dedicated to demanding industrial and office environments that need stable and efficient PoE power supply. Thanks to the high power on the PoE ports of the watchdog function and the ability to work in difficult temperature conditions, the switch guarantees the safety and continuity of operation of connected devices. The metal housing and wide range of work make it an excellent choice for installations that require durability and easy integration into network infrastructure.
