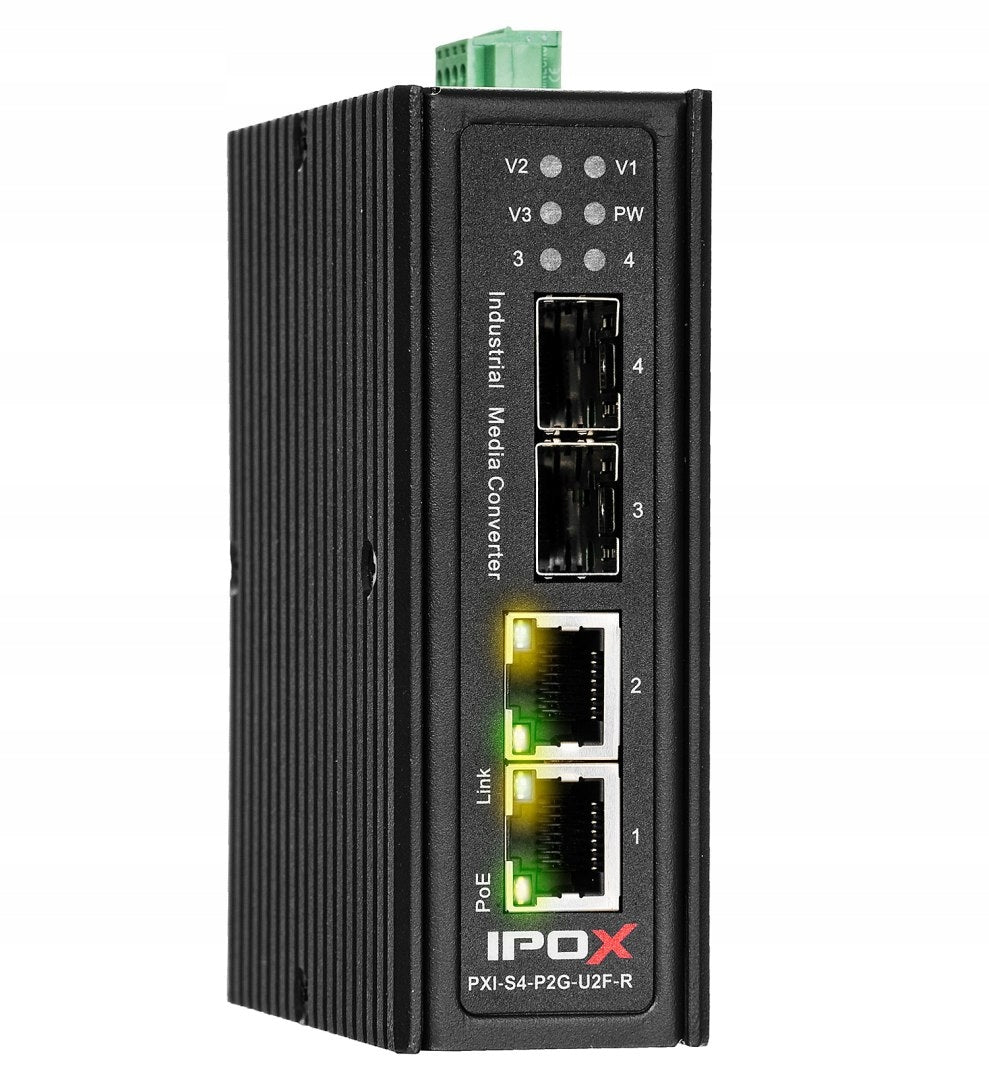

Pramoninis gigabitinis PoE komutatorius PXI-S4-P2G-U2F-R, 2 portai + 2 SFP

Trumpai apie prekę

Prekė: Pramoninis gigabitinis PoE komutatorius PXI-S4-P2G-U2F-R, 2 portai + 2 SFP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: 1800

Description

Gigabit industrial switch PXI-S4-P2G-U2F-R is a high-quality LAN device used to work in extensive access networks. PXI-S4-P2G-U2F-R is the latest version of technologically advanced products designed to function within IP monitoring structures. It provides a high guarantee of image transmission from IP cameras using POE+ technologies. The industrial switch PXI-S4-P2G-U2F-R operates on the basis of automated systems for recognizing, adjusting and managing active connections, as well as ensuring the highest level of work efficiency with the lowest demand for electricity. In addition, the installation and use of the device is very simple, thanks to the plug and play technique.

In addition, PoE power supply located on 2 ports, allowing for quick detection of devices powered by this technology and dynamic allocation of energy for each device. Switch PoE has built-in MDI/MDIX self-detection, therefore it does not require the use of patch cables and automatically detects and sets the speed and mode of data transmission. Industrial PoE switch should be used in installations where there are adverse conditions such as increased dustiness, low or high temperature and high air humidity.

Application of IPOX switch

The reliable PXI-S4-P2G-U2F-R switch is a LAN device that will skillfully complement any network infrastructure available in industrial facilities or public use. Installation of the industrial PoE IPOX switch in an airtight housing on the pole will allow you to use its wide functionality in professional IP monitoring installations. It enables comprehensive power supply of IP cameras in places free from power sources and, as a result, the implementation of effective security systems.

Support for SFP module

Industrial network switch PXI-S4-P2G-U2F-R allows you to work with different types of fiber, thanks to the built-in slot for SFP modules. All optical transmission parameters are conditioned on the selected SFP module. Switch PXI-S4-P2G-U2F-R works with SFP modules compatible with IEEE 802.3z 1000Base-X standard. In addition, it has built-in MDI/MDIX self-detection, therefore it does not require the use of patch cables and automatically detects and sets the speed and mode of data transmission. The ports are also equipped with Hot-Pluggable technology, which allows you to install SFP modules in network devices without the need to disconnect the power supply.

PoE+ technology

PoE+ is an improved version of PoE technology that allows you to provide power to peripheral devices that are elements of the network using an Ethernet cable. The IEEE 802.3at protocol-based technology enables users to power peripheral devices up to 30 W. An important advantage of the improved version of the technology is also high quality and high data transfer rate (up to 1000 Mb/s). Thanks to such high data transfer capabilities, PoE Plus has been widely used in extensive monitoring networks. PoE+ technology allows you to transfer images from 4K cameras in real time while maintaining full smoothness.

Extended PoE budget

This technology allows you to increase the PoE budget of the switch without having to replace the entire device. This means that if you are not sure how much PoE power you will need in the future, you can purchase a lower power switch. Later, as your needs increase, you can simply update the power supply to get a larger PoE budget. Unlike traditional switches, where replacing with a more powerful model involves the purchase of a completely new device, which generates additional costs.

Redundant power

Redundant power supply is a way of powering the switch, which is associated with the dual supply of power to the device. This method finds application in case of failure of one of the power sources. It allows automatic switching to an equivalent source directly through the switch without user intervention.

Highest level of performance and easy installation

Installation of the IPOX switch is very simple and hassle-free thanks to Plug & Play technology. MDI/MDIX self-detection detects the cable used, therefore it does not require the use of patch cables and automatically sets the speed and mode of data transmission. Secure packet transmission, ensuring correctness by checking checksums carried out by Store-and-forward data transmissions, is necessary in IP monitoring systems.

Solid metal housing

The durable IP30 enclosure is made of high-quality metal and provides protection for sensitive switch components. Such a solid protection guarantees long-term and stable operation of the device. Thanks to the additional handle, it is possible to install a switch, e.g. directly in the back wall of the outer casing.

Specification

MAIN

• Application: Installation of IP cameras and peripherals on the network
• (Simultaneous signal and power transmission)
• Interface: 2x RJ45 PoE port 802af/at/bt* (10/100/1000 Mbps)
• 2x UpLink SFP slot (1000 Mbps)
• PoE budget: 60W
• 120W - it is possible to increase the budget of the PoE switch by replacing the power supply with a larger one.

Range:

• Normal mode: 100m
• CCTV mode: 250m
• Capacity: 12 Gbps
• Frame transfer rate: 5.95 Mpps
• Housing type: Desktop / DIN (handle included)

FUNCTIONALITY

• Supported standards: IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af/at, IEEE802.3x, IEEE802.3bt

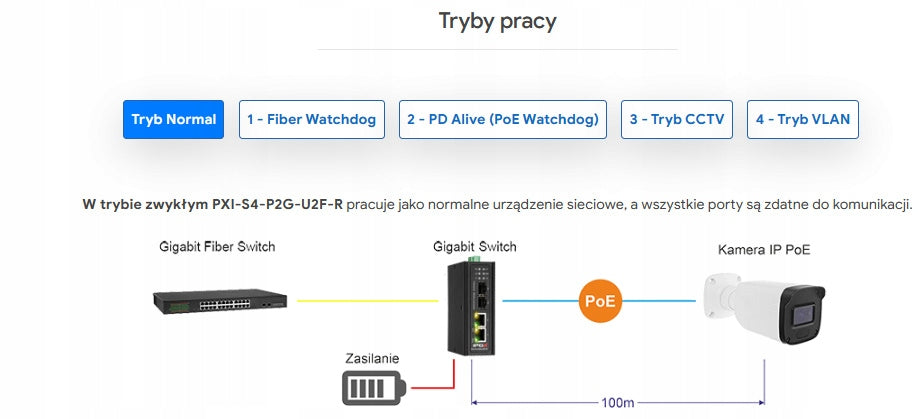

• Working modes: 1. CCTV mode - Transmission distance up to 250m at 10Mbps on PoE ports
• 2. VLAN mode - All PoE ports can only communicate with uplink ports, communication between PoE ports is impossible
• 3. PD Alive (PoE Watchdog) - Enables health checks on devices connected to PoE ports. In the absence of a response, the power supply of the tested device is reset
• 4. Priority PoE Port - Enables POE Port Priority: Port 1> Port 2>...> Port 4
• Forwarding method: Store and Forward
• LED optical signaling: Yes
• Technology: Plug and play, Hot-Pluggable, End-span, PoE+
• Security: Before discharge: 6KV, According to: IEC61000-4-5
• ESD: Level 4 according to IEC61000-4-2
• EFT: Level 4, according to IEC61000-4-4
• Support for IP cameras and network devices:Yes

OTHER

• Material: Metal
• Color: Black
• Power Supply: DC 48~57V
• Working temperature: -40°C~75°C
• Moisture: 5 ~ 90%
• Contents of the set:
• 1x PoE Switch
• 1x DIN mounting bracket
• 1x Wall Mount Bracket
• 1x DC 52V/1.25A power supply
• Weight: 400 g
• Dimensions (Width /length /H ):35x90x106 mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	no brand
Parametry	Product weight with unit packaging	0.15 kg
Parametry	Number of ports	2
Parametry	EAN (GTIN)	5904194155599
Parametry	Manufacturer code	1800
Parametry	Packaging status	original
