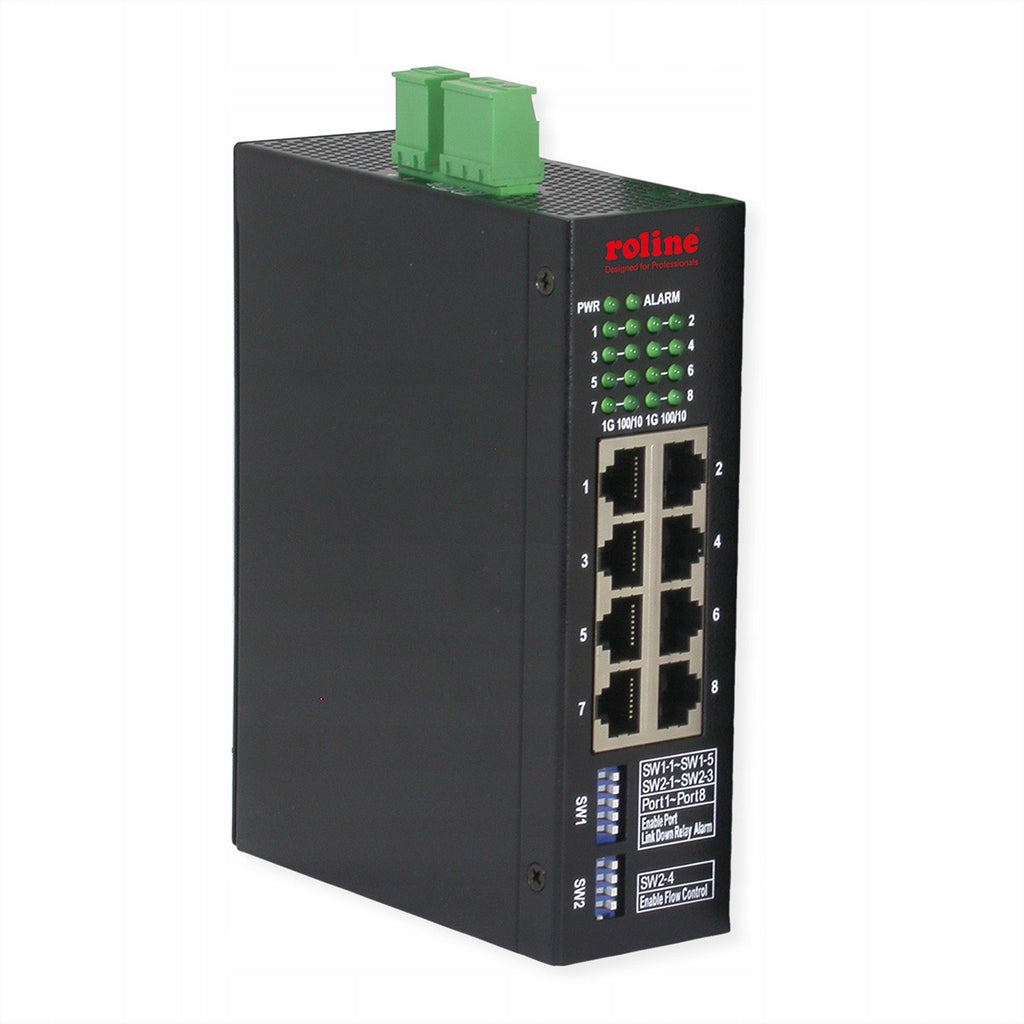

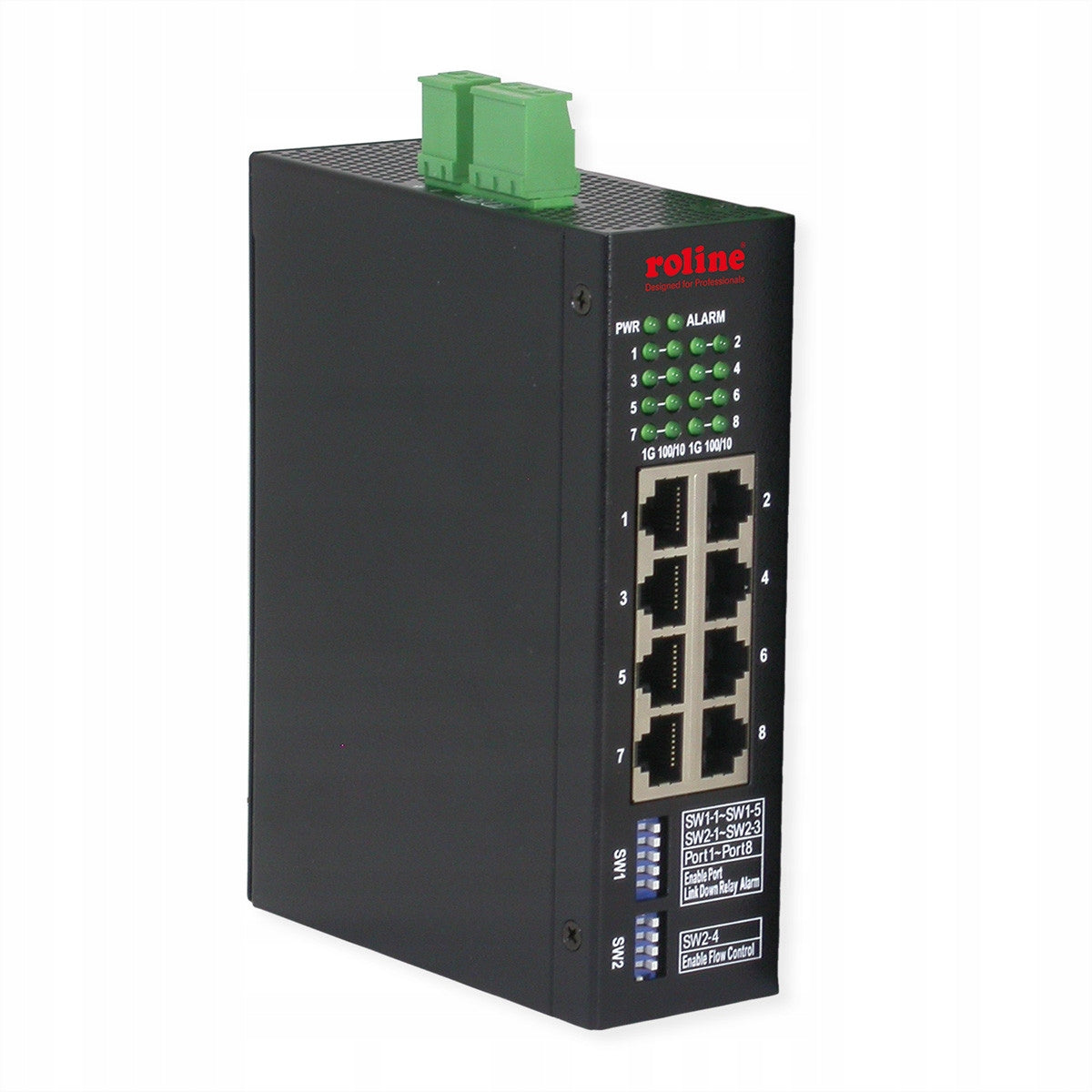

Pramoninis 8 jungčių valdomas ROLINE Gigabit Ethernet komutatorius

Trumpai apie prekę

Prekė: Pramoninis 8 jungčių valdomas ROLINE Gigabit Ethernet komutatorius. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Roline
• Modelis: 21.13.1134

Product number: 21.13.1134

The Gigabit Ethernet switch is designed for industrial applications. With gigabit ports for greater bandwidth, surge protection, advanced Layer 2 features, and a range of security and management tools, the switch is ideal for industrial applications.

- Eight 10/100/1000Mbps copper ports

- No locking, full gigabit speed switching

- Auto-negotiation, Auto-MDI/MDI-X detection

- Support IGMP snooping, port mirroring, jumbo packets (9,6 KByte)

- 802.1q VLAN, QoS (Quality of Service)

- Management by www

- Support 802.3x (full duplex) and back-pressure (semi-duplex)

- LED display: power/alarm status, per port: copper link speed/activity

- Mounting on mounting rail

- Compliance with IEEE 802.3, 802.3u, 802.3ab, 802.3x and 802.3az standards.

- Power supply (via terminal block): +8 to +57 V DC (not included)

- Metal housing (without fan)

- Power supply: +8 ~ +57VDC

- Power consumption: max. 10W

As a suitable power supply, we recommend the DIN rail power supply NDR-75-24 (21.13.1311).

>

• Color: Black
• Product Type: Gigabit Ethernet Switch
• Manufacturer: ROLINE
• Width: 42 mm
• Height: 140 mm
• Depth: 106 mm
• Product group: Network switches
• Weight: 535.5 g
• Dimensions (H x width x D. ): 140 x 42 x 106 mm
• Network connection: Loose cable / screw terminals
• Network standard: Gigabit Ethernet
• Management: Smart
• Number of ports: 8
• Package weight: 0.4, 0.4 kg
• Package width: 170 mm
• Packaging height: 60 mm
• Packaging depth: 210 mm
• Catalog circulation: 24.1
• design type: DIN rail
• LAN (Mbit/s): 10/100/1000
• Gigabit Ethernet RJ-45 port: 8
• Power supply (external/internal): external
• Stackable: no

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Roline
Parametry	Number of ports	8
Parametry	EAN (GTIN)	7630049628298
Parametry	Manufacturer code	21.13.1134
