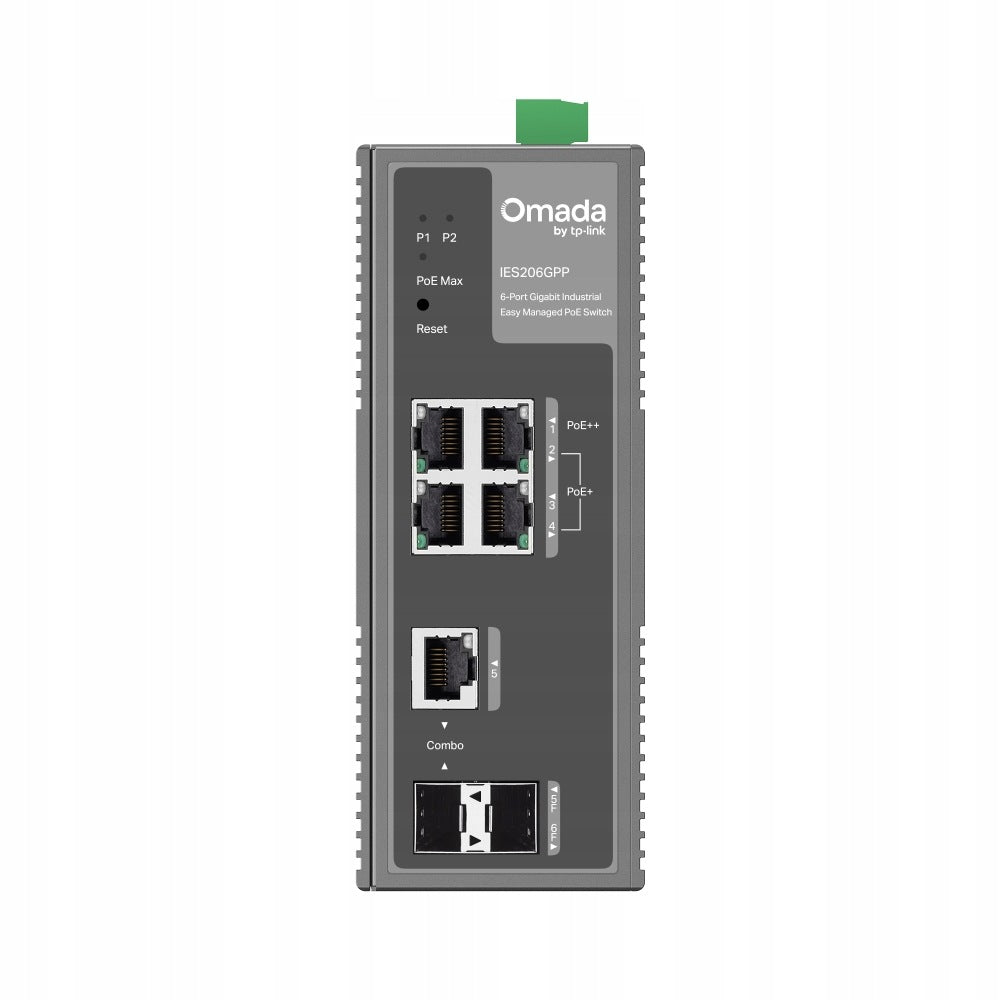

Pramoninis 6 prievadų gigabitinis jungiklis TP-Link IES206GPP, 3x PoE+

Trumpai apie prekę

Prekė: Pramoninis 6 prievadų gigabitinis jungiklis TP-Link IES206GPP, 3x PoE+. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: IES206GPP

• Manufacturer: TP-LINK
• Manufacturer code: IES206GPP
• EAN: 1210002602051

The most important features of the product

• 1 PoE++ port and 3 PoE+ ports allow you to power demanding network devices.
• The total PoE power of up to 120 W supports more extensive installations.
• Redundant 1+1 power supply increases the continuity of operation and safety of the system.
• The operating temperature range of -40°C to 75°C allows you to use the equipment in harsh environments.
• The IP40 enclosure with DIN and wall mounting makes it easy to deploy in industrial infrastructure.
• RJ45/SFP Combo Port and SFP Slot increase connection flexibility.
• Omada cloud management simplifies oversight of the entire installation.

Industrial design

The IES206GPP is designed to operate in harsh environments, offering operating temperatures from -40°C to 75°C and 6 kV lightning protection. The IP40 grade aluminum housing provides adequate durability, and the possibility of mounting on a DIN rail or wall makes it easy to implement in technical cabinets and dispersed points. This design works well in monitoring systems, automation and industrial infrastructure, where equipment failure can stop the entire installation. An additional advantage is the redundant 1+1 power supply, which increases the continuity of operation.

PoE power supply

The switch offers a total PoE power of up to 120W, with a PoE++ port capable of delivering up to 60W and three PoE+ ports up to 30W per port. This allows you to power demanding devices, such as IP cameras, access points, or other network elements, without the need for separate power supplies. Support for 802.3af, 802.3at and 802.3bt standards increases compatibility with a wide range of hardware. Fast PoE and Perpetual PoE features improve the convenience of working with devices that need to get back up and running quickly after a reboot.

Connectivity and performance

There are 4 RJ45 Gigabit ports, 1 RJ45/SFP Combo port and 1 SFP slot on board, giving you great flexibility when building your network. The switching capacity is 12 Gbps and the packet redirection speed is 8,93 Mpps, which ensures smooth operation even under higher load. An array of 8K MAC addresses, 4 Mb buffer and support for jumbo frames up to 15 KB support transmission stability. This makes the device suitable for infrastructure where reliability and predictability are key.

Management functions

IES206GPP supports management in the Omada cloud, through an application, browser, and hardware and software controllers. The user can use VLAN, QoS, STP/RSTP, IGMP Snooping, link aggregation, port mirroring and flow control, which gives a lot of control over network traffic. Diagnostic functions such as wiring diagnostics, DDM and automatic device detection are also available. This makes the switch fit well into centrally managed environments.

Application in the network

This model is designed for installations that require power and transmission for devices with higher power consumption. It will work well in IP monitoring, automation, power engineering, smart construction and other industrial projects. Support for PoE transmission ranges up to 250 m in Extend mode gives you additional flexibility when deploying devices in the field. As a result, you get a switch that combines simplicity of management with industrial resilience and high functionality.

Technical data

Basic information

• Manufacturer: TP-Link
• Model: IES206GPP
• Type: Industrial Easy Managed Omada
• Number of ports: 6 gigabit
• PoE ports: 1 × PoE++, 3 × PoE+
• Additional ports: 1 × RJ45/SFP Combo, 1 × SFP

PoE power supply

• Standards: 802.3af / 802.3at / 802.3bt
• Power on PoE++ port: up to 60 W
• Power on PoE+ port: up to 30 W
• Total PoE power: up to 120 W
• Fast PoE: Yes
• Perpetual PoE: Yes

Efficiency

• Switching capacity: 12 Gbps
• Redirect speed: 8,93 Mpps
• MAC Board: 8K
• Package Buffer: 4 Mb
• Jumbo frames: 15 KB

Network functions

• VLAN: Yes
• QoS: Yes
• STP/RSTP: Yes
• IGMP Snooping: Yes
• Link Aggregation: Yes
• Port Mirroring: Yes
• Flow Control: Yes

Governance

• Omada Cloud: Yes
• Omada App: Yes
• Web GUI: Yes
• SSH: Yes
• SNMP: Yes
• ZTP: Yes

Construction and Environment

• Housing: Aluminum
• Protection class: IP40
• Mounting: DIN rail/wall
• Operating temperature: -40°C to 75°C
• Lightning protection of Ethernet ports: ±6 kV
• Redundant power supply: 1+1 DC 12 – 57 V

Contents of the set

• Switch IES206GPP
• Mounting bracket for DIN rail
• Plates for wall mounting
• Installation instructions
