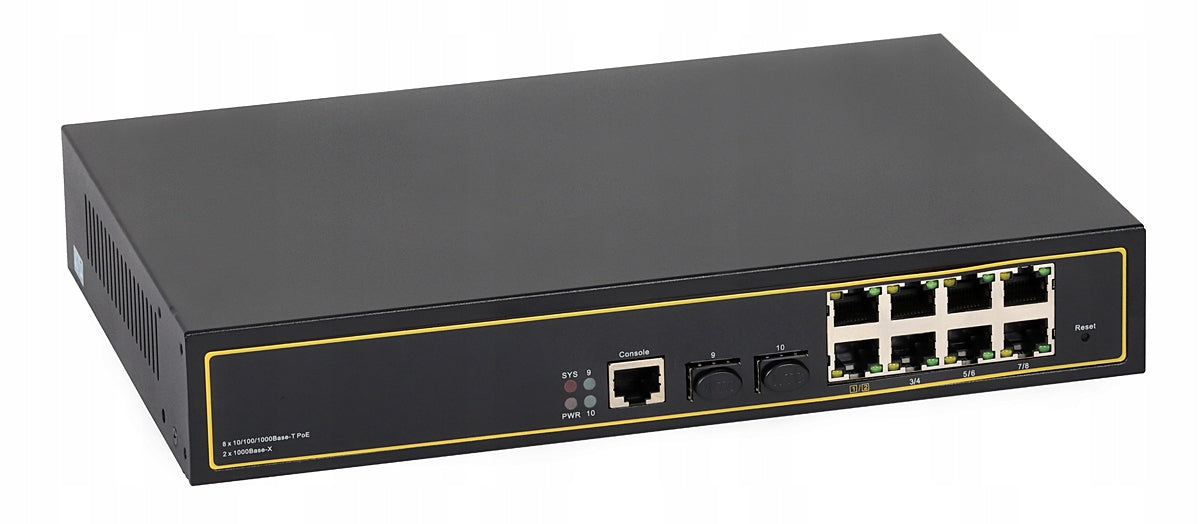

PoE valdomas komutatorius ULTIPOWER 382SFP, 8x GE, 2 vnt.

Trumpai apie prekę

Prekė: PoE valdomas komutatorius ULTIPOWER 382SFP, 8x GE, 2 vnt.. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: N29997

Product Code: 382SFP

The ULTIPOWER PoE Switch is an industrial-grade device that provides seamless network transmission. It allows you to establish connections at a speed of 10/100/1000 Mbps. It has 8 RJ45 ports supporting automatic connection speed negotiation and Power over Ethernet (PoE) function. The switch automatically detects the PD device. Power Device) operating in IEEE 802.3af/at standard and provides it with power. The switch is equipped with two 1000 Mbps SFP ports. In addition, the device is manageable and supports functions such as:

• VLAN,
• enabling/disabling ports,
• flow control,
• Port Mirror,
• ACL,
• MAC filtration,
• IGMP Snooping,
• static routing.

Switches of this type should be used in installations implemented in industrial facilities where it is possible to have unfavourable conditions for the operation of devices, such as increased dustiness, high or low temperature, or high humidity. Installation of industrial switches is also recommended for installations carried out on poles - in hermetic housings. Switches have Ethernet ports (depending on the Fast Ethernet or Gigabit Ethernet model) for connecting devices such as IP cameras or computers.

Distinguishing features:

• Managed switch - VLAN support
• Power supply:100...240 V AC,
• Possibility with RACK rails
• Power consumption: < 15W (without PoE),
• Ethernet ports: 8x GigabitEthernet 10/100/1000 Mbps,
• PoE ports: 1-2 802.3bt/at/af 90W, 3-8 802.3af/at 30W,
• Fiber Optic Transmission: 2x SFP 1000 Mbps,
• Protection against electrostatic discharges: 6 kV,
• Operating temperature range: -10...50℃,
• Permissible ambient humidity: 5...95%,
• Possible installation in the RACK cabinet.

Technical data:

• Name PoE Managed Switch ULTIPOWER 382SFP
• Model 382SFP
• Purpose Switch for Home, Switch for Office, Managed Switch, PoE Switch
• Manufacturer ULTIPOWER
• Device interfaces
• Ethernet ports number of ports 8
• type of Gigabit Ethernet ports
• 10/100 Mbps 1 Mbps
• 10/100/1000 Mbps 8
• PoE 10/100/1000 Mbps 8
• Optical port slot SFP Yes
• SFP slot 1000 Mb/s 2
• Console Port Yes
• Hardware performance
• Bandwidth Gb/s 20
• Mp/s 14,89 packet redirection rate
• Mb 1 buffer memory
• 8K address MAC array
• Properties of PoE
• PoE Yes
• PoE Standard 802.3af, 802.3at, 802.3bt 60 W, 802.3bt 90 W
• Capacity budget W 370
• Maximum power for port W 90
• Priority for PoE port Yes
• PoE Auto Check No
• PoE Schedule No
• Extend mode No
• Switching functions
• Port Mirroring Yes
• Flow Monitor Yes
• VLAN function
• Tag-based VLAN/802.1Q Yes
• Mac-based VLAN Yes
• IGMP Snooping / Multicast VLAN Yes
• VLAN for management Yes
• Multicast
• IGMP Snooping v1/v2/v3
• Management
• Export/Import settings Yes
• HTTP/FTP software update
• Browser management Yes
• Management by CLI Yes
• Hardware Properties
• AC power supply V 100...240
• Number of fans 1
• Dimensions mm 270 x 181 x 44
• Mounting method Desktop, RACK
• Redundant power supply No
• CE/FCC certificates
• Package Contents Manual, Power Cable, Switch, RACK Mounting Brackets
• Working environment
• Operating temperature ℃ 0...+40
• storage ℃ -40...+70
• Air humidity % 10...90
• storage % 5...90
