PoE valdomas FastEthernet jungiklis D-Link DSS-100E

Trumpai apie prekę

Prekė: PoE valdomas FastEthernet jungiklis D-Link DSS-100E. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: D-Link
• Modelis: KILDLISWI0044

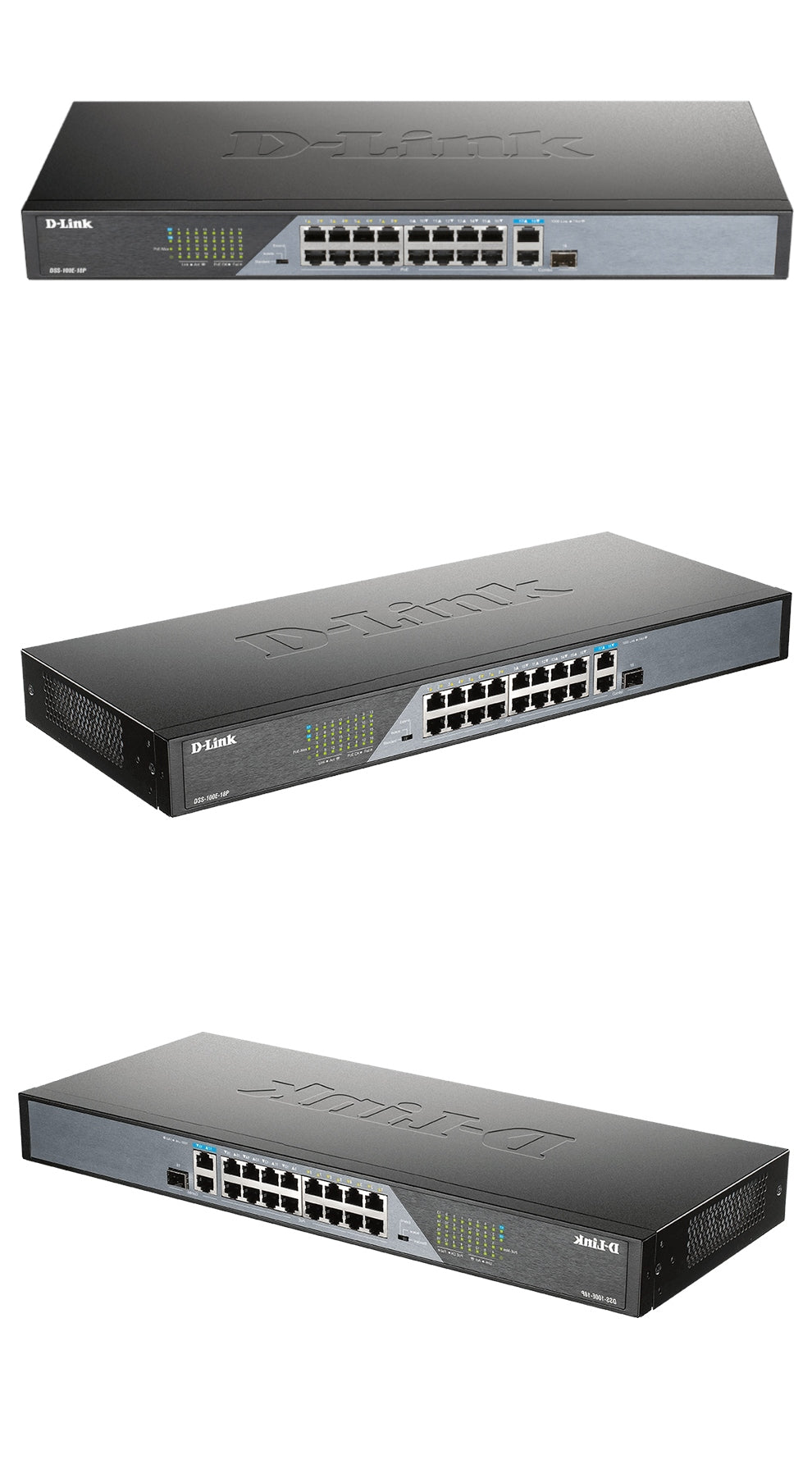

Fast Ethernet PoE Switch for Video Monitoring

◍ The DSS-100E-18P is part of D-Link’s leading series of Power over Ethernet (PoE) surveillance switches.

◍ These are the safest, most reliable and versatile, the best solutions for monitoring applications.

◍ Switches enable the installation of surveillance cameras over longer distances without the need for additional equipment and at the same time provide lower installation costs and convenience of implementation.

▶ Technical specification:

• Number of fans: 1
• Maximum power consumption: 265 W
• AC input voltage: 100 - 240 V
• Input frequency AC: 50/60 Hz
• Switch type: Not managed

• Package buffer memory: 0,352 MB
• Routing/switching throughput: 7,2 Gbit/s
• MAC address table size: 4000
• Store-and-forward: Yes
• PoE support: Yes
• Power over Ethernet (PoE) power supply per port: 30 W
• Number of Fast Ethernet (PoE) ports: 16
• Total Power over Ethernet (PoE): 230 W

• Standards met: IEEE 802.3 / IEEE 802.3ab / IEEE 802.3u / IEEE 802.3az / IEEE 802.3at / IEEE 802.3z / IEEE 802.3af / IEEE 802.3x
• Automatic MDI/MDI-X: Yes
• MTBF : 30000h
• Number of SFP Combo ports: 1
• Number of Gigabit Ethernet ports: 1
• Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100)
• Basic RJ-45 switching Number of Ethernet ports: 16
• Transfer speed: 5,36 Mpps

Manufacturer code: DSS-100E-18P / DSS-100E-18P
