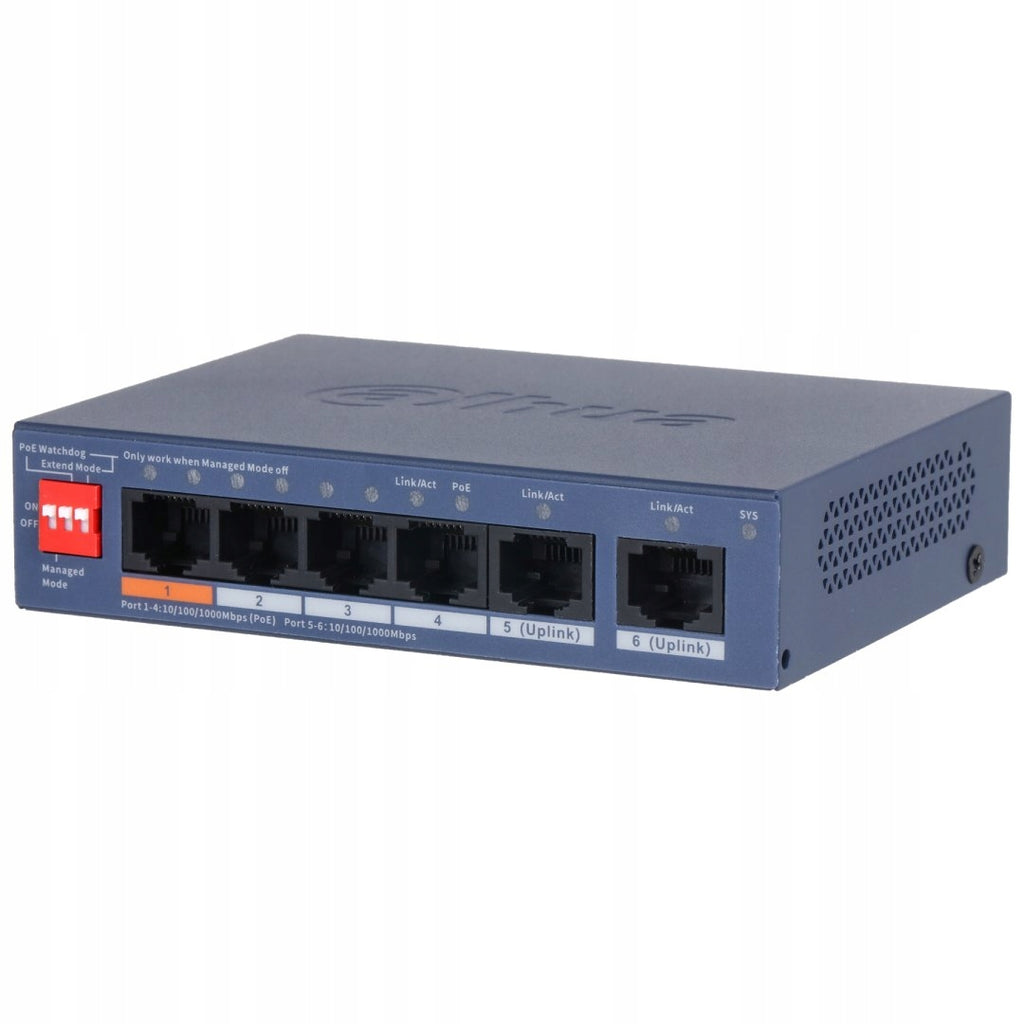

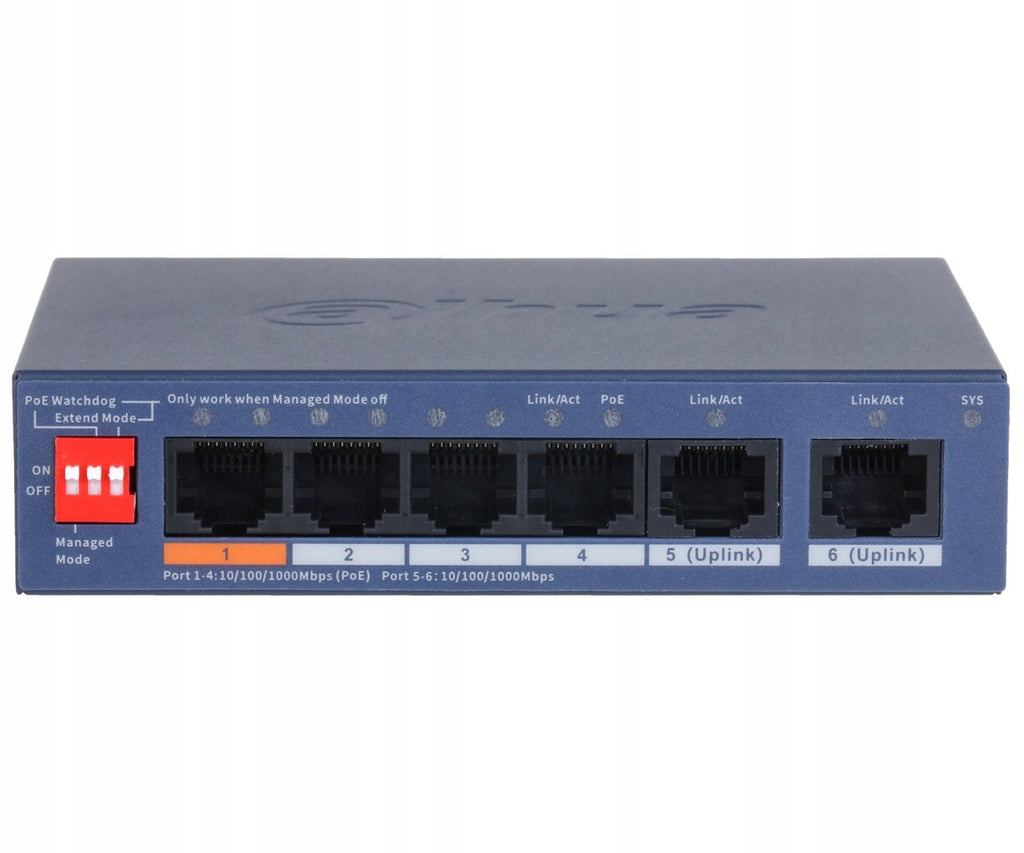

PoE tinklo jungiklis DAHUA CS4006-4GT-60-V2, 4 prievadai + 2 uplink

Trumpai apie prekę

Prekė: PoE tinklo jungiklis DAHUA CS4006-4GT-60-V2, 4 prievadai + 2 uplink. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Dahua
• Modelis: CS4006-4GT-60-V2

231,62

CS4006-4GT-60-V2

With its reliability and high-quality transmission, the CS4006-4GT-60-V2 10/100/1000 Mbps desktop 4-port PoE switch is the ideal solution for expanding your home or office network

Four ports support Power over Ethernet (PoE)

Switch is managed via the web and via the cloud (DoLynk Care app)

LAN ports:

• 4 x RJ45 10/100/1000 Base-T ( 1 x Hi-PoE + 3 x PoE (802.3af/at) ),
• 2 x RJ45 10/100/1000 Base-T - Uplink

Transmission rate:

• 10 / 100 / 1000 Mbps : 4 LAN & PoE ports,
• 10 / 100 / 1000 Mbps : 2 Uplink Ports

Maximum output power:

• 60 W / Hi-PoE port - Port 1
• 30 W / PoE port 802.3af/at - Ports 2 ... 4

Maximum total power:

60 IN

MAC Address Table:

2k

Management:

Operating modes:

Extend On : 250 m, 10 Mb/s @ UTP cat. 5e, 6

LEDs:

Power, System, PoE, Link/Act

Selected features:

• Switch is managed via the web and via the cloud (DoLynk Care app)
• protection against atmospheric discharges and potential differences between devices
• Watchdog PoE
• Loop Protection
• Compliance with the LLDP protocol
• Port Based VLAN: 32
• Data flow control (802.3x)
• DHCP client
• RESET button
• Can be mounted on the wall

Certificates:

CE

Security:

• Protection against atmospheric discharges (common/differential) : 4 / 2 kV
• Protection against electrostatic discharges - Contact/Air (ESD/EMP) : 6 / 8 kV

Housing:

Desktop, Metal

Power supply:

53 V DC / 1.22 A (power supply included)

Power Consumption:

max. 65 W

Operating temperature:

-10 °C ... 55 °C

Weight:

0.2 kg

Dimensions:

115 x 84 x 27 mm

Manufacturer / Brand:

DAHUA

:
