PoE signalo stiprintuvas EXT-POE4, iki 200 m, 2 IP kameroms, PULSAR

Trumpai apie prekę

Prekė: PoE signalo stiprintuvas EXT-POE4, iki 200 m, 2 IP kameroms, PULSAR. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Pulsar
• Modelis: EXT-POE4PULSAR

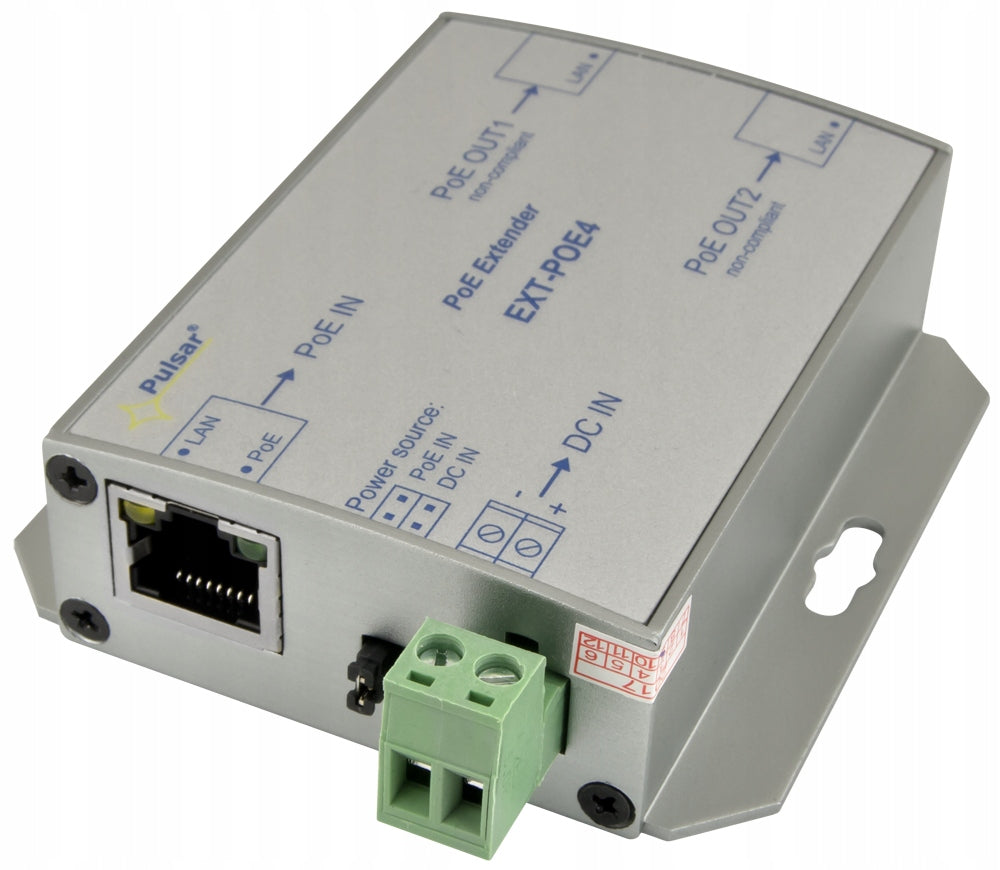

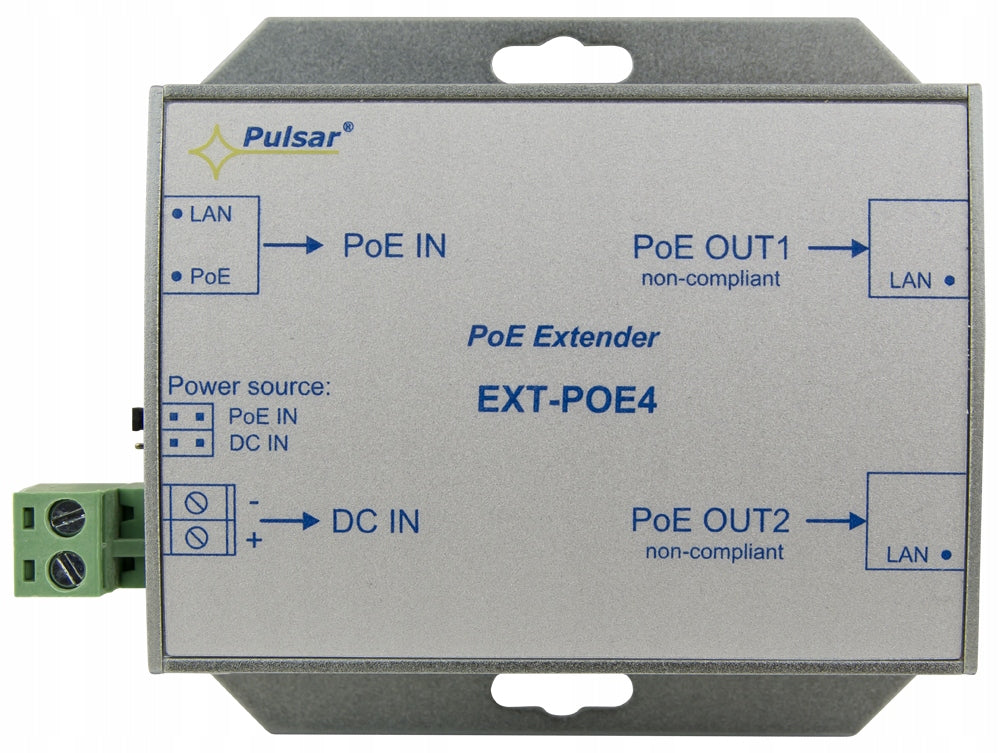

EXT-POE4 Extender PoE Pulsar

EXT-POE4 - PoE Extender for effective range of data transmission and PoE power supply after UTP twisted pair (cat. 5) by an additional 100 m. Universal and reliable, works great in IP monitoring systems and extensive LAN networks.

Most important features:

• IEEE 802.3af compliant PoE IN input
• 2 PoE OUT passive outputs (output voltages compatible with input voltage)
• Selecting a power source with a Power Source jumper
• Ability to work in Ethernet (10 Mbps) and Fast Ethernet (100 Mbps) networks
• Optical indication of operating status
• Overvoltage protection, overload protection (OLP), short-circuit protection (SCP)
• Power supply from PoE switch or 44 - 57 V DC power supply (DC IN input)
• Max. load current: 0.3 A / port (0.4 A total)

The EXT-POE4 extender works great in external IP monitoring systems used in large facilities. With its help, the IP camera can be mounted at a distance of up to 200 m from the NVR. Extender is also used in LANs used in companies or hotels with multiple access points.

Technical specification:

• Input: 1x PoE IN, 2x PoE OUT
• Output: 2x RJ-45 (2x PASSIVE)
• Increased range: 100 m
• Network compatibility: 10 / 100 Mb/s
• Surge protection: YES
• Overload protection (OLP): YES
• Short-circuit protection (SCP): YES
• Operating signal: LED
• Environmental class: II
• Operating temperature: -10...+40 °C
• Power supply: 44 - 57 V DC
• Module power: Max. 20 IN
• Current consumption: < 30 mA
• Output voltage: Compatible with supply voltage
• Output current: 0.3 A / port (0.4 A total)
• Dimensions: 81 x 77 x 26 mm
• Weight: 0.11 kg

PoE technology

Data transmission and power supply on the same cable

Power over Ethernet technology enables power generation and Ethernet data transmission on the same twisted pair cable.

The biggest advantages of this solution include:

• Improving installation flexibility. Technology allows the installation of PoE devices in places where standard power supplies cannot be brought
• Reducing the number of wires necessary to perform the correct installation, which significantly speeds up the installation of the system
• PoE technology does not require prior configuration. PoE switch automatically recognizes whether the connected device supports the technology and, if so, realizes its power supply

Attention!

Pairs of 4/5 and 7/8 conductors are used for power transmission. According to the Ethernet standard, they are not used for data transmission.
