PoE++ maitinimo šaltinis PSE RJ45, 90 W

Trumpai apie prekę

Prekė: PoE++ maitinimo šaltinis PSE RJ45, 90 W. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Roline
• Modelis: 21.13.1202

Product Catalog Number: 21.13.1202

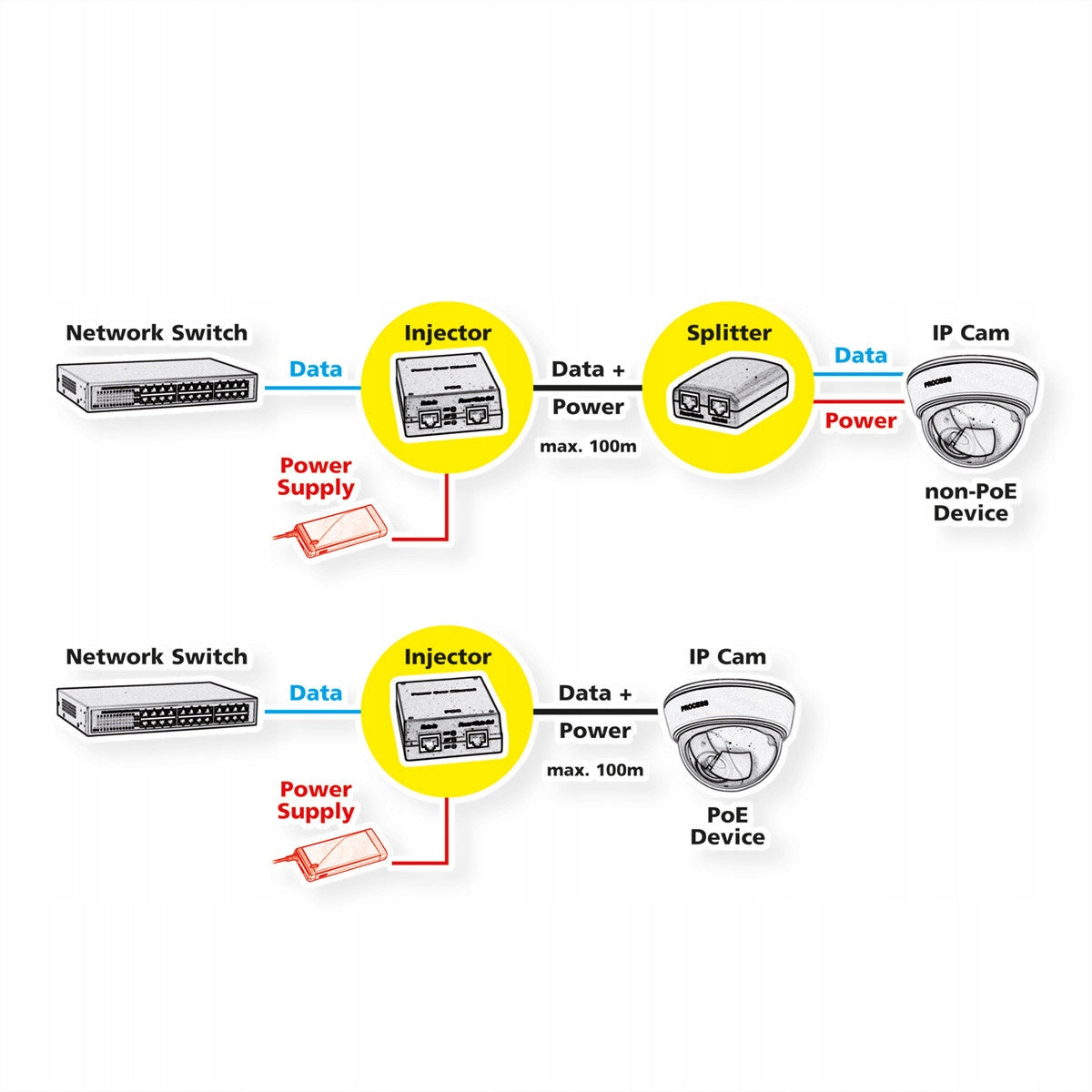

ROLINE Gigabit PoE Injector is a so-called PSE, i.e. a device for powering e.g. surveillance cameras and LAN devices such as access points, bridges and routers via Ethernet cable.

The PSE supplies the electricity along with the data in the network cable. It does not require an additional power supply of the device.

• Supplying data and power to network cables

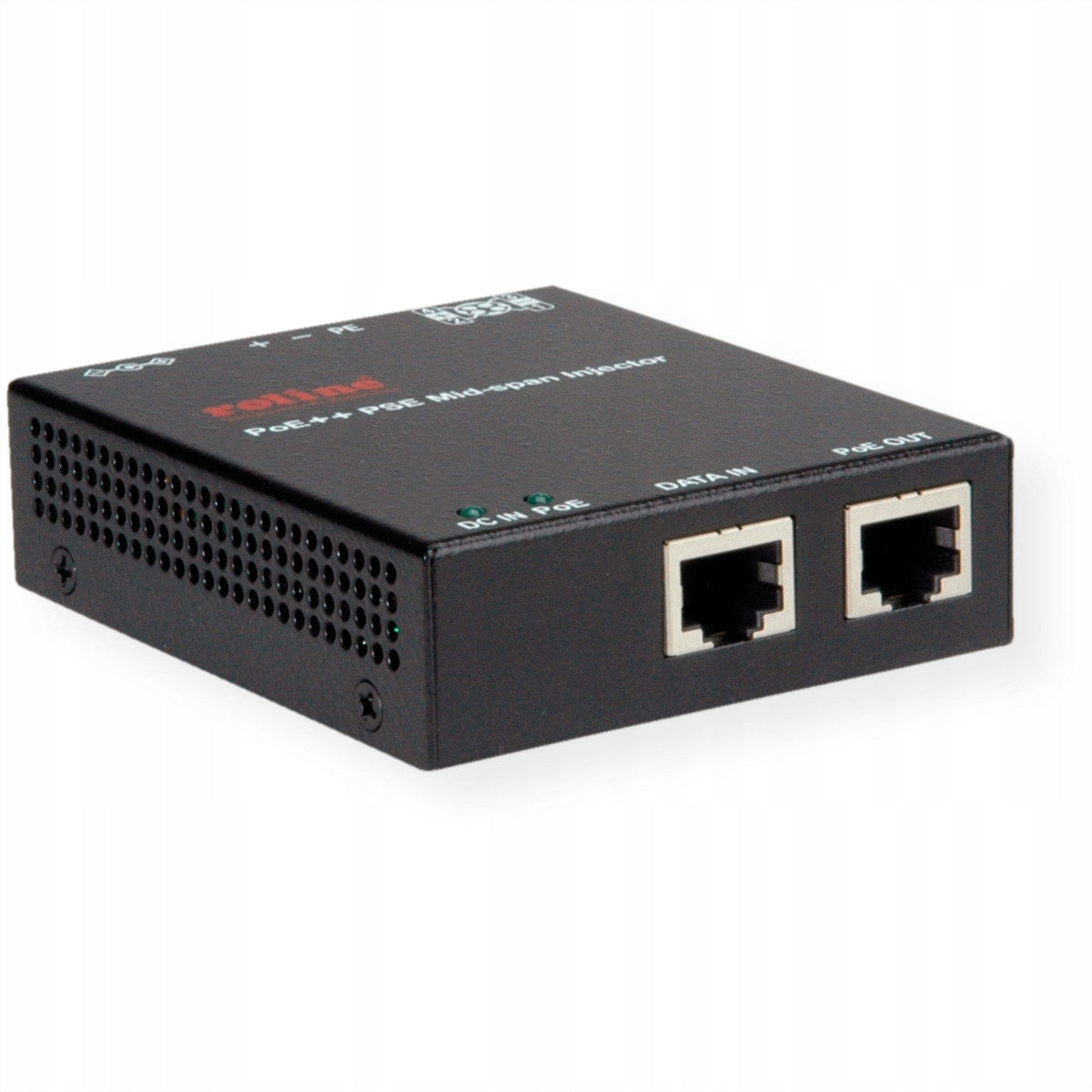

• Connections: 1x RJ-45 port (Data In, data input), 1x power jack (Power In, power input), 1x RJ-45 port (Data & Power Out, data and power output)
• Compatible with 802.3af and 802.3at standards
• Power over PoE++: up to 90W
• LED indicators for Power, Link/Act. and PoE
• Output voltage: 802.3af standard (45V-57V DC)
• Contents: Injector, manual

• Producer: ROLINE
• Current catalog issue: C23-01.07
• Color: Black
• Product type: Gigabit PoE-Injector
• Width: 73mm
• Height: 85mm
• Weight: 184g
• Depth: 24mm
• Product group: PoE adapter
• Dimensions (H. x width x depth ): 85x73x24mm
• Package height (single piece): 70 mm
• Package width (single piece): 130 mm
• Packaging depth (single piece): 150 mm
• Power over Ethernet (PoE): PoE++
• Number of PoE ports: 1
• Mains connection: Loose cable / screw terminals
• max. PoE output power per port: 90W
• Packaging weight (single piece): 0.278 kg
• max. PoE output power (total): 90W
