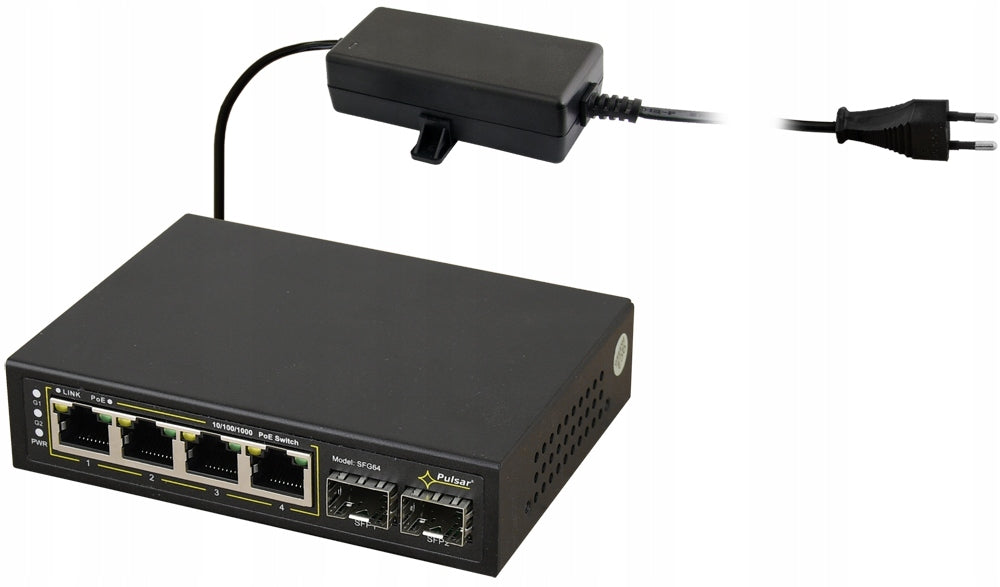

PoE komutatorius Pulsar SFG64, 4x Gigabit PoE, 2x SFP

Trumpai apie prekę

Prekė: PoE komutatorius Pulsar SFG64, 4x Gigabit PoE, 2x SFP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Pulsar
• Modelis: SFG64

Characteristics:

• Switch 6 port

  4 PoE ports 10/100/1000Mb/s (data and power supply)

  2 ports 10/100/1000Mb/s SFP (ports G1, G2)

• 30W for each PoE port, support IEEE802.3af/at (PoE+) compliant devices
• 48W – maximum total power for all PoE ports
• Support auto-learning and auto-aging MAC addresses (1K size table)
• Optical signalling
• Desktop power supply PSD520115 52VDC/1,15A/60W max. included
• Additional mounting elements – switch mounting plates to the ground included

Description:

SFG64 is a 6-port PoE switch designed to power IP cameras operating in the IEEE standard

802.3af/at. Switch on ports 1 to 4 has the function of automatic detection of devices powered in the PoE / PoE + standard. UP LINK ports (designated G1 and G2) are used to connect subsequent network devices using fiber optic (GBIC insert should be used).

On the front panel there is an indication of the operating status of the device realized on LEDs (description in the table below).

PoE technology provides a network connection and reduces installation costs, eliminating the need to supply a separate power cable to each device. In addition to cameras, network devices that use this technology can be powered in this way, e.g. IP phone, Access Point, router.

Technical parameters:

Ports

• 6 ports 10/100/1000Mbps (4 x PoE + 2 x UP LINK)
• with automatic connection speed negotiation, Auto MDI/MDIX automatic patching

PoE power

• IEEE 802.3af/at (1÷4), 52 V DC / 30 W per port

Protocols, standards

• IEEE802.3, 802.3u, 802.3x CSMA/CD, TCP/IP

Capacity

• 12Gbps

Method of transmission

• Store-and-Forward

Optical work signaling

• Power supply of the switch;
• Link;
• PoE Status

Power supply

• ~100-240 V; 50/60 Hz; 1,3 A
• Desktop power supply PSD520115 52V DC/1,15A/60W max.

Working conditions

• Temperature -10°C ÷ 40°C,
• Relative humidity 5% - 90%, non-condensing

Dimensions (W x H x D)

• W=118, H=28, D=95 [+/- 2mm]

Additional accessories

• fixing sheets to the ground,

Net/gross weight

• 0,6/0,8kg

Protection class PN-EN 60950-1:2007

• I (first)

Storage temperature

• -20°C ÷ 60°C

Declarations

• CE
